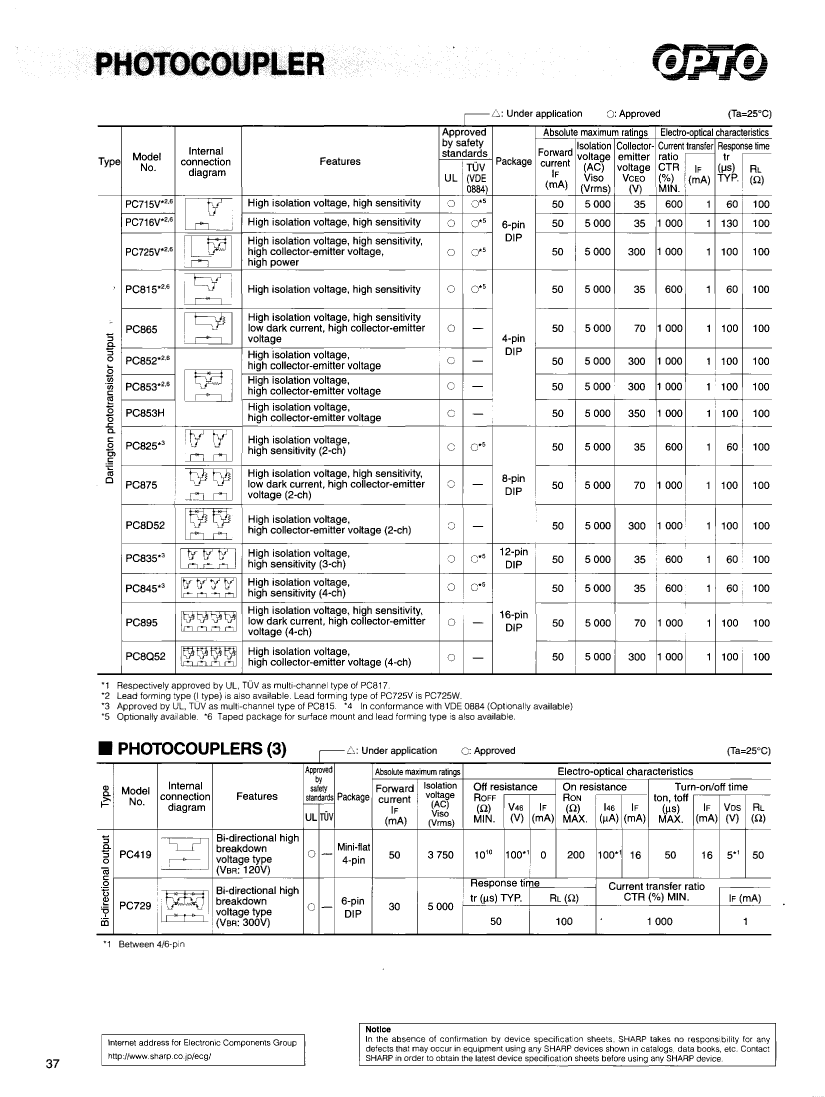

PC729 Overview

Darlington Output Optocoupler, 2-Element, 5000V Isolation, DIP-6

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP-6
Reach Compliance Code	unknown
Other features	UL APPROVED
Configuration	COMPLEX
Nominal current transfer ratio	1000%
Maximum forward current	0.03 A
Maximum insulation voltage	5000 V
JESD-609 code	e0
Number of components	2
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

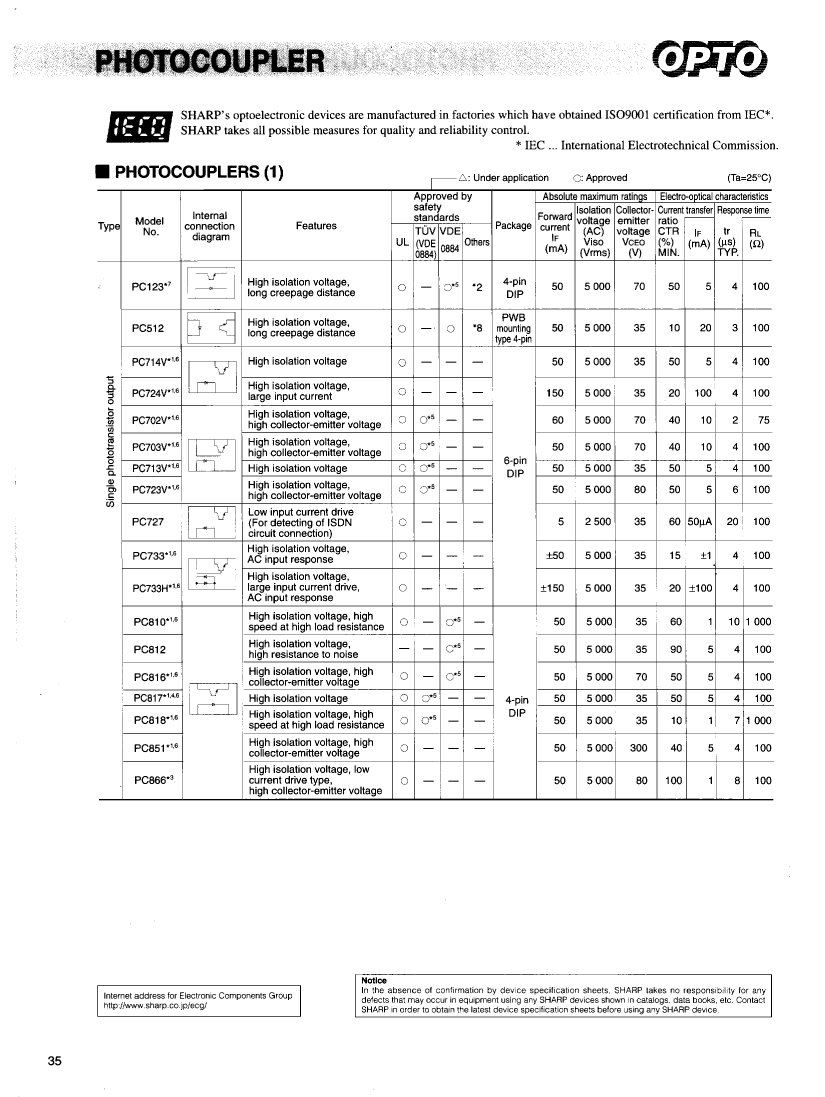

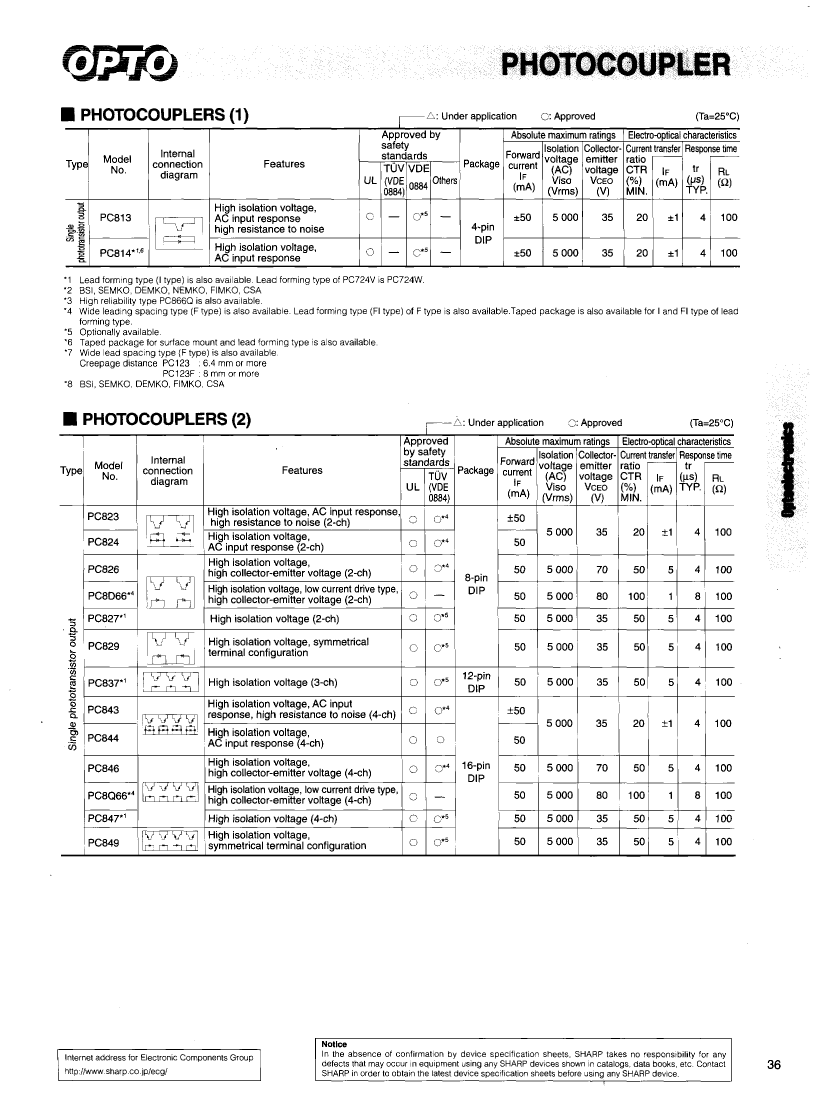

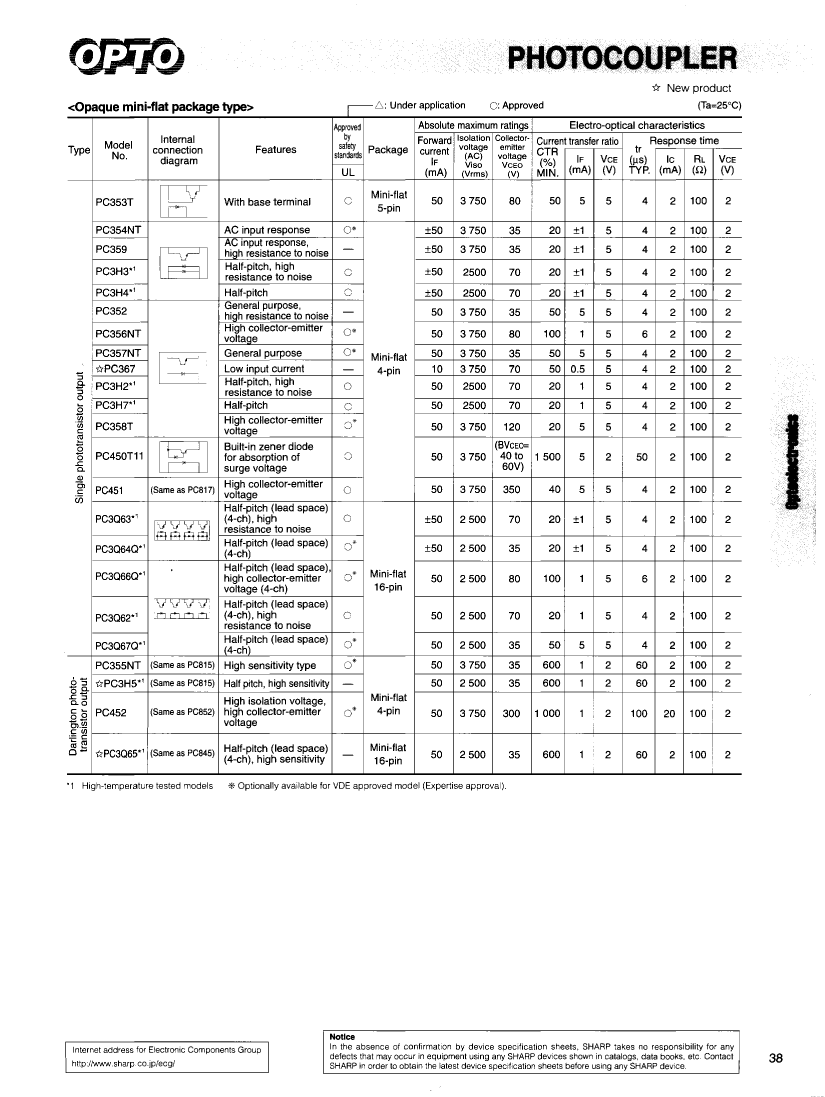

	PC729	PC715V	PC419	PC725V	PC367	PC358T
Description	Darlington Output Optocoupler, 2-Element, 5000V Isolation, DIP-6	Darlington Output Optocoupler, 1-Element, 5000V Isolation, DIP-6	FET Output Optocoupler, 1-Element, 3750V Isolation, MINI-FLAT, 4 PIN	Darlington Output Optocoupler, 1-Element, 5000V Isolation, DIP-6	Transistor Output Optocoupler, 1-Element, 3750V Isolation, 4 PIN	Transistor Output Optocoupler, 1-Element, 3750V Isolation, 4 PIN
package instruction	DIP-6	DIP-6	MINI-FLAT, 4 PIN	DIP-6	4 PIN	4 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	COMPLEX	SINGLE	SINGLE	SINGLE WITH BUILT-IN DIODE AND RESISTOR	SINGLE	SINGLE
Maximum forward current	0.03 A	0.05 A	0.05 A	0.05 A	0.01 A	0.05 A
Maximum insulation voltage	5000 V	5000 V	3750 V	5000 V	3750 V	3750 V
Number of components	2	1	1	1	1	1
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	FET OUTPUT OPTOCOUPLER	DARLINGTON OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-	-
Other features	UL APPROVED	UL RECOGNIZED	BI-DIRECTIONAL OUTPUT	UL APPROVED	-	UL APPROVED, VDE APPROVED
Nominal current transfer ratio	1000%	1600%	-	1000%	50%	20%
JESD-609 code	e0	e0	e0	e0	-	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-
Base Number Matches	1	1	1	1	1	-
Maker	-	SHARP	SHARP	SHARP	SHARP	SHARP
Is Samacsys	-	N	N	N	N	-
Coll-Emtr Bkdn Voltage-Min	-	35 V	120 V	300 V	70 V	120 V
