Features
■
■
■
■
■
■
NT
Wirewound and Hybritron
®
elements
High rotational life
Optional 0.20 % linearity
Optional A/R lug
RoHS compliant*
Suitable for use under side load
CO
■
■
■
Designed for HMI and MMI applications
Dual gang option

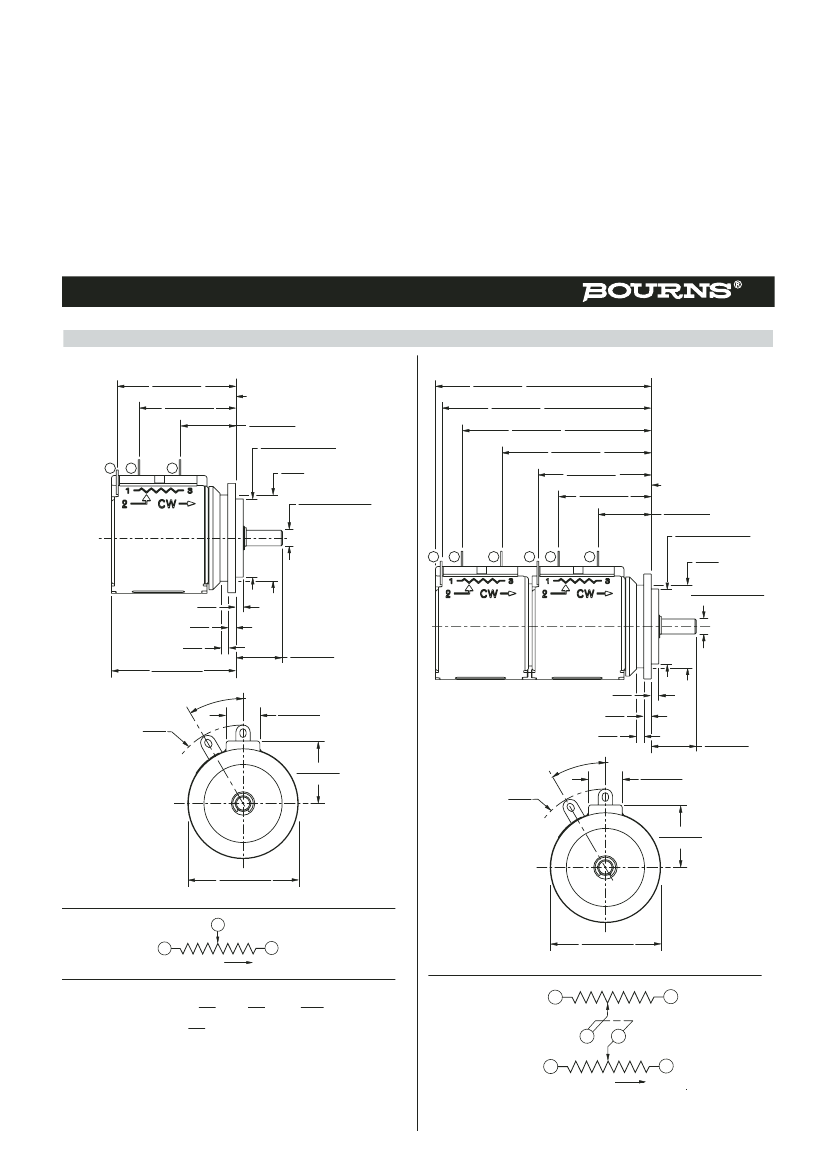

Servo mount option
*R
oH
S
M

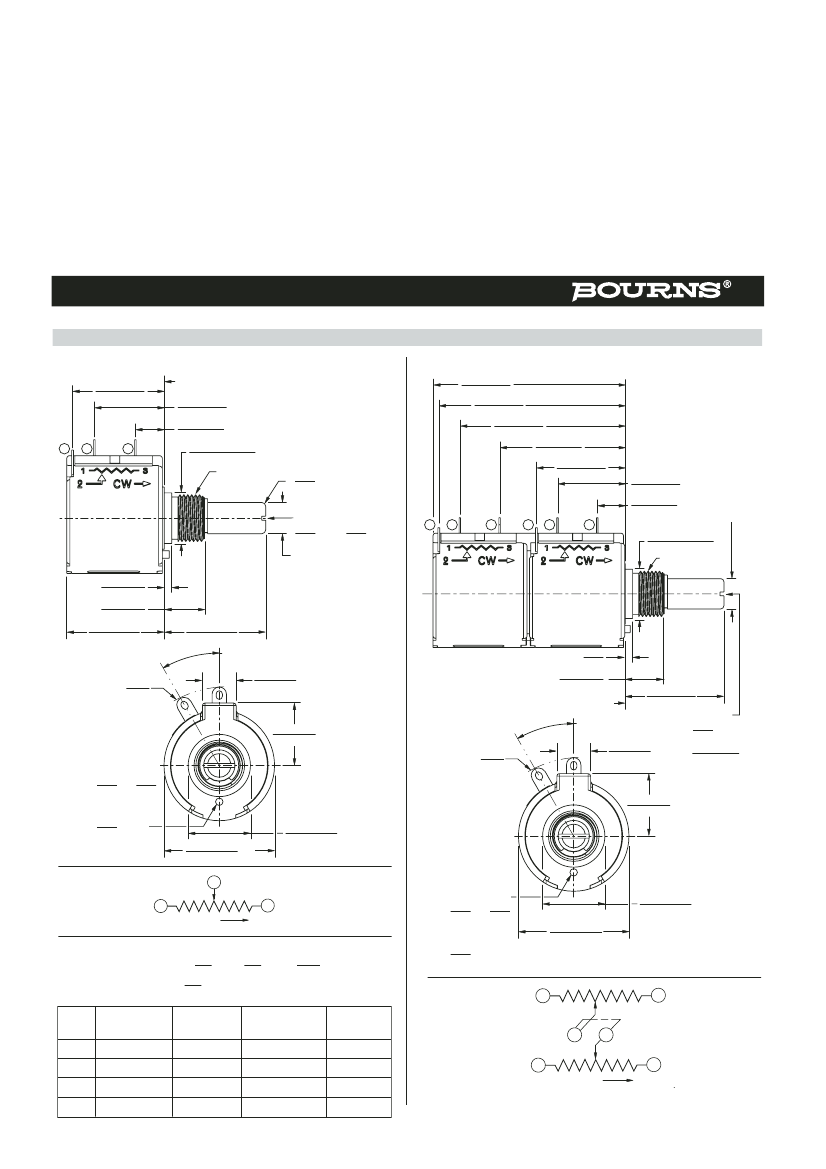

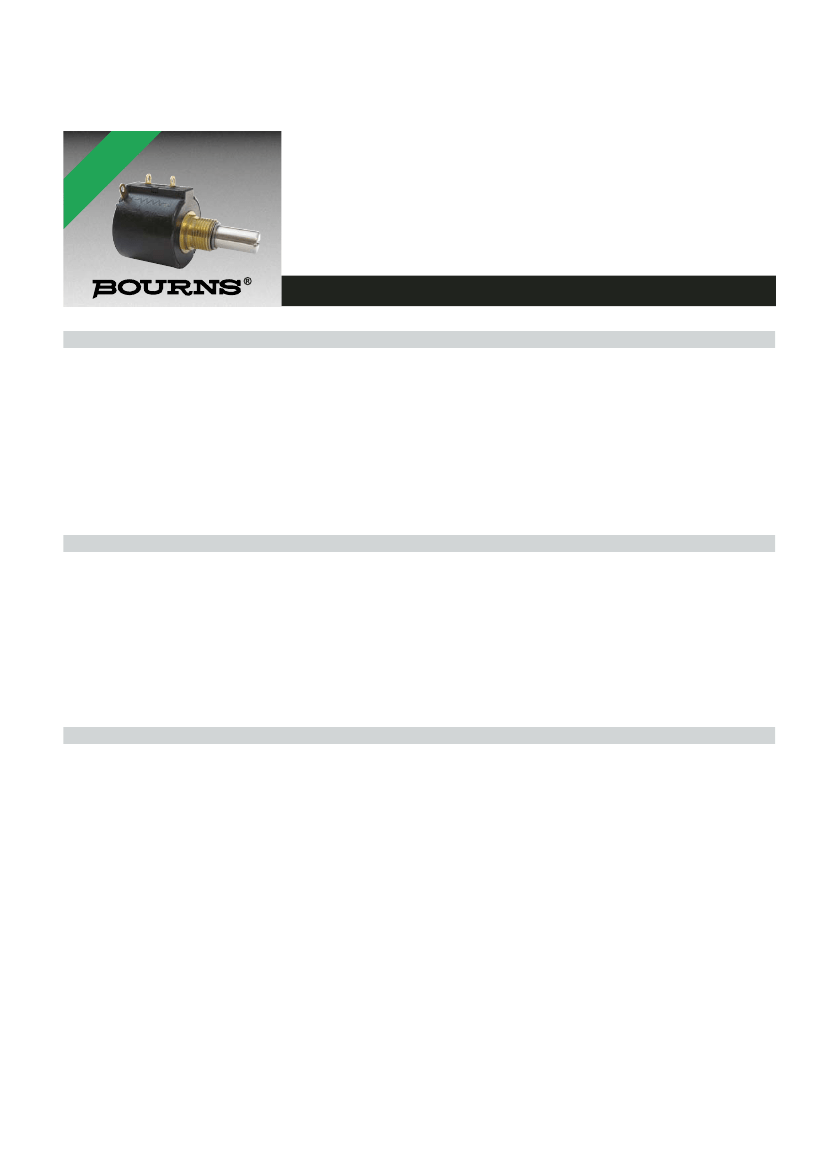

3547 - 3-Turn Precision Potentiometer
Electrical Characteristics
1
Wirewound Element
Hybritron
®
Element
Standard Resistance Range ................................................................1K to 50K ohms ....................................................1K to 10K ohms
Total Resistance Tolerance ..................................................................±3 % ......................................................................±10 %
Independent Linearity ..........................................................................±0.25 %..................................................................±0.25 %
Independent Linearity (Maximum Practical) ........................................±0.20 %..................................................................±0.20 %
Effective Electrical Angle ....................................................................1080 ° +10 °, -0 ° ..................................................1080 ° +10 °, -0 °
Absolute Minimum Resistance/End Voltage ......................................1 ohm or 0.1 % maximum ....................................0.7 % maximum
(whichever is greater)
Noise/Output Smoothness ................................................................100 ohms maximum ..............................................0.15 % maximum
Max. Wiper Current @ 5K ohms ..........................................................20 mA ....................................................................10 mA
Dielectric Withstanding Voltage (MIL-STD-202, Method 301)
Sea Level ........................................................................................1,000 VAC minimum ..............................................1,000 VAC minimum
Insulation Resistance (500 VDC) ........................................................1,000 megohms minimum ....................................1,000 megohms minimum
Resolution ................................................................................................See How to Order chart ..........................................Essentially infinite
Power Rating (Voltage Limited By Power Dissipation)
+70 °C ............................................................................................1 watts....................................................................1 watts
+125 °C ..........................................................................................0 watt ....................................................................0 watt
Environmental Characteristics
1
Operating Temperature Range
Dynamic ..........................................................................................-40 °C to +125 °C ..................................................-40 °C to +125 °C
Static ..............................................................................................-55 °C to +125 °C ..................................................-55 °C to +125 °C
Temperature Coefficient (Over Static Temperature Range) ................±50 ppm/°C............................................................±100 ppm/°C
Temperature Cycling (5 Cycles Over Static Temperature Range) ......±2 % TR shift max. ................................................±4 % TR shift max.
Vibration (15 Gs, 10 Hz to 2 kHz)
Wiper Bounce..................................................................................0.1 ms max. ..........................................................0.1 ms max.
Shock (100 Gs, 6 ms sawtooth)
Wiper Bounce..................................................................................0.1 ms max. ..........................................................0.1 ms max.
Load Life (1,000 hours @ 70 °C)..........................................................±2 % TR shift max. ................................................±5 % TR shift max.
Rotational Life
No Load ..........................................................................................750,000 shaft revolutions ......................................1,500,000 shaft revolutions
Powered (MIL-PRF-12934)..............................................................600,000 shaft revolutions ......................................1,200,000 shaft revolutions
Moisture Resistance (Mil-Std-202, Method 103) ................................±2 % TR shift max. ................................................±5 % TR shift max.
IP Rating ..............................................................................................IP 50 ......................................................................IP 50
Mechanical Characteristics
1
Mechanical Angle ..........................................................................................................................................................................................1080 ° +10 °, -0 °
Backlash ....................................................................................................................................................................................................................1.0 ° max.
Stop Strength................................................................................................................................................................................................53 N-cm (75 oz-in.) min.
Torque
Starting ........................................................................................................................................................................................0.5 N-cm (0.7 oz.-in.) max.
Running ......................................................................................................................................................................................0.5 N-cm (0.7 oz.-in.) max.
Mounting..........................................................................................................................................................................170-200 N-cm (15-18 in.-lb.) max.
Shaft Runout T.I.R. ......................................................................................................................................................................................0.08 mm (0.003 in.)
Lateral Runout T.I.R. ....................................................................................................................................................................................0.13 mm (0.005 in.)
Shaft End Play T.I.R. ....................................................................................................................................................................................0.15 mm (0.006 in.)
Shaft Radial Play T.I.R. ................................................................................................................................................................................0.08 mm (0.003 in.)
Pilot Diameter Runout T.I.R. ........................................................................................................................................................................0.08 mm (0.003 in.)
Weight
Single ....................................................................................................................................................................................................18 gm (0.63 oz.) typ.
Dual ........................................................................................................................................................................................................34 gm. (1.2 oz.) typ.
Shaft Side Load (Max. Allowable)
Nickel Plated Brass Shaft w/Brass Bushing ................................................................................................................................................50 gmf (1.7 ozf)
Stainless Steel Shaft w/Bronze Bushing ....................................................................................................................................................250 gmf (8.8 ozf)
Terminals ..............................................................................................................................................................................................Gold-plated solder lugs
Soldering Condition
Manual Soldering ........................................................96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire, 370 °C (700 °F) max. for 3 seconds
Wave Soldering ..................................................................................96.5Sn/3.0Ag/0.5Cu solder with no-clean flux, 260 °C (500 °F) max. for 5 seconds
Wash processes ......................................................................................................................................................................................Not recommended
Mounting Hardware............................................................................................One lockwasher and one mounting nut is shipped with each potentiometer
Recommended Panel Thickness (Bushing Mount) ..................................................................................................................2.46-3.81 mm (0.097-0.150 in.)
Marking ........................................................................................................................Manufacturer’s symbol, model number, product code and date code
Standard Packaging............................................................................................................................................................................Plastic trays (5 pcs./tray)
At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.
For other options, please consult factory.
1
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
