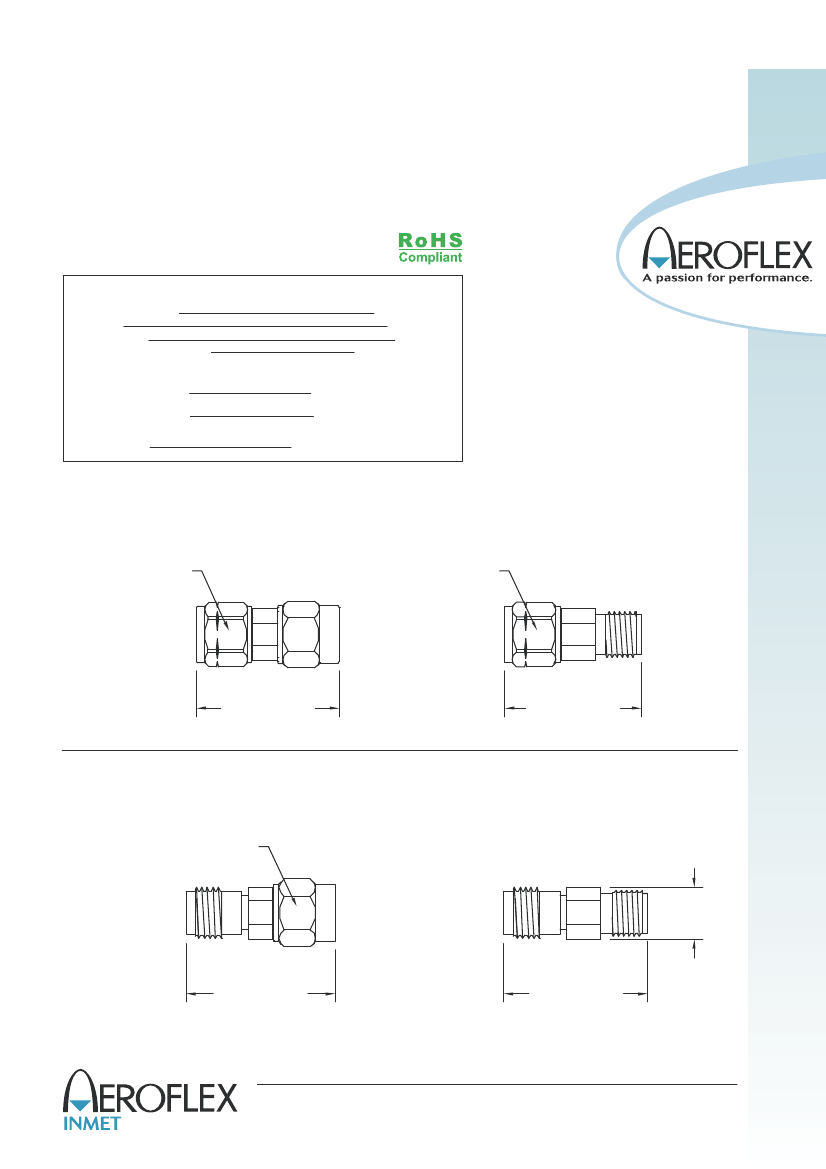

ADAPTERS, BETWEEN SERIES
2.4mm / 3.5mm, DC - 34 GHz
SPECIFICATIONS:
Models: 5065, 5066, 5067 5068
,
Electrical:
Frequency Range
VSWR
Impedance
Operating Temp. Range
DC - 34 GHz
1.25:1 Max.
50 Ohms
-65°C to +125°C
Mechanical:
2.4mm Connectors
Mates with 1.85mm & V* Connectors
Passivated Stainless Steel
Passivated Stainless Steel
Gold Plated Beryllium Copper
*K and V are trademarks of Anritsu Corp.
3.5mm Connectors
Mates both Mechanically and Electrically with
all SMA, K* Series Connectors
Conductors
Model Number:
5065
2.4mm MALE / 3.5mm MALE
Model Number:
5066
2.4mm MALE / 3.5mm FEMALE
2x 5/16 HEX
5/16 HEX
.76±.03
[19.30±0.76]
.73±.02
[18.54±0.51]
Model Number:
5067
2.4mm FEMALE / 3.5mm MALE
Model Number:
5068
2.4mm FEMALE / 3.5mm FEMALE
5/16 HEX
Ø.28
[7.11]
.80±.02
[20.32±0.51]
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Units that offer very low return loss (VSWR) are also available.
.77±.02
[19.56±0.51]
5065: REV -
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com • inmetsales@aeroflex.com
