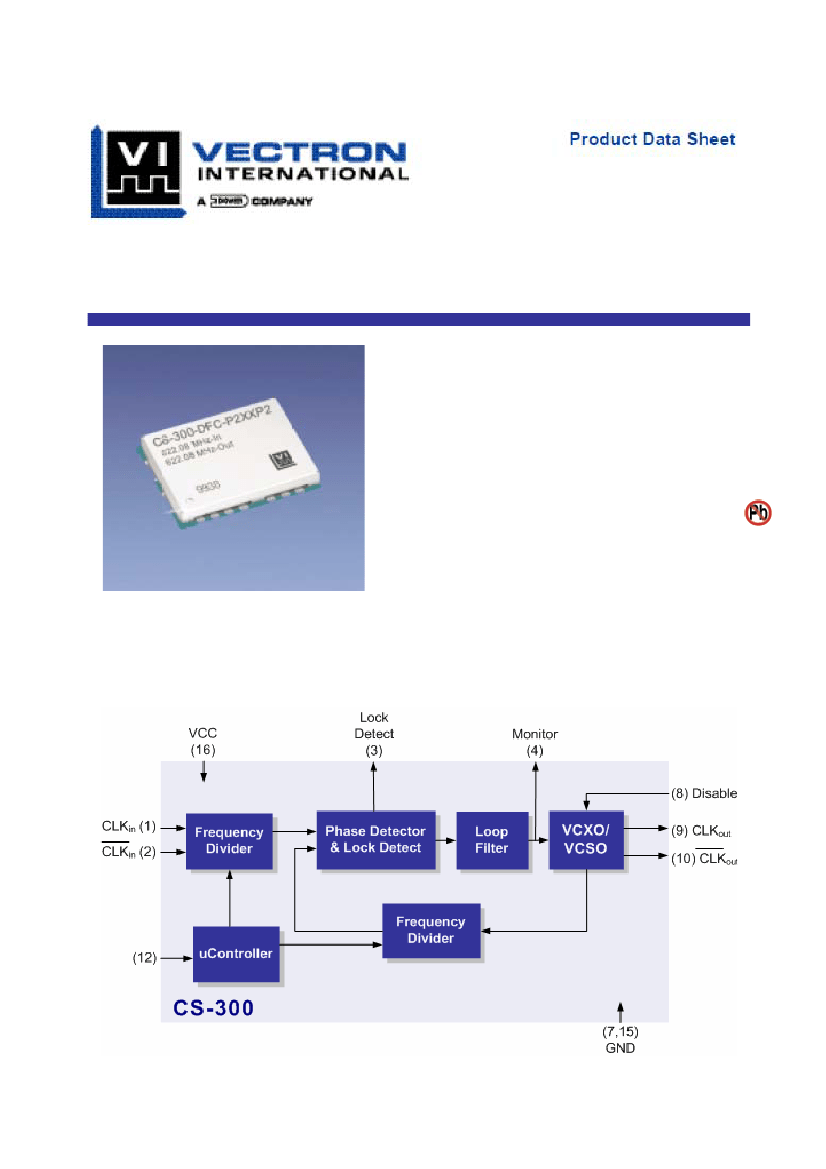

CS-300
Clock Smoother
Features
•
•
•
•
•
•
•
Output frequencies to 850 MHz
Ultra Low Jitter LVPECL, LVDS Outputs
Locks to Input Frequency (i.e. 622.08 MHz)
3.3 Vdc or 5.0 Vdc supply
Lock / Loss of Signal Alarm
1” x 0.8” x 0.25”, Surface Mount (FR4 base)
Product is compliant to RoHS directive
Applications
•
•
•
•
SONET / SDH / ATM
DWDM / FDM
DSL – PON Interconnects
FEC (Forward Error Correction)

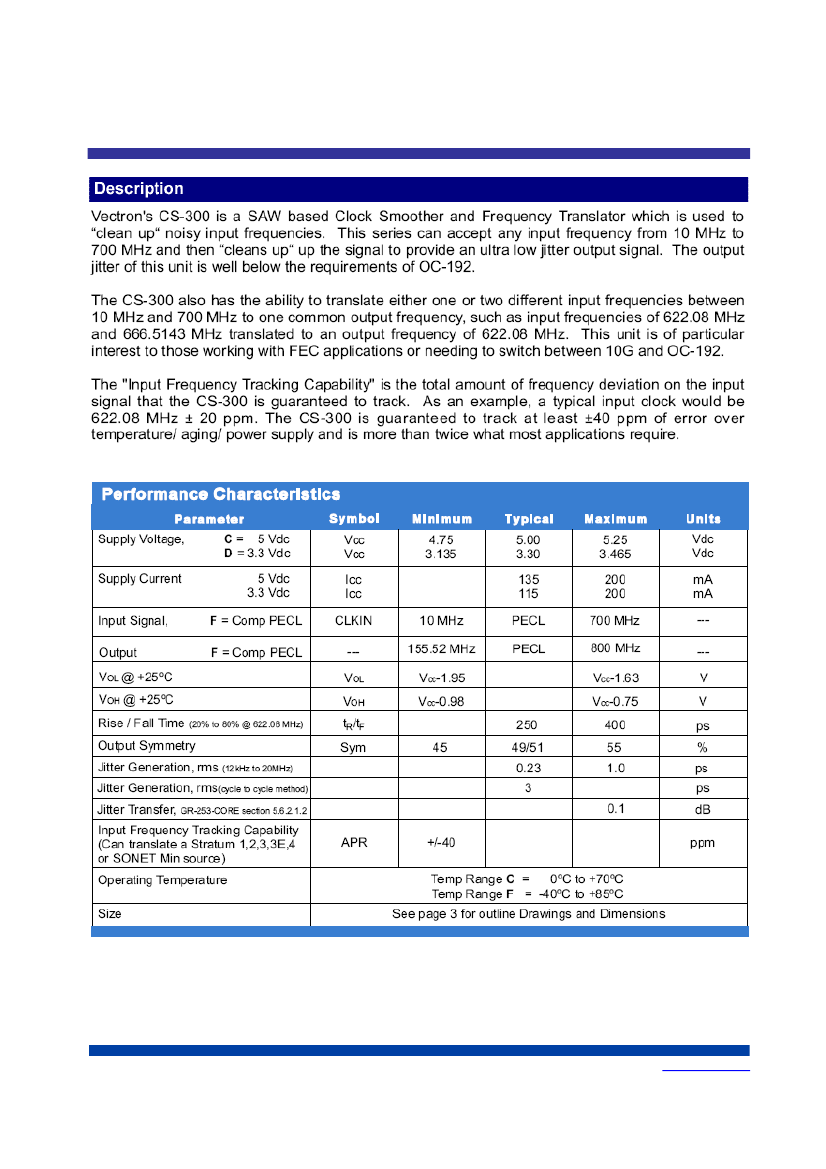

CS-300 Clock Smoother
Vectron International, 267 Lowell Road, Hudson, NH 03051
Page 2 of 8
Tel: 1-88-VECTRON-1
•
Web:
www.vectron.com
Rev: 02Jan07

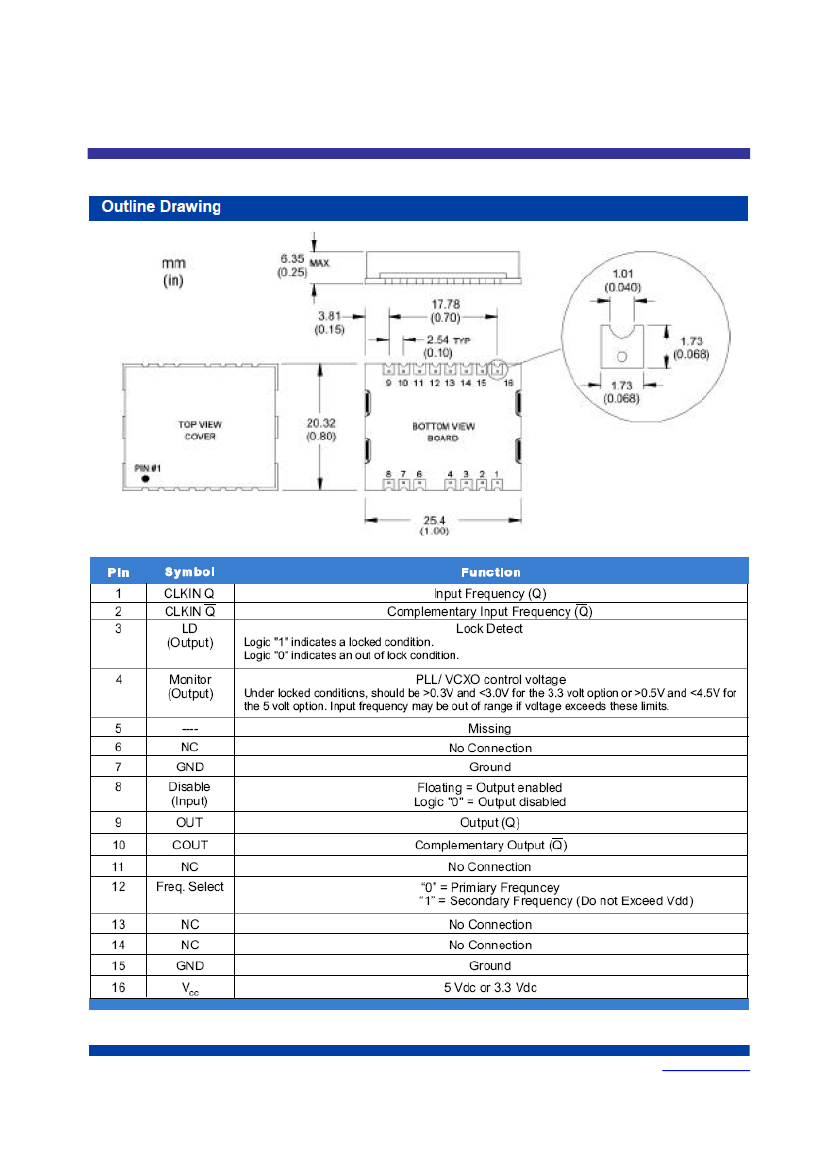

CS-300 Clock Smoother
Vectron International, 267 Lowell Road, Hudson, NH 03051
Page 3 of 8
Tel: 1-88-VECTRON-1
•
Web:
www.vectron.com
Rev: 02Jan07
CS-300 Clock Smoother

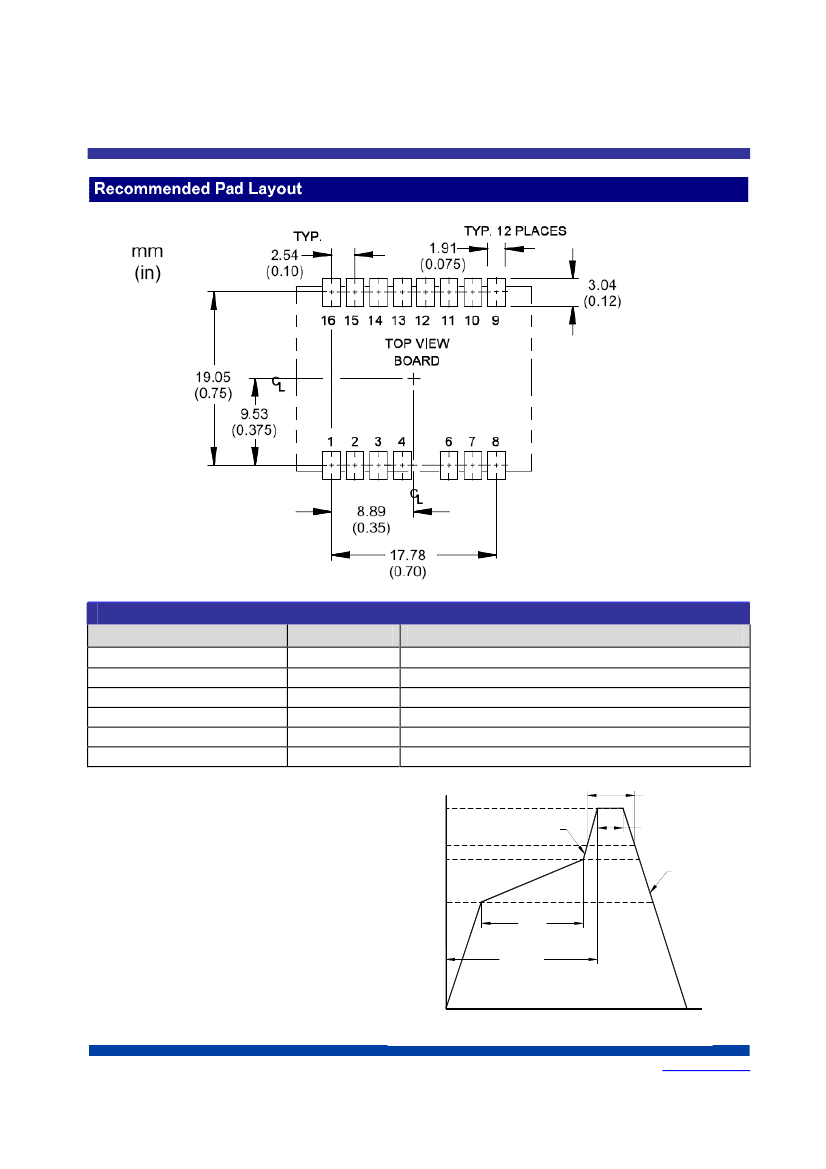

Reflow Profile (IPC/JEDEC J-STD-020C)
Parameter
Symbol
PreHeat Time
Ramp Up
Time Above 217
o
C
Time To Peak Temperature
Time At 260
o
C
Ramp Down
t
S
R
UP
t
L
t
AMB-P
t
P
R
DN
Value
60 sec Min, 180 sec Max
3
o
C/sec Max
60 sec Min, 150 sec Max
480 sec Max
20 sec Min, 40 sec Max
6
o
C/sec Max
The CS-300 is being qualified to meet the
JEDEC standard for Pb-Free assembly. The
temperatures and time intervals listed are
based on the Pb-Free small body
requirements. The temperatures refer to the
topside of the package, measured on the
package body surface. The CS-300 should not
be subjected to a wash process that will
immerse it in solvents. NO CLEAN is the
recommended procedure. The CS-300 has
been designed for pick and place reflow
soldering. The CS-300 may be reflowed once
and should not be reflowed in the inverted
position.
260
t
L
R
t
P
R
DN
t
S
t
AMB-P
Temperature (DegC)
217
200
150
25
Time (sec)
Vectron International, 267 Lowell Road, Hudson, NH 03051
Page 4 of 8
Tel: 1-88-VECTRON-1
•
Web:
www.vectron.com
Rev: 02Jan07

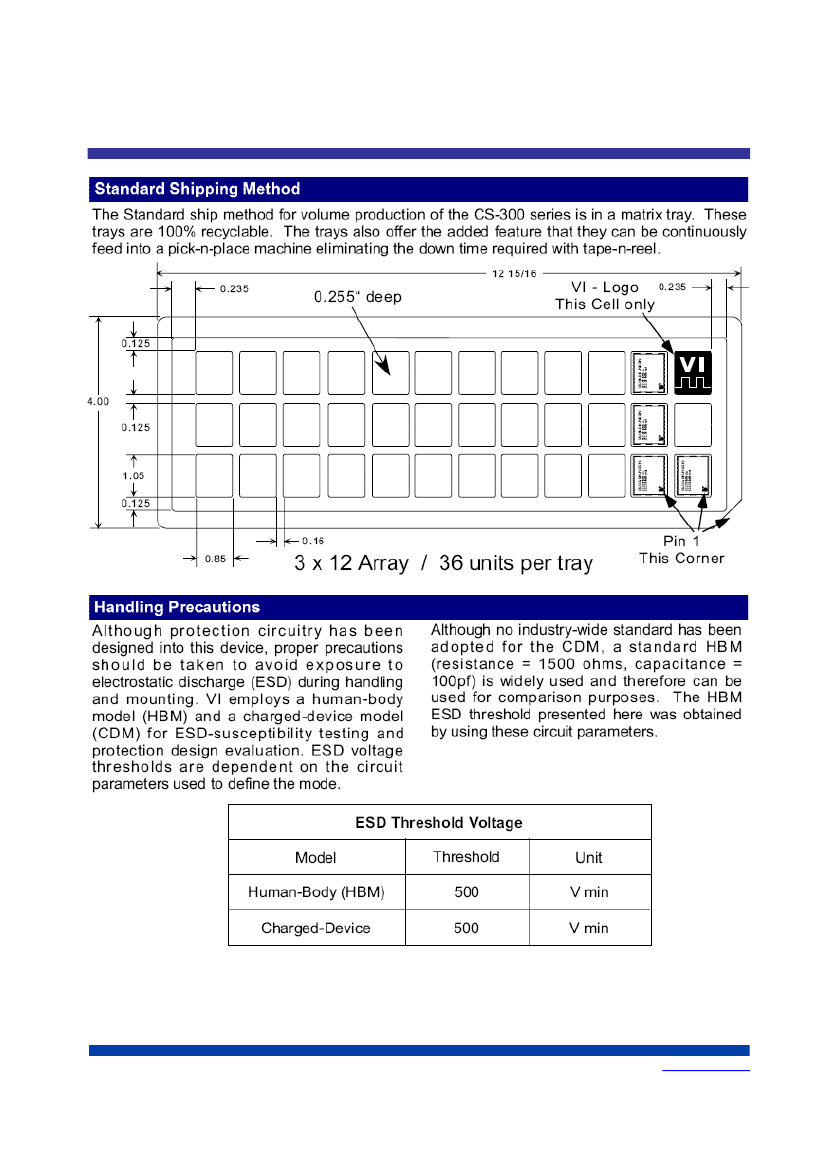

CS-300 Clock Smoother
Vectron International, 267 Lowell Road, Hudson, NH 03051
Page 5 of 8
Tel: 1-88-VECTRON-1
•
Web:
www.vectron.com
Rev: 02Jan07
