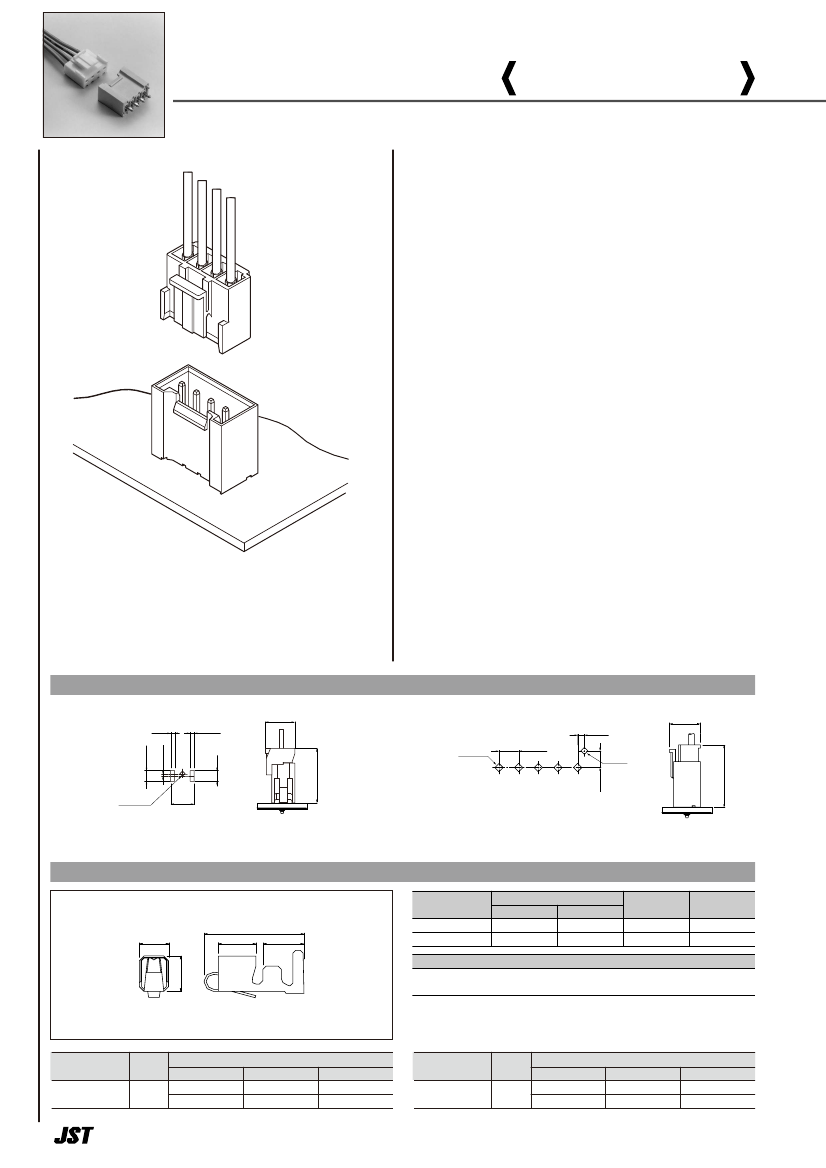

VH
CONNECTOR
High box type
3.96mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating:
7A AC, DC (AWG #18)
10A AC, DC (AWG #16)/1 circuit only
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #22 to #16
• Applicable PC board thickness: 1.6mm
Note: Do not branch in parallel current which exceeds the rated current. If
branched in parallel,current imbalance or other problems may develop. If
it is absolutely necessary to branch such a large current in parallel, be
sure to use contacts made of phosphor bronze. Design the circuits
without causing imbalance and provide an extra margin for each circuit.
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Header for 3.96mm pitch VH connector for
use specifically with resin coated ("potted")
PC boards.
• Interchangeability
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R75122
2 to 8 circuits
0
Recognized E60389
PC board layout (viewed from soldering side) and Assembly layout
1 circuit
1.3
±0.1
±0.1
＋0.1
0
（10.6）
1.3
＋0.1
0
10.5
1.5
±0.05
3.96
±0.05
＋0.1
φ1.4
0
3.6
0.8
3.6
±0.1
＋0.1
φ1.65
0
18.6
φ1.65
＋0.1
0
8.0
±0.1
Note: 1.Tolerances are non-cumulative:
±
0.05mm for all centers.
2.Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guide line. Contact JST for details.
Contact
Model No.
10.6
3.0
4.0
4.2
Applicable wire
mm
2
AWG#
0.33∼0.83
0.5 ∼1.25
22∼18
20∼16
3.4
±0.05
Insulation O.D. (mm)
1.7∼3.0
1.7∼3.0
Q'ty / reel
4,500
3,500
SVH-21T-P1.1
*SVH-41T-P1.1
Material and Finish
3.8
Phosphor bronze, tin-plated (reflow treatment)
RoHS compliance
Note: 1. *The current rating when combining with 1 circuit is 10A AC, DC
(AWG #16.)
2.
Contact JST for brass product.
Contact
SVH-21T-P1.1
Crimping
machine Crimp applicator
AP-K2N
MKS-L
*MKS-SC
Applicator
Dies
MK/SVH-21-11
SC/SVH-21-11
Crimp applicator with dies
APLMK SVH21-11
APLSC SVH21-11
Contact
SVH-41T-P1.1
Crimping
machine Crimp applicator
AP-K2N
MKS-L
—
Applicator
Dies
MK/SVH-41-11
—
Crimp applicator with dies
APLMK SVH41-11
—
Note: *Strip-crimp applicator
1
21.3

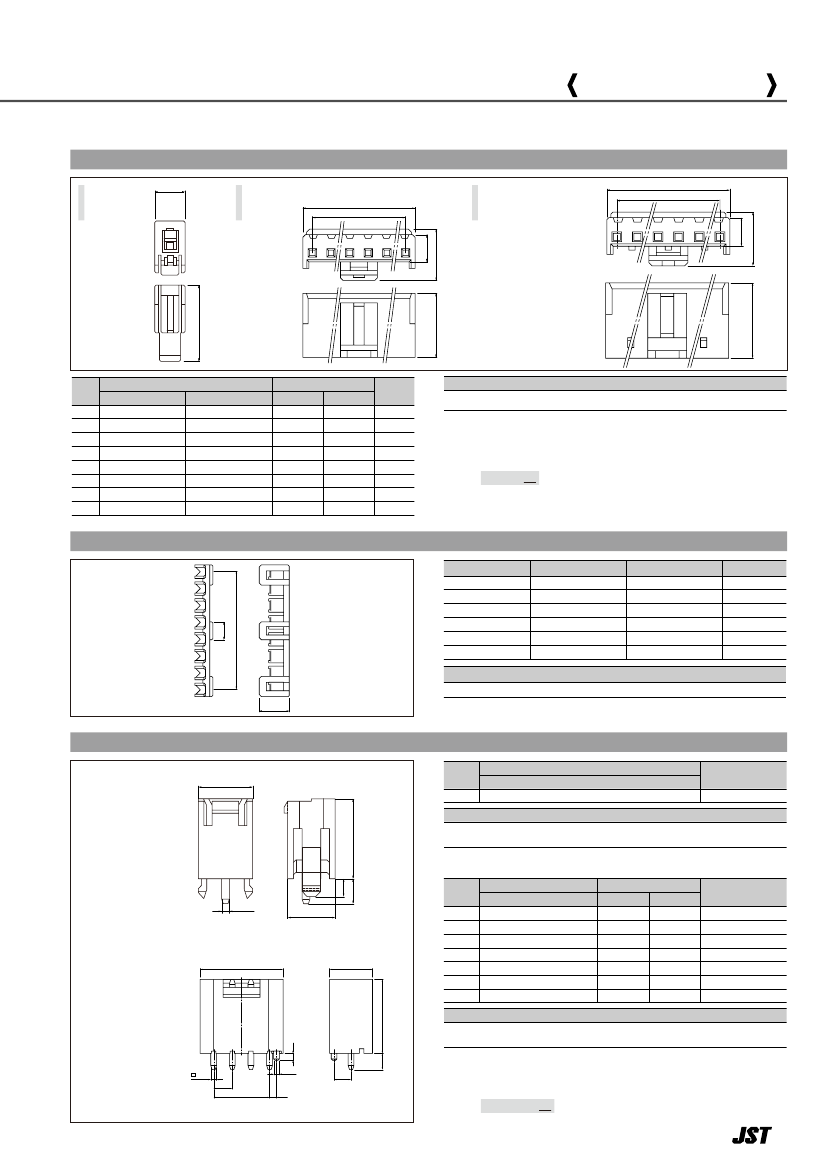

VH CONNECTOR High box type
Housing
1 circuit
N Type
6.2
2 to 8 circuits
N Type
B
A
Retainer mountable
type
5.7
10.5
B
A
5.7
14.6
13.3
Cir-
cuits
1
2
3
4
5
6
7
8
N type
*VHR-1N
VHR-2N
VHR-3N
VHR-4N
VHR-5N
VHR-6N
VHR-7N
VHR-8N
Model No.
Retainer mountable type
―
―
*VHRR-3N
―
*VHRR-5N
―
*VHRR-7N
*VHRR-8N
Dimensions (mm)
A
B
―
―
3.96
7.92
11.88
15.84
19.80
23.76
27.72
7.86
11.82
15.78
19.74
23.70
27.66
31.62
Q'ty /
bag
1,000
1,000
1,000
1,000
1,000
500
500
500
Material
PA 6, UL94V-0, natural (white)
RoHS compliance
¨
Note: *Marked products are not TUV approved.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
VHR-2N-oo-
(blank)…natural (white)
BK…black R…red BL…blue M…green
Retainer
Circuits
2
3
5
4.2
A
Model No.
VHS-2V
VHS-3V
VHS-5V
VHS-7V
VHS-8V
VHS-9V
Material
A
3.70
7.52
15.44
23.36
27.32
31.28
Q'ty / bag
1,000
1,000
1,000
1,000
1,000
1,000
7
8
9
Glass-filled PA 66, UL94V-0, natural (ivory)
7.1
RoHS compliance
¨
Note: Not TUV approved.
Shrouded header
With a boss
1 circuit
9.1
Circuits
1
Model No.
With a boss
BH1P-VH-1
Material and Finish
Q'ty / box
500
13.4
Post: Brass, copper-undercoated, tin-plated (reflow treatment)
Wafer: PA 66, UL-94V-0, natural (white)
RoHS compliance
This product displays (LF)(SN) on a label.
¨
Note: Not TUV approved.
Circuits
2
3
4
□
1.14
8.0
With a boss
2 to 8 circuits
5
B
9.2
6
7
8
15.8
Model No.
With a boss
BH2P-VH-1
BH3P-VH-1
BH4P-VH-1
BH5P-VH-1
BH6P-VH-1
BH7P-VH-1
BH8P-VH-1
Dimensions (mm)
A
B
3.96
7.92
11.88
15.84
19.80
23.76
27.72
9.80
13.76
17.72
21.68
25.64
29.60
33.56
3.0
4.0
Q'ty / box
250
200
150
100
100
100
100
Material and Finish
Post: Brass, copper-undercoated, tin-plated (reflow treatment)
Wafer: Glass-filled PA 66, UL-94V-0, natural (ivory)
1.5
1.14
3.96
A
φ1.2
1.5
3.4
RoHS compliance
This product displays (LF)(SN) on a label.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
BH2P-VH-1-oo-
(blank)…natural (ivory) BK…black R…red BL…blue M…green
3.5
14.8
10.5
H JST
