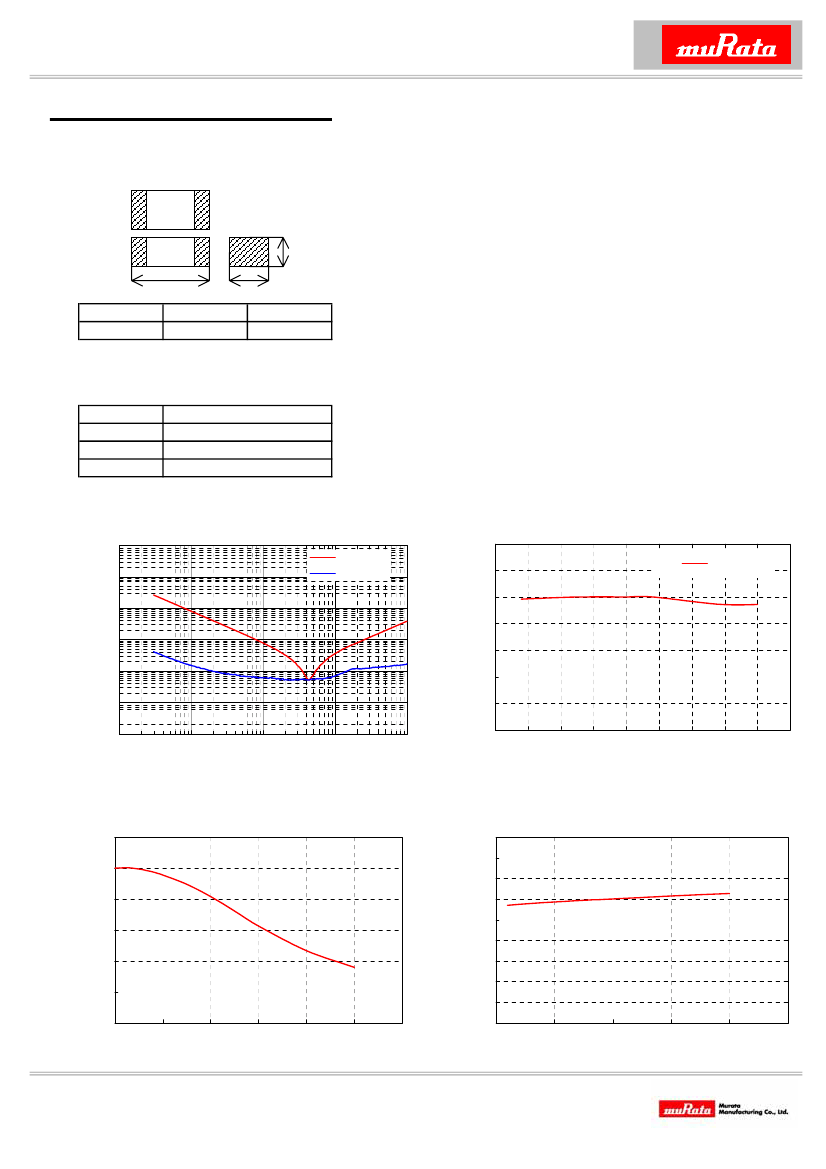

Chip Monolithic Ceramic Capacitor
Electrical Characteristics Data
0402 X7R 22nF 50V
Murata Global Part No: GCM155R71H223K
1. Dimension
T
L
L
1.0+/-0.05
W
0.5+/-0.05
W
( mm)
T
0.5+/-0.05
2. Cap,DF,IR
Capacitance,DF 1kHz , 1Vrms
IR
Item
Cap.[nF]
DF
IR[M ohm]
50V , 120s
Spec
19.8 to 24.2
0.025 max
10000 min
3. Impedance/ESR - Frequency
Equipment: 8753D(16197A)
4. Capacitance - Temperature Characteristics
Equipment:
40
Impedance
ESR
4284A
1000
Impedance/ESR (ohm)
100
10
1
0.1
0.01
0.001
0.1
1
10
20
No Bias
Cap. Change (%)
0
-20
-40
-60
-80
-100
100
1000
-75
-50
-25
0
25
50
75
100
125
150
Frequency (MHz)
Temperature (deg.C)
5. Capacitance - DC Voltage Characteristics
Equipment:
20
0
4284A
6. Capacitance - AC Voltage Characteristics
Equipment:
30
20
10
4284A
Cap. Change (%)
-20
-40
-60
-80
-100
0
10
20
30
40
50
60
Cap. Change (%)
0
-10
-20
-30
-40
-50
-60
0
0.5
1
1.5
2
2.5
Voltage (Vdc)
This PDF has only typical specifications because there is no space for detailed specifications.
Therefore, please approve our product specification or transact the approval sheet for product specification
before ordering. Product specifications in this PDF are as of May 2007.
They are subject to change or our products in it may be discontinued without advance notice
Voltage (Vrms)
