FEC40 Series
40 WATT DC/DC CONVERTER
SINGLE, DUAL & TRIPLE OUTPUTS
ELECTRICAL SPECIFICATIONS
All specifications are typical at nominal input, full load
INPUT SPECIFICATIONS
Input Voltage Range.........................2 : 1
Input Filter........................................ PI-Network
OUTPUT SPECIFICATIONS
FEATURES
40 WATT OUTPUT POWER
UP TO TRIPLE OUTPUTS
EXTREMELY RELIABLE
SIX SIDED CONTINOUS SHIELD
HIGH EFFICIENCY UP TO 90%
SHORT CIRCUIT PROTECTION
DIRECT PCB-SOLDERING
INDUSTRY STANDARD 2 X 2 X.04 PACKAGE
INTERNATIONAL SAFETY STANDARD
APPROVALS
Output Voltage Accuracy...... .±1%
Voltage Adjustability
Single & Dual……….±1%
Triple....………………±3%
Minimum Load
Single & Dual
.………0%
Triple
…………………10% of FL
Over-Current Protection. ..…..150% max
Line Regulation
Single/Dual………….±0.5%
Triple………….
.…….±1%(Main)/ ±5%(Auxiliary)
Load Regulation………………...….±0.5%
(Load Rate 10% ~ 100%)
GENERAL SPECIFICATIONS
Isolation Voltage…………...1600VDC min
MTBF................................. >1.398 x 10
6 hours
Isolation Resistance.......….10
9
ohms min
Isolation Capacitance………1000pF max
Switching Frequency……….300Khz typical
ENVIRONMENTAL SPECIFICATIONS
SAFETIES/APPROVALS
UL, TUV, CE
Operating Temperature ...................-40°C ~ +85°C
Temperature Coefficient...................±0.02%/ °C
Humidity.......................................... 5%~95% RH
Storage Temperature...................... -55°C ~ +105°C
PHYSICAL SPECIFICATIONS
Case Material..........................Nickel-Coated Copper
Base Material..........................Non-Conductive
Black Plastic

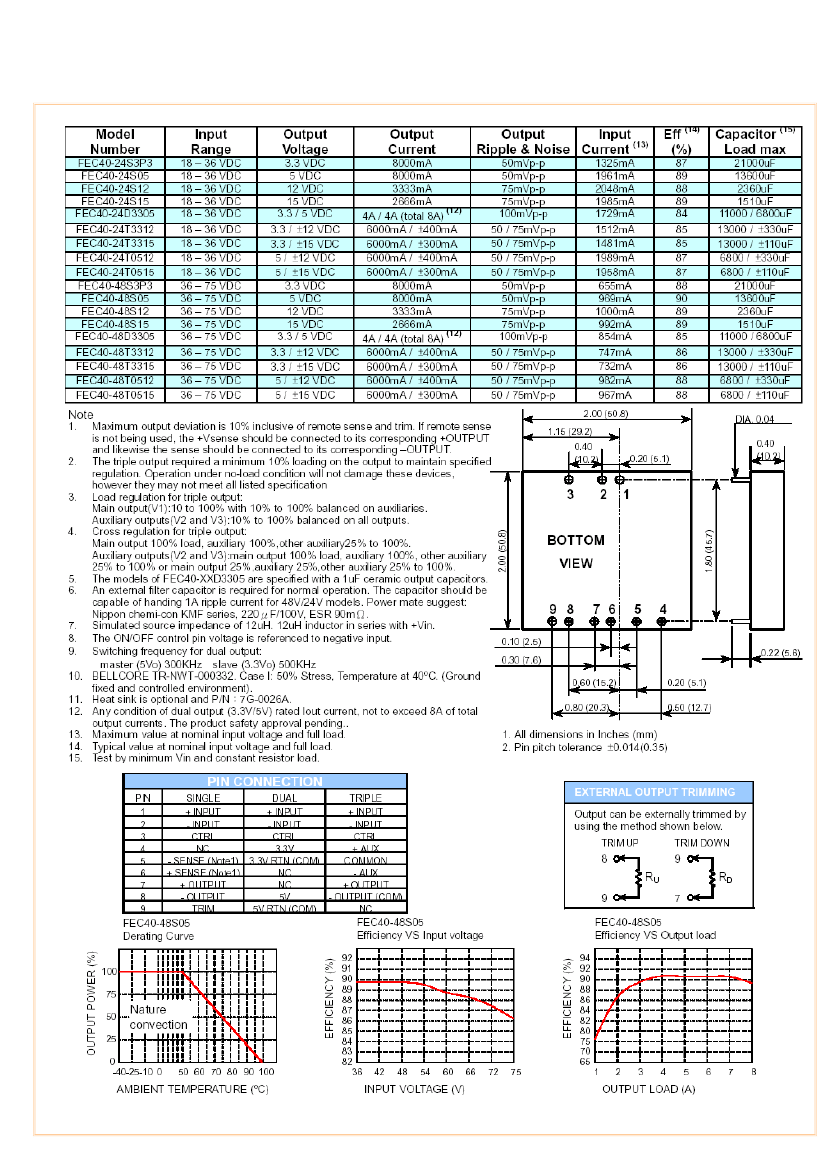

1
