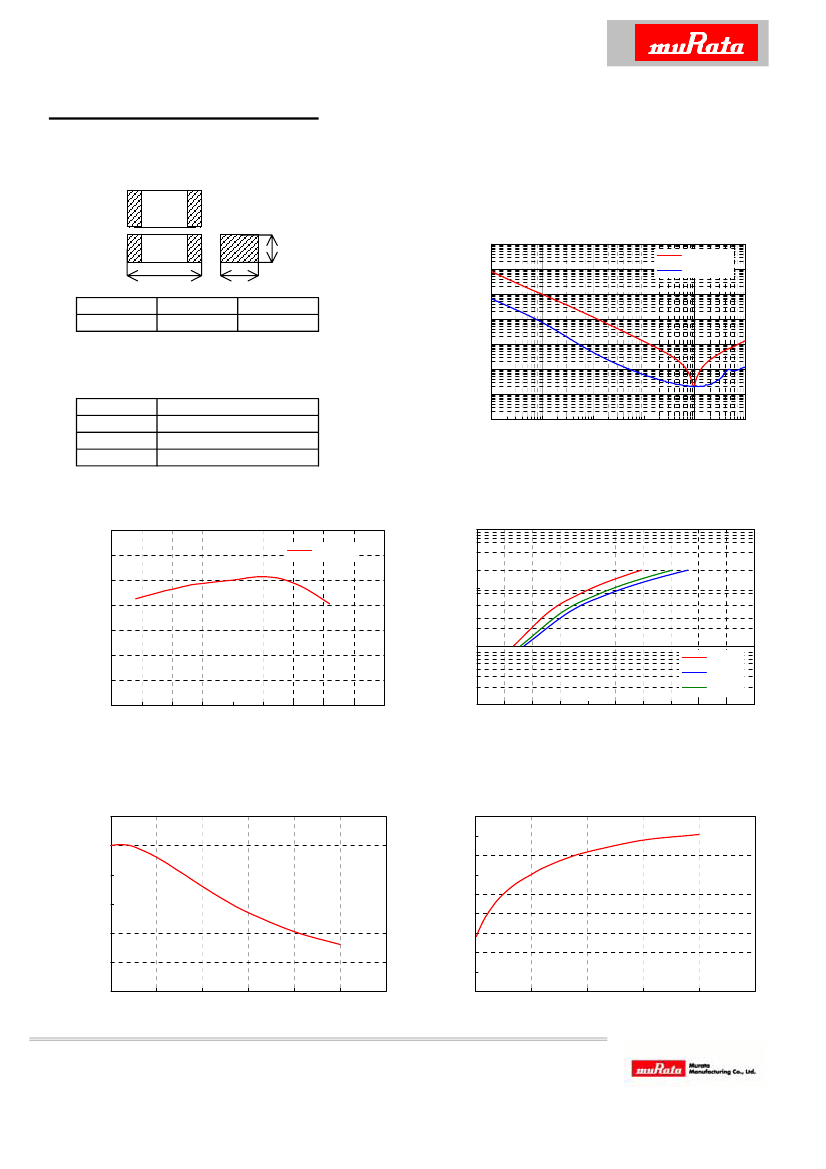

Chip Monolithic Ceramic Capacitor
Electrical Characteristics Data
1210 X6S 22µF 10V
Murata Global Part No : GRM32NC81A226K
1. Dimension
3. Impedance/ESR - Frequency
Equipment: 4294A(16044A)
T
W
W
2.5+/-0.2
1000
Impedance
100
( mm)
T
1.35+/-0.15
ESR
Impedance/ESR (ohm)
L
L
3.2+/-0.3
10
1
0.1
0.01
0.001
0.0001
0.0001
2. Cap,DF,IR
Capacitance,DF 120Hz , 0.5Vrms
IR
Item
Cap.[µF]
DF
IR[M ohm]
10V , 60s
Spec
19.8 to 24.2
0.1 max
2.27 min
0.001
0.01
0.1
1
10
Frequency (MHz)
4. Capacitance - Temperature Characteristics
Equipment:
40
4284A
5. Temperature Rise - Ripple Current
(Only for reference)
Equipment:
100
CVHF-400
Cap. Change (%)
0
-20
-40
-60
-80
-100
-75
-50
-25
0
25
50
75
100
125
150
Temperature Rise (deg.C)
20
No Bias
10
1
100kHz
500kHz
1MHz
0.1
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
Temperature (deg.C)
Current (Arms)
6. Capacitance - DC Voltage Characteristics
Equipment:
20
0
4284A
7. Capacitance - AC Voltage Characteristics
Equipment:
30
20
10
4284A
Cap. Change (%)
-20
-40
-60
-80
-100
0
2
4
6
8
10
12
Cap. Change (%)
0
-10
-20
-30
-40
-50
-60
0
0.5
1
1.5
2
2.5
Voltage (Vdc)
This PDF has only typical specifications because there is no space for detailed specifications.
Therefore, please approve our product specification or transact the approval sheet for product specification
before ordering. Product specifications in this PDF are as of Aug 2007.
They are subject to change or our products in it may be discontinued without advance notice
Voltage (Vrms)
