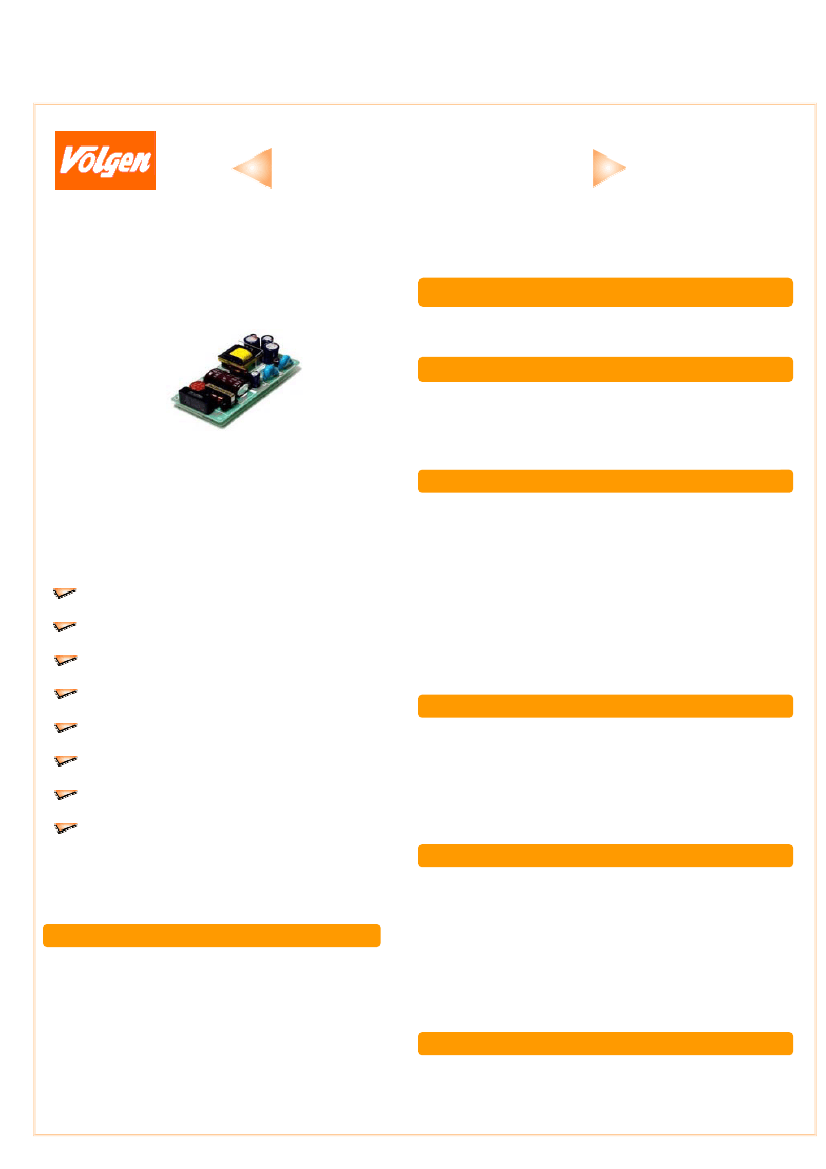

KRS10F Series

10 WATT, Universal Input

PCB Mountable Switching Power Supply

ELECTRICAL SPECIFICATIONS

All specifications are typical at nominal input, full load

INPUT SPECIFICATIONS

Input Voltage………..........................85 ~ 264VAC

Input Frequency............................... 47 ~ 63Hz

Input Current………………………….0.22 ~ 0.15A Typ.

Inrush Current………………………...10A

OUTPUT SPECIFICATIONS

Output Voltage ……………………….See Chart

FEATURES

EXTREMELY SMALL (1.26 X 2.56mm)

10 WATT OUTPUT POWER

UNIVERSAL INPUT

OVERCURRENT PROTECTION

LIGHTWEIGHT CONSTRUCTION

Direct PCB Mountable

COMPACT, LOW-PROFILE PACKAGES

3 YEAR WARRANTY

Efficiency.............................….74 ~ 82%

Over-Current Protection………….....Automatic Recovery

(105% min)

Ripple and Noise…………………….See Chart

Hold-Up Time.......................…….....110V – 11 mS

230V

– 120mS

Load Regulation...............………… 50mV max.

Rise Time...…...……………………...110V – 190mS

230V

– 185mS

Leakage Current

(100/230VAC)………….

0.75mA

GENERAL SPECIFICATIONS

Isolation Voltage

Primary to Secondary……………3000VAC

Primary to Case………………….2000VAC

Secondary to Case………………500VAC

Isolation Resistance………………….100 M-Ohms min.

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature ............…….10°C ~ +70°C

Cooling………………….....................Convection

Temperature Coefficient................... 0.02% / °C

Humidity………………......................20 ~ 85%Rh

(non-condensing)

Storage Temperature………………..-20°C ~ +85°C

Shock Vibration………………………Shock: 20G

(3 Directions each 3 times)

Vibration: 10 ~ 55Hz

SAFETIES/APPROVALS

UL60950

CSA C22.2 No. 60950(cUL)

CE EN60950 3

Edition (LVD)

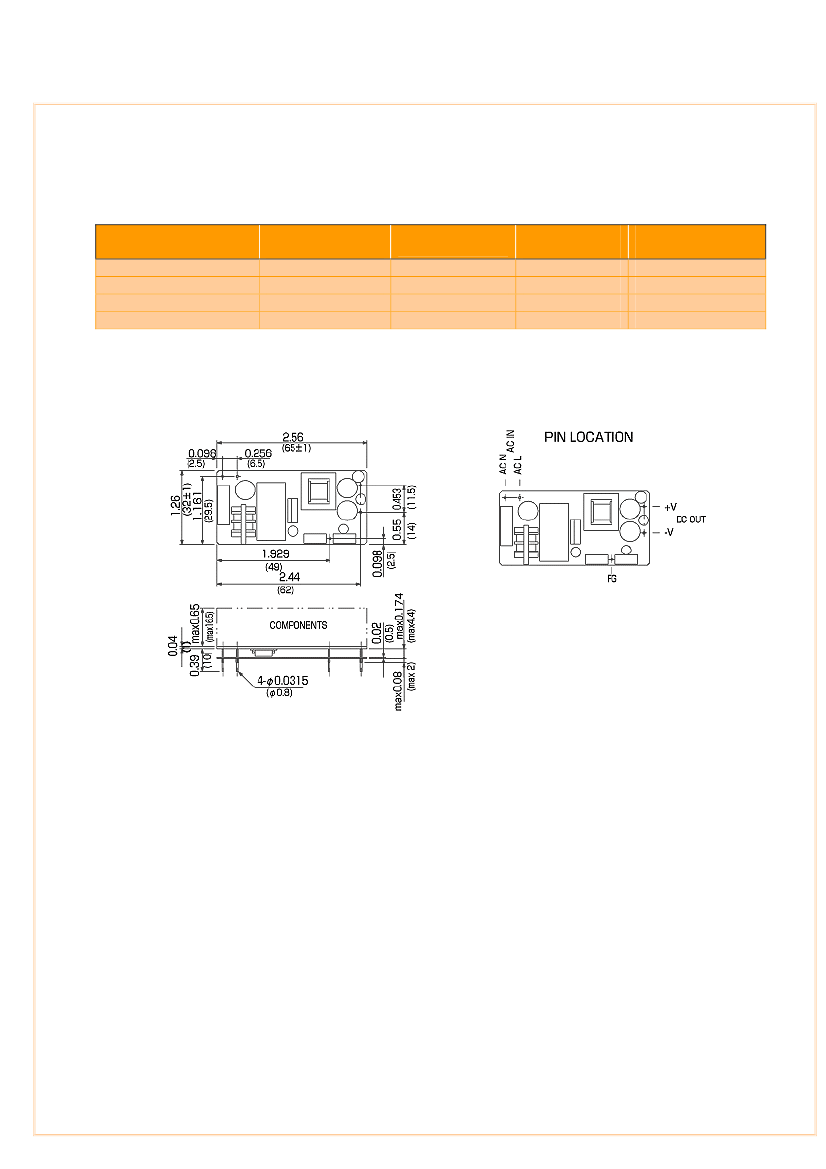

PHYSICAL SPECIFICATIONS

Open Frame – PCB Mountable
