Specification
:
TE -module PE-031-10-15
Issue 2
Issued: 29/05/2008
1/2
SPECIFICATION
Product:Thermoelectric module
Part Number:PE-031-10-15
1. Scope
1—1
1—2
This specification is applied to Multicomp thermoelectric modules
Revision of these specifications is carried out after consent.
2. Specification
2-1
Parameters
Parameters
Internal resistance
Imax.
Vmax.
Th=25℃
Qmax.
⊿Tmax.
solder melting point
Maximum. compress
.
7.3 W
72℃
138
℃
1MPa
Note-4
Note-5
Note-6
Note-7
1.03
Ω
±
10%
3.2 A
3.8 V
Remarks
Note-1
Note-2
Note-3
Note-1 Measured by AC 4-terminal method at 25℃.
Note-2 Maximum current at
⊿Tmax.
Note-3 Maximum voltage at
⊿Tmax.
Note-4 Maximum cooling capacity at Imax.,Vmax. and
⊿T=0℃.
Note-5 Maximum temperature difference at Imax.,Vmax. and Q=0W.
(Maximum
parameters are measured in a vacuum 1.3P)
Note-6 The solder melting point of thermoelectric module
Note-7 Recommended maximum compression (not destruction limit)
2 -2 Recommendations:
- maximum temperature for short time: 110 °С
- operation temperature up to 90°С for long lifetime;
- good reliability in ON-OFF mode
- recommended operation current not higher than 0.7 of Imax
2-3

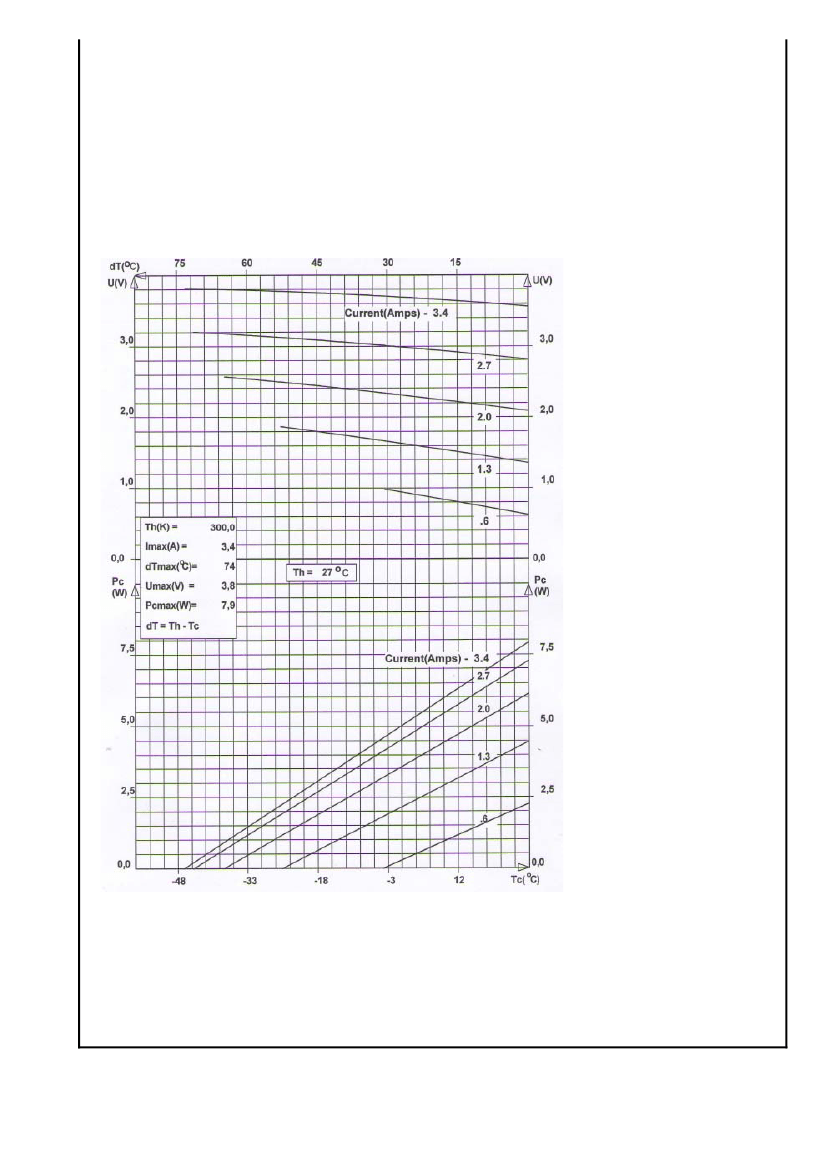

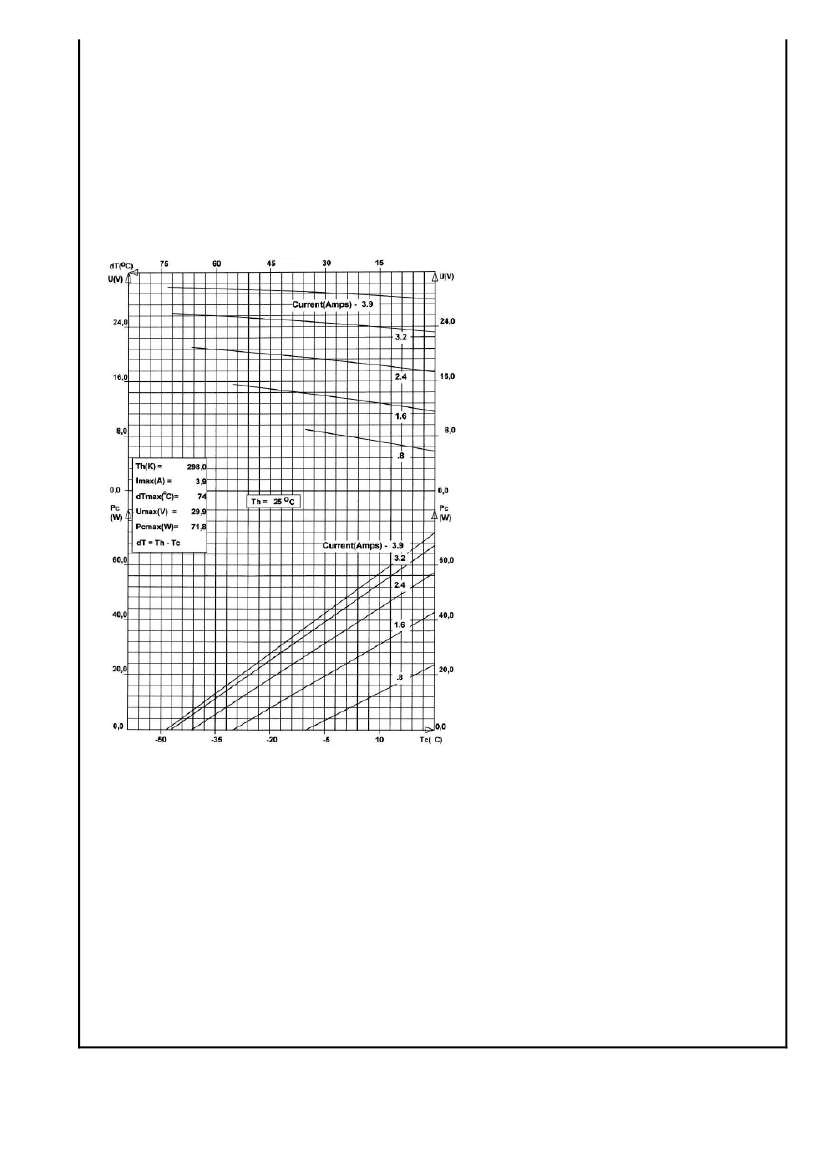

Performance Graph
