NCP302LSN24T1

Description
IC 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO5, SC-59, TSOT-23, TSOP-5, Power Management Circuit
CategoryPower/power management    The power supply circuit
File Size203KB,26 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

NCP302LSN24T1 Overview

IC 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO5, SC-59, TSOT-23, TSOP-5, Power Management Circuit

NCP302LSN24T1 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerON Semiconductor
Parts packaging codeTSOP
package instructionTSSOP, TSOP5/6,.11,37
Contacts5
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresDETECTION THRESHOLD VOLTAGE IS 2.4V
Adjustable thresholdNO
Analog Integrated Circuits - Other TypesPOWER SUPPLY SUPPORT CIRCUIT
JESD-30 codeR-PDSO-G5
JESD-609 codee0
length3 mm
Humidity sensitivity level1
Number of channels1
Number of functions1
Number of terminals5
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Encapsulate equivalent codeTSOP5/6,.11,37
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)235
power supply0.8/10 V
Certification statusNot Qualified
Maximum seat height1.1 mm
Maximum supply voltage (Vsup)10 V
Minimum supply voltage (Vsup)0.8 V
Nominal supply voltage (Vsup)1.5 V
surface mountYES
technologyCMOS
Temperature levelAUTOMOTIVE
Terminal surfaceTin/Lead (Sn80Pb20)
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
Threshold voltage nominal+2.4V
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.5 mm
Base Number Matches1
NCP302, NCP303
Voltage Detector Series
with Programmable Delay
The NCP302 and NCP303 series are second generation ultra−low
current voltage detectors that contain a programmable time delay
generator. These devices are specifically designed for use as reset
controllers in portable microprocessor based systems where extended
battery life is paramount.
Each series features a highly accurate undervoltage detector with
hysteresis and an externally programmable time delay generator. This
combination of features prevents erratic system reset operation.
The NCP302 series consists of complementary output devices that
are available with either an active high or active low reset. The
NCP303 series has an open drain N−Channel output with an active low
reset output.
Features
http://onsemi.com
MARKING
DIAGRAM
5
5
1
xxx
A
Y
W
G
TSOP−5/
SOT23−5
CASE 483
xxx AYWG
G
1
Quiescent Current of 0.5
mA
Typical
High Accuracy Undervoltage Threshold of 2.0%
Externally Programmable Time Delay Generator
Wide Operating Voltage Range of 0.8 V to 10 V
Complementary or Open Drain Output
Active Low or Active High Reset
Specified Over the
−40°C
to +125°C Temperature Range
(Except for Voltage Options from 0.9 to 1.1 V)
NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable
These Devices are Pb−Free and are RoHS Compliant
Typical Applications
= Specific Device Code
= Assembly Location
= Year
= Work Week
= Pb−Free Package
(Note: Microdot may be in either location)
PIN CONNECTIONS
Reset
Output
Input
Ground
1
2
3
(Top View)
4 N.C.
5 C
D
Microprocessor Reset Controller
Low Battery Detection
Power Fail Indicator
Battery Backup Detection
NCP302xSNxxT1
Complementary Output Configuration
2
Input
2
ORDERING INFORMATION
See detailed ordering and shipping information in the ordering
information section on page 22 of this data sheet.
NCP303LSNxxT1
Open Drain Output Configuration
Input
1
Reset Output
R
D
1
R
D
V
ref
*
3
GND 5
C
D
Reset
Output
V
ref
3
This device contains 28 active transistors.
GND 5
C
D
*
Inverter for active low devices.
*
Buffer for active high devices.

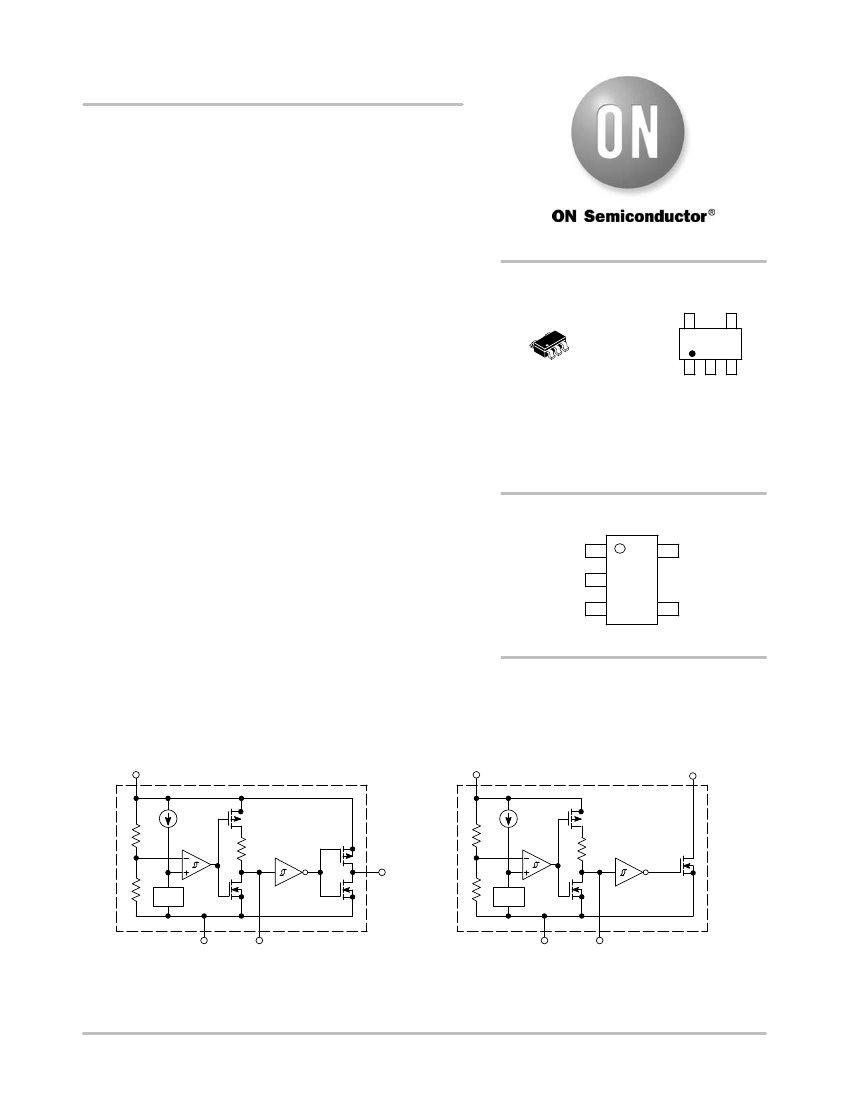

Figure 1. Representative Block Diagrams
©
Semiconductor Components Industries, LLC, 2013
May, 2013
Rev. 25
1
Publication Order Number:
NCP302/D
