RDC-19221-102 datasheet, PDF - EEWORLD Datasheet

RDC-19221-102: DescriptionSynchro or Resolver to Digital Converter, CMOS, CDIP28, 1.400 X 0.600 INCH, 0.200 INCH HEIGHT, CERAMIC, DDIP-28; CategoryAnalog mixed-signal IC converter; File Size569KB，18 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

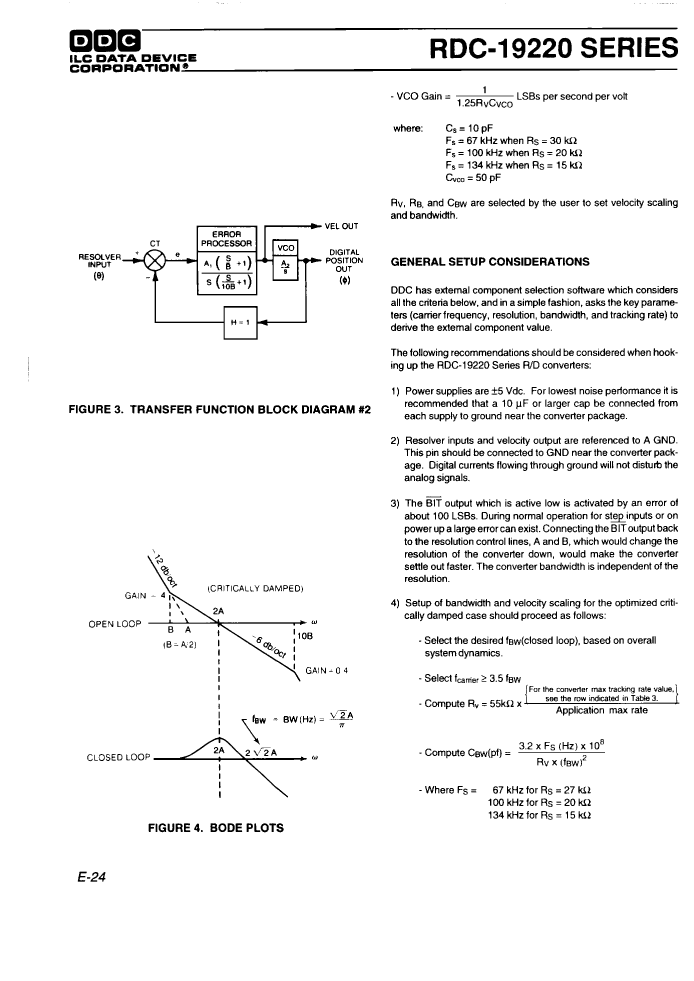

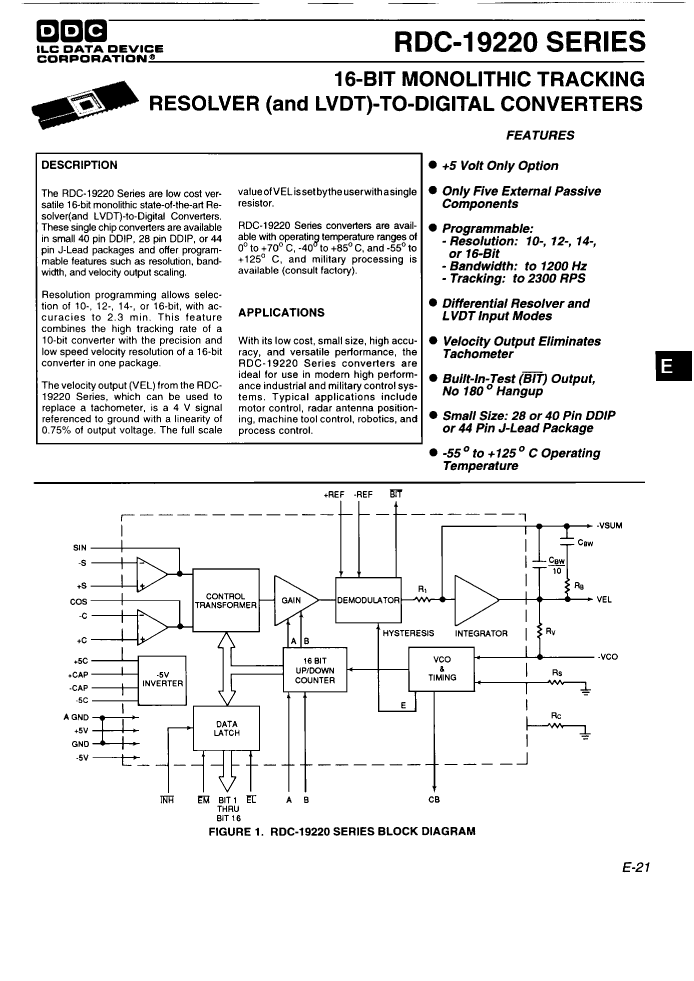

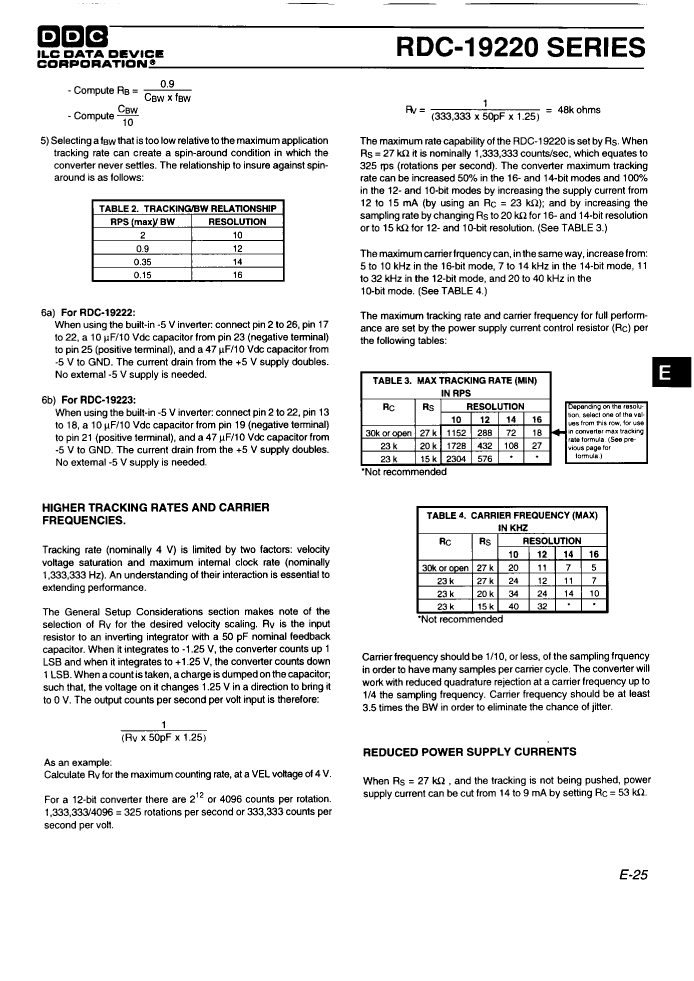

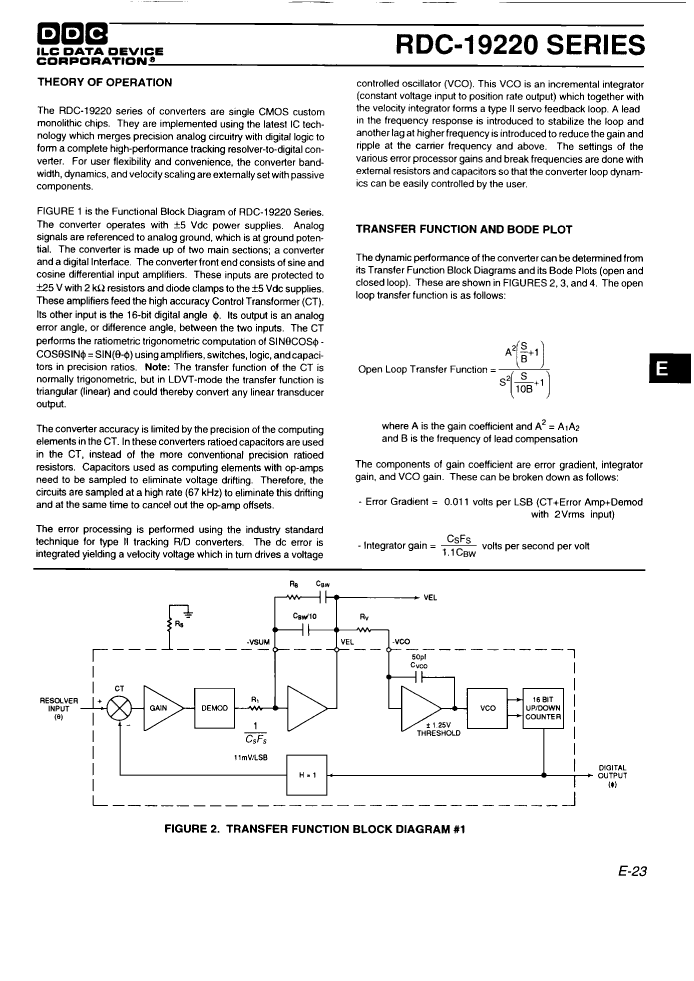

RDC-19221-102 Overview

Synchro or Resolver to Digital Converter, CMOS, CDIP28, 1.400 X 0.600 INCH, 0.200 INCH HEIGHT, CERAMIC, DDIP-28

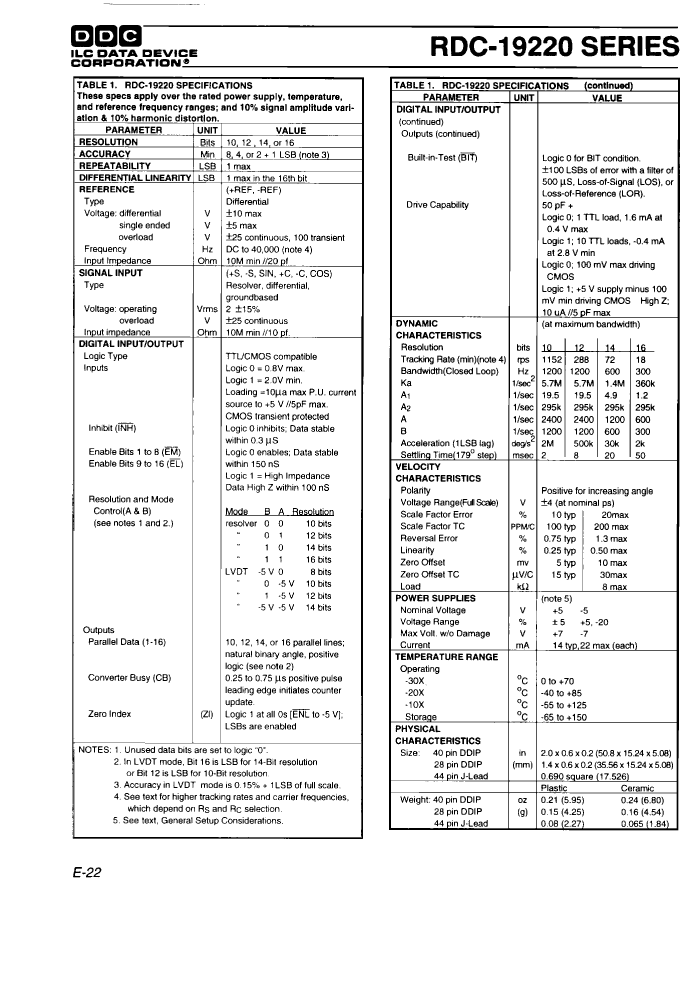

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BUILT-IN-TEST
Maximum analog input voltage	2 V
Maximum angular accuracy	4 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
length	36.957 mm
Maximum negative supply voltage	-5.25 V
Minimum negative supply voltage	-4 V
Nominal negative supply voltage	-5 V
Number of digits	16
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum stabilization time	50 µs
Signal/output frequency	10000 Hz
Maximum slew rate	22 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum tracking rate	18 rps
width	15.24 mm
Base Number Matches	1
