state relay that has two independently controlled,
optically coupled MOSFET switches in an 8-pin SOIC
package that employs optically coupled MOSFET
technology to provide 3750V
rms
of input to output
isolation.
Its optically coupled outputs, which use patented
OptoMOS architecture, are controlled by a highly
efficient GaAIAs infrared LED.
Dual single-pole OptoMOS relays provide a more
compact design solution than discrete single-pole
relays in a variety of applications by incorporating
both relays in a single 8-pin package.
Features
•
3750V
rms
Input/Output Isolation
•
Low Drive Power Requirements
(TTL/CMOS Compatible)
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Small 8-Pin Package
•
Machine Insertable, Wave Solderable
•
Surface Mount, Tape & Reel Version Available
Approvals
•
UL Recognized Component: File E76270
•
CSA Certified Component: Certificate 1175739
•
EN/IEC 60950-1 Certified Component:
TUV Certificate B 09 07 49410 004
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hook Switch
•
Dial Pulsing
•
Ground Start
•
Ringing Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Ordering Information
Part #
LBB110
LBB110P
LBB110PTR
LBB110S
LBB110STR
Description
8-Pin DIP (50/Tube)
8-Pin Flatpack (50/Tube)
8-Pin Flatpack (1000/Reel)
8-Pin Surface Mount (50/Tube)
8-Pin Surface Mount (1000/Reel)
Pin Configuration
+ Control - Switch #1
– Control - Switch #1
+ Control - Switch #2
– Control - Switch #2
1
2
3
4
8
7
6
5
Load - Switch #1
Load - Switch #1
Load - Switch #2
Load - Switch #2
Switching Characteristics of
Normally Closed Devices
Form-B
I
F
I
LOAD
90%
10%
t
off
t
on
Pb
DS-LBB110-R08
e
3
www.ixysic.com
1
I
NTEGRATED
C
IRCUITS
D
IVISION
Absolute Maximum Ratings @ 25ºC
Parameter
Blocking Voltage
Reverse Input Voltage
Input Control Current
Peak (10ms)
Input Power Dissipation
1
Total Power Dissipation
2
Isolation Voltage, Input to Output
Operational Temperature
Storage Temperature
1
2
LBB110
Ratings
350
5
50
1
150
800
3750
-40 to +85
-40 to +125
Units
V
P
V
mA
A
mW
mW
V
rms
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses in
excess of these ratings can cause permanent damage to
the device. Functional operation of the device at conditions
beyond those indicated in the operational sections of this
data sheet is not implied.
Derate linearly 1.33 mW /
ºC
Derate linearly 6.67 mW /
ºC
Electrical Characteristics @ 25ºC
Parameter
Output Characteristics
Load Current
Continuous
1
Peak
On-Resistance
2
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Input Characteristics
Input Control Current to Activate
Input Control Current to Deactivate
Input Voltage Drop
Reverse Input Current
Common Characteristics
Input to Output Capacitance
1
2
Conditions
Symbol
Min
Typ
Max
Units
-
t=10ms
I
L
=120mA
V
L
=350V
P
I
L
I
LPK
R
ON
I
LEAK
t
on
t
off
C
OUT
I
F
I
F
V
F
I
R
C
I/O
-
-
-
-
-
-
-
-
0.4
0.9
-
-
-
-
25
-
-
-
25
-
0.7
1.2
-
3
120
±350
35
1
3
3
-
5
-
1.4
10
-
mA
rms
/ mA
DC
A
P
A
I
F
=5mA, V
L
=10V
V
L
=50V, f=1MHz
I
L
=120mA
-
I
F
=5mA
V
R
=5V
-
ms
pF
mA
mA
V
A
pF
If both poles operate simultaneously, then the load current must be derated so as not to exceed the package power dissipation value.
Measurement taken within 1 second of on-time.
2
www.ixysic.com
R08
I
NTEGRATED
C
IRCUITS
D
IVISION
PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
35
30
Device Count (N)
Device Count (N)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
LBB110
Typical LED Forward Voltage Drop
(N=50, I
F
=5mA)
25
20
15
10
5
0
Typical Turn-On Time
(N=50, I
F
=5mA, I
L
=120mA
DC
)
25
20
15
10
5
0
Typical Turn-Off Time
(N=50, I
F
=5mA, I
L
=120mA
DC
)
0.09
0.27
0.45
0.63
0.81
0.99
Device Count (N)
0.27
0.45
0.63
0.81
0.99
1.17
1.35
Turn-On Time (ms)
Turn-Off Time (ms)
25
20
15
10
5
0
Typical I
F
for Switch Operation
(N=50, I
L
=120mA
DC
)
25
20
15
10
5
0
Typical I
F
for Switch Dropout
(N=50, I
L
=120mA
DC
)
25
20
15
10
5
0
Typical On-Resistance Distribution
(N=50, I
L
=120mA
DC
)
Device Count (N)
Device Count (N)
0.33
0.55
0.77
0.99
1.21
1.43
1.65
0.11
0.33
0.55
0.77
0.99
1.21
1.43
Device Count (N)
25.5
26.5
27.5
28.5
29.5 30.5
31.5
LED Current (mA)
LED Current (mA)
On-Resistance ( )
25
20
15
10
5
0
Typical Blocking Voltage Distribution
(N=50, I
F
=5mA)
Device Count (N)
357.5
372.5
387.5
402.5
417.5
432.5
Blocking Voltage (V
P
)
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
Turn-On Time (ms)
1.6
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
0.30
0.25
0.20
0.15
0.10
0.05
0
0
5
Typical Turn-On Time
vs. LED Forward Current
(I
L
=120mA
DC
)
0.7
0.6
Turn-Off Time (ms)
0.5
0.4
0.3
0.2
0.1
0
Typical Turn-Off Time
vs. LED Forward Current
(I
L
=120mA
DC
)
I
F
=50mA
I
F
=10mA
I
F
=5mA
10
15
20
25
30
35
40
45
50
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
LED Forward Current (mA)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
R08
www.ixysic.com
3
I
NTEGRATED
C
IRCUITS
D
IVISION
PERFORMANCE DATA @25ºC (Unless Otherwise Noted)*
Typical I
F
for Switch Operation
vs. Temperature
(I
L
=120mA
DC
)
Typical Turn-On Time
vs. Temperature
(I
F
=5mA, I
L
=120mA
DC
)
On-Resistance ( )
LBB110
3.0
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
-40
0.6
Turn-On Time (ms)
0.5
0.4
0.3
0.2
0.1
0
50
45
40
35
30
25
20
15
10
5
0
Typical On-Resistance vs. Temperature
(I
L
=120mA
DC
)
Dual Pole
Single Pole
Instantaneous
-20
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
-40
-20
0
20
40
60
80
100
Temperature (ºC)
Temperature (ºC)
Temperature (ºC)
3.0
2.5
LED Current (mA)
2.0
1.5
1.0
0.5
0
-40
Typical I
F
for Switch Dropout
vs. Temperature
(I
L
=120mA
DC
)
Turn-Off Time (ms)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0
Typical Turn-Off Time
vs. Temperature
(I
L
=120mA
DC
)
Load Current (mA)
40
60
80
100
I
F
=5mA
I
F
=10mA
Typical Load Current vs. Load Voltage
150
100
50
0
-50
-100
-20
0
20
40
60
80
100
-40
-20
0
20
-150
-4
-3
-2
-1
0
1
2
3
4
Load Voltage (V)
Temperature (ºC)
Temperature (ºC)
Maximum Load Current
vs. Temperature
180
160
Blocking Voltage (V
P
)
Load Current (mA)
140
120
100
80
60
40
20
0
-40
-20
0
20
40
60
80
100
120
Temperature (ºC)
410
405
Typical Blocking Voltage
vs. Temperature
(I
F
=5mA)
Typical Leakage vs. Temperature
(Measured across Pins 5&6 or 7&8)
0.045
0.040
0.035
Leakage ( A)
0.030
0.025
0.020
0.015
0.010
0.005
0
-40
400
395
390
385
380
-40
-20
0
20
40
60
80
100
Temperature (ºC)
-20
0
20
40
60
80
100
Temperature (ºC)

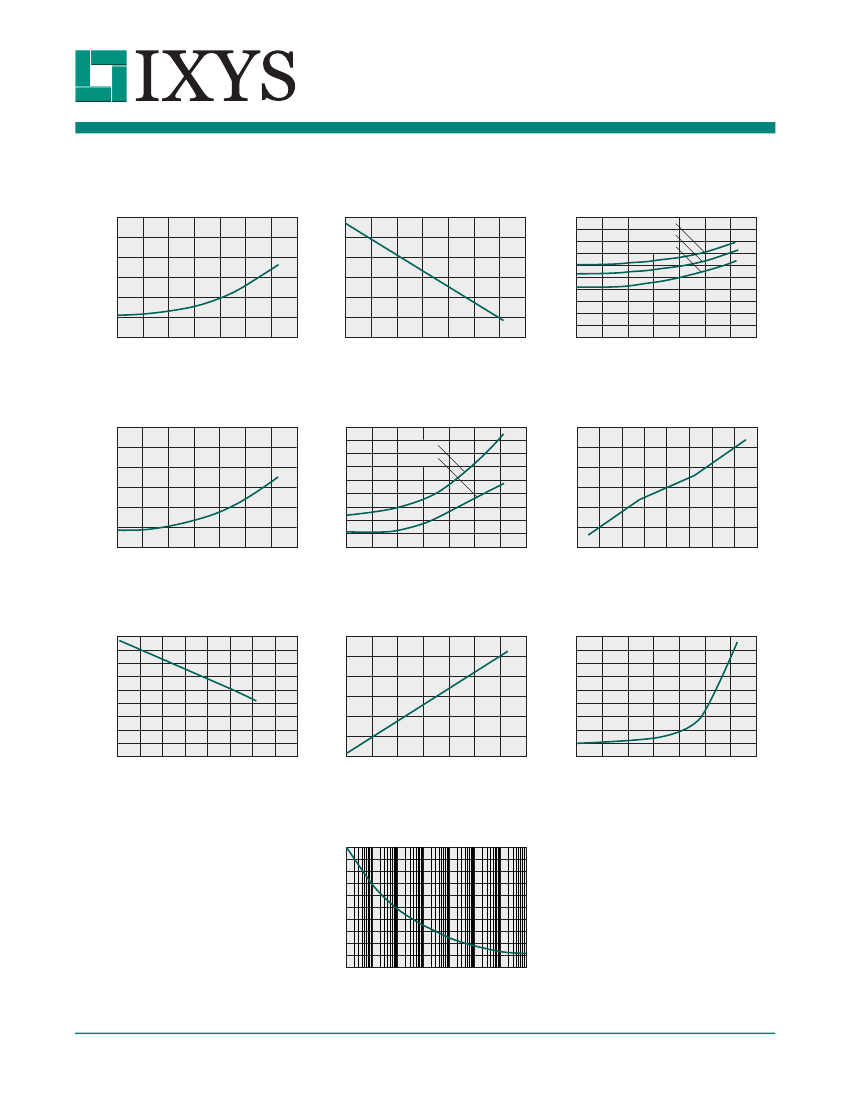

Energy Rating Curve
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
10 s 100 s 1ms 10ms 100ms
Time
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact our application
department.
Load Current (A)
1s
10s
100s
4
www.ixysic.com
R08
I
NTEGRATED
C
IRCUITS
D
IVISION
Manufacturing Information
Moisture Sensitivity
LBB110
All plastic encapsulated semiconductor packages are susceptible to moisture ingression. IXYS Integrated
Circuits Division classified all of its plastic encapsulated devices for moisture sensitivity according to
the latest version of the joint industry standard,
IPC/JEDEC J-STD-020,
in force at the time of product
evaluation. We test all of our products to the maximum conditions set forth in the standard, and guarantee proper
operation of our devices when handled according to the limitations and information in that standard as well as to any
limitations set forth in the information or standards referenced below.
Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced
product performance, reduction of operable life, and/or reduction of overall reliability.
This product carries a
Moisture Sensitivity Level (MSL) rating
as shown below, and should be handled according
to the requirements of the latest version of the joint industry standard
IPC/JEDEC J-STD-033.
Device
LBB110 / LBB110S / LBB110P
Moisture Sensitivity Level (MSL) Rating
MSL 1
ESD Sensitivity
This product is
ESD Sensitive,
and should be handled according to the industry standard
JESD-625.
Reflow Profile
This product has a maximum body temperature and time rating as shown below. All other guidelines of
J-STD-020
must be observed.
Device
LBB110 / LBB110S
LBB110P
Maximum Temperature x Time
250ºC for 30 seconds
260ºC for 30 seconds
Board Wash
IXYS Integrated Circuits Division recommends the use of no-clean flux formulations. However, board washing to
remove flux residue is acceptable. Since IXYS Integrated Circuits Division employs the use of silicone coating as
an optical waveguide in many of its optically isolated products, the use of a short drying bake could be necessary
if a wash is used after solder reflow processes. Chlorine- or Fluorine-based solvents or fluxes should not be used.
Cleaning methods that employ ultrasonic energy should not be used.
Dear experts: I need PADS2005. I used to use powerpcb. Now most pcb are in PADS2005 format. I can’t open it here. I think I’ll use 2005 in the future to save the trouble of switching back and forth. C...
ARM7 44B0 and HCS01 master-slave I2C communication~~ I have no idea about the underlying functions. Can anyone give me some advice? I uploaded the header file and development manual~~ Thank you! HCS01...
At the end of the DownloadImage() function, it will determine whether to download the image to the flash. The write flash function only determines two situations: *.nb0 and *.bin formats. If I use ebo...
The function is to read the content displayed in the edit control and store the content in a txt file. Now the file can be created and written, but when the txt file is opened, garbled characters are ...
Qinheng CH579M-R1 development boardThis evaluation board is used for testing and development of CH579 chip. It is equipped with host computer ISP tool, supports two ISP download modes, USB and serial ...
On August 23rd, Geely's subsidiary, Jiyao Tongxing, announced it has the industry's largest advanced production capacity for tandao
batteries
, with eight production bases across China. Jiy...[Details]
On August 24th, Jin Yuzhi, CEO of Huawei's Intelligent Automotive Solutions BU, announced the first automotive application of Huawei Qiankun's unique Limera technology. This technology eliminates t...[Details]
Reflow soldering is a critical process in electronics assembly production, and the cleanliness of the reflow oven has a direct impact on product quality. Dust and residue accumulation within the ov...[Details]
Flip-chip and ball grid array (BGA) are two widely used packaging technologies in the electronics industry. Each has its own advantages and limitations, and in some cases, they can complement each ...[Details]
When you are happily watching NBA or football, your wife asks you to turn off the lights in the bedroom. Would you be depressed? Of course, unless you are not afraid of your wife.
Now you are ...[Details]
ISP devices, such as field programmable devices (FPGAs and CPLDs), do not require a programmer. Using programming kits provided by the device manufacturer, they employ a top-down modular design app...[Details]
In mobile technology, sensors are the primary input for measured signals and form a component of a sensor system. They include sensitive and transducer elements connected to carriers and circuits. ...[Details]
According to foreign media reports, BMW has just been granted a patent for a screen that could cover the entire roof. BMW hopes to transform at least a portion of the vehicle's headliner into a dis...[Details]
Based on a survey of more than ten intelligent robot companies, this article sorts out and analyzes the current development status of the intelligent industry and the challenges and differences it ...[Details]
On August 18th, Galaxis, a specialist in integrated intelligent intralogistics robotics, officially unveiled its next-generation, ultra-narrow aisle forklift mobile robot, the "VFR Ultra-Narrow Ser...[Details]
Electric vehicles are powered by electricity, and charging is a device that supplements the vehicle's energy source. It is common to need to recharge the vehicle when driving. But can you charge th...[Details]
A half-bridge is an inverter topology for converting DC to AC. A typical half-bridge circuit consists of two controller switches, a three-wire DC power supply, two feedback diodes, and two capacito...[Details]
1. Fault phenomenon and cause analysis
1. During the operation of the equipment, the expansion sleeve is subjected to a large torque, and the mating surfaces of the shaft and the sleeve move...[Details]
Linear motor modules have become the "sweet spot" in various fields due to their advantages such as long stroke, fast speed, high precision, smooth operation and long life. Different models of line...[Details]
In the field of communications power supplies, AC/DC rectifier power supplies are called primary power supplies or basic power supplies, while DC/DC converters are called secondary power supplies. ...[Details]
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
