Datasheet> All Categories > Passive components> oscillator> EQVP-HC73B-35.328000

EQVP-HC73B-35.328000: DescriptionHCMOS 7x5mm 3.3V VCXO; CategoryPassive components oscillator; File Size162KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

EQVP-HC73B-35.328000 Overview

HCMOS 7x5mm 3.3V VCXO

EQVP-HC73B-35.328000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
Reach Compliance Code	compli
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	35.328 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	7.5mm x 5.2mm x 1.4mm
longest rise time	3 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

EURO

QUARTZ

EQVP-HC73 SERIES

Features

Extremely low jitter

Low cost

Express delivery

Stability from ±20ppm, -40 to +85°C

Absolute pull range ±50ppm

Serial ID with comprehensive traceability

HCMOS 7x5mm 3.3V VCXO

Freq: 0.75MHz to 250MHz

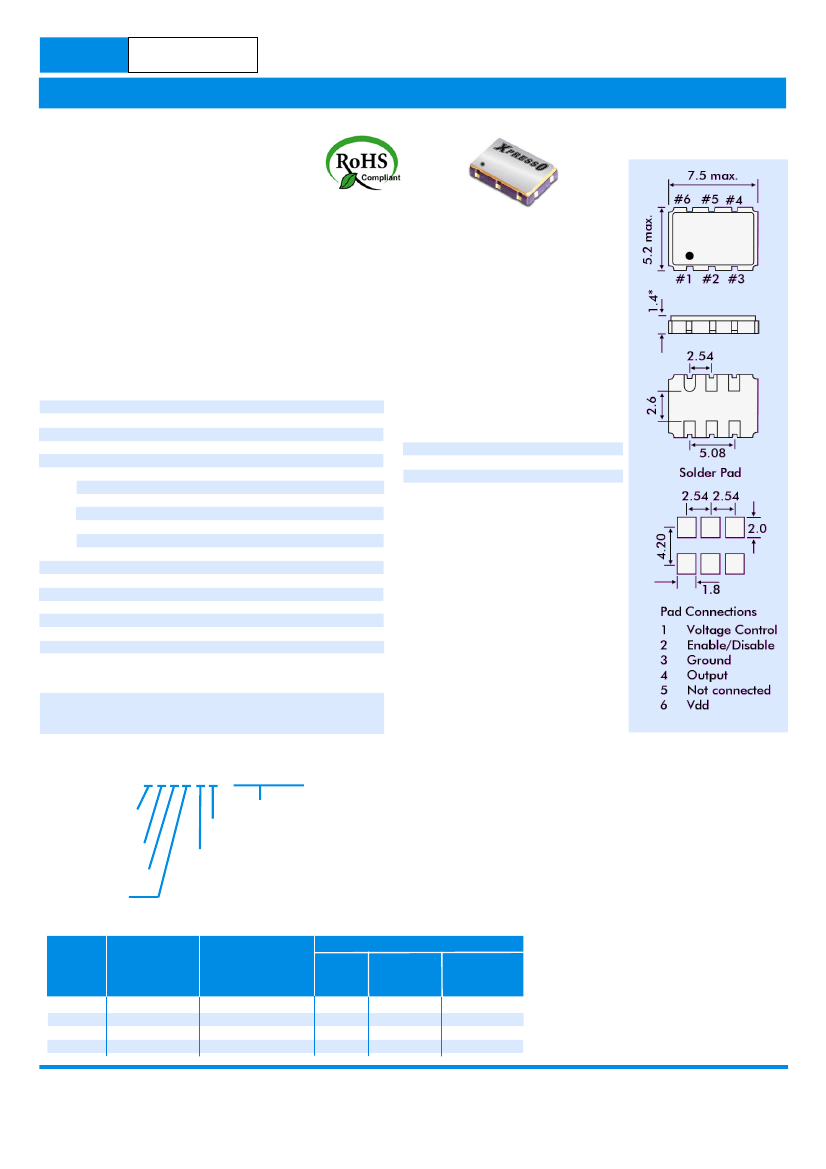

OUTLINE & DIMENSIONS

Description

The XPRESSO range of fully configurable VCXOs utilizes a

family of proprietary ASICs developed for noise reduction to

provide oscillators with noise levels comparable to traditional

bulk-produced quartz and SAW-based VCXOs.

XPRESSO VCXOs are low-cost, low-noise, have a wide

frequency range, excellent ambient performance and are

available on very short leadtimes. All XPRESSO VCXOs are

100% final tested .

Electrical Specification

Frequency Range:

Absolute Pull Range:

Operating Temperature Range:

Storage Temperature Range:

Supply Voltage:

Input Current

0.75 ~ 20.0MHz:

20+ ~ 50.0MHz:

50+ ~ 130MHz:

130+ ~ 200MHz:

200+ ~ 250MHz:

Output Load:

Start-up Time:

Output Enable/Disable Time:

Control Voltage Tuning Slope:

Control Voltage Linearity:

Control Voltage Tuning Range:

Modulation Bandwidth:

Nominal Control Voltage:

Output Low Voltage

0.75 ~ 150MHz:

150+ ~ 250MHz:

Output High Voltage:

0.75 ~ 150MHz:

150+ ~ 250MHz:

Model Selection Guide

0.750MHz ~ 250.0MHz

±50ppm

-20° ~ +70° to -40° ~ +85°C

-55 to +125°C

+3.3VDC ±5%

32mA

35mA

47mA

55mA

60mA

15pF std., <125MHz 30pF

10ms

100ns

40 ~ 75ppm/V typical

±10%

0V ~ 3.3V

10kHz minimum

1.65 volts

10% Vdd maximum

20% Vdd maximum

90% Vdd minimum

80% Vdd minimum

Typical applications

Any application requiring an oscillator.

SONET

Ethernet

Storage Area Networks

Broadband Access

Microprocessors/DSP/FPGA

Industrial Controllers

Test and measurement

Fibre Channel

Output Symmetry:

Output Enable Voltage:

Output Disable Voltage:

Rise/Fall Times:

45/55%

>70% Vdd max.

<30% Vdd max.

3ns maximum.

Supply Format

Tape and Reel, 16mm tape,

8.0mm pitch,

1k reel = 178mmØ

2k reel = 255mmØ

EQVP - H C 7 3 B R - 35.328000

H = HCMOS

C = Ceramic

7 = 7 x 5mm

3 = 3.3V

Jitter Measurements

Rj/Dj Composition

Frequency

Phase Jitter

Time Interval Error Random Deterministic Total Jitter (Tj)

(14*Rj)+Dj

Jitter (Dj)

(MHz)

(12kHz~20MHz)

of jitter distribution Jitter (Rj)

(ps)

(ps p-p)

(ps RMS)

62.5

106.25

125.0

156.25

0.93

0.86

0.75

0.77

2.8

3.2

2.7

3.3

1.28

1.20

1.27

6.8

8.4

8.0

8.6

25.1

26.6

25.2

26.6

Frequency

Blank = -20~+70°C

R = -40 ~ +85°C

B = ±50ppm Absolute Pull Range

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk

EQVP-HC73B-35.328000 Related Products

	EQVP-HC73B-35.328000	EQVP-HC73	EQVP-HC73BR-35.328000
Description	HCMOS 7x5mm 3.3V VCXO	HCMOS 7x5mm 3.3V VCXO	HCMOS 7x5mm 3.3V VCXO
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Maker	Euroquartz	-	Euroquartz
Reach Compliance Code	compli	-	compli
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL	-	ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage	3.3 V	-	3.3 V
maximum descent time	3 ns	-	3 ns
Frequency Adjustment - Mechanical	NO	-	NO
Frequency offset/pull rate	50 ppm	-	50 ppm
linearity	10%	-	10%
Installation features	SURFACE MOUNT	-	SURFACE MOUNT
Nominal operating frequency	35.328 MHz	-	35.328 MHz
Maximum operating temperature	70 °C	-	85 °C
Minimum operating temperature	-20 °C	-	-40 °C
Oscillator type	HCMOS	-	HCMOS
Output load	15 pF	-	15 pF
physical size	7.5mm x 5.2mm x 1.4mm	-	7.5mm x 5.2mm x 1.4mm
longest rise time	3 ns	-	3 ns
Maximum supply voltage	3.465 V	-	3.465 V
Minimum supply voltage	3.135 V	-	3.135 V
Nominal supply voltage	3.3 V	-	3.3 V
surface mount	YES	-	YES
maximum symmetry	45/55 %	-	45/55 %
