EURO
QUARTZ
EQXO-2000 Series
8 pin Dual-in-Line Clock Ocillators
DESCRIPTION
The Euroquartz EQXO-2000 series of 8 pin dual-in-line oscillators
consist of a Universal, TTL and CMOS compatible hybrid substrate and
quartz crystal in a hermetically-sealed package. The oscillators
provide a proven and reliable source of clock signals with low unit
cost.
OSCILLATORS

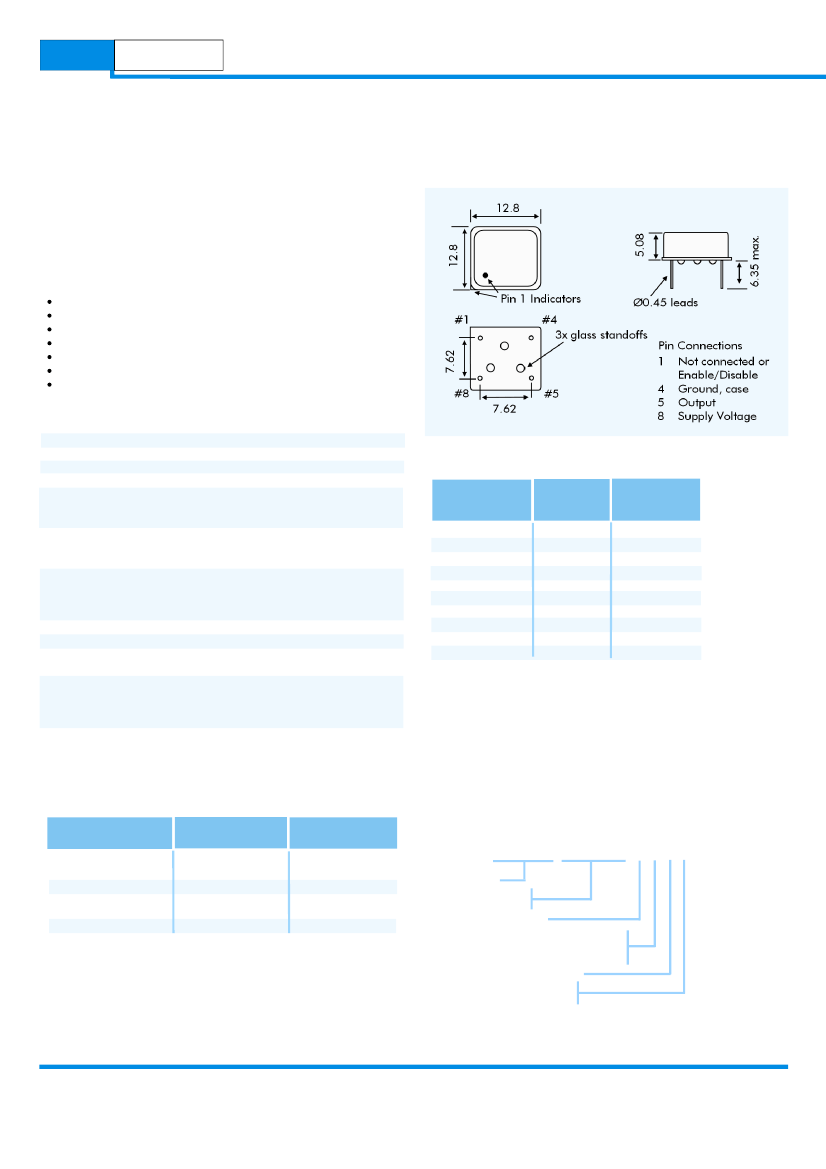

OUTLINE & DIMENSIONS
PRODUCT FEATURES
Industry-standard 8 pin DIL package for compatibility
Wide frequency range 20kHz to 160MHz
Choice of supply voltage 3.3 Volts or 5.0 Volts DC
Hermetically sealed package for reliability and low ageing
Optional Tristate function (Enable/Disable)
Comprehensive stock holding
Custom frequencies readily produced in Euroquartz factory
SPECIFICATION
Series Model Number:
Frequency Range:
Frequency Stability*:
Supply Voltage:
Output Load
HCMOS:
TTL:
Symmetry
HCMOS:
TTL:
Operating Temperature Range
Commercial:
Industrial:
Extended Industrial:
Storage Temperature Range:
Start-up Time:
Current Consumption:
EQXO-2000
20kHz to 160MHz
See table
+5.0 Volts DC±10%
15pF standard, 50pF available
2 to 10TTL gates
40/60% measured at 50%Vdd
40/60% measured at 1.4 Volts
MODEL NUMBERS
Model Number
Stability over
O.T.R.
(ppm)
Operating
Temperature
Range
0° to +70°C
-40° to +85°C
-55° to +105°C
-55° to +105°C
5ms typical, 10ms max.
15mA ~ 45mA
(frequency dependant)
Tristate Option:
Output is high impedance when
'0' (<0.8 Volts) is applied to Pin 1,
(internal pull-up).
Disable time = 150ns max.
*
The frequency stability parameter is inclusive of frequency adjustment
at 25°C and any variations due to load change, ageing, supply voltage
change (±10%) and variations attributable to shock and vibration.
EQXO-2010UC
EQXO-2015UC
EQXO-2025UC
EQXO-2050UC
EQXO-2100UC
EQXO-2025UI
EQXO-2050UI
EQXO-2100UI
EQXO-2050UIE
EQXO-2100UIE
±10ppm
±15ppm
±25ppm
±50ppm
±100ppm
±25ppm
±50ppm
±100ppm
±50ppm
±100ppm
0° ~ +50°C
0° ~ +70°C
0° ~ +70°C
0° ~ +70°C
0° ~ +70°C
-40° ~ +85°C
-40° ~ +85°C
-40° ~ +85°C
-55° ~ +105°C
-55° ~ +105°C
EXTENDED INDUSTRIAL TEMPERATURE RANGE
The part previously specified by Euroquartz Ltd as EQXO-2050UM
or EQXO-2100UM has been superceeded by the extended-
industrial temperature range part EQXO-2***UIE. This part will
perform within specification over the temperature range of -55° to
+105°C. Should a full military temperature range oscillator be
required see specification for EQXO-2000BM series.
TTL/HCMOS Voltage Levels
Input Voltage:
PART NUMBER GENERATION
+5.0 VDC
+3.3 VDC
EQXO-2000 series oscillator part numbers are derived as follows:
Example: 10.000MHz EQXO-2050UIET3:
10.000MHz EQXO-2050 U IE T 3
Frequency
Model number
(see table above)
U - Universal output
C - Commercial temperature
I - Industrial temperature
IE - Extended Industrial temperature
T - Tristate function (option)
Blank - 5.0 Volts supply
3-
3.3 Volts supply
Frequency Range:
Output Voltage
TTL HIGH '1':
HCMOS HIGH '1':
TTL LOW '0:
HCMOS LOW '0':
20kHz ~ 125MHz
2.4 V min.
2.97 V min.
0.4V max.
0.33V max.
20kHz ~ 160MHz
2.4V min.
Vcc - 0.5V min.
0.4V max.
0.5V max
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
