3GF14C-80N-156.25 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3GF14C-80N-156.25

3GF14C-80N-156.25: Description14 pin Dual-in-Line; CategoryPassive components oscillator; File Size218KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

3GF14C-80N-156.25 Overview

14 pin Dual-in-Line

3GF14C-80N-156.25 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, DIL-14/4
Reach Compliance Code	compli
Maximum control voltage	1.85 V
Minimum control voltage	1.45 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	100%
linearity	10%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	156.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVCMOS
Output load	15 pF
physical size	20.2mm x 12.8mm x 5.08mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

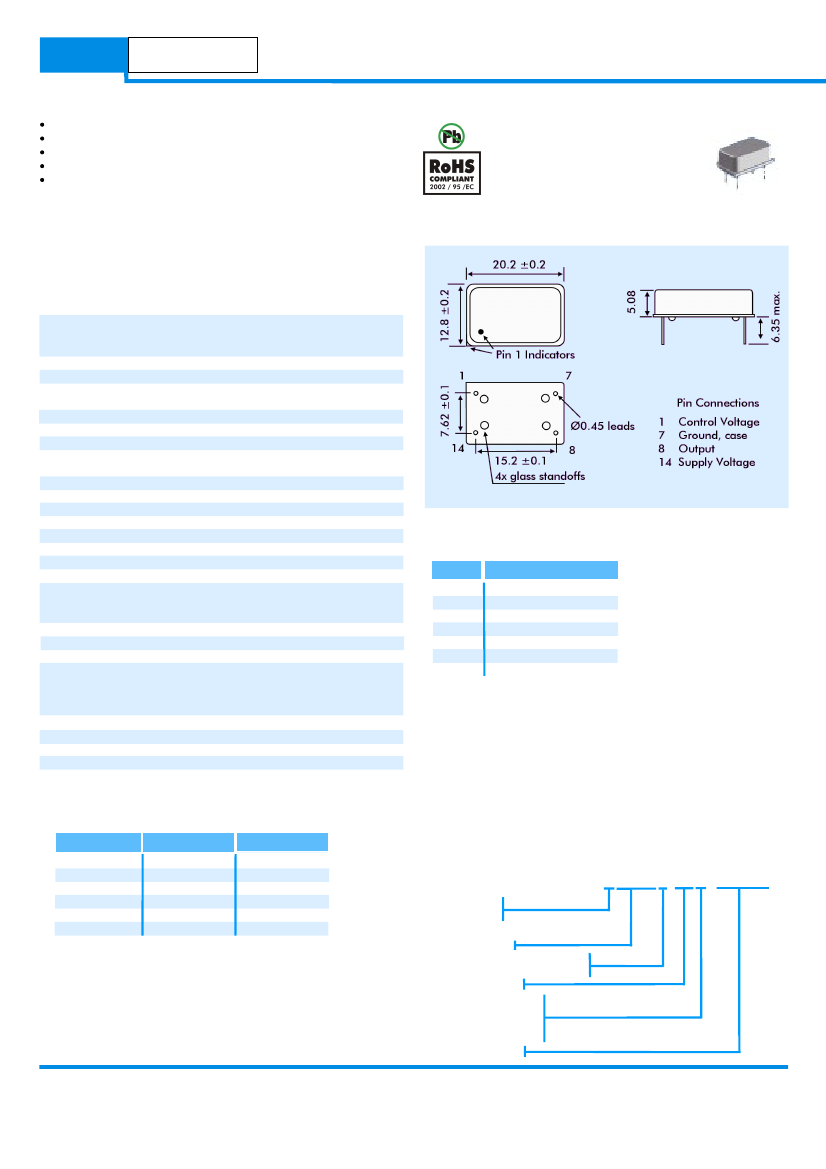

Frequency range 50.01MHz to 200MHz (15pF load)

Frequency range 50.01MHz to 320MHz (10pF load)

LVCMOS Output

Supply Voltage 3.3 VDC

Ultra low jitter less than 1ps

GF14 CMOS VCXO

14 pin Dual-in-Line

DESCRIPTION

GF14 VCXOs, are packaged in an industry-standard, 14 pin Dual in

Line package. GF14 VCXOs provide excellent phase jitter

performance, less than 1ps.

SPECIFICATION

Frequency Range

Load 15pF:

Load 10pF:

Supply Voltage:

Output Logic:

Integrated Phase Jitter:

Period Jitter RMS:

Period Jitter Peak to peak:

Phase Noise:

Initial Frequency Accuracy:

Output Voltage HIGH (1):

Output Voltage LOW (0):

Pulling Range:

Temperature Stability:

Output Load:

Start-up Time:

Duty Cycle:

Rise/Fall Times:

Current Consumption

<100MHz:

>100MHz:

Linearity:

Modulation Bandwidth:

Input Impedance:

Slope Polarity:

(Transfer function)

OUTLINE & DIMENSIONS

50.01MHz to 200.0MHz

50.01MHz to 320.0MHz

3.3 VDC ±5%

LVCMOS

0.4ps typical, 0.5ps maximum

(for 155.250MHz)

3.0ps typical (for 155.250MHz)

20ps typical (for 155.250MHz)

See table below

Tune to the nominal frequency

with Vc= 1.65 ±0.2VDC

90% Vdd minimum

10% Vdd maximum

From ±30ppm to ±150ppm

See table

15pF

10ms maximum, 5ms typical

50% ±5% measured at 50% Vdd

0.7ns typical (15pF load)

30mA maximum (15pF load)

40mA maximum (15pF load)

10% maximum, 6% typical

25kHz minimum

60kW minimum

Monotonic and Positive. (An

increase of control voltage

always increases output

frequency.)

-50° to +100°C

±5ppm per year maximum

Not available (4

pad package)

Fully compliant

PHASE NOISE

Offset

10Hz

100Hz

1kHz

10kHz

100kHz

1MHz

10MHz

Frequency 155.25MHz

-62dBc/Hz

-92dBc/Hz

-120dBc/Hz

-132dBc/Hz

-128dBc/Hz

-140dBc/Hz

-150dBc/Hz

Storage Temperature:

Ageing:

Enable/Disable (Tristate):

RoHS Status:

FREQUENCY STABILITY

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

PART NUMBERING

Example:

Supply Voltage

3 = +3.3V

Series Designator

GF14

Stability over temperature range

(See table)

Pullability in ±ppm

Pullability determinator

N = minimum

M = maximum

T = Typical

Frequency in MHz

3GF14B-80N-156.25

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk

3GF14C-80N-156.25 Related Products

	3GF14C-80N-156.25	3GF14A-80N-156.25	3GF14B-80N-156.25	GF14
Description	14 pin Dual-in-Line	14 pin Dual-in-Line	14 pin Dual-in-Line	14 pin Dual-in-Line
Is it lead-free?	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	-
package instruction	ROHS COMPLIANT, DIL-14/4	ROHS COMPLIANT, DIL-14/4	ROHS COMPLIANT, DIL-14/4	-
Reach Compliance Code	compli	compli	compli	-
Maximum control voltage	1.85 V	1.85 V	1.85 V	-
Minimum control voltage	1.45 V	1.45 V	1.45 V	-
Frequency Adjustment - Mechanical	NO	NO	NO	-
Frequency offset/pull rate	80 ppm	80 ppm	80 ppm	-
frequency stability	100%	25%	50%	-
linearity	10%	10%	10%	-
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-
Nominal operating frequency	156.25 MHz	156.25 MHz	156.25 MHz	-
Maximum operating temperature	70 °C	70 °C	70 °C	-
Oscillator type	LVCMOS	LVCMOS	LVCMOS	-
Output load	15 pF	15 pF	15 pF	-
physical size	20.2mm x 12.8mm x 5.08mm	20.2mm x 12.8mm x 5.08mm	20.2mm x 12.8mm x 5.08mm	-
Maximum supply voltage	3.465 V	3.465 V	3.465 V	-
Minimum supply voltage	3.135 V	3.135 V	3.135 V	-
Nominal supply voltage	3.3 V	3.3 V	3.3 V	-
surface mount	NO	NO	NO	-
maximum symmetry	55/45 %	55/45 %	55/45 %	-
Base Number Matches	1	1	1	-
