Datasheet> All Categories > Passive components> oscillator> 3GPA14G-A-80N-60.000

3GPA14G-A-80N-60.000: Description14 pin DIL VCXO; CategoryPassive components oscillator; File Size86KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

3GPA14G-A-80N-60.000 Overview

14 pin DIL VCXO

3GPA14G-A-80N-60.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
Reach Compliance Code	compliant
Maximum control voltage	2 V
Minimum control voltage	1.3 V
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	25%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	60 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	20.2mm x 12.8mm x 5.08mm
longest rise time	0.7 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

Frequency range 60MHz to 240MHz

LVPECL Output

Supply Voltage 3.3 VDC

Phase jitter 0.2ps typical

Pull range from ±30ppm to ±150ppm

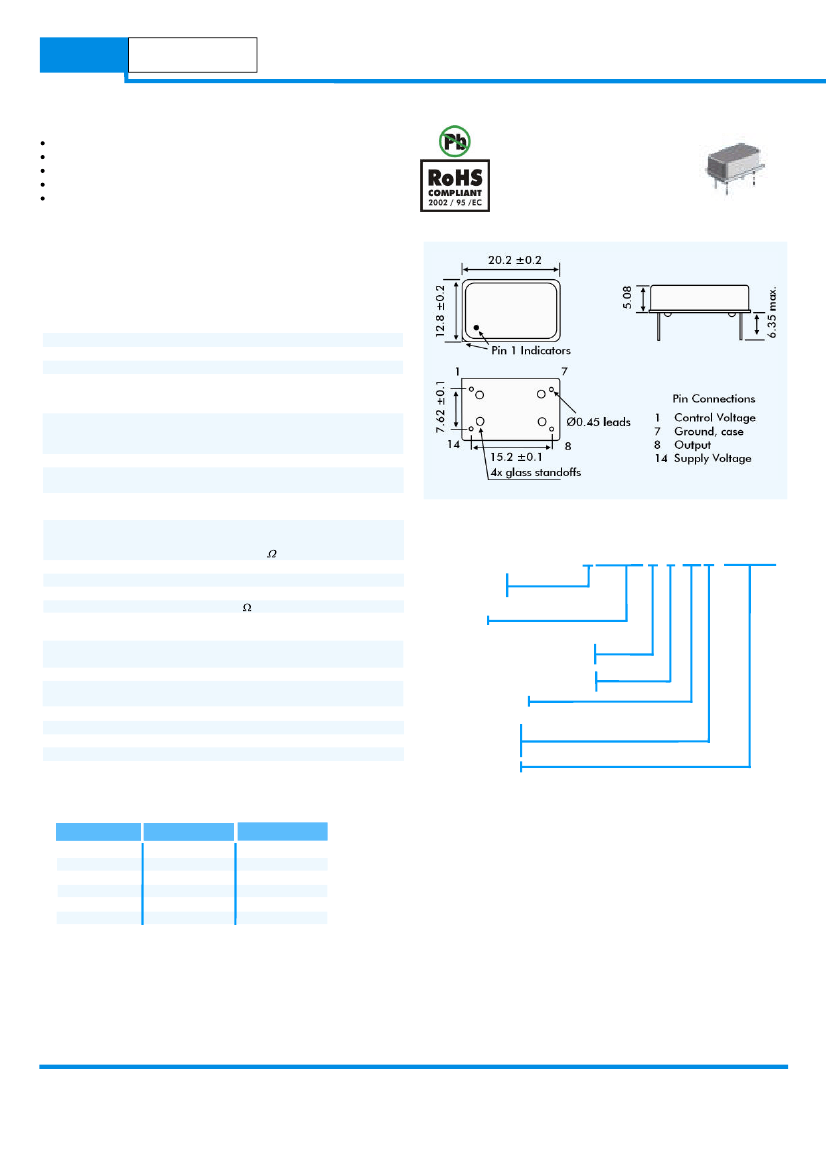

DESCRIPTION

GPA14 VCXOs are packaged in a 14 pin dual-in-line package. Typical

phase jitter for GPA series VCXOs is 0.2 ps. Output is LVPECL.

Applications include phase lock loop, SONET/ATM, set-top boxes,

MPEG , audio/video modulation, video game consoles and HDTV.

GPA14 LVPECL VCXO

14 pin DIL VCXO

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range:

Supply Voltage:

Output Logic:

RMS Period Jitter

60.0MHz ~ 120MHz:

120MHz ~ 240MHz:

Peak to Peak Jitter

60.0MHz ~ 120MHz:

120MHz ~ 240MHz:

Phase Jitter:

Initial Frequency Accuracy:

Output Voltage HIGH (1):

Output Voltage LOW (0):

60.0MHz to 240.0MHz

3.3 VDC ±5%

LVPECL

2.5ps typical

4.7ps typical

17.5ps typical

24.5ps typical

0.2ps typical

Tune to the nominal frequency

with Vc= 1.65 ±0.2VDC

Vdd-1.025V minimum

Vdd-0.880V maximum

Vdd-1.810V minimum

Vdd-1.620V maximum

(RL=50 to Vdd-2V)

From ±30ppm to ±150ppm

1.65 ±0.35 Volts

See table

50 into Vdd or Thevenin equiv.

0.5ns typ., 0.7ns max.

20% Vdd to 80% Vdd

50% ±5%

(Measured at Vdd-1.3V)

10ms maximum, 5ms typical

75mA maximum at 212.5MHz

80mA maximum at 622.08MHz

2kV maximum

-55° to +150°C

±2ppm per year maximum

Not implemented - 4 pin package

Fully compliant or non-compliant

PART NUMBERING

Example:

Pulling Range:

Control Voltage Range:

Temperature Stability:

Output Load:

Rise/Fall Times:

Duty Cycle:

Start-up Time:

Current Consumption:

Static Discharge Protection:

Storage Temperature:

Ageing:

Enable/Disable:

RoHS Status:

3GPA14G-B-80N-60.000

Supply Voltage

3 = +3.3V

Series Designator

GPA14

RoHS Status

G = RoHs compliant

Blank = RoHS non-compliant

Stability over temperature range

(See table)

Pullability in ±ppm

Pullability determinator

N = minimum

M = maximum

T = Typical

Frequency in MHz

FREQUENCY STABILITY

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk

3GPA14G-A-80N-60.000 Related Products

	3GPA14G-A-80N-60.000	3GPA14-A-80N-60.000	3GPA14G-B-80N-60.000	GPA14
Description	14 pin DIL VCXO	14 pin DIL VCXO	14 pin DIL VCXO	14 pin DIL VCXO
Is it lead-free?	Lead free	Contains lead	Lead free	-
Is it Rohs certified?	conform to	incompatible	conform to	-
Reach Compliance Code	compliant	compli	compli	-
Maximum control voltage	2 V	2 V	2 V	-
Minimum control voltage	1.3 V	1.3 V	1.3 V	-
maximum descent time	0.7 ns	0.7 ns	0.7 ns	-
Frequency Adjustment - Mechanical	NO	NO	NO	-
Frequency offset/pull rate	80 ppm	80 ppm	80 ppm	-
frequency stability	25%	25%	50%	-
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-
Nominal operating frequency	60 MHz	60 MHz	60 MHz	-
Maximum operating temperature	70 °C	70 °C	70 °C	-
Oscillator type	LVPECL	LVPECL	LVPECL	-
Output load	50 OHM	50 OHM	50 OHM	-
physical size	20.2mm x 12.8mm x 5.08mm	20.2mm x 12.8mm x 5.08mm	20.2mm x 12.8mm x 5.08mm	-
longest rise time	0.7 ns	0.7 ns	0.7 ns	-
Maximum supply voltage	3.465 V	3.465 V	3.465 V	-
Minimum supply voltage	3.135 V	3.135 V	3.135 V	-
Nominal supply voltage	3.3 V	3.3 V	3.3 V	-
surface mount	NO	NO	NO	-
maximum symmetry	55/45 %	55/45 %	55/45 %	-
Base Number Matches	1	1	1	-
