3GPA576B-80N-60.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 3GPA576B-80N-60.000

3GPA576B-80N-60.000: Description7 x 5 x 1.8mm SMD VCXO; CategoryPassive components oscillator; File Size221KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

3GPA576B-80N-60.000 Overview

7 x 5 x 1.8mm SMD VCXO

3GPA576B-80N-60.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	TRISTATE; ENABLE/DISBLE FUNCTION; COMPLIMENTARY OUTPUT
Maximum control voltage	2 V
Minimum control voltage	1.3 V
maximum descent time	0.5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	80 ppm
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	60 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.5mm x 5.0mm x 1.8mm
longest rise time	0.5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

Frequency range 60MHz to 240MHz

LVPECL Output

Supply Voltage 3.3 VDC

Phase jitter 0.2ps typical

Pull range from ±30ppm to ±150ppm

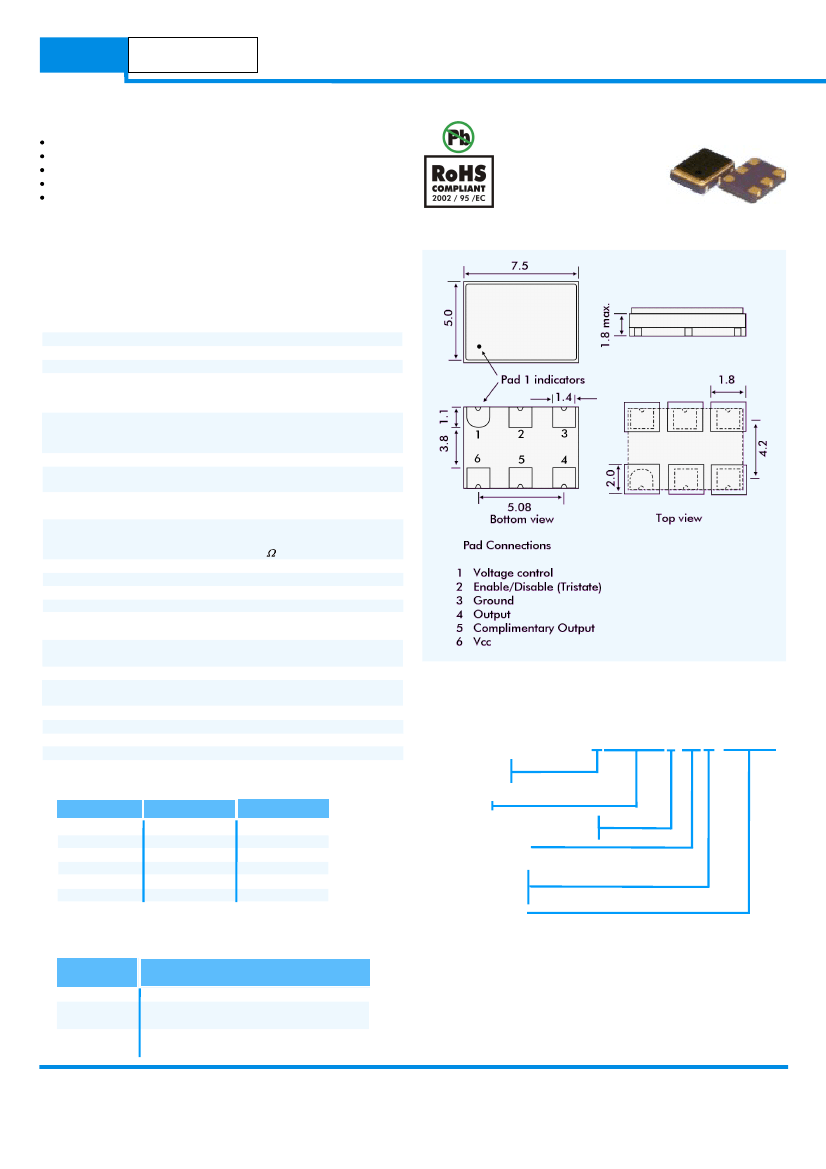

DESCRIPTION

GPA576 VCXOs are packaged in a 6 pad 7mm x 5mm SMD package.

Typical phase jitter for GPA series VCXOs is 0.2 ps. Output is LVPECL.

Applications include phase lock loop, SONET/ATM, set-top boxes,

MPEG , audio/video modulation, video game consoles and HDTV.

GPA576 LVPECL VCXO

7 x 5 x 1.8mm SMD VCXO

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range:

Supply Voltage:

Output Logic:

RMS Period Jitter

60.0MHz ~ 120MHz:

120MHz ~ 240MHz:

Peak to Peak Jitter

60.0MHz ~ 120MHz:

120MHz ~ 240MHz:

Phase Jitter:

Initial Frequency Accuracy:

Output Voltage HIGH (1):

Output Voltage LOW (0):

60.0MHz to 240.0MHz

3.3 VDC ±5%

LVPECL

2.5ps typical

4.7ps typical

17.5ps typical

24.5ps typical

0.2ps typical

Tune to the nominal frequency

with Vc= 1.65 ±0.2VDC

Vdd-1.025V minimum

Vdd-0.880V maximum

Vdd-1.810V minimum

Vdd-1.620V maximum

(RL=50 to Vdd-2V)

From ±30ppm to ±150ppm

1.65 ±0.35 Volts

See table

50W into Vdd or Thevenin equiv.

0.5ns typ., 0.7ns max.

20% Vdd to 80% Vdd

50% ±5%

(Measured at Vdd-1.3V)

10ms maximum, 5ms typical

75mA maximum at 212.5MHz

80mA maximum at 622.08MHz

2kV maximum

-55° to +150°C

±2ppm per year maximum

See table

Fully compliant

Pulling Range:

Control Voltage Range:

Temperature Stability:

Output Load:

Rise/Fall Times:

Duty Cycle:

Start-up Time:

Current Consumption:

Static Discharge Protection:

Storage Temperature:

Ageing:

Enable/Disable:

RoHS Status:

FREQUENCY STABILITY

PART NUMBERING

Example:

3GPA576B-80N-60.000

Stability Code Stability ±ppm Temp. Range

0°~+70°C

100

0°~+70°C

-40°~+85°C

100

-40°~+85°C

If non-standard frequency stability is required

Use ‘I’ followed by stability, i.e. I20 for ±20ppm

ENABLE/DISABLE FUNCTION

Tristate Pad

Status

Not connected

Below 0.3Vdd

(Ref. to ground)

Above 0.7Vdd

(Ref. to ground)

Output Status

LVPECL and Complimentary LVPECL enabled

Both outputs are disabled (high impedance)

Both outputs are enabled

Supply Voltage

3 = +3.3V

Series Designator

GPA576

Stability over temperature range

(See table)

Pullability in ±ppm

Pullability determinator

N = minimum

M = maximum

T = Typical

Frequency in MHz

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk

3GPA576B-80N-60.000 Related Products

	3GPA576B-80N-60.000	3GPA576A-80N-60.000	3GPA576C-80N-60.000	GPA576
Description	7 x 5 x 1.8mm SMD VCXO	7 x 5 x 1.8mm SMD VCXO	7 x 5 x 1.8mm SMD VCXO	7 x 5 x 1.8mm SMD VCXO
Is it lead-free?	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	-
Reach Compliance Code	compli	compliant	compli	-
Other features	TRISTATE; ENABLE/DISBLE FUNCTION; COMPLIMENTARY OUTPUT	TRISTATE; ENABLE/DISBLE FUNCTION; COMPLIMENTARY OUTPUT	TRISTATE; ENABLE/DISBLE FUNCTION; COMPLIMENTARY OUTPUT	-
Maximum control voltage	2 V	2 V	2 V	-
Minimum control voltage	1.3 V	1.3 V	1.3 V	-
maximum descent time	0.5 ns	0.5 ns	0.5 ns	-
Frequency Adjustment - Mechanical	NO	NO	NO	-
Frequency offset/pull rate	80 ppm	80 ppm	80 ppm	-
frequency stability	50%	25%	100%	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Nominal operating frequency	60 MHz	60 MHz	60 MHz	-
Maximum operating temperature	70 °C	70 °C	70 °C	-
Oscillator type	LVPECL	LVPECL	LVPECL	-
Output load	50 OHM	50 OHM	50 OHM	-
physical size	7.5mm x 5.0mm x 1.8mm	7.5mm x 5.0mm x 1.8mm	7.5mm x 5.0mm x 1.8mm	-
longest rise time	0.5 ns	0.5 ns	0.5 ns	-
Maximum supply voltage	3.465 V	3.465 V	3.465 V	-
Minimum supply voltage	3.135 V	3.135 V	3.135 V	-
Nominal supply voltage	3.3 V	3.3 V	3.3 V	-
surface mount	YES	YES	YES	-
maximum symmetry	55/45 %	55/45 %	55/45 %	-
Base Number Matches	1	1	1	-
