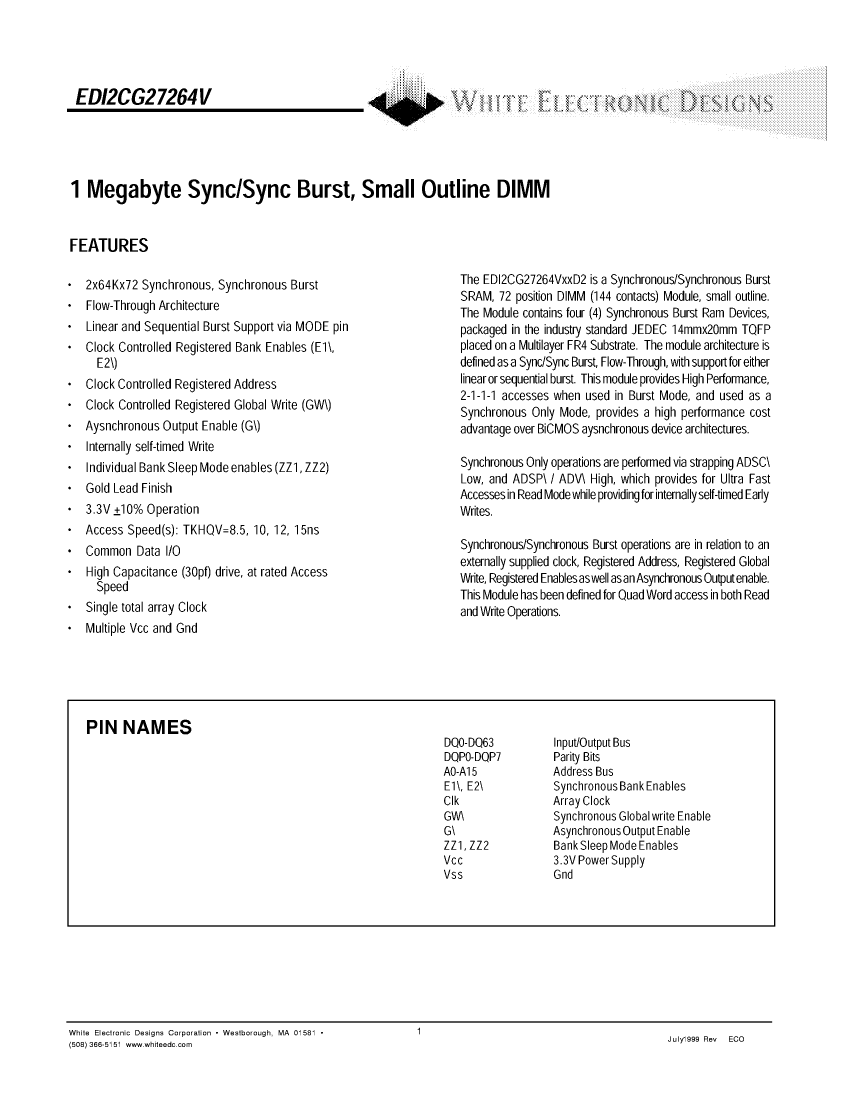

EDI2CG27264V12D1: DescriptionSRAM Module, 128KX72, 12ns, CMOS, SODIMM-144; Categorystorage storage; File Size623KB，11 Pages; ManufacturerWhite Electronic Designs Corporation; Websitehttp://www.wedc.com/

Download Datasheet Parametric Compare View All

EDI2CG27264V12D1 Overview

SRAM Module, 128KX72, 12ns, CMOS, SODIMM-144

EDI2CG27264V12D1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	White Electronic Designs Corporation
package instruction	SODIMM-144
Reach Compliance Code	unknown
Maximum access time	12 ns
JESD-30 code	R-XDMA-N144
memory density	9437184 bit
Memory IC Type	SRAM MODULE
memory width	72
Number of functions	1
Number of terminals	144
word count	131072 words
character code	128000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX72
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3.14 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

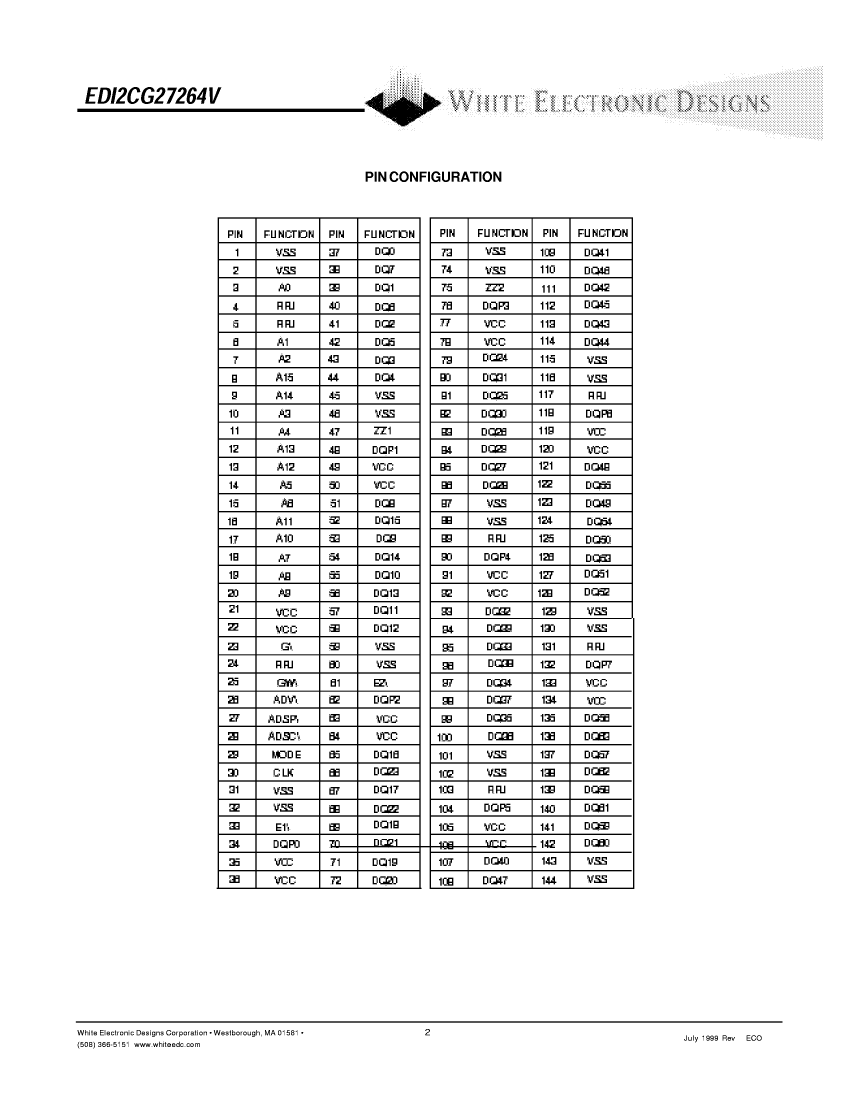

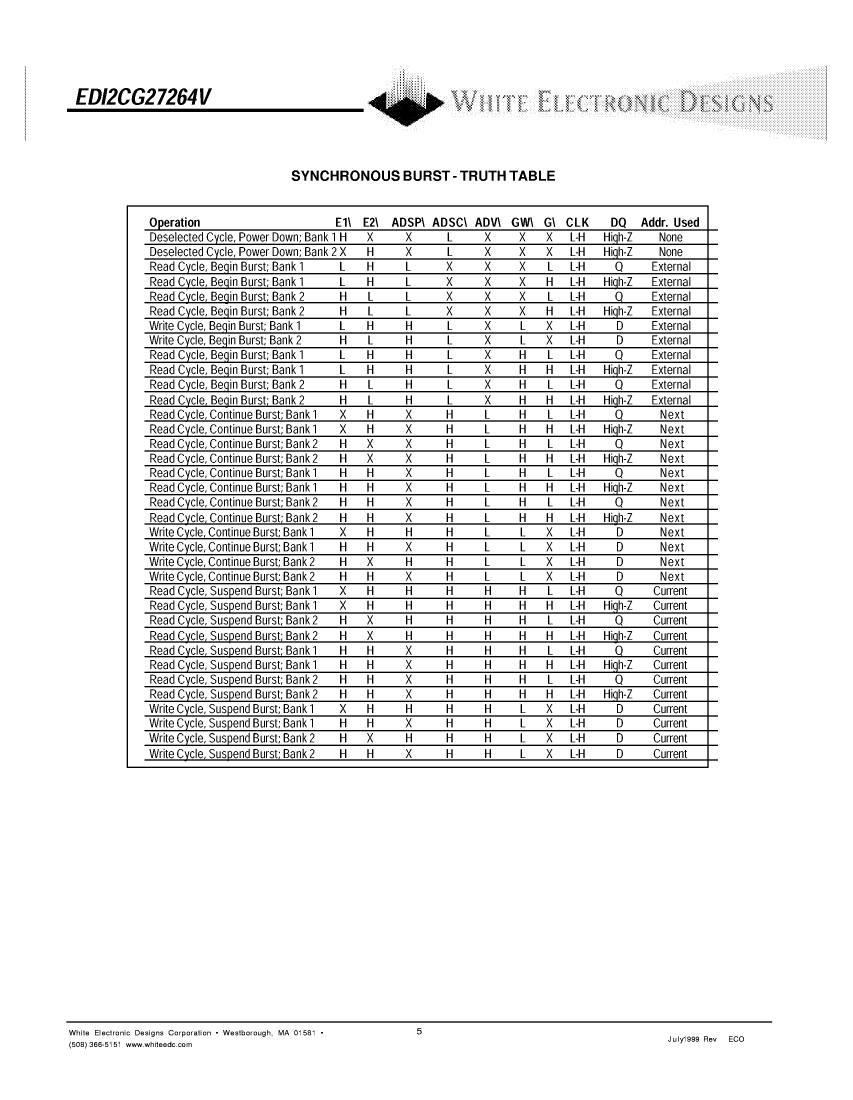

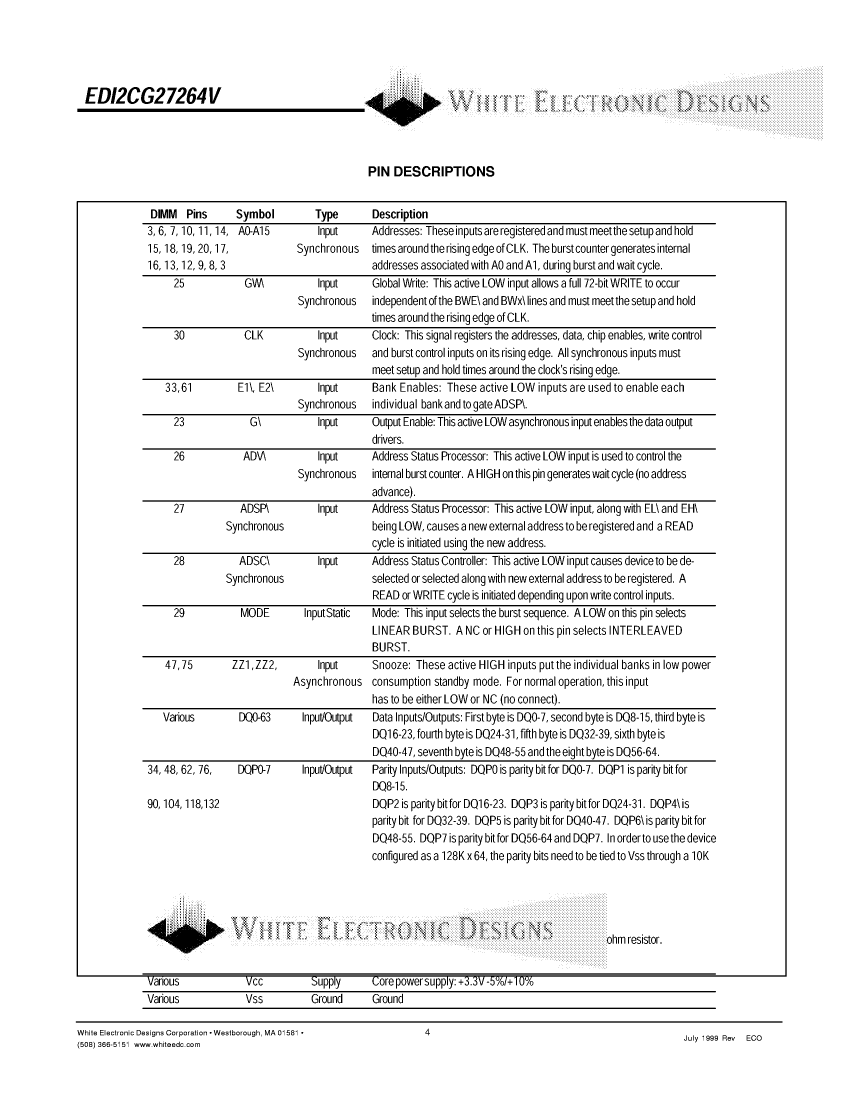

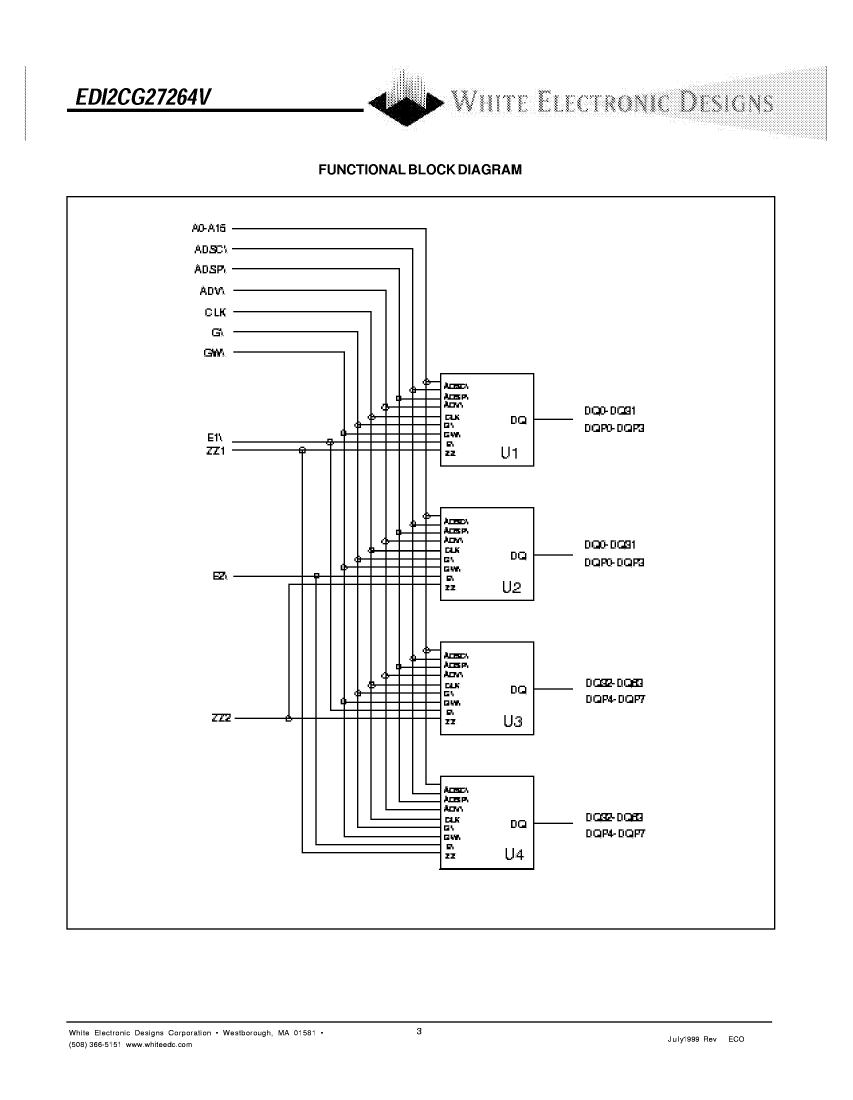

Preview

Download Datasheet

View All

EDI2CG27264V12D1 Related Products

	EDI2CG27264V12D1	EDI2CG27264V9D1	EDI2CG27264V10D1	EDI2CG27264V85D1
Description	SRAM Module, 128KX72, 12ns, CMOS, SODIMM-144	SRAM Module, 128KX72, 9ns, CMOS, SODIMM-144	SRAM Module, 128KX72, 10ns, CMOS, SODIMM-144	SRAM Module, 128KX72, 8.5ns, CMOS, SODIMM-144
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	SODIMM-144	SODIMM-144	SODIMM-144	SODIMM-144
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum access time	12 ns	9 ns	10 ns	8.5 ns
JESD-30 code	R-XDMA-N144	R-XDMA-N144	R-XDMA-N144	R-XDMA-N144
memory density	9437184 bit	9437184 bit	9437184 bit	9437184 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	72	72	72	72
Number of functions	1	1	1	1
Number of terminals	144	144	144	144
word count	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	128KX72	128KX72	128KX72	128KX72
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3.14 V	3.14 V	3.14 V	3.14 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	White Electronic Designs Corporation	-	White Electronic Designs Corporation	White Electronic Designs Corporation
