XEMR22D: DescriptionSingle Color LED, Red, Diffused, 10mm, 10 X 5 MM, ROHS COMPLIANT, PLASTIC PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size72KB，2 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

XEMR22D Overview

Single Color LED, Red, Diffused, 10mm, 10 X 5 MM, ROHS COMPLIANT, PLASTIC PACKAGE-4

XEMR22D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	10 X 5 MM, ROHS COMPLIANT, PLASTIC PACKAGE-4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	RED
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	59.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8 mm
method of packing	BULK
peak wavelength	660 nm
shape	RECTANGULAR
size	10 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

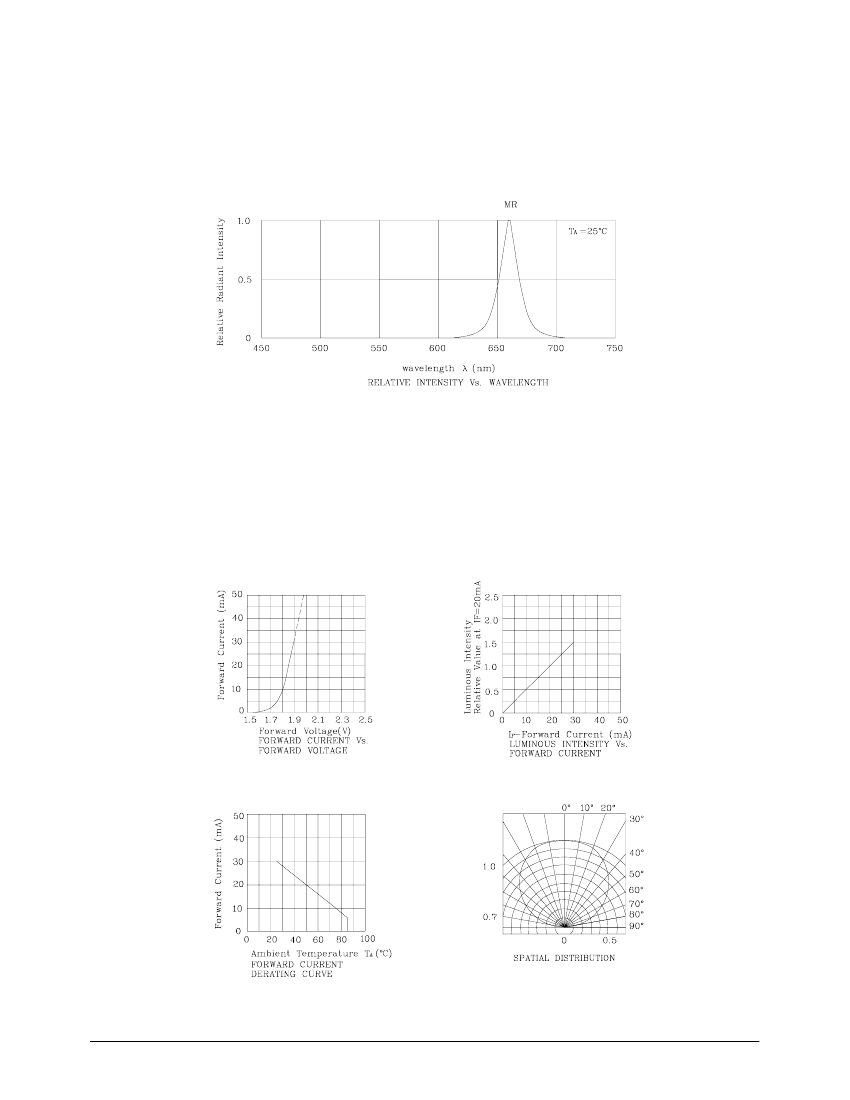

5mmx10mm LIGHT BAR

XEMR22D

SUN LED

Email

: sales@us.sunled.com

Web Site : www.sunled.com

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

Ab s o l u t e m a x i m u m r a t i n g s

( T

A

=25

°

C)

Reverse voltage

Forward current

Forward current (peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operating temperature

Storage temperature

Lead solder temperature

[2mm below package base]

V

R

I

F

i

FS

P

T

A

MR

( Ga Al As )

5

30

155

100

-40 ~ +85

Un i t

Op e r a t i n g Ch a r a c t e r i s t i c s

( T

A

=25

°

C)

Forward voltage (typ.)

(I F=20mA)

Forward voltage (max.)

(I F=20mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=20mA)

Wavelength at Dominate

emission

(I F=20mA)

Spectral Line half-width

(I F=20mA)

Capacitance

(VF=0V, f=1MHz)

MR

( Ga Al As )

Un i t

V

mA

mW

°C

V

F

V

F

I

R

1.85

2.5

10

V

uA

λ

peak

660

nm

Tstg

260

°C

For 5 Seconds

λD

640

nm

∆λ

C

20

45

nm

pF

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L e n s -c o l o r

L u min o u s

In t e n si t y

( I F = 20m A )

mc d

min .

ty p .

20

58

Wa v e l e n g t h

nm

λ

P

Vi e w i n g

An g l e

2θ1/2

θ

XEMR22D

R ed

GaAlAs

Red Diffused

660

120°

Published Date : JUL 19,2002

Drawing No: XDSA1934

V1

Checked : B.L.LIU

2-1
