HD6433278P6 datasheet, PDF - EEWORLD Datasheet

HD6433278P6: DescriptionMicrocontroller, 8-Bit, MROM, H8/300 CPU, 6MHz, CMOS, PDIP64, SHRINK, PLASTIC, DIP-64; CategoryThe embedded processor and controller Microcontrollers and processors; File Size326KB，19 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric View All

HD6433278P6 Overview

Microcontroller, 8-Bit, MROM, H8/300 CPU, 6MHz, CMOS, PDIP64, SHRINK, PLASTIC, DIP-64

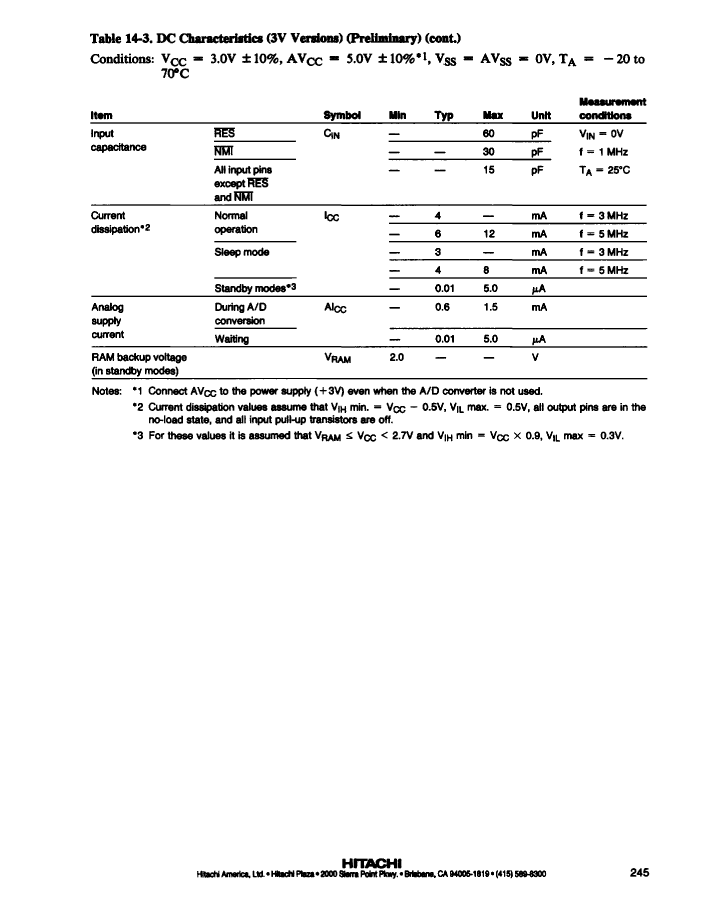

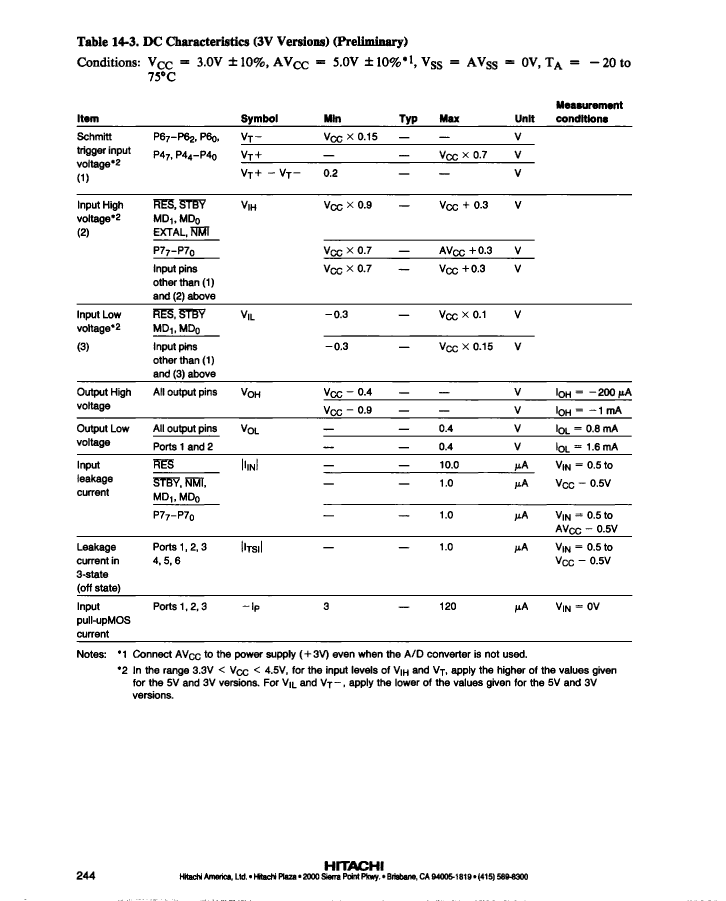

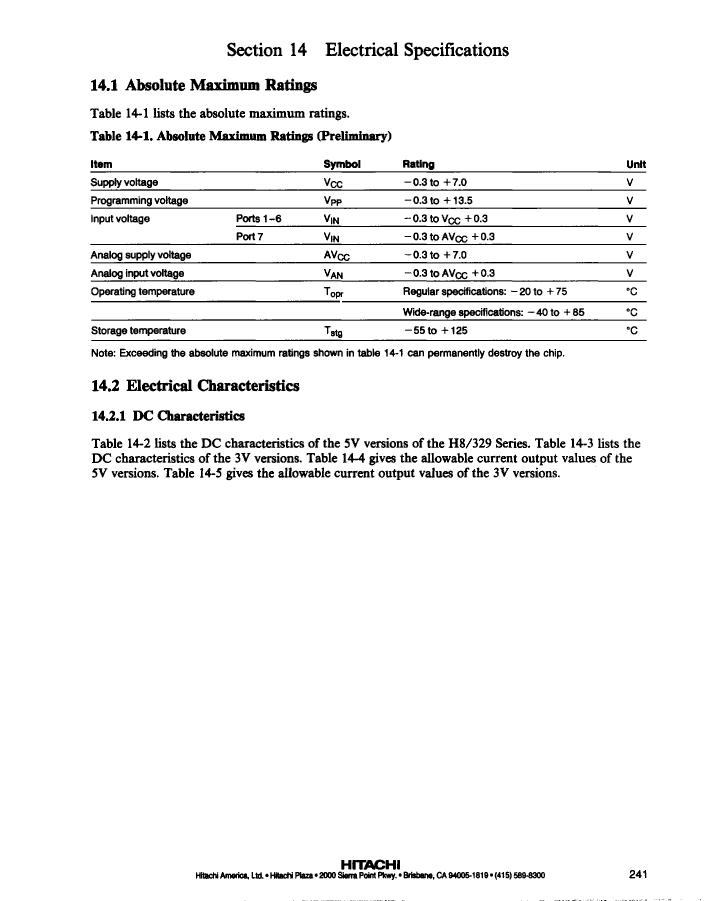

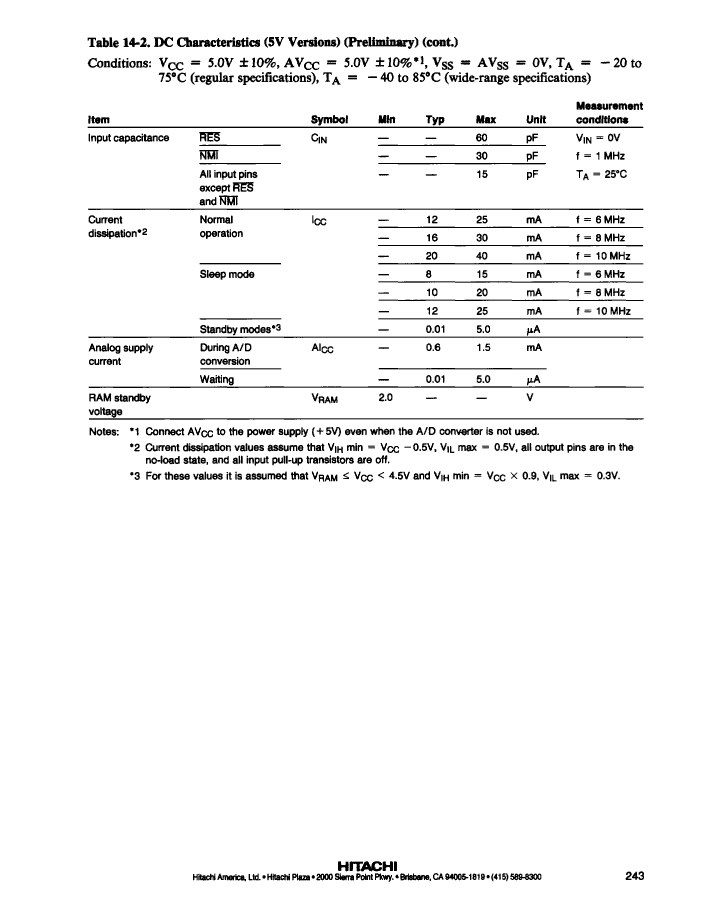

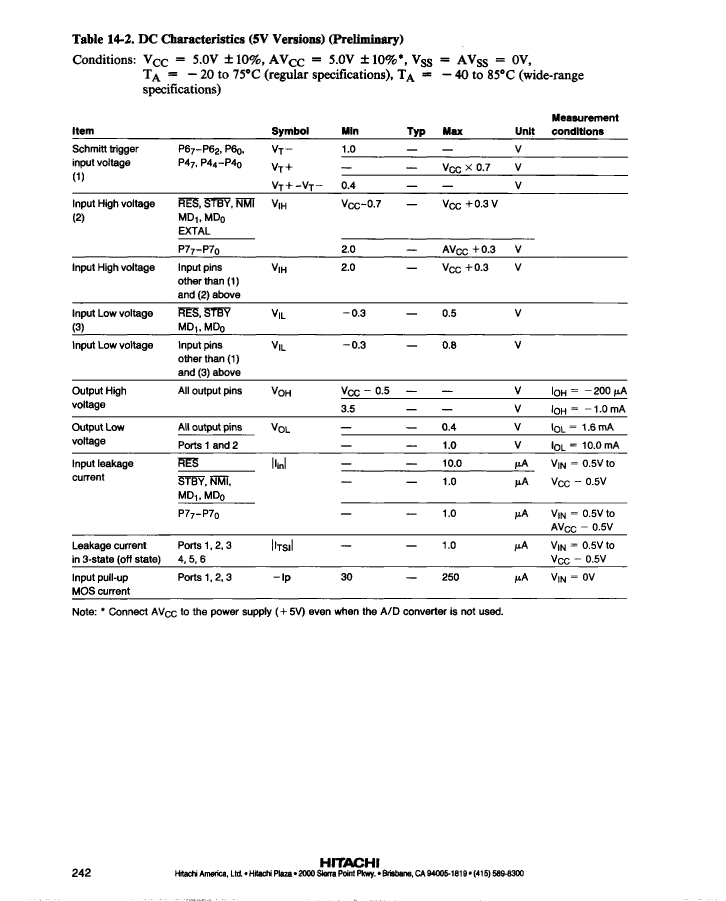

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	DIP
package instruction	SDIP, SDIP64,.75
Contacts	64
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	8
CPU series	H8/300
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T64
JESD-609 code	e0
length	57.6 mm
Number of I/O lines	51
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP64,.75
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	512
rom(word)	16384
ROM programmability	MROM
Maximum seat height	5.08 mm
speed	6 MHz
Maximum slew rate	25 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	19.05 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1
