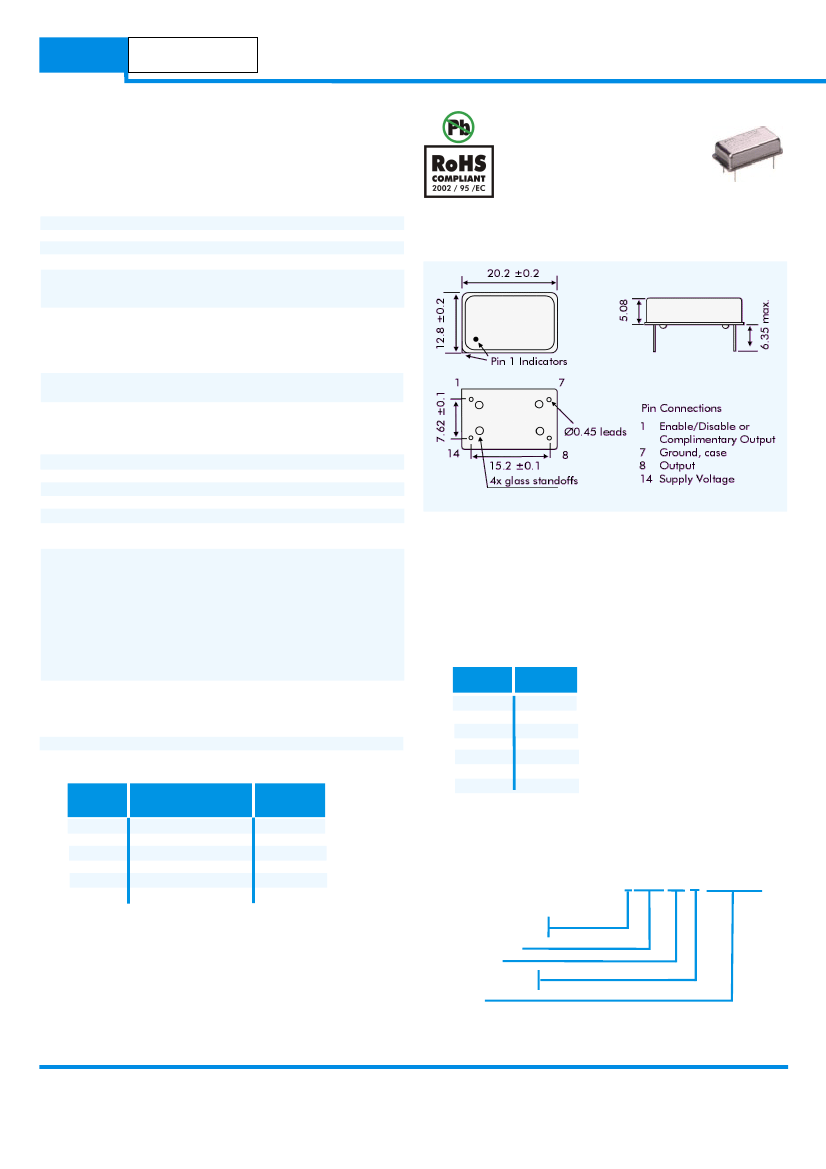

DESCRIPTION

HPW14 series LVPECL output oscillators cover the frequency range

750kHz to 800MHz. The part contains a high 'Q' fundamental crystal

and multiplier circuit.

SPECIFICATION

Frequency Range:

Output Logic

Phase Noise:

Frequency Stability:

Operating Temp Range

Commercial:

Industrial:

Input Voltage:

Output Voltage

High '1':

Low '0':

HPW14 LVPECL OSCILLATORS

14 pin Dual-in-Line

750.0MHz to 800.0MHz

LVPECL

See table

-10° to +70°C

-40° to +85°C

+3.3VDC ±5%

OUTLINE & DIMENSIONS

Vdd -1.025V min.

Vdd -1.620V max.

(RL = 50W to Vdd -2.0V)

Rise/Fall Times:

1.5ns typical

(20% Vdd to 80% Vdd)

Current Consumption (15pF load):

<24MHz:

25mA max.

24.01 to 96MHz:

65mA max.

96.01 to 700MHz:

100mA max.

Load:

50W into Vdd-2.0V

Start-up Time:

5ms typ., 10ms max.

Duty Cycle:

50%±5% (at Vdd -1.3V)

Input Static Discharge Prot:

2kV min.

Storage Temperature Range:

-55°C to +150°C

Ageing:

±3ppm per year max., ±2ppm

thereafter. At T amb +25°C

Enable/Disable

No connection:

Both outputs enabled

Disable:

Both outputs are disabled when

control pad is taken below 0.3V

referenced to ground. Oscillator is

always 'on'. (Special request -

oscillator is off when disabled.)

Enable:

Both Outputs are enabled when

control pad is taken above 0.7 Vcc

referenced to ground.

ABSOLUTE MAXIMUM RATINGS

(Permanent

damage may be caused if operated beyond these limits.)

Supply Voltage Vdd:

+4.6V max.

Input Voltage Vi:

Vss -0.5 min., VDD +0.5V max.

Input Voltage Vo:

Vss -0.5 min., Vdd +0.5V max.

PHASE NOISE (155.250MHz)

Offset

10Hz

100Hz

1kHz

10kHz

100kHz

1MHz

10MHz

dBc/Hz

-65

-95

-120

-125

-121

-120

-140

STABILITY OVER TEMPERATURE RANGE

Stability

±ppm

100

Temperature Range Order Code

°C

-10 to +70

-40 to +85

PART NUMBERS

HPW14 oscillator part numbers are derived as follows:

Example:

Supply Voltage

3 = 3.3VDC

Series Designation

Package Style

Stability Code

(See table)

Frequency

3HPW14-A-250.000

JITTER

Integrated Phase Jitter:

2.6ps typical at 155.520MHz

(12kHz to 20MHz)

Period Jitter (RMS):

4.3ps typical at 155.520MHz

Period Jitter (peak to peak): 27ps typical at 155.520MHz

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk

HPW14 Related Products

	HPW14	3HPW14-A-250.000	3HPW14-C-250.000	3HPW14-B-250.000
Description	14 pin Dual-in-Line	14 pin Dual-in-Line	14 pin Dual-in-Line	14 pin Dual-in-Line
Is it lead-free?	-	Lead free	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to
Maker	-	Euroquartz	Euroquartz	Euroquartz
Reach Compliance Code	-	compli	compli	compliant
Other features	-	ENABLE/DISABLE FUNCTION; COMPLIMENTARY OUTPUT	ENABLE/DISABLE FUNCTION; COMPLIMENTARY OUTPUT	ENABLE/DISABLE FUNCTION; COMPLIMENTARY OUTPUT
maximum descent time	-	1.5 ns	1.5 ns	1.5 ns
Frequency Adjustment - Mechanical	-	NO	NO	NO
frequency stability	-	25%	100%	50%
Installation features	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	-	250 MHz	250 MHz	250 MHz
Maximum operating temperature	-	70 °C	70 °C	70 °C
Minimum operating temperature	-	-10 °C	-10 °C	-10 °C
Oscillator type	-	LVPECL	LVPECL	LVPECL
Output load	-	50 OHM	50 OHM	50 OHM
physical size	-	20.2mm x 12.8mm x 5.08mm	20.2mm x 12.8mm x 5.08mm	20.2mm x 12.8mm x 5.08mm
longest rise time	-	1.5 ns	1.5 ns	1.5 ns
Maximum supply voltage	-	3.465 V	3.465 V	3.465 V
Minimum supply voltage	-	3.135 V	3.135 V	3.135 V
Nominal supply voltage	-	3.3 V	3.3 V	3.3 V
surface mount	-	NO	NO	NO
maximum symmetry	-	55/45 %	55/45 %	55/45 %
