HLMP-AJ64/65
Precision Optical Performance Orange
New 5mm Mini Oval LEDs
Data Sheet
Description
These Precision Optical Performance Oval LEDs are specif-
ically designed for mono color/video and passenger infor-
mation signs. The oval shaped radiation pattern and high
luminous intensity ensure that these devices are excellent
for wide field of view outdoor applications where a wide
viewing angle and readability in sunlight are essential.
The package epoxy contains both UV-A and UV-B inhibi-
tors to reduce the effects of long term exposure to direct
sunlight.
Features
•
Well defined spatial radiation pattern
•
Available in Orange color (605nm)
•
High brightness material
•
Superior resistance to moisture
•
Standoff and Non-standoff Package
•
Tinted and diffused
•
Typical viewing angle: 30° x 70°
Applications
•
Mono color signs
Package Dimensions

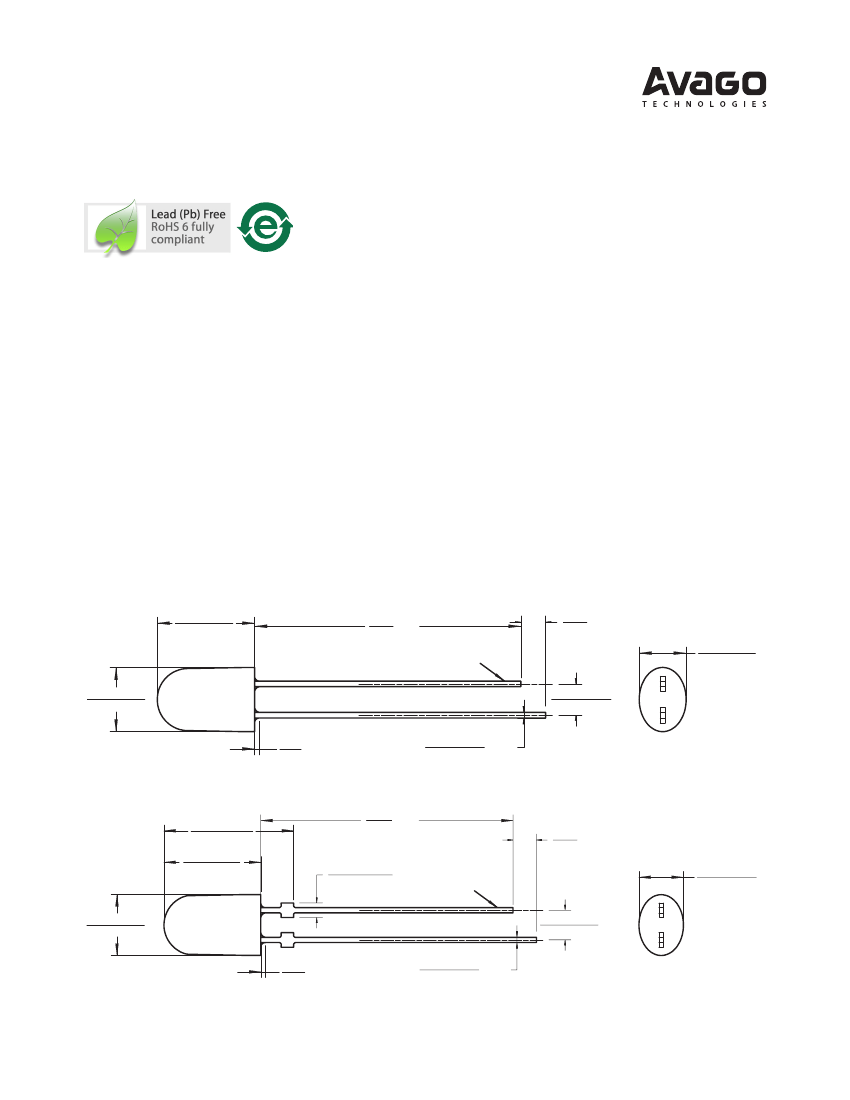

Package drawing A
8.70 ± 0.20
0.342 ± 0.008
24.00 MIN.
0.945
CATHODE LEAD
5.20 ± 0.20
0.205 ± 0.008
0.8 MAX. EPOXY MENISCUS
0.016
0.50 ± 0.10 Sq Typ
0.020 ± 0.004
2.54 ± 0.3
0.100 ± 0.012
1.0 MIN.
0.038
Measured at base of lens
3.80 ± 0.20
0.150 ± 0.008
Package drawing B
11.70 ± 0.50
0.4606 ± 0.02
8.70 ± 0.20
0.342 ± 0.008
24.00 MIN.
0.945
1.50 ± 0.15
0.0591 ± 0.006
1.0 MIN.
0.038
CATHODE LEAD
2.54 ± 0.3
0.100 ± 0.012
Measure at base of lens
3.80 ± 0.20
0.150 ± 0.008
5.2 ± 0.20
0.205 ± 0.008
0.8 MAX. EPOXY MENISCUS
0.032
Notes:
All dimensions in millimeters (inches).
Tolerance is ± 0.20mm unless other specified
0.50 ± 0.10 Sq Typ
0.020 ± 0.004
Device Selection Guide
Part Number
HLMP-AJ64-YZ0DD
HLMP-AJ65-YZ0DD
Color and Dominant
Wavelength
λ
d
(nm) Typ
Orange 605
Orange 605
Luminous Intensity Iv
(mcd) at 20 mA-Min
[1,2,4]
1990
1990
Luminous Intensity Iv
(mcd) at 20 mA-Max
[1,2,4]
2900
2900
Package Drawing
A
B
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package and it is tested with pulsing condition.
2. The optical axis is closely aligned with the package mechanical axis.
3. Dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
4. Tolerance for each bin limit is ± 15%.
Part Numbering System
HLMP – A J 6x – x x x xx
Packaging Option
DD: Ammopack
Color Bin Selection
0: Full Distribution
Maximum Intensity Bin
0: No maximum intensity limit
Minimum Intensity Bin
Refer to Device Selection Guide.
Standoff / Non Standoff
4: Non standoff
5: Standoff
Package
A: 5mm Mini Oval 30° x 70°
Note:
Please refer to AB 5337 for complete information about part numbering system.
2
Absolute Maximum Ratings
T
J
= 25°C
Parameter
DC Forward Current
[1]
Peak Forward Current
Power Dissipation
Reverse Voltage
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Notes:
1. Derate linearly as shown in Figure 4.
2. Duty Factor 30%, frequency 1KHz.
Orange
50
100
[2]
120
5 (I
R
= 100
μA)
130
-40 to +100
-40 to +100
Unit
mA
mA
mW
V
°C
°C
°C
Electrical / Optical Characteristics
T
J
= 25°C
Parameter
Forward Voltage
Reverse Voltage
Dominant Wavelength
[1]
Peak Wavelength
Thermal Resistance
Luminous Efficacy
[2]
Thermal coefficient of
λ
d
Symbol
V
F
V
R
λ
d
λ
PEAK
Rθ
J-PIN
η
V
Min.
1.8
5
600
Typ.
2.1
605
609
240
335
0.083
Max.
2.4
612
Units
V
V
nm
nm
°C/W
lm/W
nm/°C
Test Conditions
I
F
= 20 mA
I
F
= 100
μA
I
F
= 20 mA
Peak of Wavelength of Spectral
Distribution at I
F
= 20 mA
LED Junction-to anode lead
Emitted Luminous Power/Emitted
Radiant Power
I
F
= 20 mA; +25°C ≤ T
J
≤ + 100°C
Notes:
1. The dominant wavelength is derived from the chromaticity Diagram and represents the color of the lamp.
2. The radiant intensity, I
e
in watts per steradian, may be found from the equation I
e
= I
V
/η
V
where I
V
is the luminous intensity in candelas and
η
V
is
the luminous efficacy in lumens/watt.
3
1.0
0.8
RELATIVE INTENSITY
0.6
0.4
0.2
0.0
500
100
80
60
40
20
0
FORWARD CURRENT-mA
550
600
WAVELENGTH - nm
650
700
0
1
2
FORWARD VOLTAGE - V
3

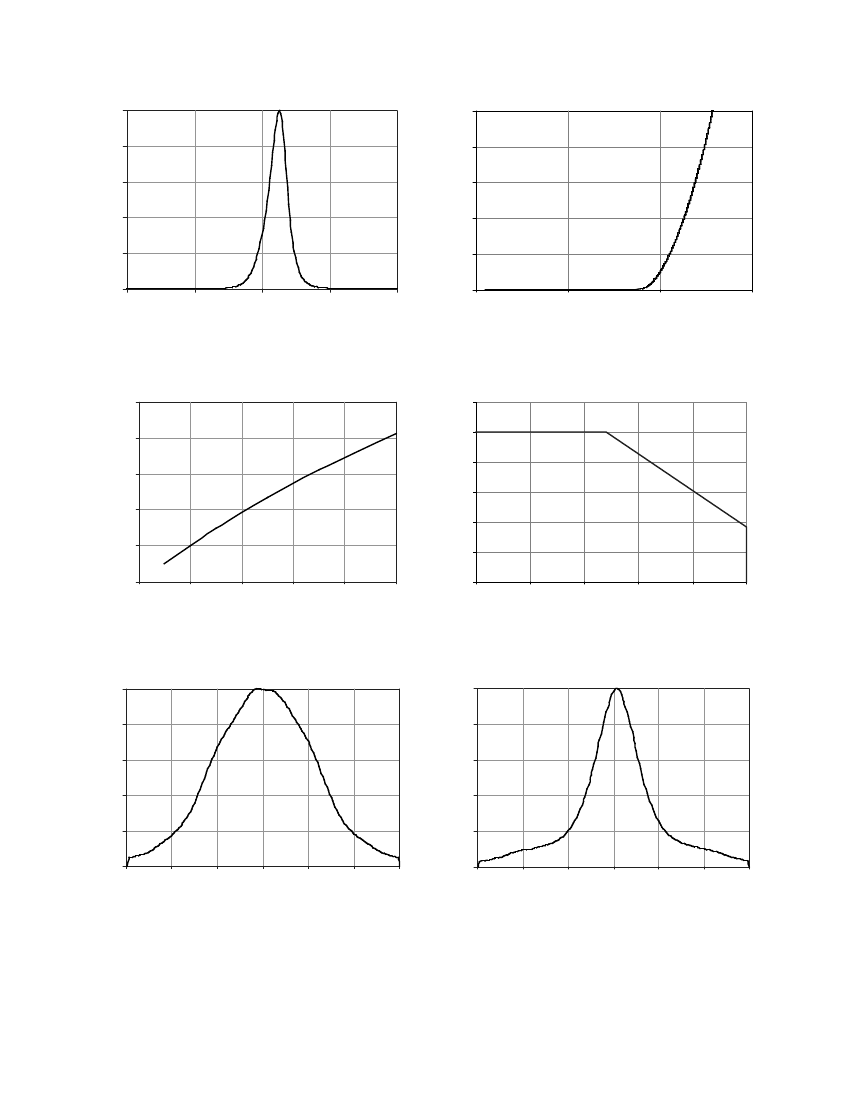

Figure 1. Relative Intensity vs Wavelength
Figure 2.Forward Current vs Forward Voltage
IF MAX - MAXIMUM FORWARD CURRENT - mA
0
20
40
60
DC FORWARD CURRENT - mA
80
100
5.0
RELATIVE LUMINOUS INTENSITY
(NORMALIZED AT 20 mA)
4.0
3.0
2.0
1.0
0.0
60
50
40
30
20
10
0
0
20
40
60
T
A
- AMBIENT TEMPERATURE - C
80
100
Figure 3. Relative Intensity vs Forward Current
Figure 4. Maximum Forward Current vs Ambient Temperature
1.0
NORMALIZED INTENSITY
-60
-30
0
30
ANGULAR DISPLACEMENT-DEGREE
60
90
0.8
0.6
0.4
0.2
0.0
-90
1.0
0.8
0.6
0.4
0.2
0.0
-90
-60
-30
0
30
60
ANGULAR DISPLACEMENT-DEGREE
90
Figure 5. Radiation Pattern – Major Axis
NORMALIZED INTENSITY
Figure 6. Radiation Pattern – Minor Axis
4
10
FORWARD VOLTAGE SHIFT-V
RELATIVE LIGHT OUTPUT
(NORMALIZED AT T
J
=25°C)
0.2
0.15
0.1
0.05
0
-0.05
-0.1
-0.15
-0.2
1
0.1
-40
-20
0
20
40
60
80 100
T
J
- JUNCTION TEMPERATURE - °C
120
140
-40
-20
0
20 40 60 80 100 120
T
J
- JUNCTION TEMPERATURE - °C
140
Figure 7. Relative Light Output vs Junction Temperature
Figure 8. Relative Forward Voltage vs Junction Temperature
Intensity Bin Limit Table (1.2: 1 Iv Bin Ratio)
Intensity (mcd) at 20mA
Bin
Y
Z
Orange Color Bin Limit
Bin ID
1
2
3
Min.
600
604
608
Max
604
608
612
Min
1990
2400
Max
2400
2900
Tolerance for each bin limit is ± 15%
Tolerance for each bin limit is ± 0.5nm
V
F
Bin Table (V at 20mA)
Bin ID
VD
VA
VB
Min
1.8
2.0
2.2
Max
2.0
2.2
2.4
Tolerance for each bin limit is ± 0.05V
Avago Color Bin on CIE 1931 Chromaticity Diagram
0.400
0.380
Orange
0.360
1
2
0.340
3
0.320
Y
0.300
0.280
0.500
0.550
0.600
0.650
X
0.700
0.750
0.800
5
