1-530218-1 datasheet, PDF - EEWORLD Datasheet

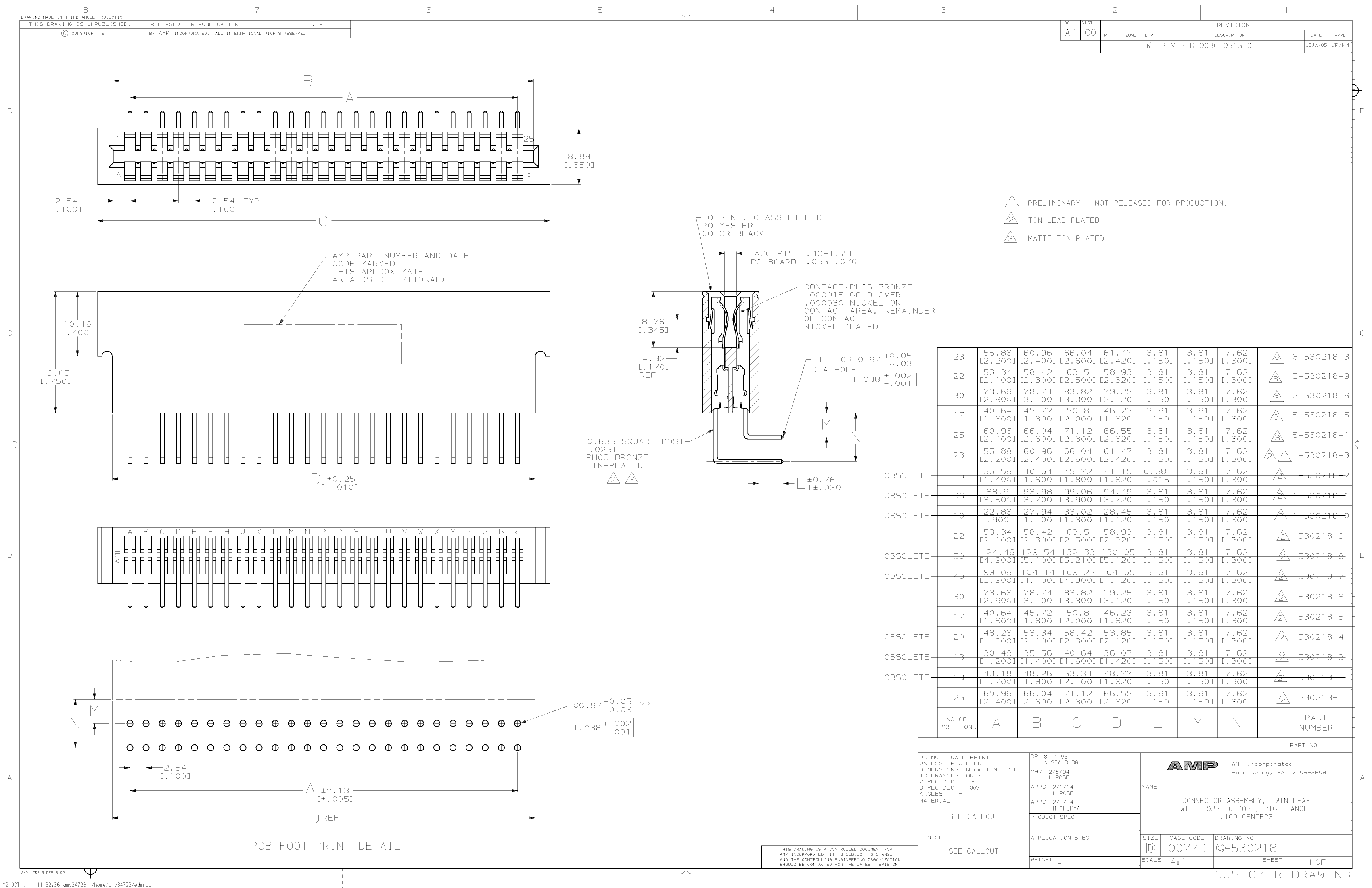

1-530218-1: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.1 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

1-530218-1 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,36 CONTACTS,0.1 PITCH,PC TAIL TERMINAL

Parameter Name	Attribute value
Objectid	302051879
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.35 inch
subject depth	1.062 inch
body length	3.9 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
maximum insertion force	2.78 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.15 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
Evacuation force-minimum value	.1946 N
