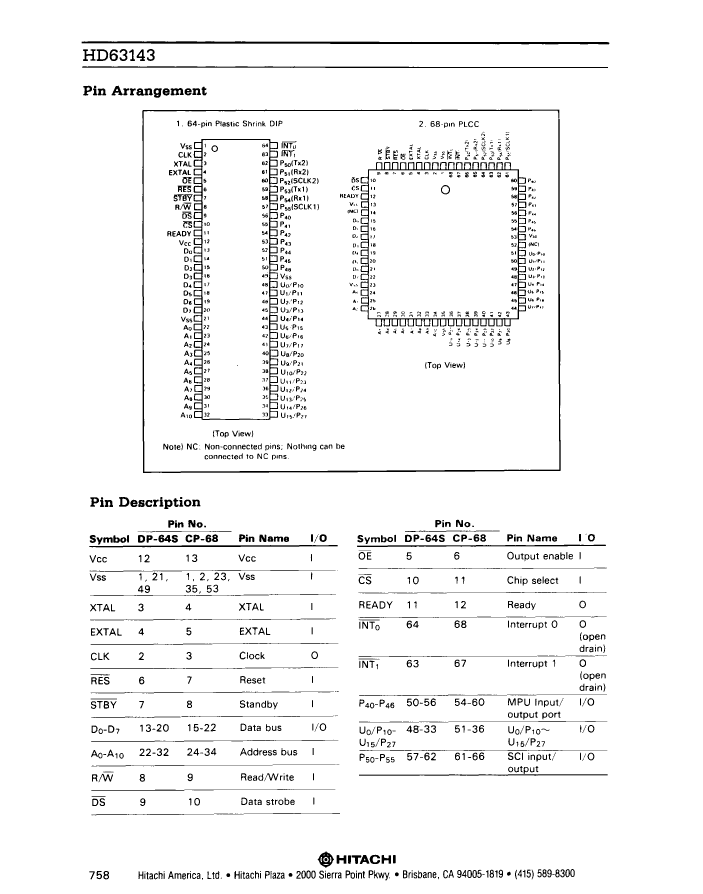

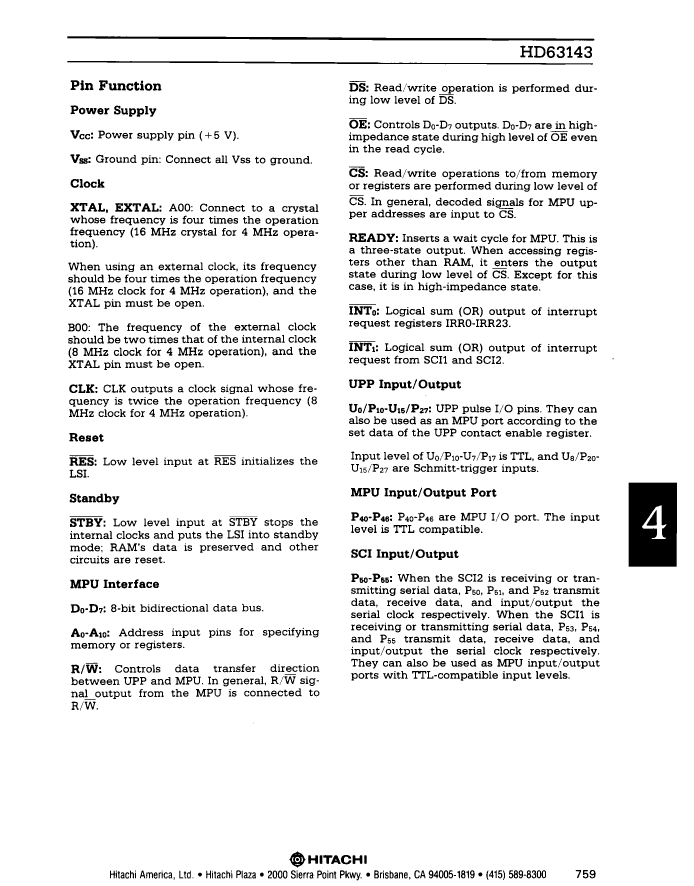

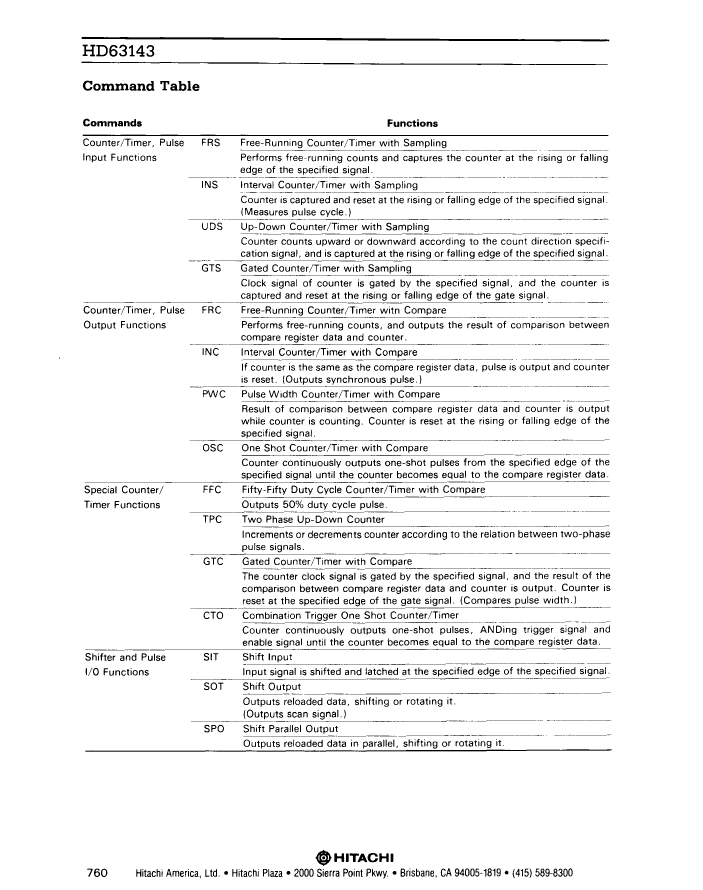

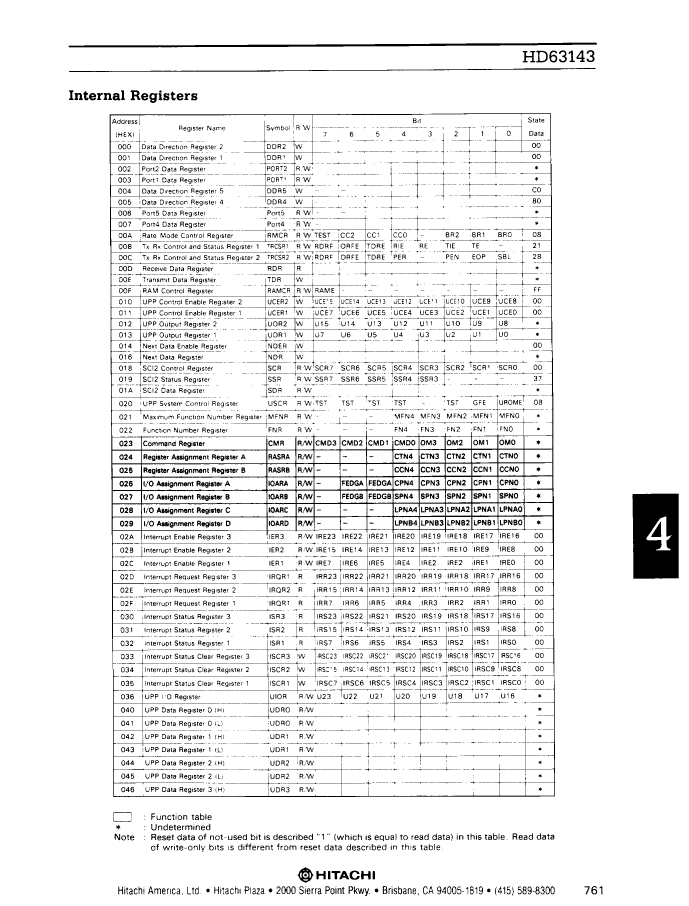

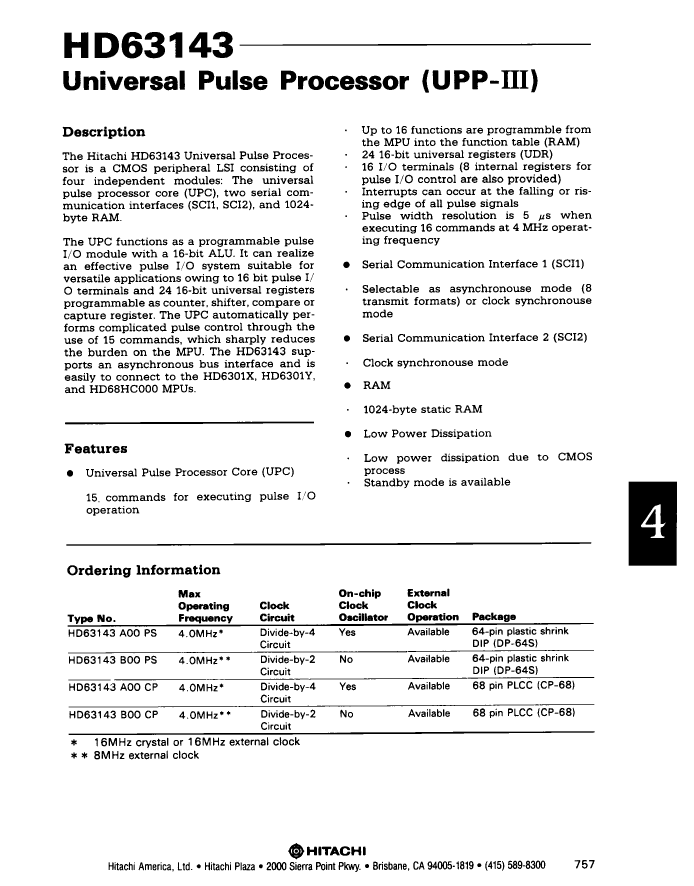

Preview

HD63143A00CP: DescriptionMicrocontroller, CMOS, PQCC68, PLASTIC, LCC-68; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，58 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD63143A00CP Overview

Microcontroller, CMOS, PQCC68, PLASTIC, LCC-68

HD63143A00CP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hitachi （Renesas ）
Parts packaging code	LCC
package instruction	QCCJ, LDCC68,1.0SQ
Contacts	68
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	11
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J68
JESD-609 code	e0
length	24.2316 mm
Number of I/O lines	29
Number of terminals	68
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.2316 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

HD63143A00CP Related Products

	HD63143A00CP	HD63143B00PS	HD63143A00PS	HD63143B00CP
Description	Microcontroller, CMOS, PQCC68, PLASTIC, LCC-68	Microcontroller, 8MHz, CMOS, PDIP64, SHRINK, PLASTIC, DIP-64	Microcontroller, CMOS, PDIP64, SHRINK, PLASTIC, DIP-64	Microcontroller, 8MHz, CMOS, PQCC68, PLASTIC, LCC-68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	LCC	DIP	DIP	LCC
package instruction	QCCJ, LDCC68,1.0SQ	SDIP, SDIP64,.75	SDIP, SDIP64,.75	QCCJ, LDCC68,1.0SQ
Contacts	68	64	64	68
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO
Address bus width	11	11	11	11
maximum clock frequency	16 MHz	8 MHz	16 MHz	8 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
JESD-30 code	S-PQCC-J68	R-PDIP-T64	R-PDIP-T64	S-PQCC-J68
JESD-609 code	e0	e0	e0	e0
length	24.2316 mm	57.6 mm	57.6 mm	24.2316 mm
Number of I/O lines	29	29	29	29
Number of terminals	68	64	64	68
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	SDIP	SDIP	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	SDIP64,.75	SDIP64,.75	LDCC68,1.0SQ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	5.08 mm	5.08 mm	4.57 mm
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal pitch	1.27 mm	1.778 mm	1.778 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD
width	24.2316 mm	19.05 mm	19.05 mm	24.2316 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1
