ZRL-1150LN+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZRL-1150LN+

ZRL-1150LN+: DescriptionNarrow Band Medium Power Amplifier, 650MHz Min, 1400MHz Max, 1 Func, ROHS COMPLIANT, CASE FJ893; CategoryWireless rf/communication Radio frequency and microwave; File Size136KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric View All

ZRL-1150LN+ Overview

Narrow Band Medium Power Amplifier, 650MHz Min, 1400MHz Max, 1 Func, ROHS COMPLIANT, CASE FJ893

ZRL-1150LN+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
package instruction	MODULE(UNSPEC)
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	25 dB
Maximum input power (CW)	10 dBm
Number of functions	1
Maximum operating frequency	1400 MHz
Minimum operating frequency	650 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE(UNSPEC)
power supply	12 V
RF/Microwave Device Types	NARROW BAND MEDIUM POWER
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

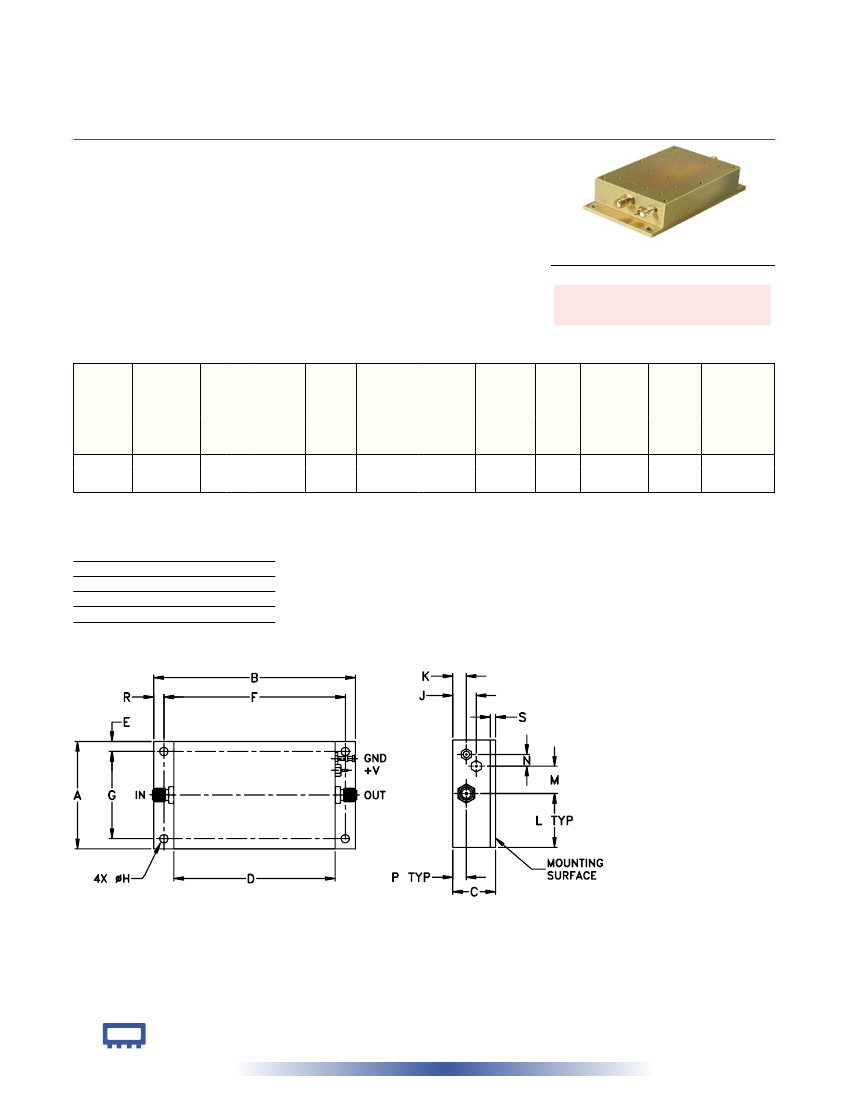

Low Noise Ampliﬁer

50Ω

650 to 1400 MHz

Features

• high IP3, +40 dBm typ.

• low noise ﬁgure, 0.8 dB typ.

• broadband ﬂat gain response

• internal voltage regulated

• over-voltage and transient protected

High IP3

ZRL-1150LN+

ZRL-1150LN

Applications

• very low noise, preampliﬁer

• analog/digital cellular

• PCS, GSM, TDMA, CDMA

• GPS and MAS

• aeronautical and defense communications

MODEL

NO.

FREQUENCY

(MHz)

GAIN

(dB)

Connectors

SMA

CASE STYLE: FJ893

Model

Price

ZRL-1150LN(+)

$119.95

Qty.

(1-9)

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

Electrical Speciﬁcations at T

AMB

=25°C

NOISE

FIGURE

(dB)

MAXIMUM

POWER

OUTPUT

(dBm)

(1 dB Compr.)

Typ. Max.

0.8

1.1

1.4

1.7

Typ.

Min.

Saturated at

3dB Compr.

Typ.

26.0

26.3

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

INTERCEPT

POINT

(dBm)

Note 1

VSWR

(:1)

Typ.

ACTIVE

DIRECTIVITY VOLTAGE

(dB)

@ Pin V+

(Isolation-Gain)

(V)

Nom.

Note 2

OPERATING

CURRENT

@ Pin V+

(mA)

Flatness

650

ZRL-1150LN(+)

685

650

1400

1000

1400

Typ.

Min.

Typ. Max.

±0.5

±2.0

±1.0

—

IP3

Typ.

+40

Out

Typ.

450

Max.

500

1.20 1.25

1.25 1.20

1. 1MHz tone spacing

2. Unit is internally voltage regulated for 6.5 to 17VDC input voltage range.

Maximum Ratings

Operating Temperature

Storage Temperature

DC Voltage

Input Power (no damage)

-40°C to 80°C case

-40°C to 60°C ambient

-55°C to 100°C

+17V Max.

+10 dBm

Outline Drawing

Outline Dimensions (

inch

)

2.00 3.75 0.80 3.00

50.80 95.25 20.32 76.20

0.19 3.37 1.62

4.83 85.70 41.25

0.16 0.44

3.96 11.18

0.26 1.00 0.51

6.60 25.40 12.95

0.22

5.59

0.26

6.60

0.19

4.83

0.10

2.54

grams

135

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. J

M107112

ZRL-1150LN

EDB020609

BLUE C/RS/CP/AM

060823

Page 1 of 2
