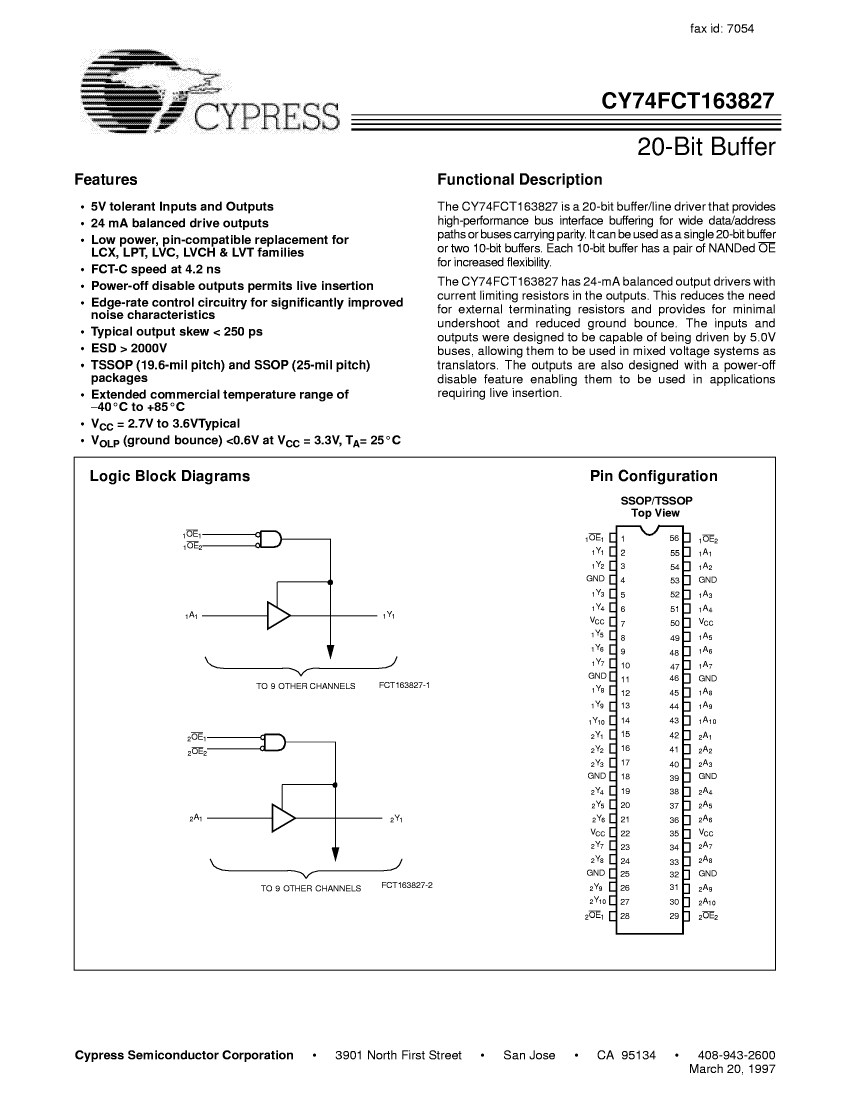

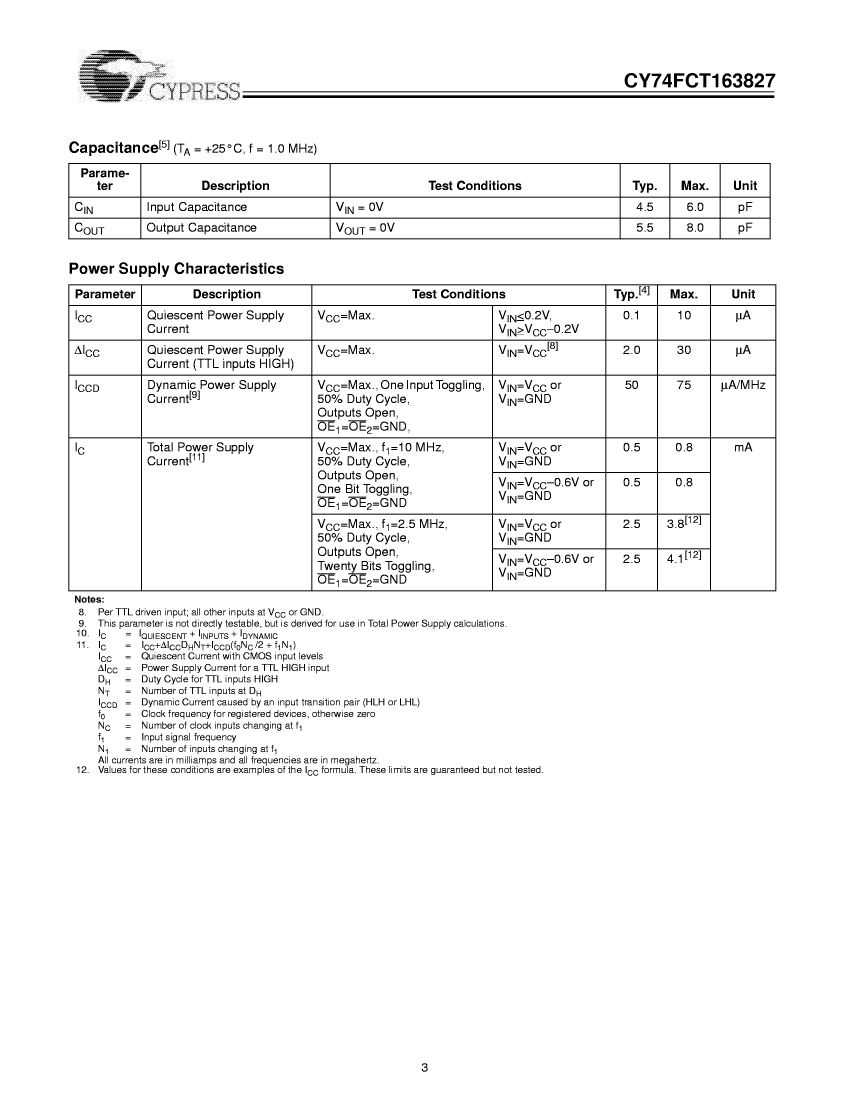

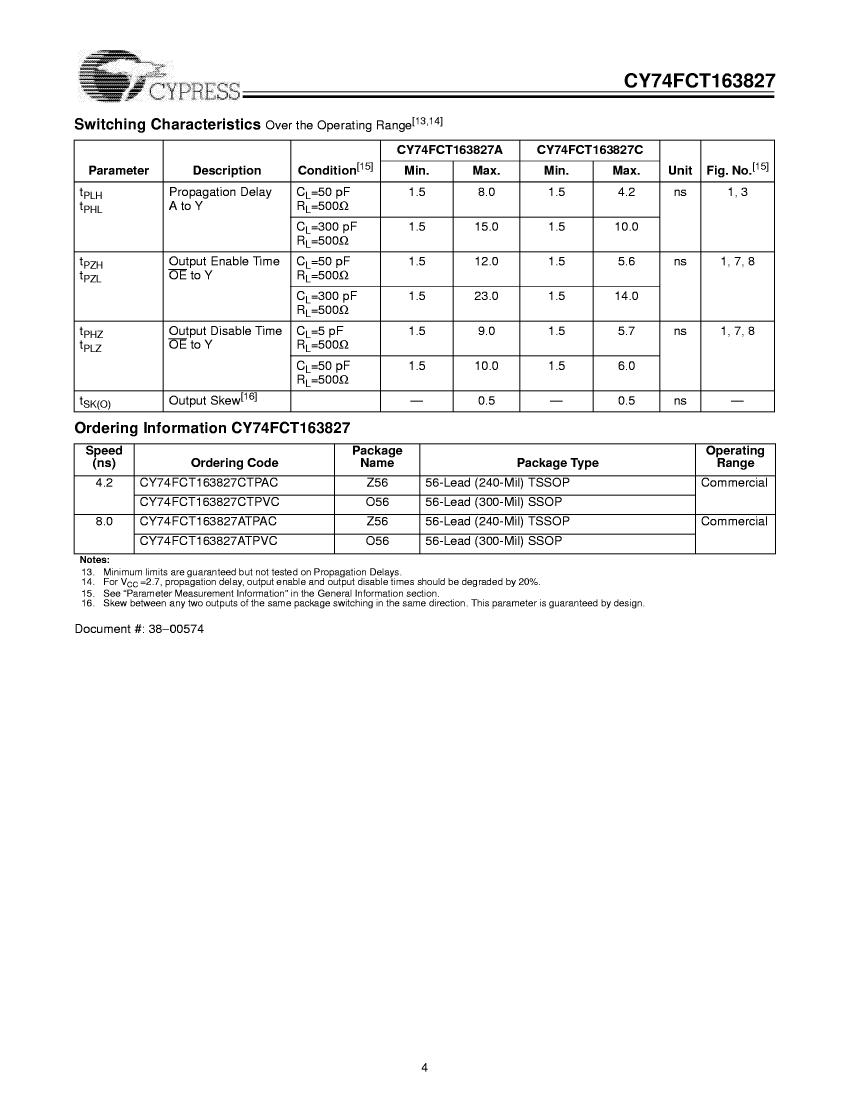

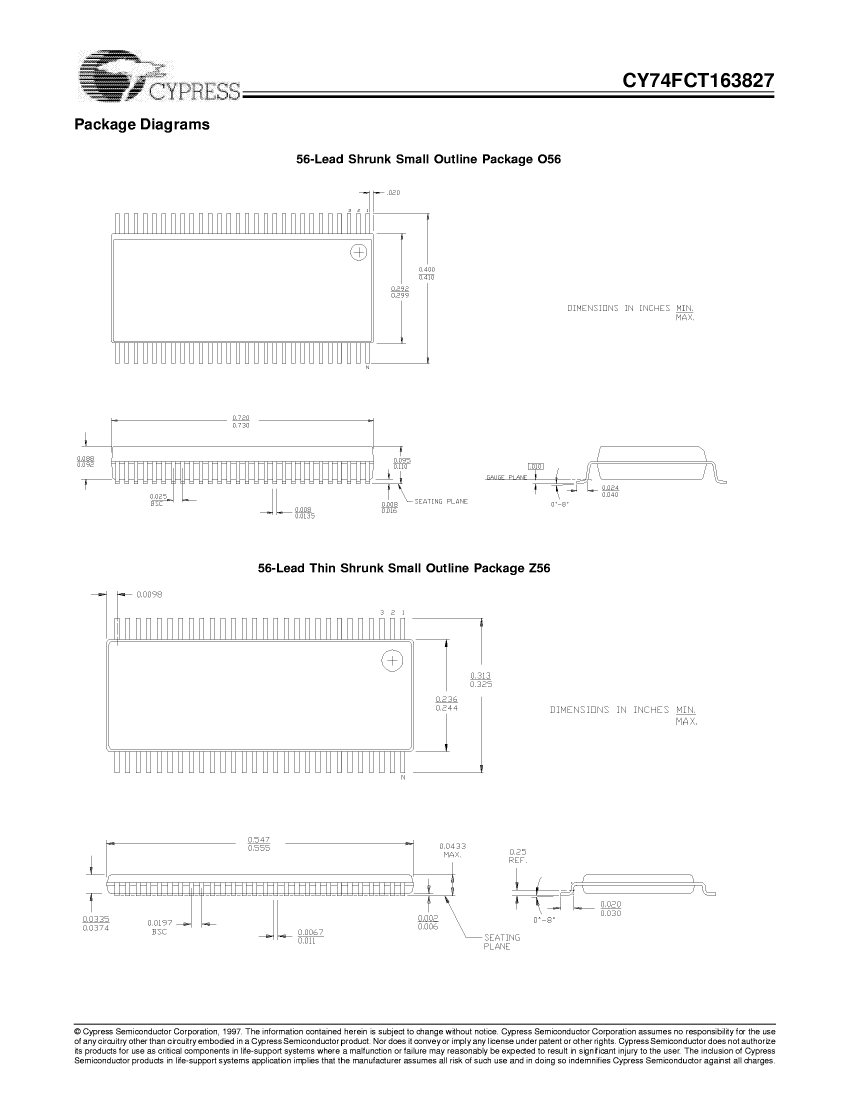

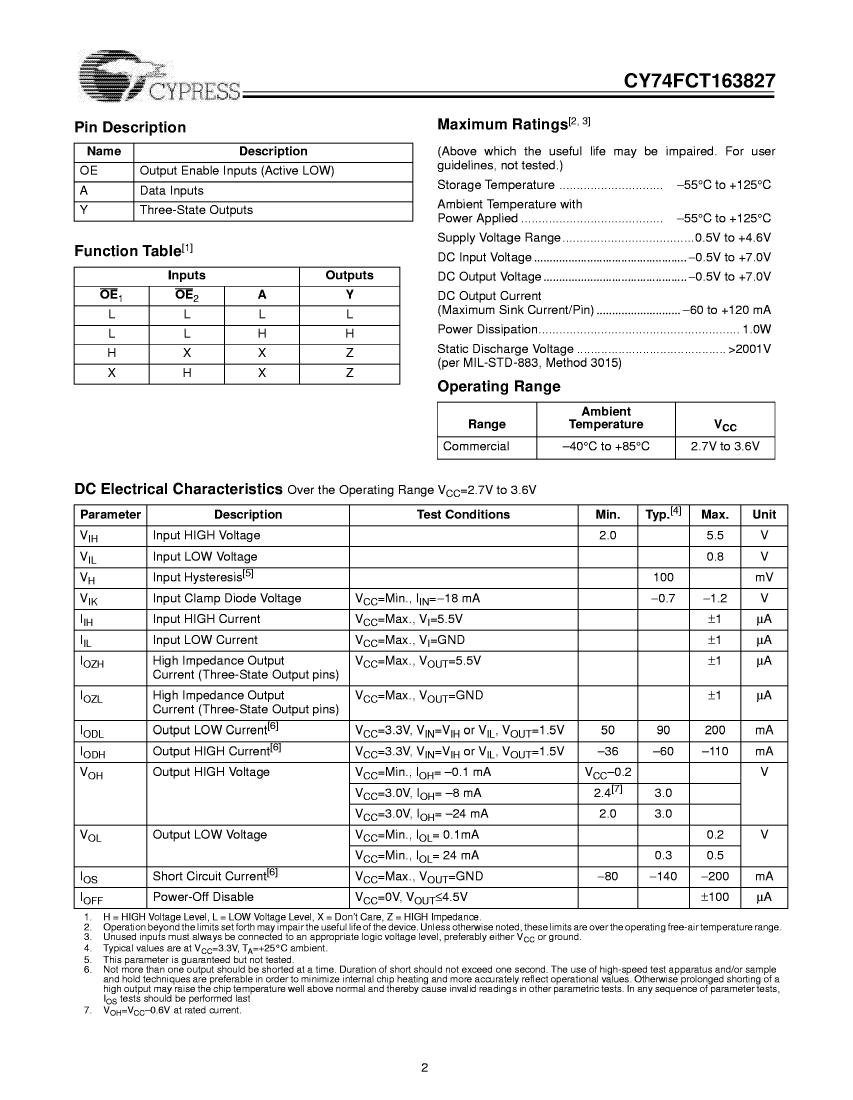

CY74FCT163827ATPAC: DescriptionBus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56; Categorylogic logic; File Size311KB，5 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY74FCT163827ATPAC Overview

Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56

CY74FCT163827ATPAC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TSSOP
package instruction	0.240 INCH, 0.0196 INCH PITCH, TSSOP-56
Contacts	56
Reach Compliance Code	_compli
Control type	ENABLE LOW
series	FCT
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	14 mm
Load capacitance (CL)	300 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	10
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP56,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/3.3 V
Prop。Delay @ Nom-Su	8 ns
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.1 mm
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CY74FCT163827ATPAC Related Products

	CY74FCT163827ATPAC	CY74FCT163827ATPVC	CY74FCT163827CTPAC	CY74FCT163827CTPVC
Description	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, PDSO56, 0.240 INCH, 0.0196 INCH PITCH, TSSOP-56	Bus Driver, FCT Series, 2-Func, 10-Bit, True Output, CMOS, PDSO56, 0.300 INCH, 0.025 INCH PITCH, SSOP-56
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSSOP	SSOP	TSSOP	SSOP
package instruction	0.240 INCH, 0.0196 INCH PITCH, TSSOP-56	0.300 INCH, 0.025 INCH PITCH, SSOP-56	0.240 INCH, 0.0196 INCH PITCH, TSSOP-56	0.300 INCH, 0.025 INCH PITCH, SSOP-56
Contacts	56	56	56	56
Reach Compliance Code	_compli	not_compliant	not_compliant	not_compliant
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
series	FCT	FCT	FCT	FCT
JESD-30 code	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e0	e0	e0	e0
length	14 mm	18.415 mm	14 mm	18.415 mm
Load capacitance (CL)	300 pF	300 pF	300 pF	300 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A
Number of digits	10	10	10	10
Number of functions	2	2	2	2
Number of ports	2	2	2	2
Number of terminals	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	TSSOP	SSOP
Encapsulate equivalent code	TSSOP56,.3,20	SSOP56,.4	TSSOP56,.3,20	SSOP56,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3/3.3 V	3/3.3 V	3/3.3 V	3/3.3 V
propagation delay (tpd)	15 ns	15 ns	10 ns	10 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	2.794 mm	1.1 mm	2.794 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.1 mm	7.5 mm	6.1 mm	7.5 mm
Prop。Delay @ Nom-Sup	-	8 ns	4.2 ns	4.2 ns
