REVISION H
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
No OF POS x 6.35[.250] + 16.51[.650] REF
No OF POS x 6.35[.250] + 8.89[.350] REF
"C"
3.81 .150
(TYP) REF
3.37 .132 REF
PET-XX-XX-X-RA-XX-XX
No OF POSITIONS
-02, -04, -06, -08
LEAD STYLE
-01: FOR 1.57[.062]
THICK PCB
(USE SUB-T-1M34-01-X)
-02: FOR 3.18[.125]
THICK PCB
(USE SUB-T-1M34-02-X)
-LC: LOCKING CLIP
(USE LC-11-TM)
(SEE FIG 2, SHT 2)
-SD: SCREW DOWN
(SEE FIG 1, SHT 1)
OPTION
-NL: NO LATCH EARS
(SEE FIG 3, SHT 2)
RIGHT ANGLE
PLATING SPECIFICATION
-S: SELECTIVE GOLD/MATTE
TIN TAIL
-T: MATTE TIN
-L: LIGHT SELECTIVE GOLD/MATTE
TIN TAIL
*
OPTION
"C"
23.50 .925
REF
17.98 .708
REF
SECTION "C"-"C"
*
(No of POS x 6.35[.250]) + 18.51[.729] REF
11.43 .450
REF
6.35 .250 (TYP) REF
((No OF POS-1) x
"A"
C1
+0.13
[.005]
6.35[.250])
- 0.20
[.008]
- BLANK ONLY FOR EXISTING CUSTOMERS
0.06 .002
1.17 .046
REF
1.10 .043 REF
(CONTACT AREA)
14.50 .571
REF
C2
6.60 .260
REF
"A"
C5
DETAIL 'D'
SCALE 4 : 1
SEE TABLE 2
"A"
PET-XX-RA-SD
SUB-T-1M34-XX-X
C6
0.50 .020 (TYP) REF
C4
C3
"B"
"B"
5.76 .227
2.51 .099 (TYP)
0.64 .025 (TYP) REF
2.54
- 0.13
.100
- .005
(TYP)
+0.13
[.005]
[.008]
+0.30
+.012
(No OF POS x 6.35[.250] - 3.85[.152])
- 0.20
PET-04-02-X-RA-SD SHOWN
MAX

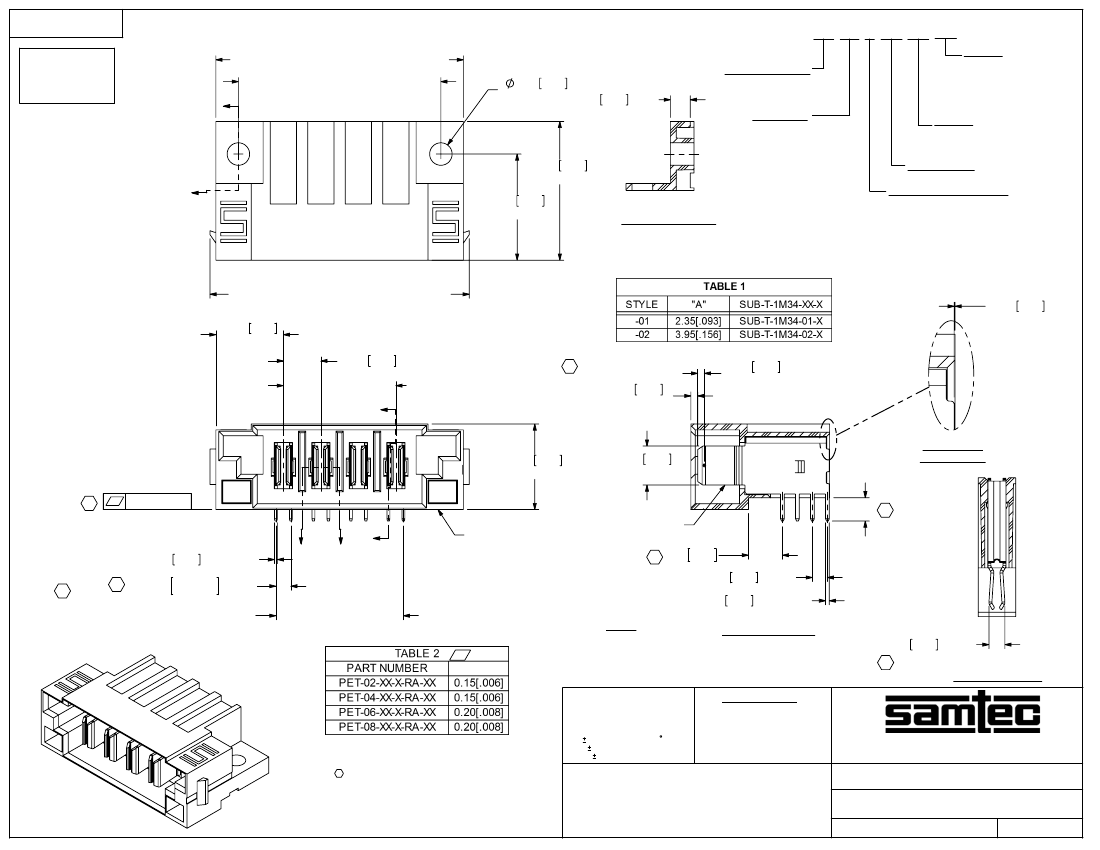

FIG 1
SECTION "A"-"A"
2.70 .106 (TYP)
C7
SECTION "B"-"B"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: 0.038[.0015] MAX.
3. MINIMUM PUSHOUT FORCE: 4.45N[1 LB].
4. PARTS TO BE PACKAGED IN TRAYS.
5. IF EMPTY SPACE EXISTS IN THE TRAY POCKETS,
INSERT A PLUG TP-07 TO PREVENT PARTS FROM SLIDING
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
INSULATOR: LCP, COLOR: BLACK
CONTACT: COPPER ALLOY
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
RIGHT ANGLE POWER TERMINAL
PET-XX-XX-X-RA-XX-XX
3/28/2005
SHEET
1
OF
3
F:\DWG\MISC\MKTG\PET-XX-XX-X-RA-XX-XX-MKT.SLDDRW
BY:
CHAD F
REVISION H
PET-04-02-X-RA-LC SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
PET-XX-RA-LC

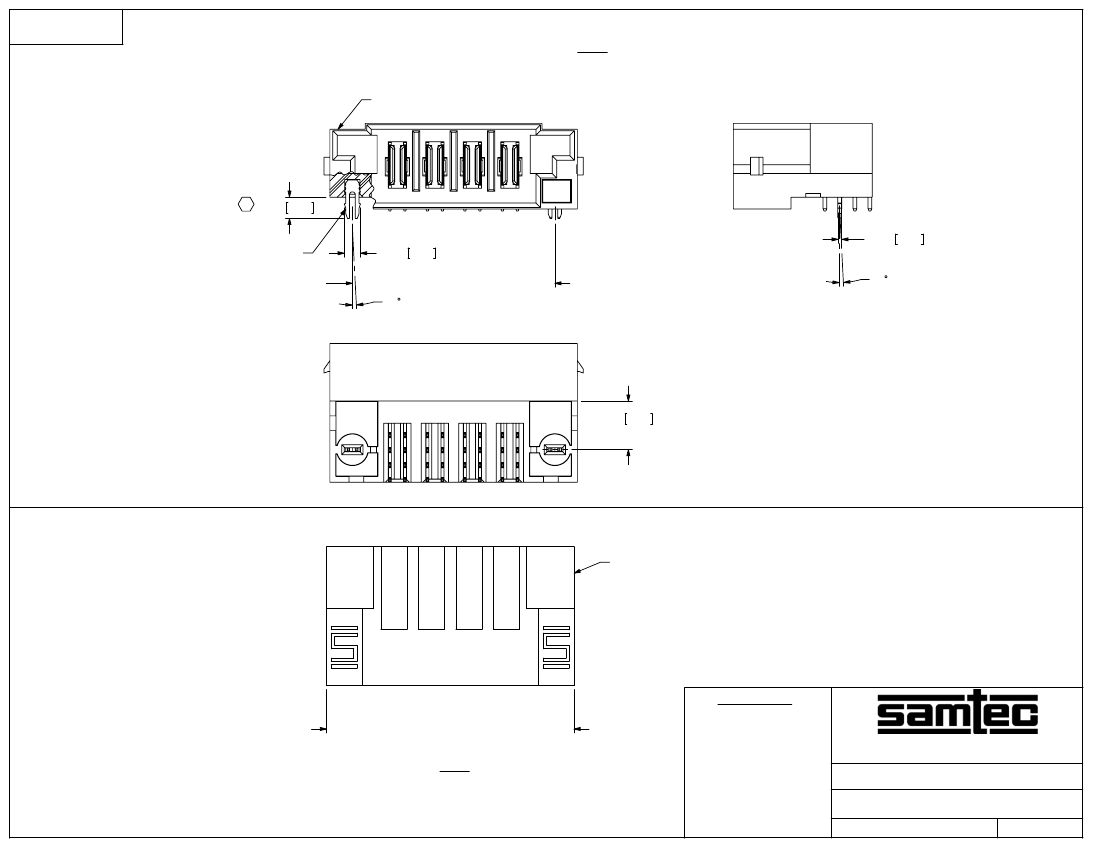

FIG 2
C8
3.60 .142
0.64 .025 (TYP) REF
2 MAX SWAY
(EITHER DIRECTION)
LC-11-TM
(No OF POS x 6.35[.250] + 8.89[.350])
- 0.20
[.008]
+0.13
[.005]
2.75 .108
2 MAX SWAY
(EITHER DIRECTION)
8.23 .324
REF
PET-XX-RA-NL-LC
PROPRIETARY NOTE
(No of POS x 6.35[.250]) + 16.51[.650] REF
-NL: OPTION
PET-04-02-X-RA-NL-LC SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
F:\DWG\MISC\MKTG\PET-XX-XX-X-RA-XX-XX-MKT.SLDDRW
FIG 3
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
RIGHT ANGLE POWER TERMINAL
PET-XX-XX-X-RA-XX-XX
3/28/2005
SHEET
2
OF
3
BY:
CHAD F
REVISION H
'E'

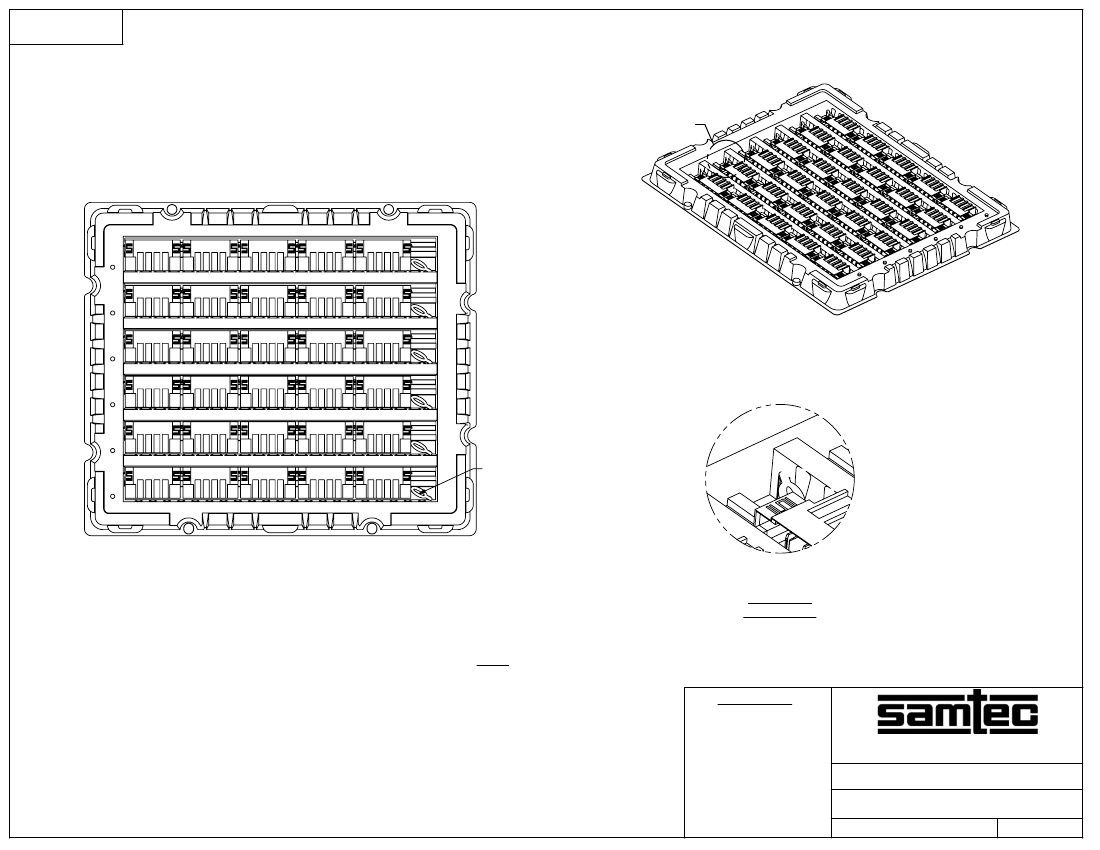

TP-07
DETAIL 'E'
SCALE 1 : 1
FIG 4
PACKAGE IN TRAYS AS SHOWN
TRAY VIEW
(SEE NOTE 5)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:3
RIGHT ANGLE POWER TERMINAL
PET-XX-XX-X-RA-XX-XX
3/28/2005
SHEET
3
OF
3
F:\DWG\MISC\MKTG\PET-XX-XX-X-RA-XX-XX-MKT.SLDDRW
BY:
CHAD F
