PET-06-02-S-RA-SD datasheet, PDF

Datasheet> All Categories > The connector> The connector> PET-06-02-S-RA-SD

PET-06-02-S-RA-SD: DescriptionRectangular Power Connector, 6 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size223KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

PET-06-02-S-RA-SD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PET-06-02-S-RA-SD	-	-	View	Buy Now

PET-06-02-S-RA-SD Overview

Rectangular Power Connector, 6 Contact(s), Male, Solder Terminal, Plug, ROHS COMPLIANT

PET-06-02-S-RA-SD Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	2 weeks
Other features	POWER EDGE
body width	0.571 inch
subject depth	0.925 inch
body length	2.15 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S0P6
Contact to complete cooperation	GOLD
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact style	BLADE PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2250VAC V
Durability	100 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	88.96 N
Insulation resistance	100000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Terminal length	0.156 inch
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	57.824 N
Base Number Matches	1

Preview

Download Datasheet

View All

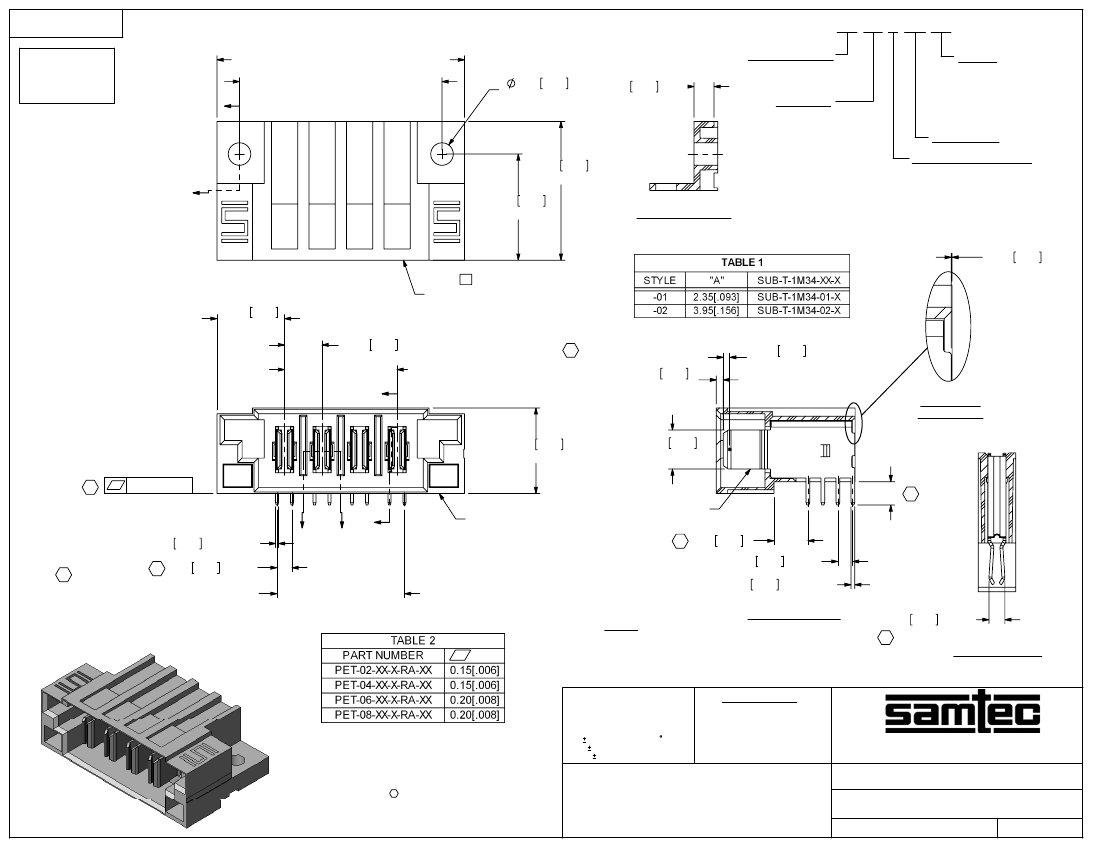

REVISION E

DO NOT

SCALE FROM

THIS PRINT

DESIGNED & DIMENSIONED

IN MILLIMETERS[INCHES]

No OF POS x 6.35[.250] + 16.51[.650] REF

No OF POS x 6.35[.250] + 8.89[.350] REF

"C"

3.81 .150

(TYP) REF

3.37 .132 REF

PET-XX-XX-X-RA-XX

No OF POSITIONS

-02, -04, -06, -08

LEAD STYLE

-01: FOR 1.57[.062]

THICK PCB

(USE SUB-T-1M34-01-X)

-02: FOR 3.18[.125]

THICK PCB

(USE SUB-T-1M34-02-X)

OPTION

-SD: SCREW DOWN

(SEE FIG. 1, SHT 1)

-LC: LOCKING CLIP

(USE LC-11-TM)

(SEE FIG. 2, SHT 2)

RIGHT ANGLE

PLATING SPECIFICATION

-S: SELECTIVE GOLD/MATTE

TIN TAIL

-T: MATTE TIN

-L: LIGHT SELECTIVE GOLD/MATTE

TIN TAIL

"C"

23.50 .925

REF

17.98 .708

REF

SECTION "C"-"C"

- BLANK ONLY FOR EXISTING CUSTOMERS

0.06 .002

11.43 .450

REF

#1 POSITION

(FOR PACKAGING PURPOSES ONLY)

6.35 .250 (TYP) REF

((No OF POS-1) x

"A"

+0.13

[.005]

6.35[.250])

- 0.20

[.008]

1.17 .046

REF

1.10 .043 REF

(CONTACT AREA)

DETAIL 'D'

SCALE 4 : 1

14.50 .571

REF

6.60 .260

REF

"A"

SEE TABLE 2

"A"

PET-XX-RA-SD

SUB-T-1M34-XX-X

0.50 .020 (TYP) REF

"B"

5.76 .227

2.51 .099 (TYP)

0.64 .025 (TYP) REF

2.54 .100 (TYP)

+0.13

[.005]

(No OF POS x 6.35[.250] - 3.85[.152])

- 0.20

[.008]

PET-04-02-X-RA-SD SHOWN

MAX

FIG. 1

SECTION "A"-"A"

2.70 .106 (TYP)

SECTION "B"-"B"

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN MILLIMETERS.

TOLERANCES ARE:

DECIMALS

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

.X: 0.3 [.01]

.XX: 0.13 [.005]

.XXX: 0.051 [.0020]

ANGLES

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: 0.038[.0015] MAX.

3. MINIMUM PUSHOUT FORCE: 4.45N[1 LB].

4. PARTS TO BE PACKAGED IN TRAYS.

MATERIAL:

INSULATOR: LCP, COLOR: BLACK

CONTACT: COPPER ALLOY

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

RIGHT ANGLE POWER TERMINAL

PET-XX-XX-X-RA-XX

3/28/2005

SHEET

F:\DWG\MISC\MKTG\PET-XX-XX-X-RA-XX-MKT.SLDDRW

BY:

CHAD F
