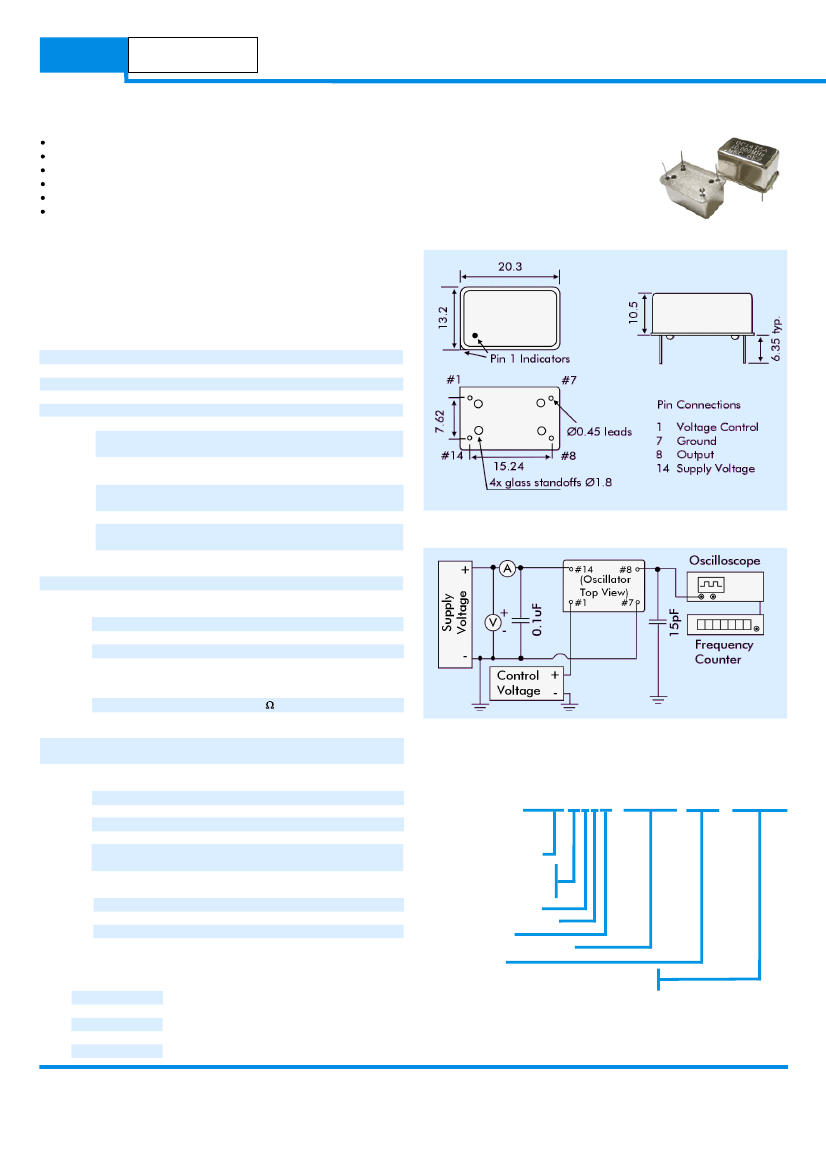

EURO
QUARTZ
For high stability STRATUM 2 applications
Low Jitter
<±0.6ppm overall frequency tolerance over 15 years
Full size 14 pin dual-in-line package
Supply Voltage 5.0 Volts
AT-Cut Crystal
EFC (Voltage control) as standard
OCXO - OC14T5A SERIES
AT-Cut Crystal - Square Wave - 5.0 Volts
·
OUTLINE & DIMENSIONS
DESCRIPTION
OC14T5A series oven-controlled crystal oscillators are intended for
Stratum 2 applications requiring low jitter and tight stability <0.6ppm
overall frequency tolerance over 15 years.
SPECIFICATION
Crystal Cut:
Output Waveform:
Supply Voltage:
Frequency Range:
Initial Calibration Tolerance:
Frequency Stability
over 0° to +60°C:
over -20° to +70°C:
over -40° to +85°C:
vs. Voltage Change:
vs. Ageing:
vs. Load Change:
Warm-up Time:
Voltage Control
Control Voltage Centre:
Freq. Deviation Range:
Control Voltage Range:
Transfer Function:
AT-cut
Square Wave
+5.0 VDC ±0.2V
1.25MHz to 100.0MHz
±0.5ppm maximum
±0.2ppm typical
±0.025ppm available
±0.3ppm typical
±0.05 available
±0.5ppm typical
±0.1ppm available
<0.1ppm for ±0.2V change
±0.7ppm first year
<±4ppm over 10 years
<0.01ppm for ±5% change
3 minutes maximum
TEST CIRCUIT
Input Impedance:
EFC Linearity:
Power Dissipation:
+2.5 Volts (V
CON
)
±4.0ppm min., ref. to 25°C
0V to +5.0Volts
Positive: Increasing control
voltage increases output
frequency.
47k minimum
±10% maximum
1.5W max. at steady state
2.5W max. at turn on
PART NUMBER FORMAT
Output
Load:
Output Logic HIGH:
Output Logic LOW:
Duty Cycle:
Rise/Fall Time:
10 LS or 47pF
+4.5V minimum
0.4V maximum
50%±10%
7ns max (20%~80%)
Frequency dependant
Example:
OC14GT5A-10.000-0.05/-20+70
Envionmental
Storage Temperature:
Shock:
Vibration:
PHASE NOISE (at 10MHz)
Offset
1Hz
10Hz
100Hz
1kHz
10kHz
dBc/Hz
-70
-100
-130
-140
-145
-65° to +125°C
2000g, 0.3ms ½ sine
10 ~2000Hz / 10g
OCXO Package: OC14
RoHS Compliance
G: RoHS Compliant
Blank: Non-compliant
T: Output Squarewave
5: Supply Voltage 5.0Volts
A: AT-Cut Crystal
Nominal Frequency 10.0MHz
Stability in ppm
Operating Temperature Range °C
Lowest Temperature/Highest Temperature
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
