SMT inductors
SIMID series, SIMID 2220-H
Series/Type:
Date:
B82442H
October 2012
Data Sheet
¤
EPCOS AG 2012. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SMT inductors, SIMID series
SIMID 2220-H
Size 2220 (EIA) or 5650 (IEC)
Rated inductance 1 ... 10000 μH
Rated current 35 ... 2500 mA
Construction
■
Upright ferrite drum core
■
Laser-welded winding
■
Flame-retardant molding
B82442H
Features
■
■
■
■
■
Temperature range up to +150 °C
Current handling capability up to 2.5 A
High L values
Qualified to AEC-Q200
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020D
■
RoHS-compatible
Applications
■
■
■
■
■
■
Filtering of supply voltages, coupling, decoupling
DC/DC converters
Automotive electronics
Telecommunications
Consumer electronics
Industrial electronics
Terminals
■
Base material CuSn6
■
Layer composition Cu, Ag, Sn (lead-free)
1)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer, L value (in nH),
tolerance of L value (coded), date of manufacture (YWWD)
■
Minimum data on reel:
Manufacturer, ordering code, L value, quantity, date of packing
Delivery mode and packing unit
■
12-mm blister tape, wound on 330-mm
reel
■
Packing unit: 1500 pcs./reel
1) Ni-barrier-plated terminals on request (B82442H*50).
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
10/12
SMT inductors, SIMID series
SIMID 2220-H

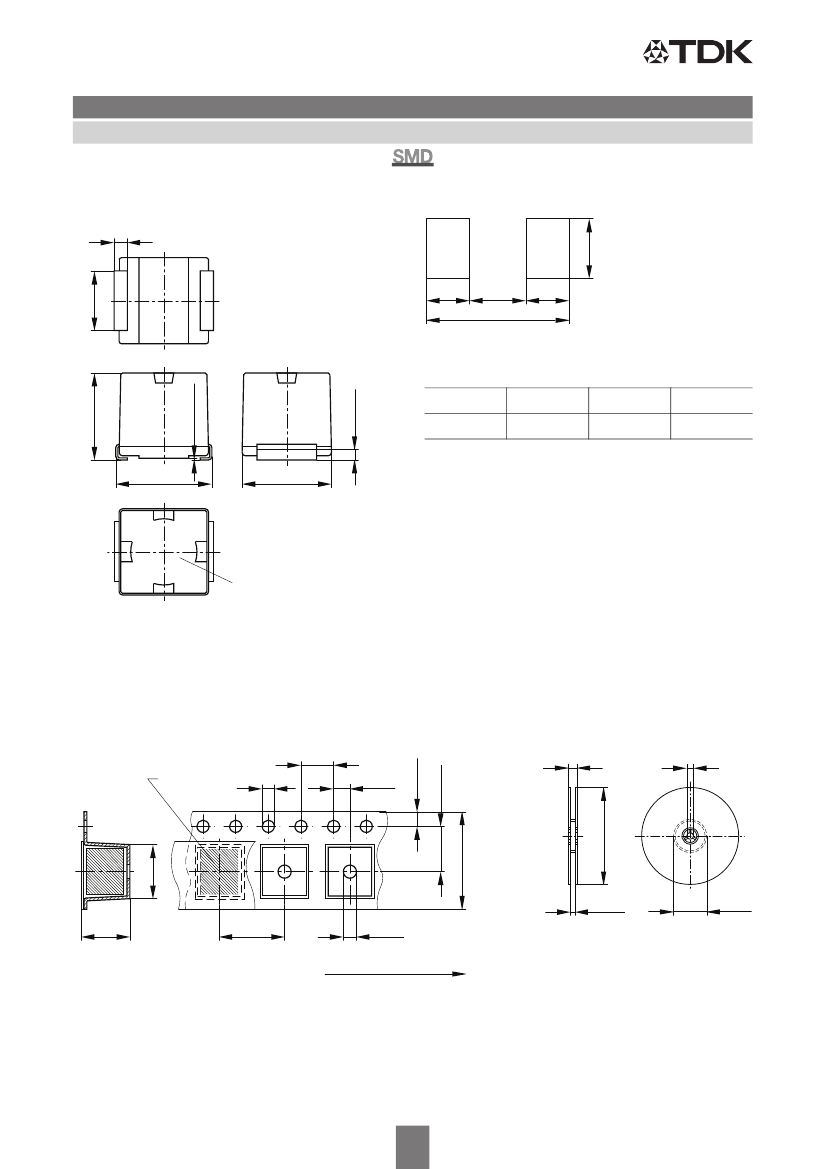

Dimensional drawing and layout recommendation
0.7±0.2
1)
B82442H
3.5±0.1
1)
B
C
D
B
IND0053-6
0.15 max.
0.7 min.
1)
5+0.3
A
4.5
B
2.0
A
C
4.0
D
8.0
5.6+0.3
5+0.3
Marking
1) Soldering area
IND0088-3-E
Dimensions in mm
Taping and packing
Blister tape
1.75±0.1
5.5±0.1
4±0.1
Component
1.5+0.1
2±0.05
Reel
18.4 max.
13±0.2
_
< 7.2
12±0.3
_
0
12.4
+1.5
_
2
330
+0
62±1.5
IND0350-S
_
< 6.0
8±0.1
1.6±0.1
Direction of unreeling
IND0564-H-E
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
10/12
SMT inductors, SIMID series
SIMID 2220-H
Technical data and measuring conditions
Rated inductance L
R
Q factor Q
min
Rated temperature T
R
Rated current I
R
B82442H
Measured with impedance analyzer Agilent 4294A
at frequency f
L
, 0.1 V, +20 °C
Measured with impedance analyzer Agilent 4294A
at frequency f
Q
, +20 °C
+85
qC
Maximum permissible DC with inductance decrease
L/L
0
d
10% and temperature increase
of
d
40 K at rated temperature
Measured with impedance analyzer Agilent 4294A, +20 °C
Measured at +20
qC
Sn95.5Ag3.8Cu0.7: +(245
r5)
°C, (5
r0.3)
s
Wetting of soldering area
t
90%
(based on IEC 60068-2-58)
+260
qC,
40 s (as referenced in JEDEC J-STD 020D)
55/150/56 (to IEC 60068-1)
Mounted: –55 °C … +150 °C
Packaged: –25 °C … +40 °C,
d
75% RH
Approx. 0.4 g
Self-resonance frequency f
res,min
DC resistance R
max
Solderability (lead-free)
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
10/12
SMT inductors, SIMID series
SIMID 2220-H
Characteristics and ordering codes
L
R
PH
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
r5%
^
B82442H
Tolerance
r10%
^
Q
min
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
f
L
; f
Q
MHz
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
0.796
0.796
I
R
mA
2500
2350
2200
2000
1800
1700
1550
1450
1350
1250
1130
1050
1000
880
810
740
670
620
560
520
480
430
400
380
350
320
290
R
max
:
0.024
0.028
0.032
0.040
0.048
0.056
0.064
0.072
0.088
0.104
0.120
0.144
0.168
0.20
0.24
0.29
0.35
0.42
0.50
0.58
0.68
0.80
0.96
1.12
1.28
1.52
1.76
f
res,min
MHz
95
70
55
47
42
37
34
32
29
26
24
22
19
17
16
14
13
11.5
10.5
9.5
8.5
7.8
7.0
6.4
6.0
5.4
4.8
Ordering code
1)2)
B82442H1102K000
B82442H1122K000
B82442H1152K000
B82442H1182K000
B82442H1222K000
B82442H1272K000
B82442H1332K000
B82442H1392K000
B82442H1472K000
B82442H1562K000
B82442H1682K000
B82442H1822K000
B82442H1103K000
B82442H1123K000
B82442H1153K000
B82442H1183K000
B82442H1223K000
B82442H1273K000
B82442H1333+000
B82442H1393+000
B82442H1473+000
B82442H1563+000
B82442H1683+000
B82442H1823+000
B82442H1104+000
B82442H1124+000
B82442H1154+000
K
J
^
10
K
10
10
10
10
10
20
20
20
r10%
Closer tolerances on request.
Higher currents possible at temperatures <T
R
on request.
Sample kit available. Ordering code: B82442X001
For more information refer to chapter “Sample kits”.
1) Replace the + by the code letter for the required inductance tolerance.
2) For Ni-barrier-plated terminals replace the last two digits “00” by “50”.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
5
10/12
