mount gallium arsenide tuning varactors. All families
have silicon nitride protected junctions for low
leakage current and high reliability.
The
MA46H070
through
MA46H073
family has
hyperabrupt junctions with constant gamma of 0.75
from 0 to 20 volts and very high quality factor
approaching that of abrupt junction varactors, but
higher capacitance change versus tuning voltage.
These diodes are very well suited for narrow
bandwidth VCOs and VTFs where wide tuning range
and very high quality factor are required.
The
MA46H200
through
MA46H204
family has
hyperabrupt junctions with constant gamma of 1.25
from 2 to 20 volts and has the largest capacitance
ratio of the families of GaAs varactors and high
quality factor. These diodes are very well suited for
wide bandwidth VCOs and VTFs where the optimum
combination of very wide tuning range and high
quality factor is required.
The
MA46H500
through
MA46H504
family has
hyperabrupt junctions with constant gamma of 1.5
from 2 to 12 volts and high quality factor. Designed
for wide bandwidth VCOs and VTFs where limited
bias voltage is available. These varactors have
lower quality factor than the other families of GaAs
varactors.
Packaged Tuning Varactor
Equivalent Circuit
Absolute Maximum Ratings
1,2
Parameter
Absolute Maximum
Case 1056
Case 1088
Operating Temperature -65°C to +150°C -65°C to +125°C
Storage Temperature
Reverse Voltage
Forward Current
Power Dissipation
-65°C to +200°C -65°C to +125°C
Breakdown Voltage
50 mA @ 25°C
50 mW @ 25°C,
de-rate linearly to 0 mW @
maximum operating temperature
1. Exceeding any one or combination of these limits may cause
permanent damage to this device.
2. MACOM does not recommend sustained operation near these
survivability limits.
1
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MA46 Series
Surface Mount GaAs Tuning Varactors
0.75, 1.25, & 1.5 Gamma Hyperabrupt
Electrical Specifications: T
A
= +25°C
0.75 Gamma Hyperabrupt
Breakdown Voltage @ 10 µA = 20 V minimum
Reverse Current @ 16 V = 100 nA maximum
Gamma
3
= 0.68 - 0.83, VR = 0 to 20 V @ 10 µA
Total
Total
Q
Capacitance Capacitance
Minimum
+/-10%
4,5,6
Ratio
6
Vr=4 V
(pF)
MA46H070
MA46H071
MA46H072
MA46H073
0.5 - 0.7
0.9 - 1.1
2.7 - 3.3
4.5 - 5.5
Vr=0 V
-
5.5
6.4
7.5
7.5
Vr=4 V
-
4500
4500
3000
2200
MA46H200
MA46H201
MA46H202
7
MA46H203
MA46H204
Rev. V8
1.25 Gamma Hyperabrupt
Breakdown Voltage @ 10 µA = 22 V minimum
Reverse Current @ 16 V = 100 nA maximum
Gamma
3
= 1.13 - 1.38, VR = 2 to 20 V @ 10 µA
Total
Total
Q
Capacitance Capacitance
Minimum
+/-10%
4,5,6
Ratio
6
Vr=4 V
(pF)
0.5 - 0.7
0.9 - 1.1
2.7 - 3.3
4.5 - 5.5
9.0 - 11.0
Vr=2 V
-
3.0
4.1
5.6
10.0
10.0
Vr=4 V
-
1500
3000
2000
1500
1500
Part Number
Part Number
1.5 Gamma Hyperabrupt
Breakdown Voltage @ 10 µA = 18 V minimum
Reverse Current @ 14 V = 100 nA maximum
Gamma
3
= 1.4 - 1.6, VR = 2 to 12 V @ 10 µA
Total
Total
Q
Capacitance Capacitance
Minimum
+/-10%
4,5,6
Ratio
6
Vr=4 V
(pF)
MA46H500
MA46H501
MA46H503
MA46H504
0.5 - 0.7
0.9 - 1.1
4.5 - 5.5
9.0 - 11.0
Vr=2 V
-
2.8
3.9
8.1
8.1
Vr=4 V
-
2500
2500
1200
1200
Part Number
3. The values guaranteed for gamma are measured on unpackaged chips. The total capacitance versus bias voltage curve will deviate slightly
from the chip capacitance versus bias voltage curve due to the package parasitic capacitance (Cp).
4. The Cp values listed typically have tolerances of ±0.02 pF.
5. Capacitance is measured at 1 MHz.
6. The total capacitance and capacitance ratios shown are for diodes housed in case style 30. Other case styles will result in different values.
7. When ordering MA46H202-134 as whole wafer P/N is MAVR-0046202-0134WR.
2
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MA46 Series
Surface Mount GaAs Tuning Varactors
0.75, 1.25, & 1.5 Gamma Hyperabrupt

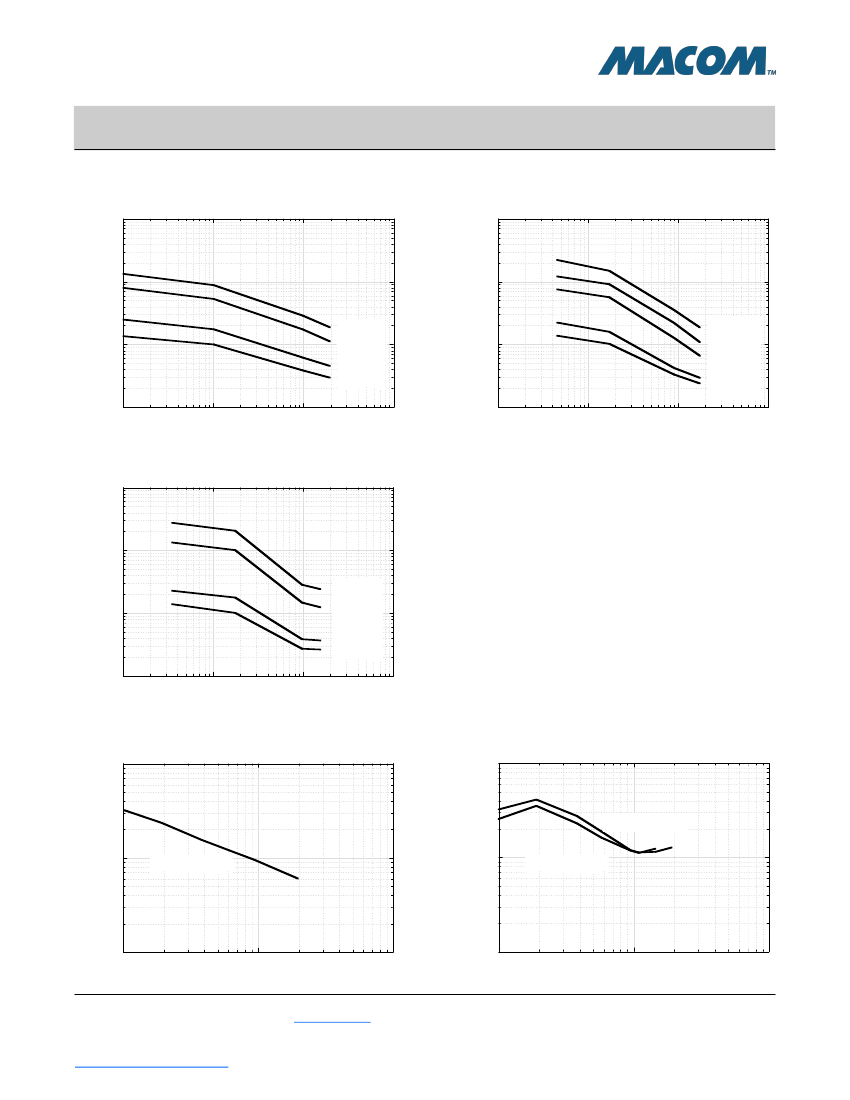

Typical Performance Curves
0.75 Gamma Hyperabrupt
100
Rev. V8
1.25 Gamma Abrupt
100
Total Capacitance (pF)
10
Total Capacitance (pF)
10
MA46H073
MA46H204
1
MA46H072
MA46H071
MA46H070
1
MA46H203
MA46H202
MA46H201
MA46H200
0.1
0.1
1
10
100
0.1
0.1
1
10
100
Reverse Voltage (V)
Reverse Voltage (V)
1.5 Gamma Hyperabrupt
100
Total Capacitance (pF)
10
MA46H504
1
MA46H503
MA46H501
MA46H500
0.1
0.1
1
10
100
Reverse Voltage (V)
Temperature Coefficient of Capacitance in PPM/°C vs. Reverse Voltage
1000
1000
MA46H500 - 504
(pF)
(pF)
100
MA46H070 - 073
100
MA46H200 - 204
10
1
10
100
10
1
10
100
3
Reverse Voltage (V)
Reverse Voltage (V)
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MA46 Series
Surface Mount GaAs Tuning Varactors
0.75, 1.25, & 1.5 Gamma Hyperabrupt

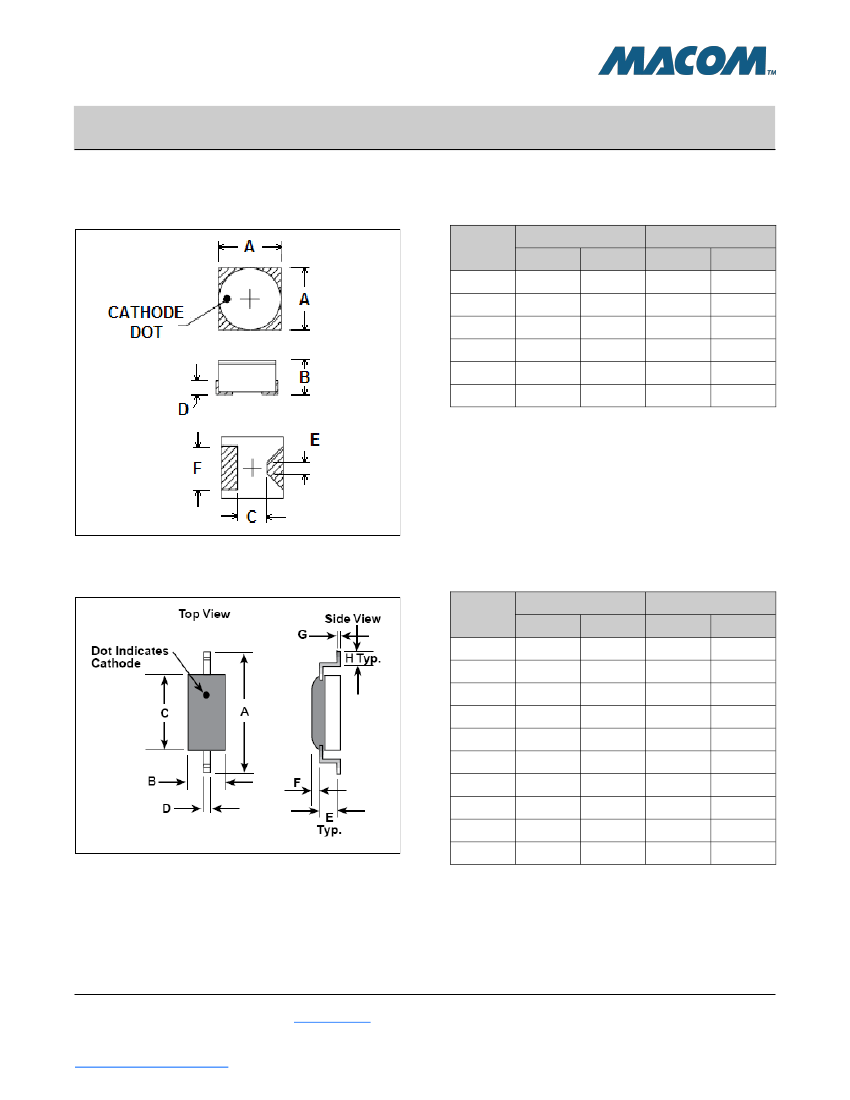

Case Styles
ODS-1056
DIM.
A
B
C
D
E
F
INCHES
MIN.
0.065
0.034
0.030
0.009
0.010
0.043
MAX.
0.075
0.041
0.036
0.021
0.014
0.053
MILLIMETERS
MIN.
1.65
0.86
0.76
0.23
0.25
1.09
MAX.
1.91
1.04
0.91
053
0.36
1.35
Rev. V8
Package Capacitance: 0.15 pF Typical
Package Inductance: 0.45 nH Typical
ODS-1088
DIM.
A
B
C
D
E
F
G
H
J
K
INCHES
MIN.
0.175
0.040
0.085
0.015
0.010
0.015
0.004
0.020
0.013
0.003
MAX.
0.195
0.050
0.095
0.025
0.015
0.020
0.006
0.030
0.033
0.005
MILLIMETERS
MIN.
4.44
1.02
2.16
0.38
0.25
0.38
0.10
0.51
0.33
0.08
MAX.
4.95
1.27
2.41
0.64
0.38
0.51
0.15
0.76
0.84
0.13
Ordering Information
These GaAs tuning varactors are available in either case style as shown. When ordering, specify the desired case
style by adding the case designation as a suffix to the model number. For example, a MA46H200-1088 specifies
a 1.25 gamma hyperabrupt tuning diode in case style 1088.
4
M/A-COM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
MA46 Series
Surface Mount GaAs Tuning Varactors
0.75, 1.25, & 1.5 Gamma Hyperabrupt
Rev. V8
M/A-COM Technology Solutions Inc. All rights reserved.
Information in this document is provided in connection with M/A-COM Technology Solutions Inc ("MACOM")
products. These materials are provided by MACOM as a service to its customers and may be used for
informational purposes only. Except as provided in MACOM's Terms and Conditions of Sale for such products or
in any separate agreement related to this document, MACOM assumes no liability whatsoever. MACOM
assumes no responsibility for errors or omissions in these materials. MACOM may make changes to
specifications and product descriptions at any time, without notice. MACOM makes no commitment to update
the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future
changes to its specifications and product descriptions. No license, express or implied, by estoppels or otherwise,
to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR
IMPLIED, RELATING TO SALE AND/OR USE OF MACOM PRODUCTS INCLUDING LIABILITY OR
WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR
OTHER INTELLECTUAL PROPERTY RIGHT. MACOM FURTHER DOES NOT WARRANT THE ACCURACY
OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN
THESE MATERIALS. MACOM SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS,
WHICH MAY RESULT FROM THE USE OF THESE MATERIALS.
MACOM products are not intended for use in medical, lifesaving or life sustaining applications. MACOM
customers using or selling MACOM products for use in such applications do so at their own risk and agree to
fully indemnify MACOM for any damages resulting from such improper use or sale.
5
