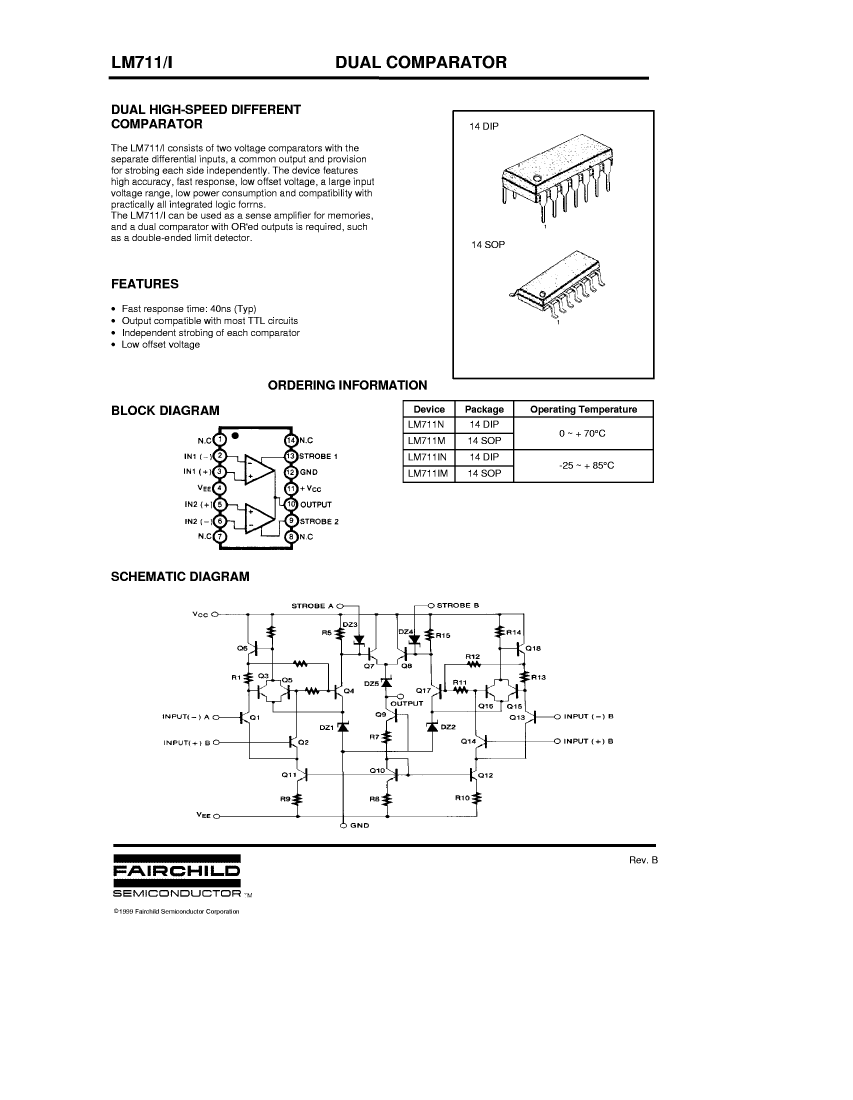

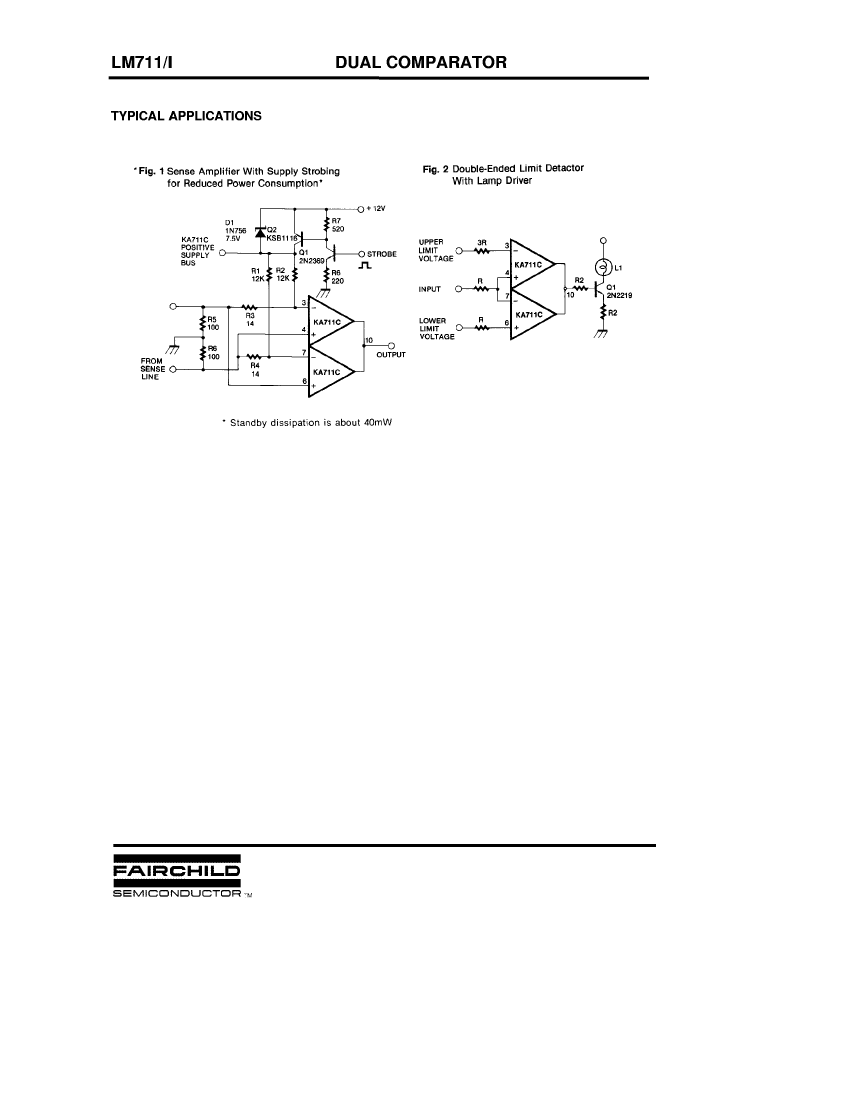

Basic information of LM711IM amplifier:
LM711IM is a COMPARATOR. The commonly used packaging method is SOP-14
LM711IM amplifier core information:
The minimum operating temperature of LM711IM is -25 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 75 µA Maximum average bias current is 150 µA
When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM711IM takes only 40 ns to respond.
The nominal supply voltage of LM711IM is 12 V, and its corresponding nominal negative supply voltage is -6 V. The input offset voltage of LM711IM is 4500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM711IM:
The width of LM711IM is: 3.95 mm and the length is 8.56 mm. LM711IM has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14
LM711IM amplifier additional information:
Its temperature grade is: OTHER. The LM711IM is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e0. The packaging code of LM711IM is: SOP.
The materials used in the LM711IM package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM711IM package pin format is: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.8 mm.
Basic information of LM711IM amplifier:
LM711IM is a COMPARATOR. The commonly used packaging method is SOP-14
LM711IM amplifier core information:
The minimum operating temperature of LM711IM is -25 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 75 µA Maximum average bias current is 150 µA
When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. The LM711IM takes only 40 ns to respond.
The nominal supply voltage of LM711IM is 12 V, and its corresponding nominal negative supply voltage is -6 V. The input offset voltage of LM711IM is 4500 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM711IM:
The width of LM711IM is: 3.95 mm and the length is 8.56 mm. LM711IM has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. Total pins: 14
LM711IM amplifier additional information:
Its temperature grade is: OTHER. The LM711IM is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G14. The corresponding JESD-609 code is: e0. The packaging code of LM711IM is: SOP.
The materials used in the LM711IM package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM711IM package pin format is: SMALL OUTLINE. Its terminal forms are: GULL WING. The maximum seat height is 1.8 mm.

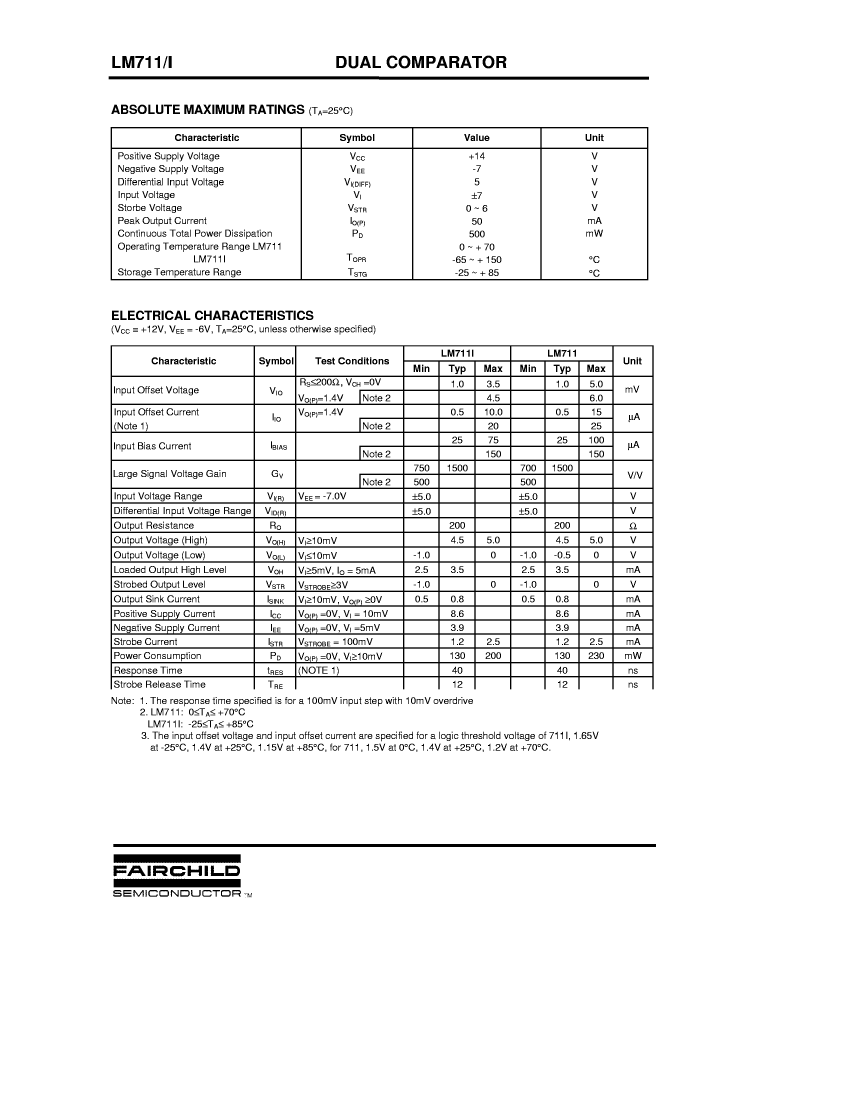

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | SOIC |
| package instruction | SOP-14 |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Amplifier type | COMPARATOR |
| Maximum average bias current (IIB) | 150 µA |
| Maximum bias current (IIB) at 25C | 75 µA |
| Maximum input offset voltage | 4500 µV |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e0 |
| length | 8.56 mm |
| Negative supply voltage upper limit | -7 V |
| Nominal Negative Supply Voltage (Vsup) | -6 V |
| Number of functions | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Output type | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 12,-6 V |
| Certification status | Not Qualified |
| Nominal response time | 40 ns |
| Maximum seat height | 1.8 mm |
| Supply voltage upper limit | 14 V |
| Nominal supply voltage (Vsup) | 12 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 3.95 mm |
| Base Number Matches | 1 |
| LM711IM | LM711M | LM711IN | LM711N | |
|---|---|---|---|---|
| Description | Comparator, 2 Func, 4500uV Offset-Max, 40ns Response Time, BIPolar, PDSO14, SOP-14 | Comparator, 2 Func, 6000uV Offset-Max, 40ns Response Time, BIPolar, PDSO14, SOP-14 | Comparator, 2 Func, 4500uV Offset-Max, 40ns Response Time, BIPolar, PDIP14, DIP-14 | Comparator, 2 Func, 6000uV Offset-Max, 40ns Response Time, BIPolar, PDIP14, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | SOIC | SOIC | DIP | DIP |
| package instruction | SOP-14 | SOP-14 | DIP-14 | DIP, DIP14,.3 |
| Contacts | 14 | 14 | 14 | 14 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR |
| Maximum average bias current (IIB) | 150 µA | 150 µA | 150 µA | 150 µA |
| Maximum bias current (IIB) at 25C | 75 µA | 100 µA | 75 µA | 100 µA |
| Maximum input offset voltage | 4500 µV | 6000 µV | 4500 µV | 6000 µV |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDIP-T14 | R-PDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| length | 8.56 mm | 8.56 mm | 19.305 mm | 19.305 mm |
| Negative supply voltage upper limit | -7 V | -7 V | -7 V | -7 V |
| Nominal Negative Supply Voltage (Vsup) | -6 V | -6 V | -6 V | -6 V |
| Number of functions | 2 | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 85 °C | 70 °C | 85 °C | 70 °C |
| Output type | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | DIP | DIP |
| Encapsulate equivalent code | SOP14,.25 | SOP14,.25 | SOP14,.25 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE |
| power supply | 12,-6 V | 12,-6 V | 12,-6 V | 12,-6 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal response time | 40 ns | 40 ns | 40 ns | 40 ns |
| Maximum seat height | 1.8 mm | 1.8 mm | 5.33 mm | 5.33 mm |
| Supply voltage upper limit | 14 V | 14 V | 14 V | 14 V |
| Nominal supply voltage (Vsup) | 12 V | 12 V | 12 V | 12 V |
| surface mount | YES | YES | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | OTHER | COMMERCIAL | OTHER | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 3.95 mm | 3.95 mm | 7.62 mm | 7.62 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
