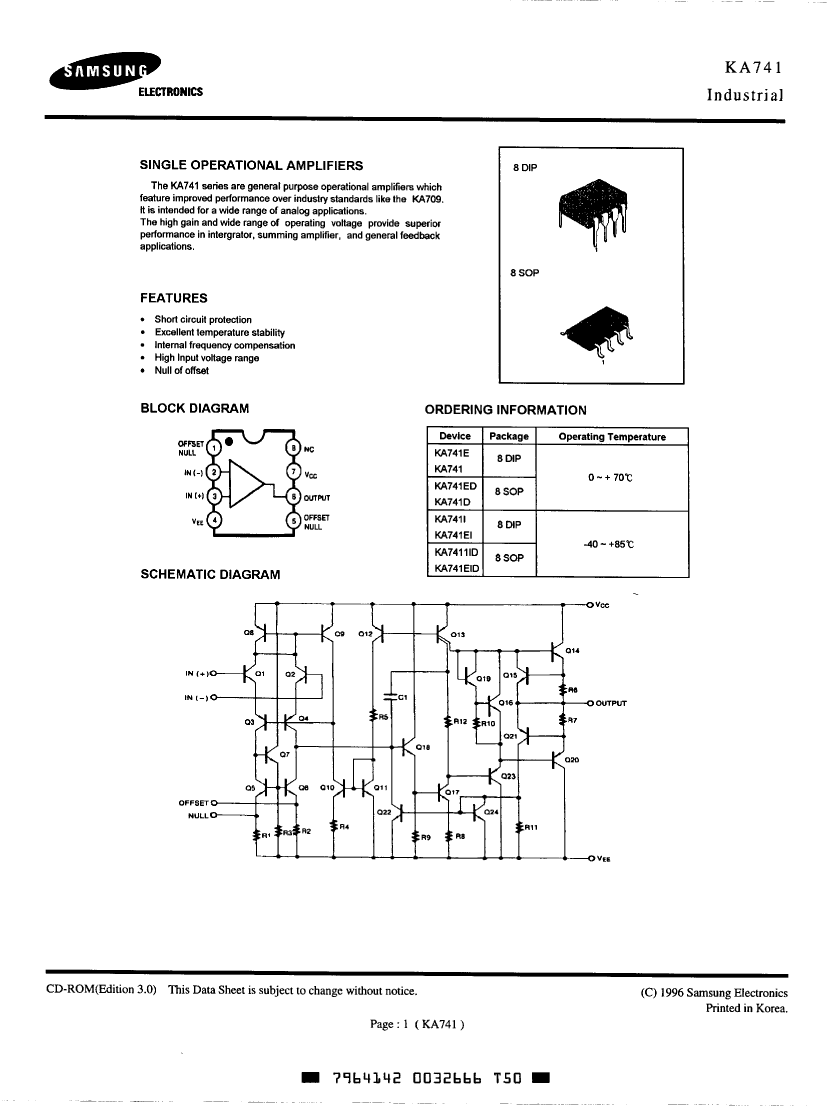

Basic information of LM741EIN amplifier:
LM741EIN is an OPERATIONAL AMPLIFIER.
LM741EIN amplifier core information:
The minimum operating temperature of the LM741EIN is -25 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 0.08 µA
The manufacturer specifies a maximum slew rate for the LM741EIN of 10 mA and a minimum slew rate of 0.3 V/us. Its minimum voltage gain is 10000.
The nominal supply voltage of the LM741EIN is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of the LM741EIN is 4000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM741EIN:
LM741EIN has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
LM741EIN amplifier additional information:
LM741EIN adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM741EIN is: YES. Its temperature grade is: OTHER. The LM741EIN is not Rohs certified.
The corresponding JESD-30 code is: R-PDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of LM741EIN is: DIP. The materials used in the LM741EIN package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The LM741EIN package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.
Basic information of LM741EIN amplifier:
LM741EIN is an OPERATIONAL AMPLIFIER.
LM741EIN amplifier core information:
The minimum operating temperature of the LM741EIN is -25 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 0.08 µA
The manufacturer specifies a maximum slew rate for the LM741EIN of 10 mA and a minimum slew rate of 0.3 V/us. Its minimum voltage gain is 10000.
The nominal supply voltage of the LM741EIN is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of the LM741EIN is 4000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of LM741EIN:
LM741EIN has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
LM741EIN amplifier additional information:
LM741EIN adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM741EIN is: YES. Its temperature grade is: OTHER. The LM741EIN is not Rohs certified.
The corresponding JESD-30 code is: R-PDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of LM741EIN is: DIP. The materials used in the LM741EIN package are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The LM741EIN package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

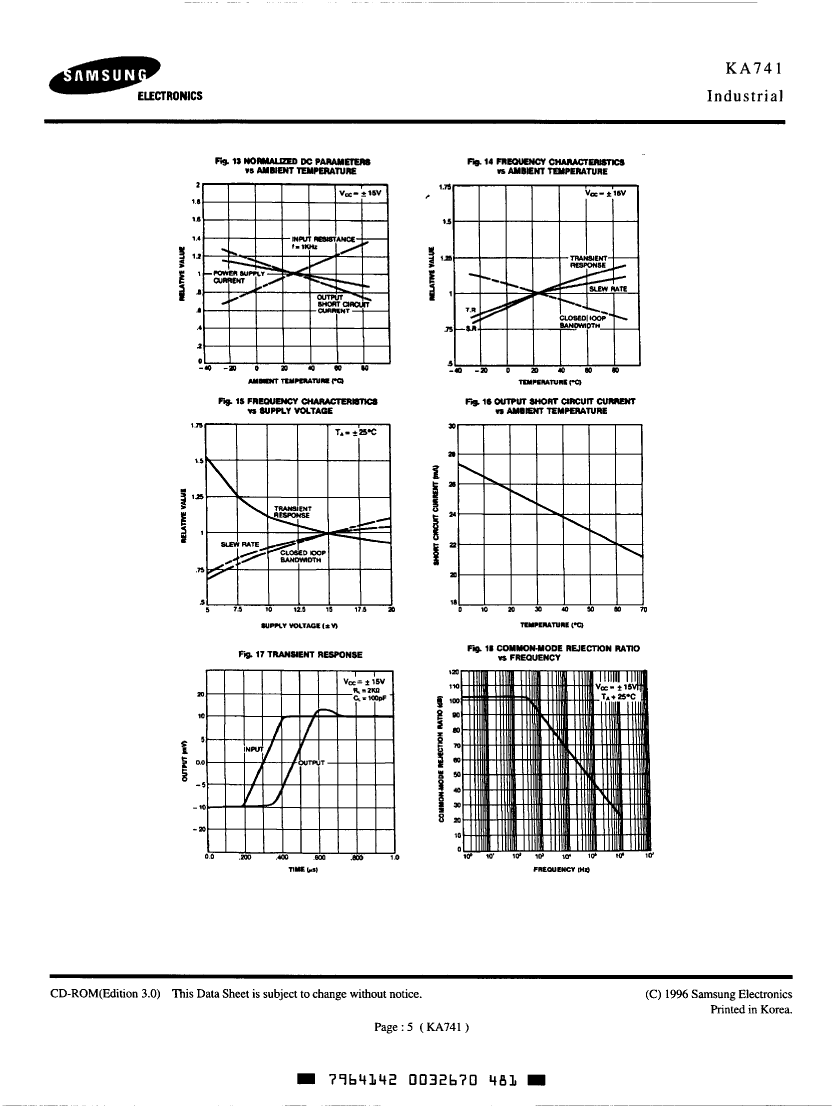

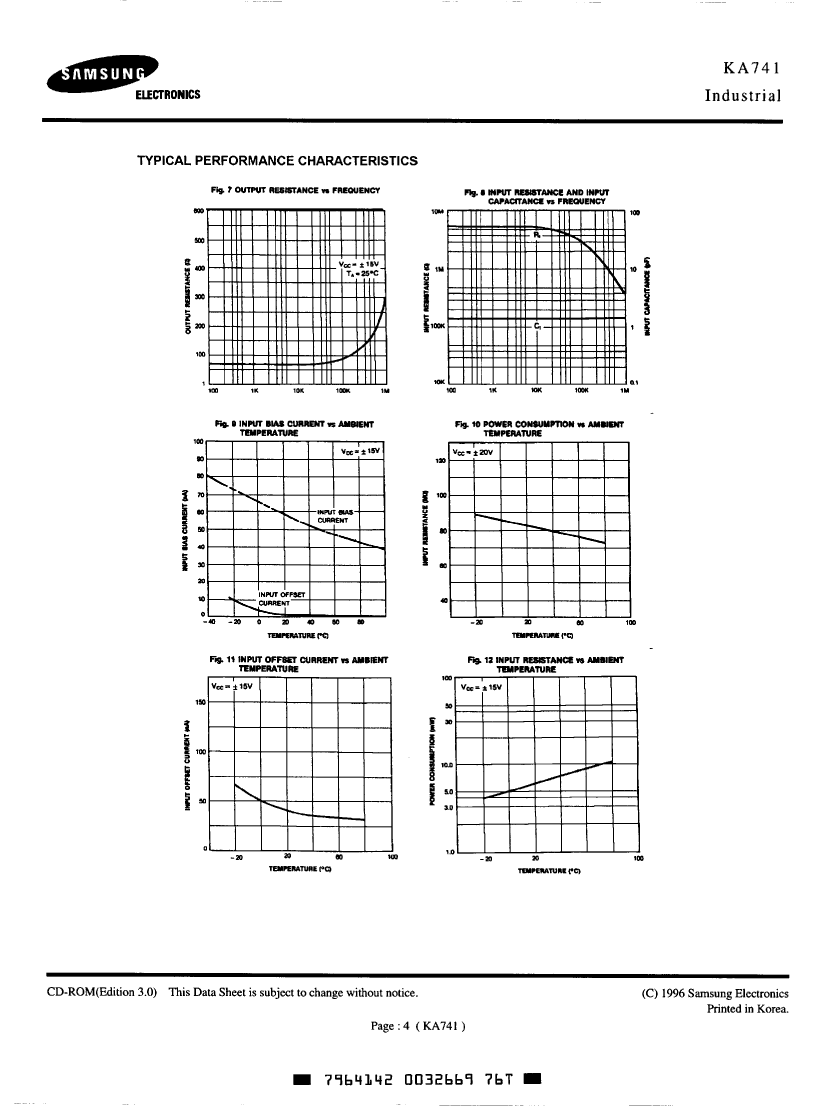

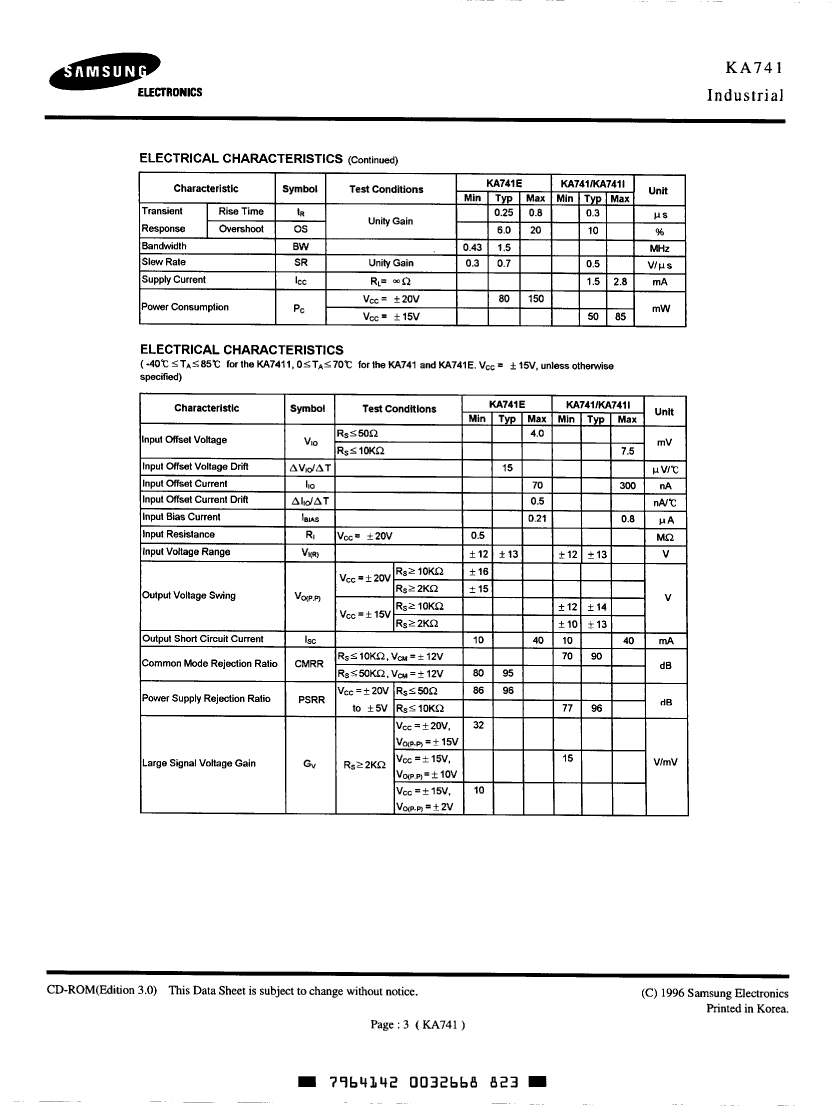

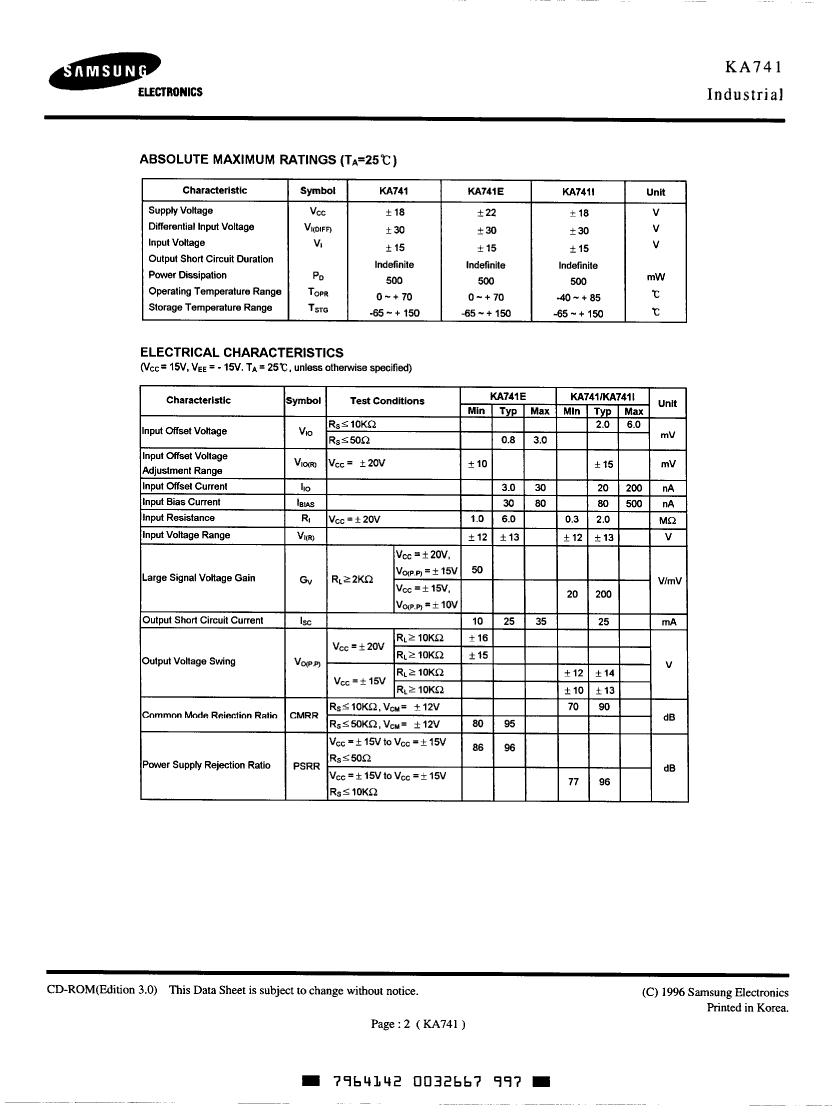

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compliant |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.08 µA |
| frequency compensation | YES |
| Maximum input offset voltage | 4000 µV |
| JESD-30 code | R-PDIP-T8 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | +-15 V |
| Certification status | Not Qualified |
| minimum slew rate | 0.3 V/us |
| Maximum slew rate | 10 mA |
| Supply voltage upper limit | 22 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Minimum voltage gain | 10000 |
| Base Number Matches | 1 |
| LM741EIN | LM741ECN | |
|---|---|---|
| Description | Operational Amplifier, 1 Func, 4000uV Offset-Max, BIPolar, PDIP8 | Operational Amplifier, 1 Func, 4000uV Offset-Max, BIPolar, PDIP8 |
| Is it Rohs certified? | incompatible | incompatible |
| Reach Compliance Code | compliant | compliant |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.08 µA | 0.08 µA |
| frequency compensation | YES | YES |
| Maximum input offset voltage | 4000 µV | 4000 µV |
| JESD-30 code | R-PDIP-T8 | R-PDIP-T8 |
| JESD-609 code | e0 | e0 |
| low-dissonance | NO | NO |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V |
| Number of functions | 1 | 1 |
| Number of terminals | 8 | 8 |
| Maximum operating temperature | 85 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP |
| Encapsulate equivalent code | DIP8,.3 | DIP8,.3 |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE |
| power supply | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified |
| minimum slew rate | 0.3 V/us | 0.3 V/us |
| Maximum slew rate | 10 mA | 10 mA |
| Supply voltage upper limit | 22 V | 22 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V |
| surface mount | NO | NO |
| technology | BIPOLAR | BIPOLAR |
| Temperature level | OTHER | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL |
| Minimum voltage gain | 10000 | 10000 |
| Base Number Matches | 1 | 1 |
