LM741ID datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM741ID

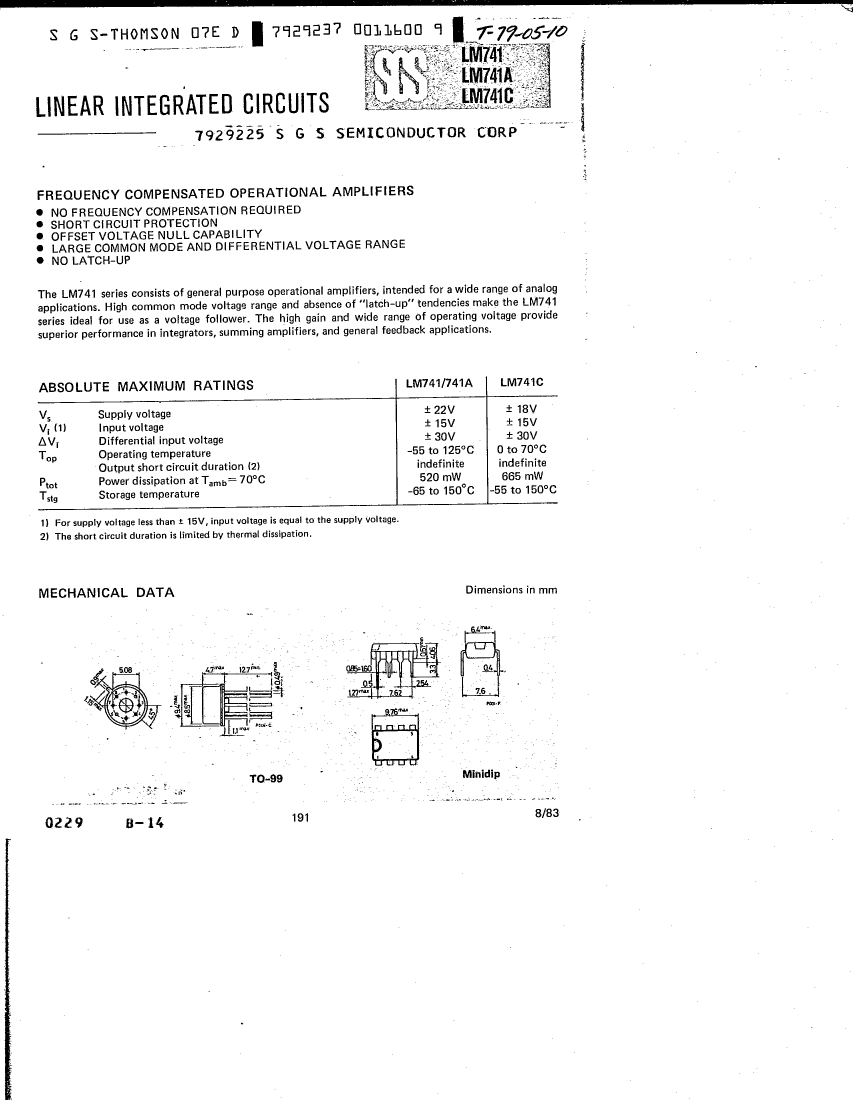

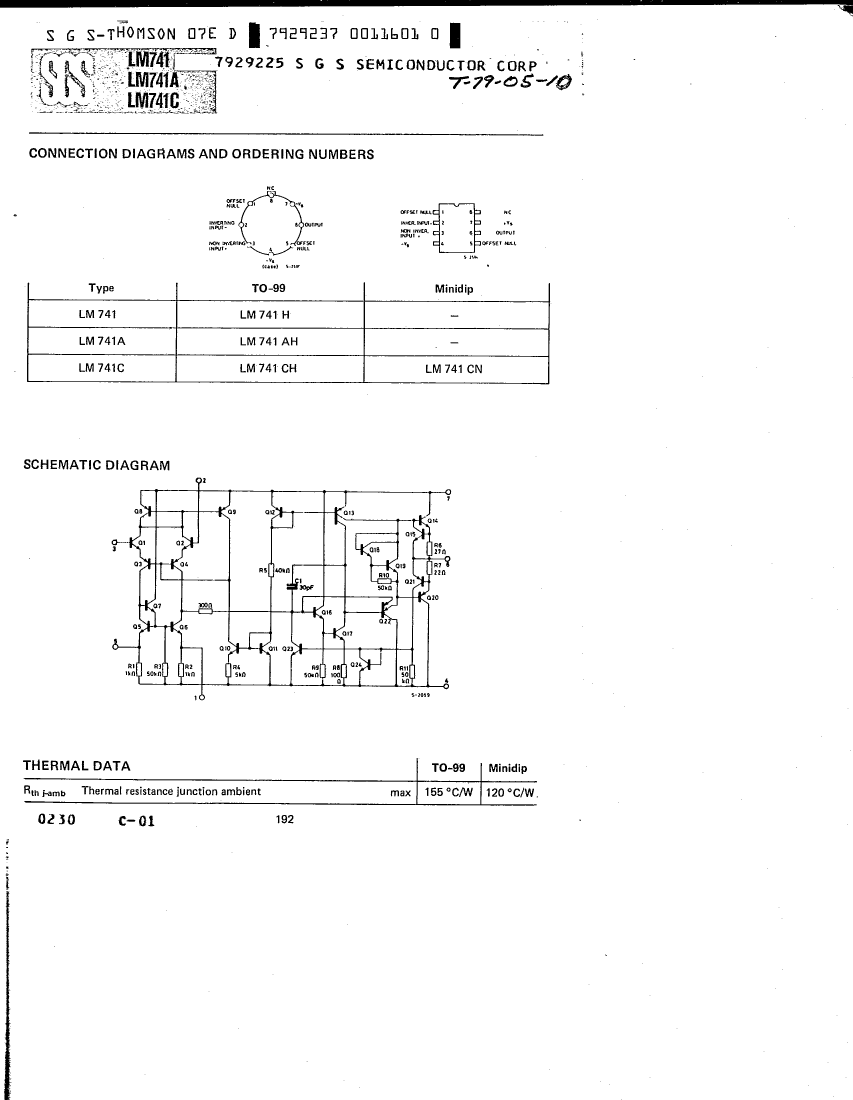

Preview

LM741ID: DescriptionBasic information of LM741ID amplifier: LM741ID is an OPERATIONAL AMPLIFIER. LM741ID amplifier core information: The minimum operating temperature of the LM741ID is -45 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 0.5 µA The maximum slew rate of the LM741ID given by the manufacturer is 2.8 mA. Its minimum voltage gain is 50000. The nominal supply voltage of the LM741ID is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of LM741ID is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of LM741ID: LM741ID has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm. LM741ID amplifier additional information: LM741ID adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM741ID is: YES. Its temperature grade is: INDUSTRIAL. The LM741ID is not Rohs certified. The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of LM741ID is: SOP. The materials of LM741ID packaging are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM741ID package pin format is: SMALL OUTLINE. Its terminal forms are: GULL WING.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size251KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Alternative parts：LM741ID

Download Datasheet Parametric Compare View All

LM741ID Overview

Basic information of LM741ID amplifier:

LM741ID is an OPERATIONAL AMPLIFIER.

LM741ID amplifier core information:

The minimum operating temperature of the LM741ID is -45 °C and the maximum operating temperature is 85 °C. Maximum bias current at 25°C: 0.5 µA

The maximum slew rate of the LM741ID given by the manufacturer is 2.8 mA. Its minimum voltage gain is 50000.

The nominal supply voltage of the LM741ID is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: +-15 V. The input offset voltage of LM741ID is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of LM741ID:

LM741ID has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 1.27 mm.

LM741ID amplifier additional information:

LM741ID adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of LM741ID is: YES. Its temperature grade is: INDUSTRIAL. The LM741ID is not Rohs certified.

The corresponding JESD-30 code is: R-PDSO-G8. The packaging code of LM741ID is: SOP. The materials of LM741ID packaging are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The LM741ID package pin format is: SMALL OUTLINE.

Its terminal forms are: GULL WING.

LM741ID Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.5 µA
frequency compensation	YES
Maximum input offset voltage	6000 µV
JESD-30 code	R-PDSO-G8
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-45 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	+-15 V
Certification status	Not Qualified
Maximum slew rate	2.8 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Minimum voltage gain	50000
Base Number Matches	1

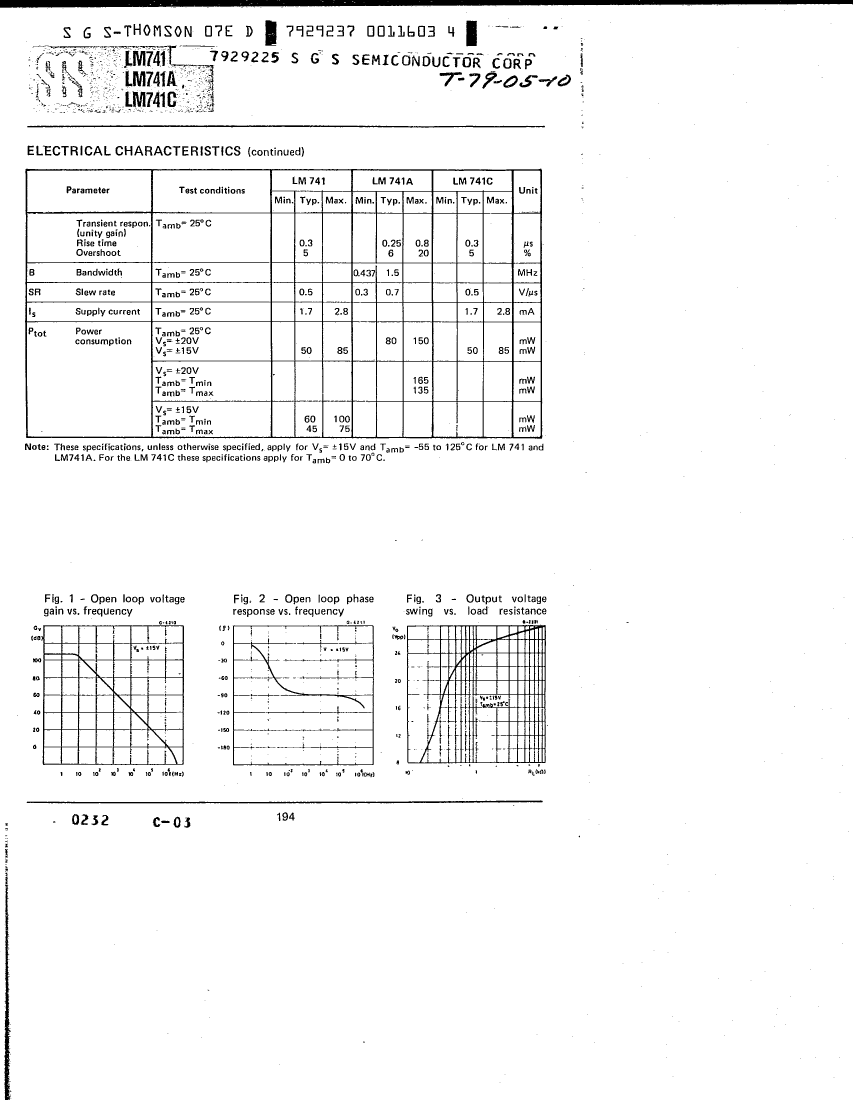

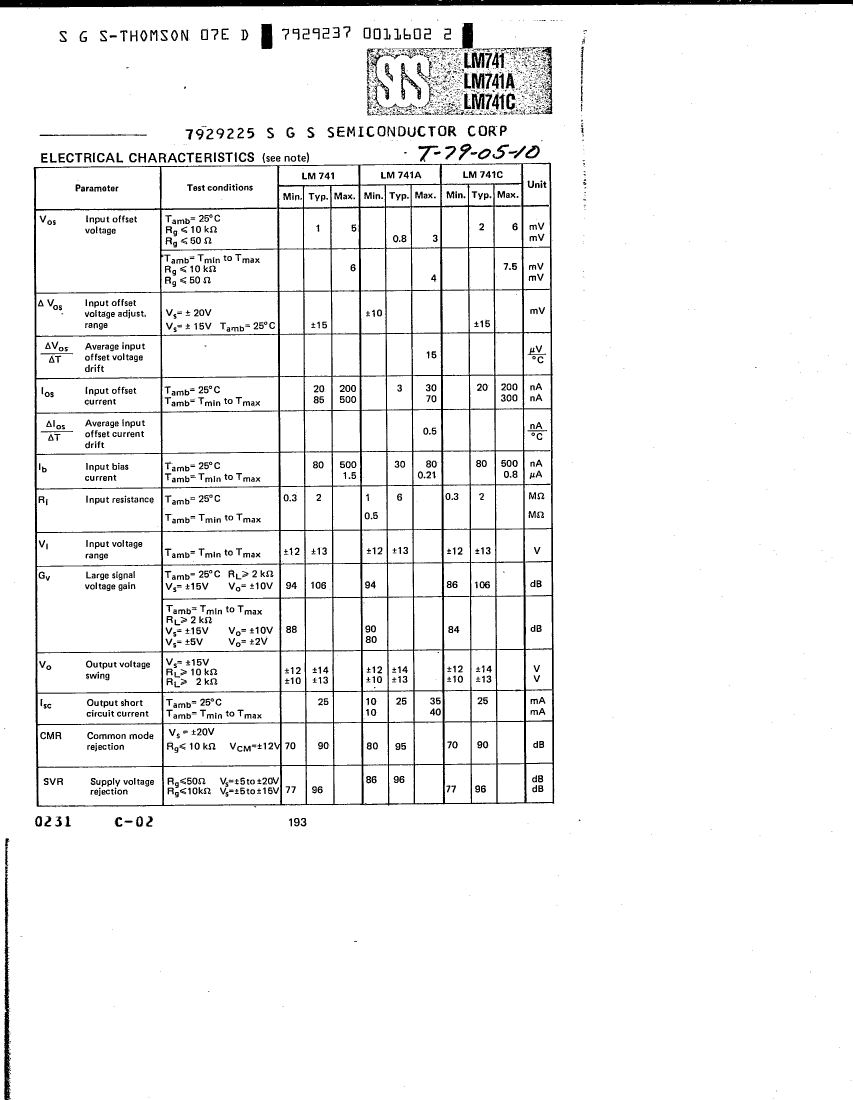

Preview

Download Datasheet

View All

LM741ID Related Products

	LM741ID	LM741EN	LM741EJ	LM741CD	LM741J	LM741CH	LM741CJ	LM741H	LM741AH	LM741CN
Description	IC,OP-AMP,SINGLE,BIPOLAR,SOP,8PIN,PLASTIC	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC	IC,OP-AMP,SINGLE,BIPOLAR,SOP,8PIN,PLASTIC	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC	IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,CERAMIC	IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL	IC,OP-AMP,SINGLE,BIPOLAR,CAN,8PIN,METAL	IC,OP-AMP,SINGLE,BIPOLAR,DIP,8PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	unknown	unknown	unknown	unknown	unknown	unknow
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	6000 µV	4000 µV	4000 µV	7500 µV	6000 µV	7500 µV	7500 µV	7500 µV	4000 µV	7500 µV
JESD-30 code	R-PDSO-G8	R-PDIP-T8	R-XDIP-T8	R-PDSO-G8	R-XDIP-T8	O-MBCY-W8	R-XDIP-T8	O-MBCY-W8	O-MBCY-W8	R-PDIP-T8
low-dissonance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	125 °C	70 °C	70 °C	125 °C	125 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	METAL	CERAMIC	METAL	METAL	PLASTIC/EPOXY
Encapsulate equivalent code	SOP8,.25	DIP8,.3	DIP8,.3	SOP8,.25	DIP8,.3	CAN8,.2	DIP8,.3	CAN8,.2	CAN8,.2	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR	ROUND	ROUND	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL	CYLINDRICAL	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	WIRE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	BOTTOM	DUAL	BOTTOM	BOTTOM	DUAL
Maximum bias current (IIB) at 25C	0.5 µA	0.08 µA	0.08 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	0.5 µA	-	0.5 µA
encapsulated code	SOP	DIP	DIP	SOP	DIP	-	DIP	-	-	DIP
Maximum slew rate	2.8 mA	2.8 mA	2.8 mA	2.8 mA	2.8 mA	2.8 mA	2.8 mA	2.8 mA	-	2.8 mA
Supply voltage upper limit	18 V	22 V	22 V	18 V	22 V	18 V	18 V	18 V	-	18 V
surface mount	YES	NO	NO	YES	NO	-	NO	-	-	NO
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	-	2.54 mm	-	-	2.54 mm
Minimum voltage gain	50000	50000	50000	20000	25000	15000	20000	50000	-	15000
Maker	-	STMicroelectronics	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	-	-	-	-	DIP, DIP8,.3	, CAN8,.2	DIP, DIP8,.3	, CAN8,.2	, CAN8,.2	DIP, DIP8,.3
