LM78L06 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LM78L06

LM78L06: DescriptionFixed Positive LDO Regulator, 6V, TO-92, 3 PIN; CategoryPower/power management The power supply circuit; File Size247KB，11 Pages; ManufacturerHTC Korea（TAEJIN Technology ）; Websitehttp://www.htckorea.co.kr/

Download Datasheet Parametric Compare View All

LM78L06 Overview

Fixed Positive LDO Regulator, 6V, TO-92, 3 PIN

LM78L06 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum input voltage	20 V
Minimum input voltage	8 V
JESD-30 code	O-XBCY-W3
Number of functions	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.1 A
Maximum output voltage 1	6.3 V
Minimum output voltage 1	5.7 V
Nominal output voltage 1	6 V
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	CYLINDRICAL
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

Preview

Download Datasheet

View All

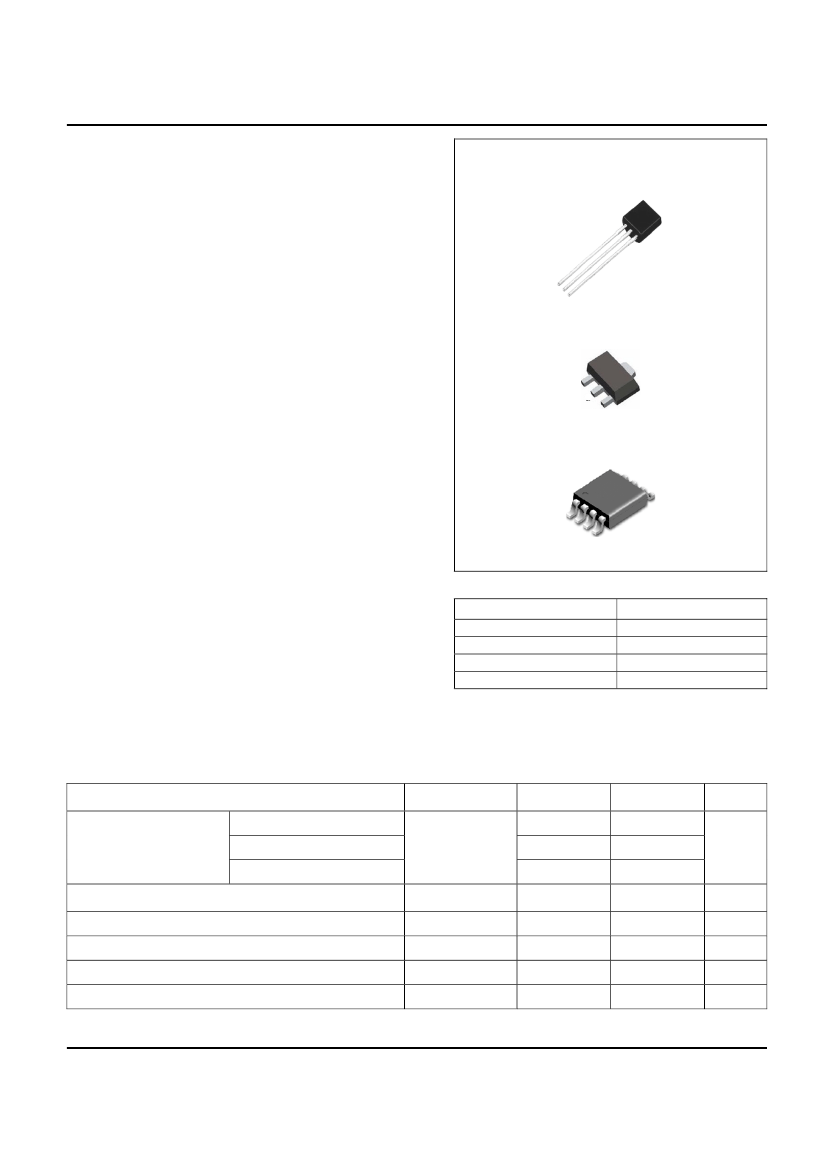

3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR

FEATURES

Output Current Up to 100mA

No External Components

Internal Thermal Overload Protection

Internal Short-Circuit Limiting

Output Voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V,

18V and 24V

Moisture Sensitivity Level 3

TO-92 PKG

LM78LXX

SOT-89 PKG

DESCRIPSION

This series of fixed-voltage monolithic integrated-circuit

voltage regulators is designed for a wide range of

applications. These applications include on-card

regulation for elimination of noise and distribution

problems associated with single-point regulation. In

addition, they can be used with power-pass elements to

make high current voltage regulators.

Each of these regulators can deliver up to 100mA of

output current. The internal limiting and thermal shutdown

features of these regulators make them essentially

immune to overload. Current limiting is include to limit the

peak output current(250mA ~ 300mA) to a safe value.

When used as a replacement for a zener diode-resistor

combination, an effective improvement in output

impedance can be obtained together with lower-bias

current.

SOP-8 PKG

ORDERING INFORMATION

Device

LM78LXX

LM78LXXTA

LM78LXXF

LM78LXXD

Package

TO-92 (Bulk)

TO-92 (Taping)

SOT-89

SOP-8

XX : Output Voltage = 05, 06, 08, 09, 10, 12, 15, 18, 24

Absolute Maximum Ratings

CHARACTERISTIC

LM78L05 ~ LM78L10

Input Voltage

LM78L12 ~ LM78L18

LM78L24

Maximum Power Dissipation at T

= 25°C / TO-92

Thermal Resistance Junction-To-Ambient / TO-92

Lead Temperature (Soldering, 10 sec)

Storage Temperature Range

Operating Junction Temperature Range

DMax

SOL

STG

JOPR

SYMBOL

MIN.

-65

-40

MAX.

0.770

162

260

150

UNIT

℃/W

℃

Oct. 2010 - Rev. 1.4

HTC

LM78L06 Related Products

	LM78L06	LM78L05C	LM78L05CTA	LM78L08F	LM78L09F	LM78L10F	LM78L15F	LM78L10	LM78L10TA	LM78L18TA
Description	Fixed Positive LDO Regulator, 6V, TO-92, 3 PIN	Fixed Positive LDO Regulator, 5V, TO-92, 3 PIN	Fixed Positive LDO Regulator, 5V, TO-92, 3 PIN	Fixed Positive LDO Regulator, 8V, PSSO3, SOT-89, 3 PIN	Fixed Positive LDO Regulator, 9V, PSSO3, SOT-89, 3 PIN	Fixed Positive LDO Regulator, 10V, PSSO3, SOT-89, 3 PIN	Fixed Positive LDO Regulator, 15V, PSSO3, SOT-89, 3 PIN	Fixed Positive LDO Regulator, 10V, TO-92, 3 PIN	Fixed Positive LDO Regulator, 10V, TO-92, 3 PIN	Fixed Positive LDO Regulator, 18V, TO-92, 3 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum input voltage	20 V	20 V	20 V	23 V	24 V	25 V	30 V	25 V	25 V	33 V
Minimum input voltage	8 V	7 V	7 V	10.5 V	11.5 V	12.5 V	17.5 V	12.5 V	12.5 V	20.5 V
JESD-30 code	O-XBCY-W3	O-XBCY-W3	O-XBCY-W3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3	O-XBCY-W3	O-XBCY-W3	O-XBCY-W3
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3	3
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current 1	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum output voltage 1	6.3 V	5.063 V	5.063 V	8.4 V	9.45 V	10.5 V	15.75 V	10.5 V	10.5 V	18.9 V
Minimum output voltage 1	5.7 V	4.925 V	4.925 V	7.6 V	8.55 V	9.5 V	14.25 V	9.5 V	9.5 V	17.1 V
Nominal output voltage 1	6 V	5 V	5 V	8 V	9 V	10 V	15 V	10 V	10 V	18 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO	NO	NO	YES	YES	YES	YES	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	FLAT	FLAT	FLAT	FLAT	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	SINGLE	SINGLE	SINGLE	SINGLE	BOTTOM	BOTTOM	BOTTOM
Base Number Matches	1	1	1	1	1	1	1	1	1	-
