AQ1054N7J-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> AQ1054N7J-T

AQ1054N7J-T: DescriptionGeneral Purpose Inductor, 0.0047uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP; CategoryPassive components inductor; File Size228KB，2 Pages; ManufacturerTaiyo Yuden; Environmental Compliance

Download Datasheet Parametric View All

AQ1054N7J-T Overview

General Purpose Inductor, 0.0047uH, 5%, 1 Element, Ferrite-Core, SMD, CHIP

AQ1054N7J-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
Nominal inductance(L)	0.0047 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	AQ
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Maximum rated current	0.59 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

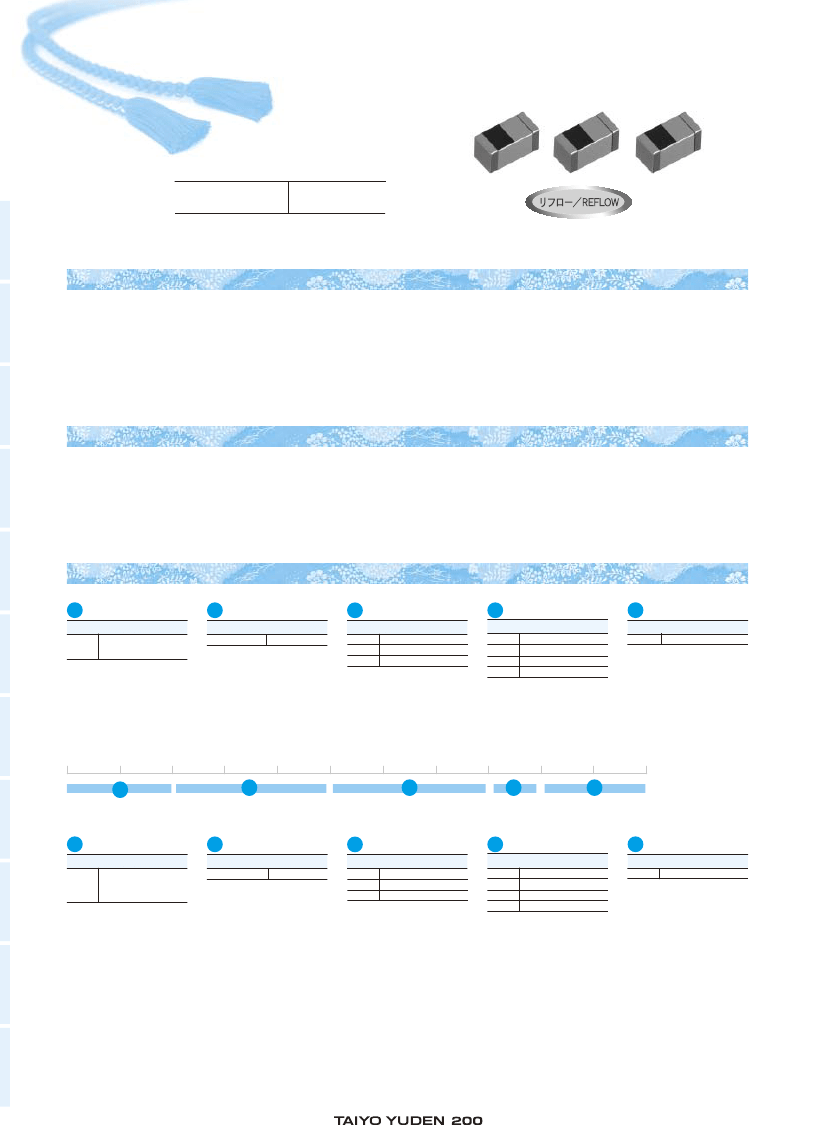

高周波チップ積層インダクタ

（High

Qタイプ）

MULTILAYER CHIP INDUCTOR FOR HIGH FREQUENCY

HIGH Q TYPE

AQ SERIES

OPERATING TEMP.

105：−55∼125℃＊

−55∼85℃＊

＊保証定格により変わります。

＊Operating

temperature depends on rated current.

特長 FEATURES

・高周波領域でQが高く、自己共振周波数が高いため高周波回路に最適です

・実装性、耐熱性に優れ、巻線インダクタの½き換えに最適です

・2nHから10nHではE24系列を実現しており、回路設計が容易です

・モノリシック構造のため、高信頼性です

・High

frequency inductors with high Q and high SRF suitable for high fre-

quency circuit.

・Excellent

mountability and heat-resistance suitable for replacement of

wire-wound inductors.

・E24

series lineup in a range from

2nH

10nH

makes circuit design easy.

・Monolithic

structure provides high-reliability.

用途 APPLICATIONS

・携帯電話、無線LAN

・高周波モジュール

・チューナー

・高周波回路全般

・Mobile

telephone, Wireless LAN

・High

frequency module

・Tuner

・High-frequency

circuits

½名表記法 ORDERING

CODE

½式

高周波チップインダクタ

High Qタイプ

½状寸法

（L×W）

〔mm〕

105

（0402）

1.0×0.6

公称インダクタンス

〔nH〕

例

3N9

10N

3.9

※N＝nHとしての小数点

インダクタンス許容差

3％

5％

±0.2nH

±0.3nH

包装

−T

リールテーピング

A Q 1

Type

Chip inductors for high

frequency High Q type

0 N J

Packaging

ーT

Tape & Reel

Inductance Tolerances

3％

5％

±0.2nH

±0.3nH

3.9

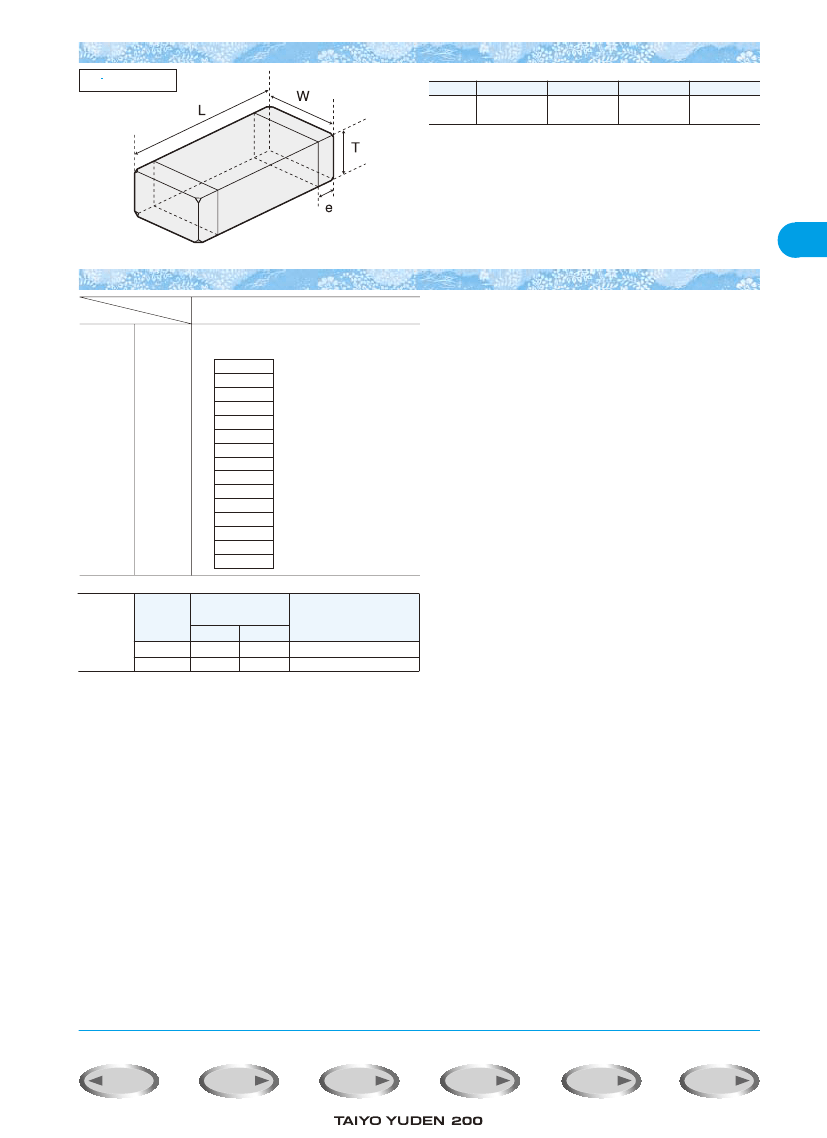

External Dimensions mm〕

〔

105

（0402）

1.0×0.6

Nominal Inductance nH〕

〔

Example

3N9

10N

*N＝0.0

（nH

type）

206
