MH16TBGFREQ1 datasheet, PDF - EEWORLD Datasheet

MH16TBGFREQ1: DescriptionTTL Output Clock Oscillator, 1MHz Min, 50MHz Max; CategoryPassive components oscillator; File Size100KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MH16TBGFREQ1 Overview

TTL Output Clock Oscillator, 1MHz Min, 50MHz Max

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	MH
Installation features	SURFACE MOUNT
Maximum operating frequency	50 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	TTL
Output load	10 TTL
physical size	13.21mm x 13.21mm x 5.97mm
longest rise time	5 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

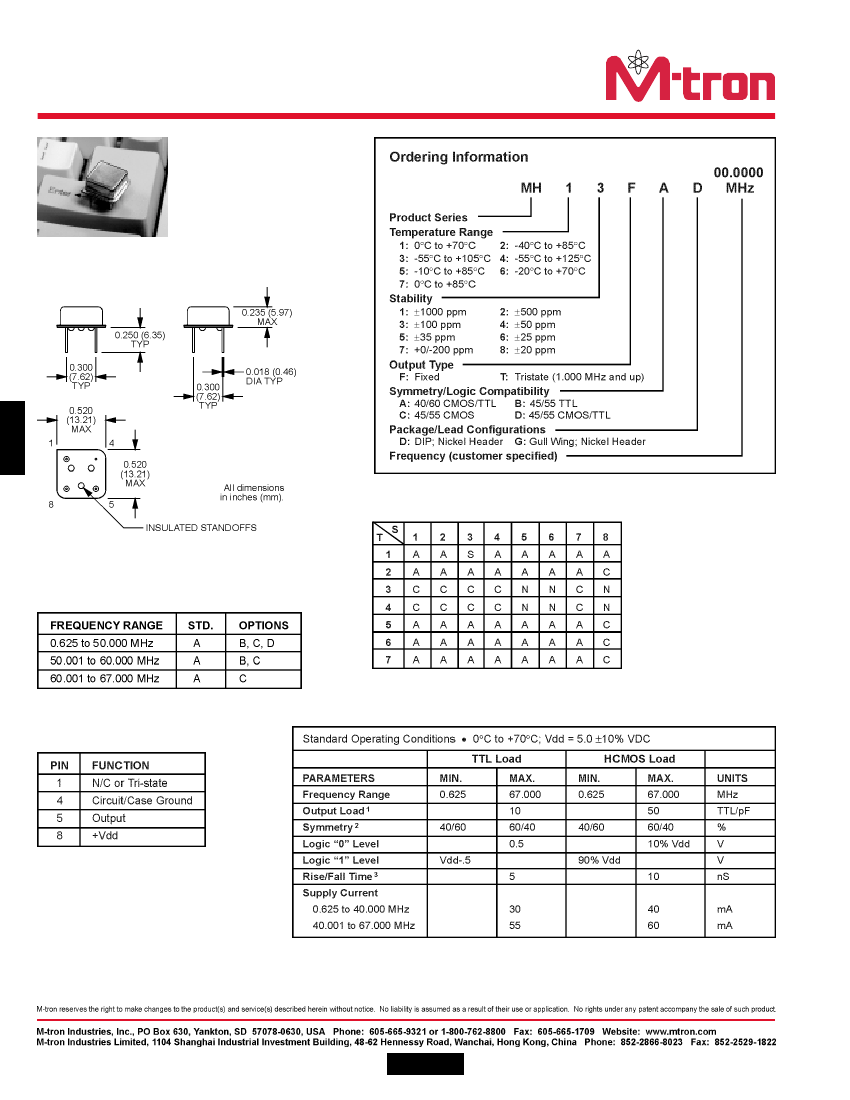

MH Series Half-Size HCMOS/TTL

Compatible Oscillators

Half-Size HCMOS/TTL Compatible Oscillators

Available Stabilities vs. Temperature

See page 135 for gull wing configuration.

Available Symmetry

A = Available

N = Not Available

S = Standard

C = Consult Factory

Electrical Specifications

Pin Connections

Tri-state Control Logic

Pin 1 high or floating: clock signal output

Pin 1 low: output disables to high impedance

TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.

Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

3

Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

See page 136 for suggested soldering conditions.
