INTRODUCTION
F-SMA is one of the first generations of fiber optic connectors. Established
as a standard in the industry, it is now used in many applications, such
as industrial and medical, in which the connector can be adapted with
a large range of MultiMode fibers.
They are designed for systems requiring reliable performances over short
and medium ranges.
BENEFITS & FEATURES
• Easy to use connector
- Screw coupling nut
- Metal body with cylindrical alignment and accurate air gap
• Flexible
- Metal or ceramic optical ferrule allowing different fiber diameters
- Two series available: F-SMA 5 (straight barrel) and F-SMA 6 (step down barrel) to adapt to customer need
- Cable range: 0.9 mm, 2 mm and 3 mm
- Compliant with IEC 61754-22 and MIL-C-83522
ApplICATIONS
• Industry
• Medical
• Instrumentation
• Military
6-4
www.radiall.com
ChARACTERISTICS
OpTICAl ChARACTERISTICS
MultiMode Silica fiber size
50/125 µm
Wavelength
Mean Insertion Loss
Standard deviation
1.5 dB
1.2 dB
0.5 dB
100/140 µm
850 nm – 1310 nm
1 dB
MultiMode HCS type fiber size
200/280 µm
Insertion Loss random: IEC 61300-3-34
Note: the optical performances also depend on the fiber or cable construction.
MEChANICAl ChARACTERISTICS
Cable retention
Mechanical endurance
Recommended coupling torque
Cable diameter 0.9 mm
7N
Cable diameter 2
&
3 mm
100N
250 matings
40 to 45 cmN
(use torque wrench F780 020 000)
ENVIRONMENTAl ChARACTERISTICS
Temperature range
Vibration
- 55°C / + 85°C
10 – 2000 Hz, 20 g
INTERNATIONAl STANDARD DOCUMENTS COMplIANCE
• IEC 61754-22 Fiber optic connector interfaces (F-SMA connector family)
• IEC 61300 Fiber optic interconnecting devices and passive components - Basic test and measurement procedures
www.radiall.com
F-SMA
6-5
F-SMA
CONNECTORS

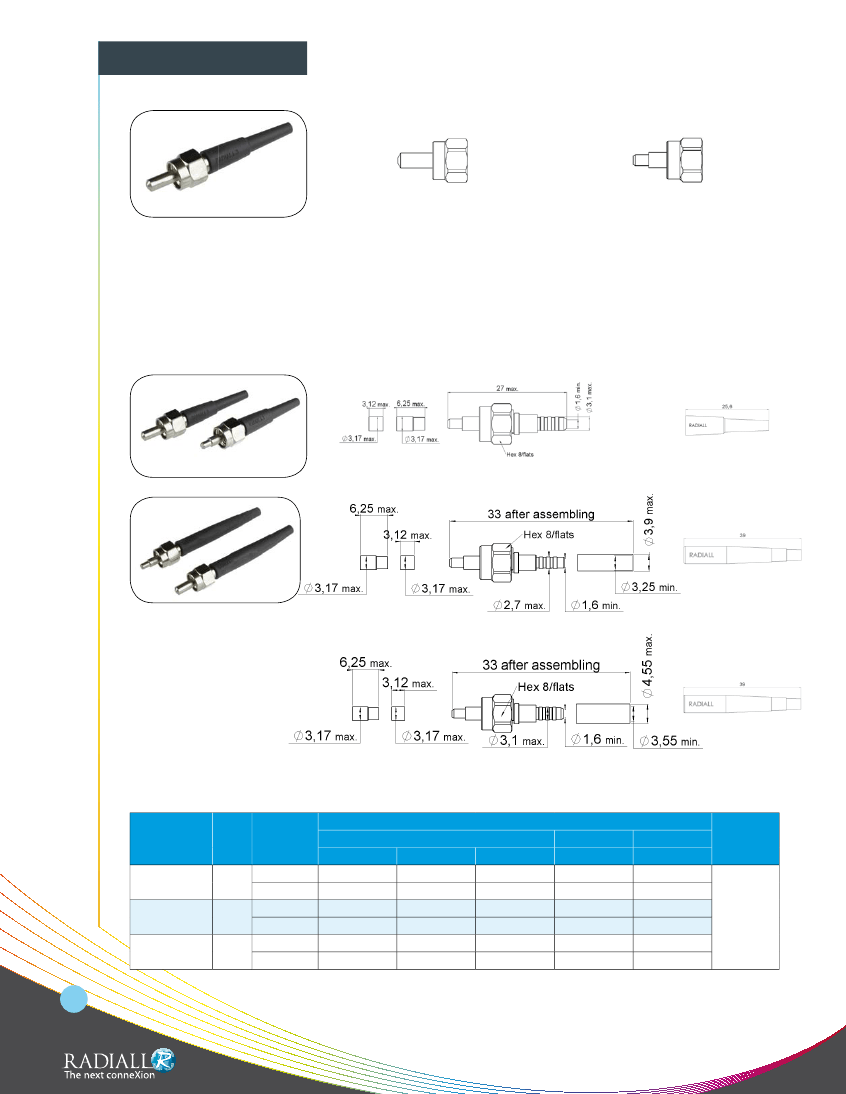

F-SMA connectors are available in 2 different ended shapes: F-SMA 5 and F-SMA 6:
F-SMA 5 Straight barrel (F707)
F-SMA 6 Step-down barrel (F708)
Each F-SMA 6 connector is delivered with two plastic alignment sleeves.
•
HALF LENGTH alignment sleeve:
in order to precisely align a F-SMA 6 in a receptacle device.
Application: Slide the sleeve over the barrel of the F.-SMA 6 connector up to its shoulder, before fitting the connector
into the receptacle.
•
FULL LENGTH alignment sleeve:
in order to optimize the alignment of two F-SMA 6 connectors in an F-SMA adapter.
Application: Slide the alignment sleeve over one of the F-SMA 6 connectors before inserting them in the adapter.
Knowing that when unmated, the alignment sleeve will remain on the connector fitted at end 2
Figure 1
Figure 2
Figure 3
Note: F-SMA 5 only differs from these figurines on the ended shape.
Cable dia.
Tight or loose Figure End shape
structure cable
0.9 mm
2 mm
3 mm
Fig 1
Fig 2
Fig 3
F-SMA 5
F-SMA 6
F-SMA 5
F-SMA 6
F-SMA 5
F-SMA 6
MultiMode Fiber type
Silica fibers
HCS fibers
140 µm
280 µm
200/230 µm
F707 025 000
-
-
F708 017 000
-
-
F707 032 000
-
F707 047 000
F708 025 000 F708 026 000
-
F707 028 000 F707 029 000 F707 049 000
F708 020 000 F708 021 000
-
POF fibers
1000 µm
-
-
F707 040 000
-
-
-
Packaging
128 µm
F707 024 000
F708 016 000
F707 031 000
F708 024 000
F707 027 000
F708 019 000
1
6-6
For other cable or fiber diameters, please consult the Radiall sales team.
