F707049000: DescriptionFiber Optic SMA Connector, 200/230um, Multi Mode, Simplex; CategoryThe connector The connector; File Size203KB，1 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

F707049000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F707049000	-	-	View	Buy Now

F707049000 Overview

Fiber Optic SMA Connector, 200/230um, Multi Mode, Simplex

F707049000 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARDS: IEC 61754-22, MIL-C-83522
Connection Type	SIMPLEX
Connector type	FIBER OPTIC SMA CONNECTOR
Coupling type	THREADED
DIN compliance	NO
Fiber size	200/230um
IEC compliance	YES
Insertion loss	1.5 dB
MIL compliance	YES
model	MULTI
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

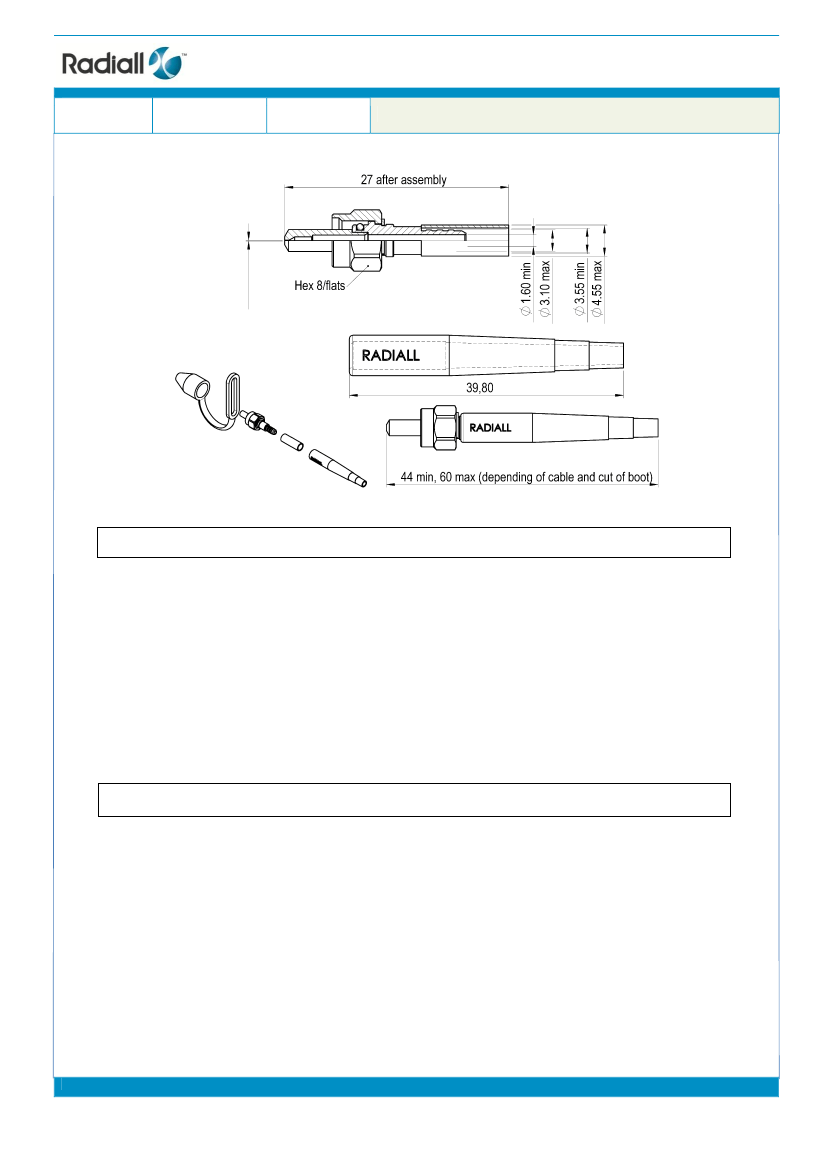

Technical Data Sheet

F-SMA CONNECTOR MM 230µm STR

PAGE

1/1

ISSUE

06/13/13

SERIES

F-SMA

PART NUMBER

F707049000

F-SMA CRIMPING STRAIGHT CONNECTOR FOR MULTIMODE 230µM FIBER

Dimensions: mm [inches]

GENERAL

Type:

IEC 874-2 type FSMA5, connector

Metalic ferrule

Screw thread coupling device

200/230 µm HCS multimode fiber

Tight structure cable with aramid members from Ø2.7mm to Ø3.5mm

See assembly procedures 503 08 530 and F 707 PC 16

Fiber:

Cable size & type:

Installation:

CHARACTERISTICS

(Dependent on cable or fiber construction)

Optical:

Mechanical:

Typical insertion loss : 1,5dB

Mating life :

Fiber retention :

Cable retention :

Coupling torque :

Coupling retention :

Vibration :

Up to 250 matings

5N

100N

40 to 45 N.cm

270N

10 – 55 Hz, 10g

Environmental:

Climatic category : 55/85/10 (IEC 874-1)

:

This document contains proprietary information and such information shall not be disclosed to any third party for any purpose whatsoever or used for manufacturing purposes without prior written

agreement from Radiall. The data defined in this document are given as an indication, in the effort to improve our products; we reserve the right to make any changes judged necessary.
