PA590FH datasheet, PDF - EEWORLD Datasheet

PA590FH: DescriptionWide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size276KB，1 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

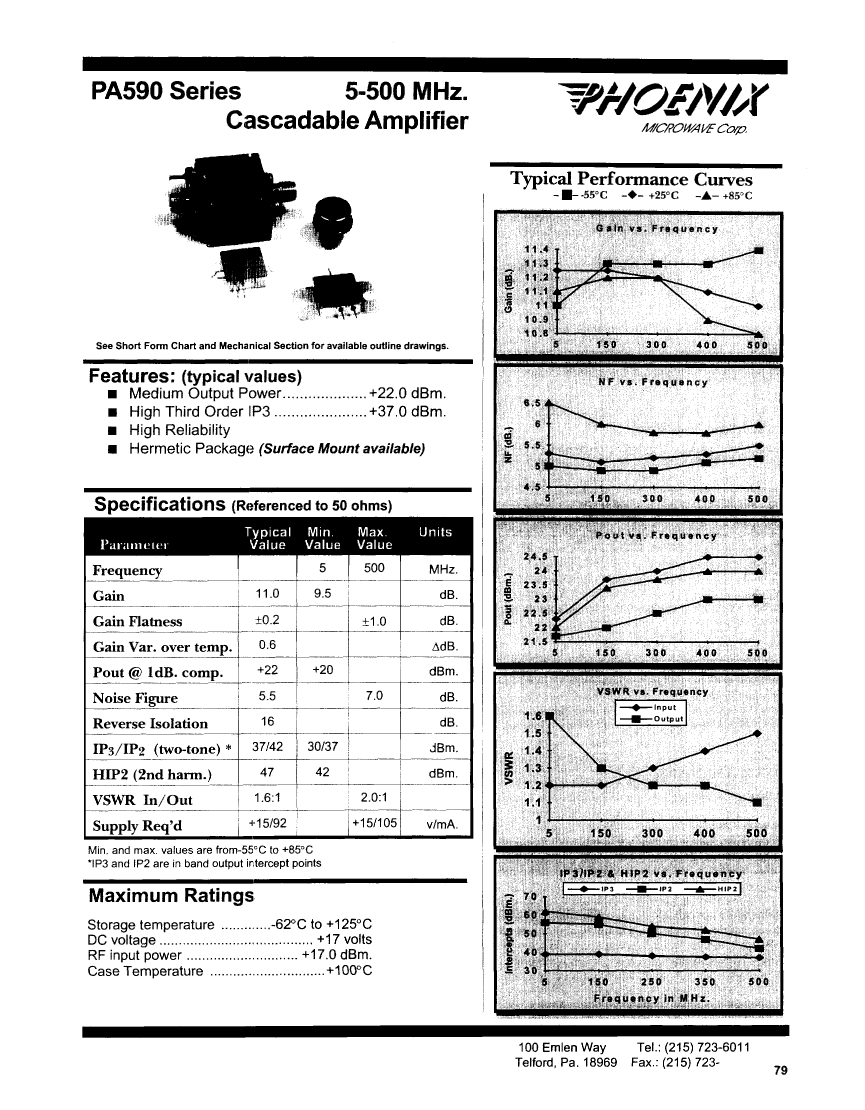

PA590FH Overview

Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	17 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

	PA590FH	PA590MH	PA590M	PA590	PA590F	PA590C	PA590CS
Description	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,	Wide Band Medium Power Amplifier, 5MHz Min, 500MHz Max,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum input power (CW)	17 dBm	17 dBm	17 dBm	17 dBm	17 dBm	17 dBm	17 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2	2	2	2
Base Number Matches	1	1	1	1	1	1	1
