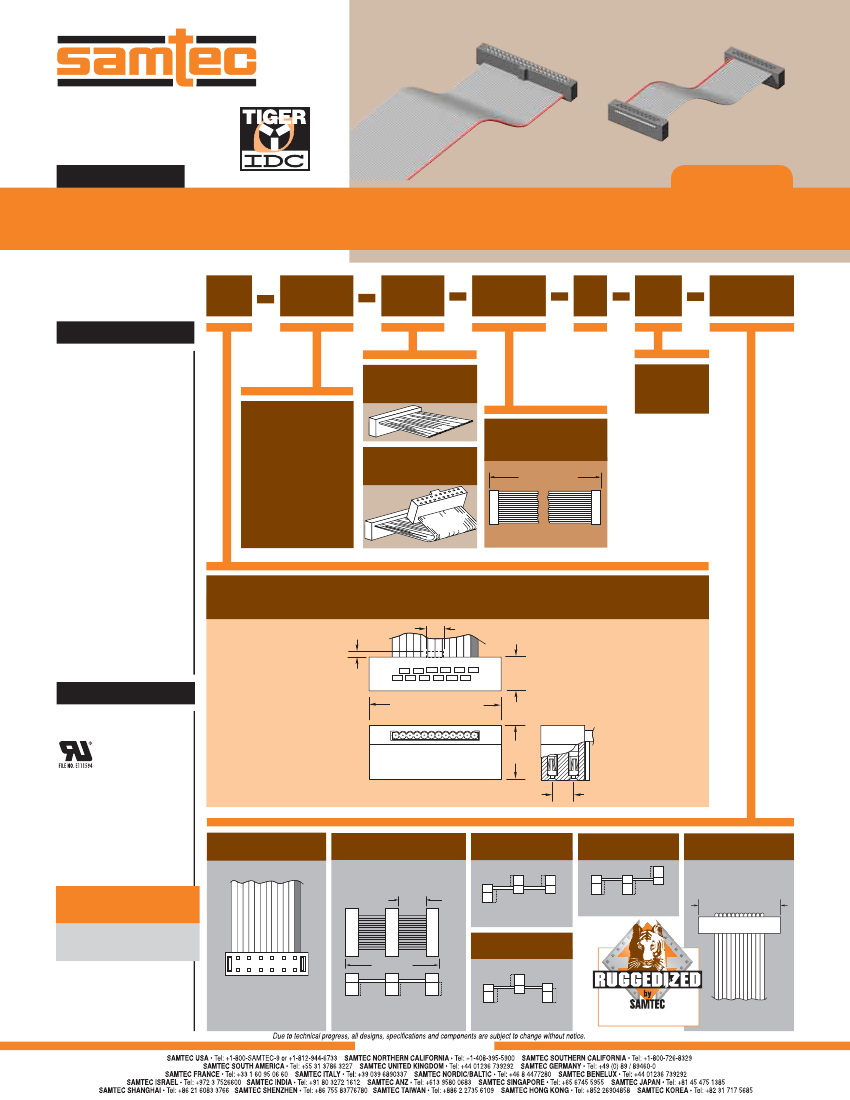

F-214
FFSD–20–S–10.00–01–N
™
•••••••••••••••••••
FFSD–10–D–02.00–01–N
(1,27 mm) .050"
FFSD SERIES
TIGER EYE FLAT IDC WIRE CABLES
Mates with:
FTS, FTSH, EHF,
SHF, ESHF
™
TYPE
STRIP
NO. PINS
PER ROW
END
OPTION
OVERALL
LENGTH
01
N
OTHER
OPTION
SPECIFICATIONS
For complete specifications
see www.samtec.com?FFSD
Insulator Material:
PBT
Contact:
BeCu
Plating:
10µ" (0,25 µm) Au over 50µ"
(1,27 µm) Ni on contact area;
Sn over 50µ" (1,27 µm) Ni
on balance
Wire:
30 AWG
Current Rating (FFSD/FTSH):
2.3 A per pin
(1 pin powered per row)
Operating Temp Range:
-40°C to +105°C
Lead Size Accepted:
(0,41 mm) .016" SQ
Contact Resistance:
15 mΩ
Insertion Depth:
(2,64 mm) .104" to
(3,17 mm) .125"
Insertion Force:
(Single contact only)
5 oz (1,39 N) avg.
Withdrawal Force:
(Single contact only)
3 oz (0,83 N) avg.
RoHS Compliant:
Yes
–S
= Single End
–N
= Notch
Polarization
–04, –05,
–06, –08,
–10, –11,
–12, –13,
–15, –17,
–20, –25
(Standard sizes)
–“XX.XX”
–D
= Double End
= Assembled Length
Assembled Length
in INCHES (1/8")
2 inches minimum
FFSD
= Socket Strip
(1,90) .075
01
(1,02)
.040
No. of positions x
(1,27) .050 + (4,19) .165
(3,05)
.120
RECOGNITIONS
For complete scope of
recognitions see
www.samtec.com/quality
(5,08)
.200
(1,27)
.050
Reverse
–RW
= Wiring
Daisy
–D “XX”
= Chain
–R
= Reverse
Outside
–O
= Reverse
Strain
–SR
= Relief
(Mates only with
ESHF Series)
ALSO AVAILABLE
(MOQ Required)
• Other sizes
Contact Samtec.
01
2"
min.
“XX”
±
1/8"
Requires –DXX
3
3
No. of positions x
(1,27) .050 + (8,00) .315
Middle
–M
= Reverse
4" minimum
02
Note:
This Series is
non-standard, non-returnable.
Red wire opposite
position #1.
1
2
Requires –DXX
3
• Strain relief option
Not available with
–O, –M, –R or –DXX
WWW.SAMTEC.COM
