Features
•
High Performance, Low Power AVR
®
8-Bit Microcontroller
•
Advanced RISC Architecture
– 135 Powerful Instructions – Most Single Clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 16 MIPS Throughput at 16 MHz
– On-Chip 2-cycle Multiplier
Non-volatile Program and Data Memories
– 64/128K Bytes of In-System Self-Programmable Flash
• Endurance: 100,000 Write/Erase Cycles
– Optional Boot Code Section with Independent Lock Bits
• USB Bootloader programmed by default in the Factory
• In-System Programming by On-chip Boot Program hardware activated after
reset
• True Read-While-Write Operation
• All supplied parts are preprogramed with a default USB bootloader
– 2K/4K (64K/128K Flash version) Bytes EEPROM
• Endurance: 100,000 Write/Erase Cycles
– 4K/8K (64K/128K Flash version) Bytes Internal SRAM
– Up to 64K Bytes Optional External Memory Space
– Programming Lock for Software Security
JTAG (IEEE std. 1149.1 compliant) Interface
– Boundary-scan Capabilities According to the JTAG Standard
– Extensive On-chip Debug Support
– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
USB 2.0 Full-speed/Low-speed Device and On-The-Go Module
– Complies fully with:
– Universal Serial Bus Specification REV 2.0
– On-The-Go Supplement to the USB 2.0 Specification Rev 1.0
– Supports data transfer rates up to 12 Mbit/s and 1.5 Mbit/s
USB Full-speed/Low Speed Device Module with Interrupt on Transfer Completion
– Endpoint 0 for Control Transfers : up to 64-bytes
– 6 Programmable Endpoints with IN or Out Directions and with Bulk, Interrupt or
Isochronous Transfers
– Configurable Endpoints size up to 256 bytes in double bank mode
– Fully independant 832 bytes USB DPRAM for endpoint memory allocation
– Suspend/Resume Interrupts
– Power-on Reset and USB Bus Reset
– 48 MHz PLL for Full-speed Bus Operation
– USB Bus Disconnection on Microcontroller Request
USB OTG Reduced Host :
– Supports Host Negotiation Protocol (HNP) and Session Request Protocol (SRP)
for OTG dual-role devices
– Provide Status and control signals for software implementation of HNP and SRP
– Provides programmable times required for HNP and SRP
Peripheral Features
– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
– Two16-bit Timer/Counter with Separate Prescaler, Compare- and Capture Mode
•
8-bit
Microcontroller
with
64/128K Bytes
of ISP Flash
and USB
Controller
AT90USB646
AT90USB647
AT90USB1286
AT90USB1287
Summary
•
•
•
•
•
7593GS–AVR–03/08
•
•
•
•
•
– Real Time Counter with Separate Oscillator
– Four 8-bit PWM Channels
– Six PWM Channels with Programmable Resolution from 2 to 16 Bits
– Output Compare Modulator
– 8-channels, 10-bit ADC
– Programmable Serial USART
– Master/Slave SPI Serial Interface
– Byte Oriented 2-wire Serial Interface
– Programmable Watchdog Timer with Separate On-chip Oscillator
– On-chip Analog Comparator
– Interrupt and Wake-up on Pin Change
Special Microcontroller Features
– Power-on Reset and Programmable Brown-out Detection
– Internal Calibrated Oscillator
– External and Internal Interrupt Sources
– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
I/O and Packages
– 48 Programmable I/O Lines
– 64-lead TQFP and 64-lead QFN
Operating Voltages
– 2.7 - 5.5V
Operating temperature
– Industrial (-40° to +85°
C
C)
Maximum Frequency
– 8 MHz at 2.7V - Industrial range
– 16 MHz at 4.5V - Industrial range
2
AT90USB64/128
7593GS–AVR–03/08
Figure 1-2.
Pinout AT90USB64/128-QFN
PF5 (ADC5/TMS)
PF6 (ADC6/TDO)
PF4 (ADC4/TCK)
PF7 (ADC7/TDI)
PF0 (ADC0)
PF1 (ADC1)
PF2 (ADC2)
PF3 (ADC3)
PA0 (AD0)
PA1 (AD1)
#
##
$
$
#'
#&
#%
#$
#"
$"
$!
#!
(INT.6/AIN.0) PE6
(INT.7/AIN.1/UVcon) PE7
UVcc
D-
D+
UGnd
UCap
VBus
(IUID) PE3
(SS/PCINT0) PB0
(PCINT1/SCLK) PB1
(PDI/PCINT2/MOSI) PB2
(PDO/PCINT3/MISO) PB3
(PCINT4/OC.2A) PB4
(PCINT5/OC.1A) PB5
(PCINT6/OC.1B) PB6
!
"
#
#
"'
$
PA2 (AD2)
AVCC
AREF
GND
GND
VCC
"&
"%
PA3 (AD3)
PA4 (AD4)
PA5 (AD5)
PA6 (AD6)
PA7 (AD7)
PE2 (ALE/HWB)
PC7 (A15/IC.3/CLKO)
PC6 (A14/OC.3A)
PC5 (A13/OC.3B)
PC4 (A12/OC.3C)
PC3 (A11/T.3)
PC2 (A10)
PC1 (A9)
PC0 (A8)
PE1 (RD)
INDEX CORNER
"$
"#
#
""
"!
$
%
&
AT90USB128
(64-lead QFN top view)
"
"
'
"
!'
!&
!%
!
!$
"
!#
#
$
!"
!!
PE0 (WR)
&
!
%
&
'
!
!
"
#
$
%
'
XTAL2
(PCINT7/OC.0A/OC.1C) PB7
(INT4/TOSC1) PE4
RESET
XTAL1
VCC
GND
(OC0B/SCL/INT0) PD0
(OC2B/SDA/INT1) PD1
(INT.5/TOSC2) PE5
(RXD1/INT2) PD2
(TXD1/INT3) PD3
(ICP1) PD4
(XCK1) PD5
(T1) PD6
Note:
The large center pad underneath the MLF packages is made of metal and internally connected to
GND. It should be soldered or glued to the board to ensure good mechanical stability. If the center
pad is left unconnected, the package might loosen from the board.
1.1
Disclaimer
Typical values contained in this datasheet are based on simulations and characterization of
other AVR microcontrollers manufactured on the same process technology. Min and Max values
will be available after the device is characterized.
2. Overview
The AT90USB64/128 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced
RISC architecture. By executing powerful instructions in a single clock cycle, the
4
AT90USB64/128
7593GS–AVR–03/08
(T0) PD7
!
AT90USB64/128
AT90USB64/128 achieves throughputs approaching 1 MIPS per MHz allowing the system
designer to optimize power consumption versus processing speed.
2.1

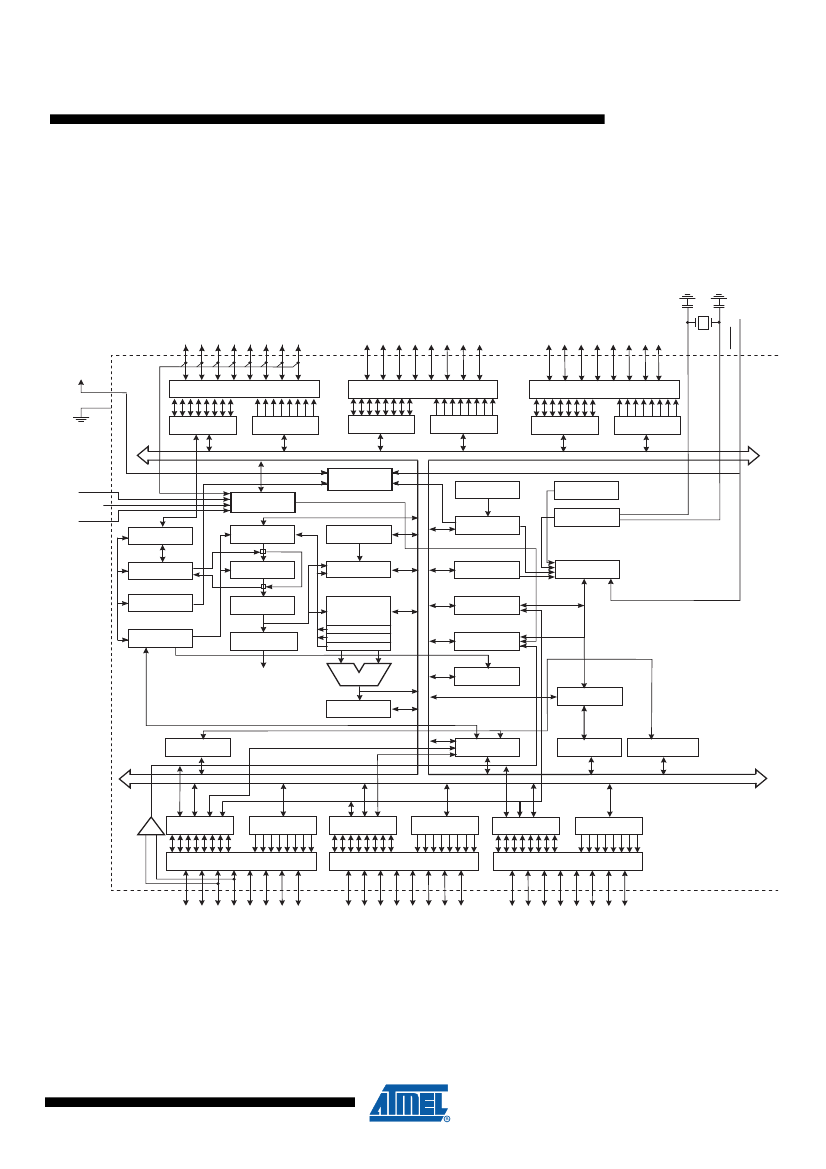

Block Diagram
Block Diagram
Figure 2-1.
PF7 - PF0
PA7 - PA0
PC7 - PC0
VCC
GND
PORTF DRIVERS
PORTA DRIVERS
PORTC DRIVERS
DATA REGISTER
PORTF
DATA DIR.
REG. PORTF
DATA REGISTER
PORTA
DATA DIR.
REG. PORTA
DATA REGISTER
PORTC
DATA DIR.
REG. PORTC
8-BIT DATA BUS
AVCC
POR - BOD
RESET
ADC
INTERNAL
OSCILLATOR
CALIB. OSC
AGND
AREF
JTAG TAP
PROGRAM
COUNTER
STACK
POINTER
WATCHDOG
TIMER
OSCILLATOR
ON-CHIP DEBUG
PROGRAM
FLASH
SRAM
MCU CONTROL
REGISTER
TIMING AND
CONTROL
BOUNDARY-
SCAN
INSTRUCTION
REGISTER
GENERAL
PURPOSE
REGISTERS
X
Y
Z
TIMER/
COUNTERS
PROGRAMMING
LOGIC
INSTRUCTION
DECODER
INTERRUPT
UNIT
CONTROL
LINES
ALU
EEPROM
PLL
STATUS
REGISTER
USART0
SPI
USB
TWO-WIRE SERIAL
INTERFACE
ANALOG
COMPARATOR
DATA REGISTER
PORTE
DATA DIR.
REG. PORTE
DATA REGISTER
PORTB
DATA DIR.
REG. PORTB
DATA REGISTER
PORTD
DATA DIR.
REG. PORTD
+
-
PORTE DRIVERS
PORTB DRIVERS
PORTD DRIVERS
PE7 - PE0
PB7 - PB0
PD7 - PD0
The AVR core combines a rich instruction set with 32 general purpose working registers. All the
32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent
registers to be accessed in one single instruction executed in one clock cycle. The resulting
architecture is more code efficient while achieving throughputs up to ten times faster than con-
ventional CISC microcontrollers.
RESET
XTAL1
XTAL2
5
7593GS–AVR–03/08
