DA-19603-403 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DA-19603-403

Preview

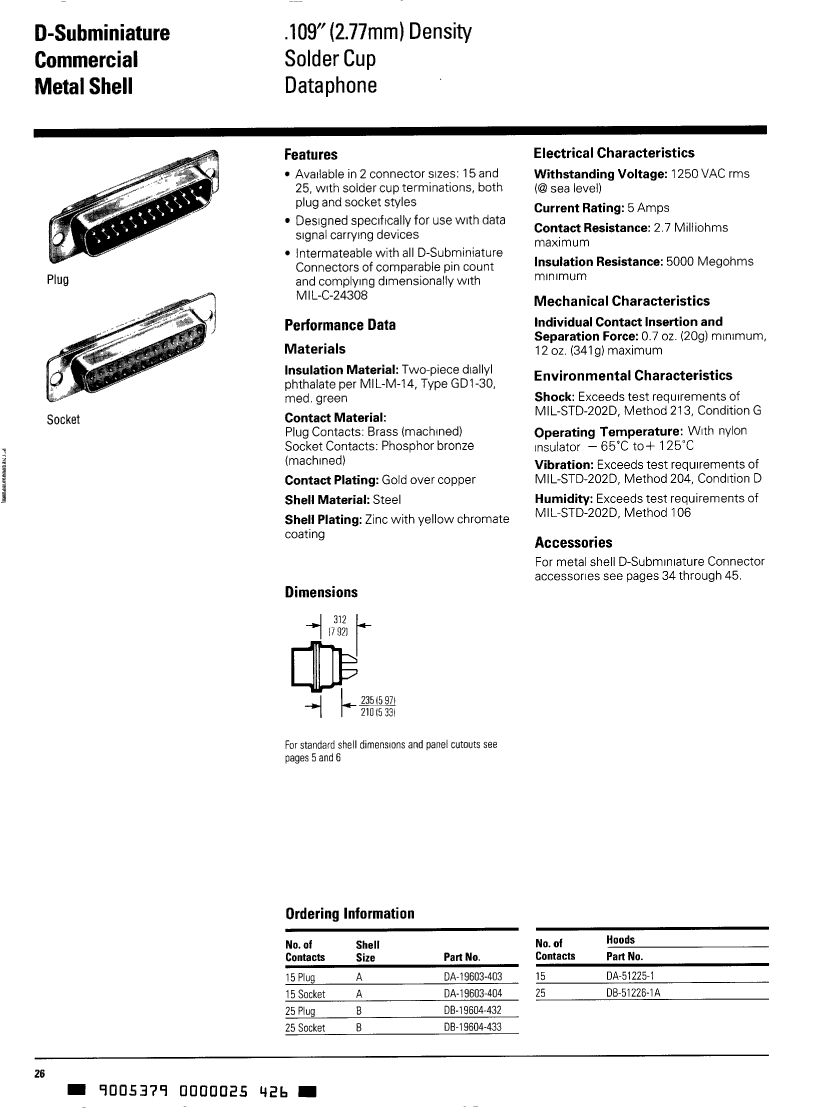

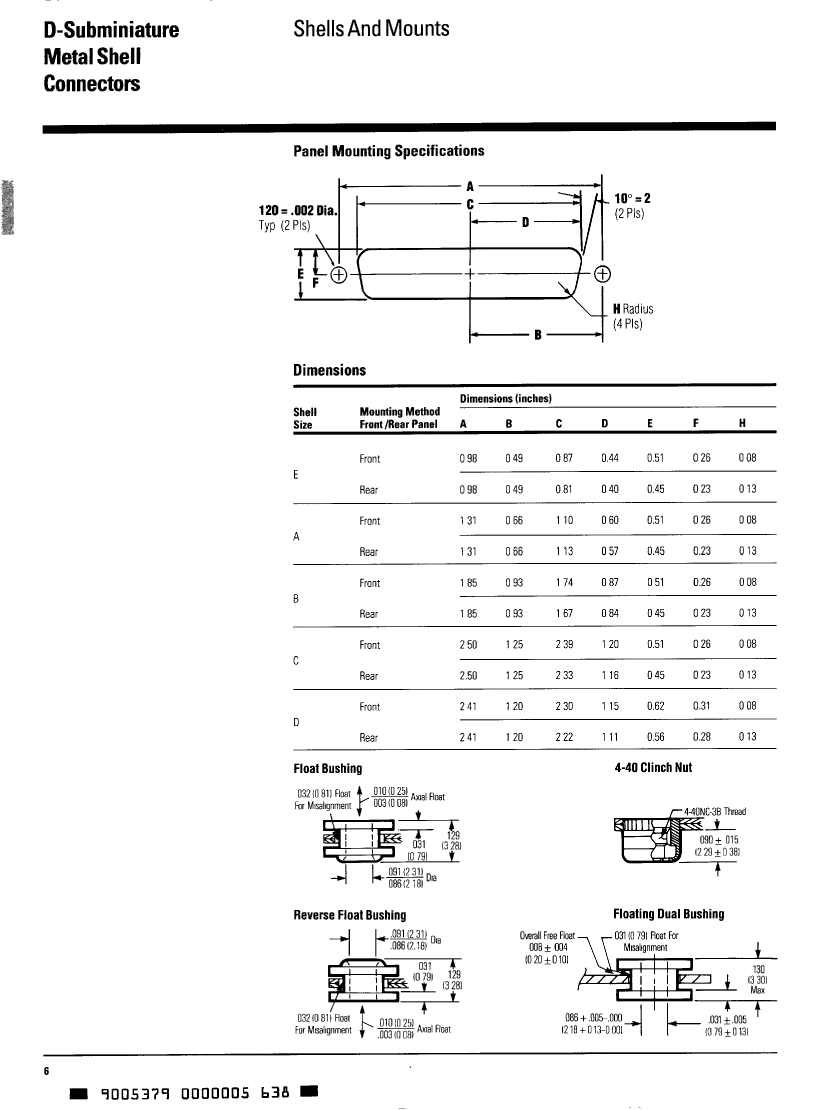

DA-19603-403: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size188KB，3 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

DA-19603-403 Overview

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle

DA-19603-403 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
body width	0.494 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON CU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1250VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	DIALLYL PHTHALATE
MIL compliance	YES
Manufacturer's serial number	D*-196
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Plating thickness	FLASH inch
Rated current (signal)	5 A
reliability	MIL-C-24308
Shell surface	ZINC/YELLOW CHROMATE
Shell material	STEEL
Terminal length	0.077 inch
Termination type	SOLDER LUG
Total number of contacts	15
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

DA-19603-403 Related Products

	DA-19603-403	DA-19603-404	DA-19604-432
Description	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Plug	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Receptacle,
Reach Compliance Code	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch
body length	1.541 inch	1.541 inch	2.088 inch
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON CU	AU ON CU	AU ON CU
Contact completed and terminated	GOLD	GOLD	GOLD
Contact point gender	MALE	FEMALE	MALE
Contact material	BRASS	PHOSPHOR BRONZE	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	2.7 mΩ	2.7 mΩ	2.7 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1250VAC V	1250VAC V	1250VAC V
maximum insertion force	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN
insulator material	DIALLYL PHTHALATE	DIALLYL PHTHALATE	DIALLYL PHTHALATE
MIL compliance	YES	YES	YES
Manufacturer's serial number	D*-196	D*-196	D*-196
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation type	PANEL	PANEL	PANEL
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	5 A	5 A	5 A
reliability	MIL-C-24308	MIL-C-24308	MIL-C-24308
Shell surface	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE
Shell material	STEEL	STEEL	STEEL
Terminal length	0.077 inch	0.077 inch	0.077 inch
Termination type	SOLDER LUG	SOLDER LUG	SOLDER LUG
Total number of contacts	15	15	25
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N
Base Number Matches	1	1	-
