Features
•
High-performance Fully CMOS, Electrically-erasable Complex Programmable
Logic Device
– 32 Macrocells
– 5 Product Terms per Macrocell, Expandable up to 40 per Macrocell
– 44 Pins
– 5.0 ns Pin-to-pin Propagation Delay
– Registered Operation up to 333 MHz
– Enhanced Routing Resources
– Optimized for 1.8V Operation
– 2 I/O Banks to Facilitate Multi-voltage I/O Operation: 1.8V, 2.5V, 3.3V
In-System Programming (ISP) Supported
– 1.8V ISP Using IEEE 1532 (JTAG) Interface
– Boundary-scan Testing to IEEE JTAG Std. 1149.1 Supported
Flexible Logic Macrocell
– D/Latch Configurable Flip-flops
– Global and Individual Register Control Signals
– Global and Individual Output Enable
– Programmable Output Slew Rate with Low Output Drive
– Programmable Open Collector Output Option
– Maximum Logic Utilization by Burying a Register with a COM Output and Vice
Versa
Fully Green (RoHS Compliant)
10 µA Static Current
Power Saving Option During Operation Using PD1, PD2 Pins
Programmable Pin-keeper Option on Inputs and I/Os
Programmable Schmitt Trigger Option on Input and I/O Pins
Programmable Input and I/O Pull-up Option (per Pin)
Unused Pins Can Be Configured as Ground (Optional)
Available in Commercial and Industrial Temperature Ranges
Available in 44-lead TQFP
Advanced Digital CMOS Technology
– 100% Tested
– Completely Reprogrammable
– 10,000 Program/Erase Cycles
– 10-year Data Retention
– 2000V ESD Protection
– 200 mA Latch-up Immunity
Security Fuse Feature
Hot-Socketing Supported
•
High-
performance
CPLD
ATF1502BE
•
•
•
•
•
•
•
•
•
•
•
•
•
Rev. 3492A–PLD–12/05
Enhanced Features
•
•
•
•
•
•
•
•
•
Improved Connectivity (Additional Feedback Routing, Alternate Input Routing)
Output Enable Product Terms
Outputs Can Be Configured for High or Low Drive
Combinatorial Output with Registered Feedback and Vice Versa within each Macrocell
Three Global Clock Pins
Fast Registered Input from Product Term
Pull-up Option on TMS and TDI JTAG Pins
OTF (On-the-Fly) Mode
DRA (Direct Reconfiguration Access)
1. Description
The ATF1502BE is a high-performance, high-density complex programmable logic device
(CPLD) that utilizes Atmel’s proven electrically-erasable technology. With 32 logic macrocells
and up to 36 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs.
The ATF1502BE’s enhanced routing switch matrices increase usable gate count and the odds
of successful pin-locked design modifications.
The ATF1502BE has up to 32 bi-directional I/O pins and four dedicated input pins, depending on
the type of device package selected. Each dedicated pin can also serve as a global control sig-
nal, register clock, register reset or output enable. Each of these control signals can be selected
for use individually within each macrocell.
Figure 1-1
shows the pin assignments for 44-lead
TQFP Package.
Figure 1-1.
44-lead TQFP Top View
I/O
I/O
I/O
VCCINT
GCLK2/OE2/I
GCLR/I
I/OE1
GCLK1/I
GND
GCLK3/I/O
I/O
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
12
13
14
15
16
17
18
19
20
21
22
I/O/TDI
I/O
I/O
GND
PD1/I/O
I/O
TMS/I/O
I/O
VCCIOA
I/O
I/O
1
2
3
4
5
6
7
8
9
10
11
I/O
I/O/TDO
I/O
I/O
VCCIOB
I/O
I/O
I/O/TCK
I/O
GND
I/O
2
ATF1502BE
3492A–PLD–12/05
I/O
I/O
I/O
I/O
GND
VCCINT
I/O
PD2/I/O
I/O
I/O
I/O
ATF1502BE

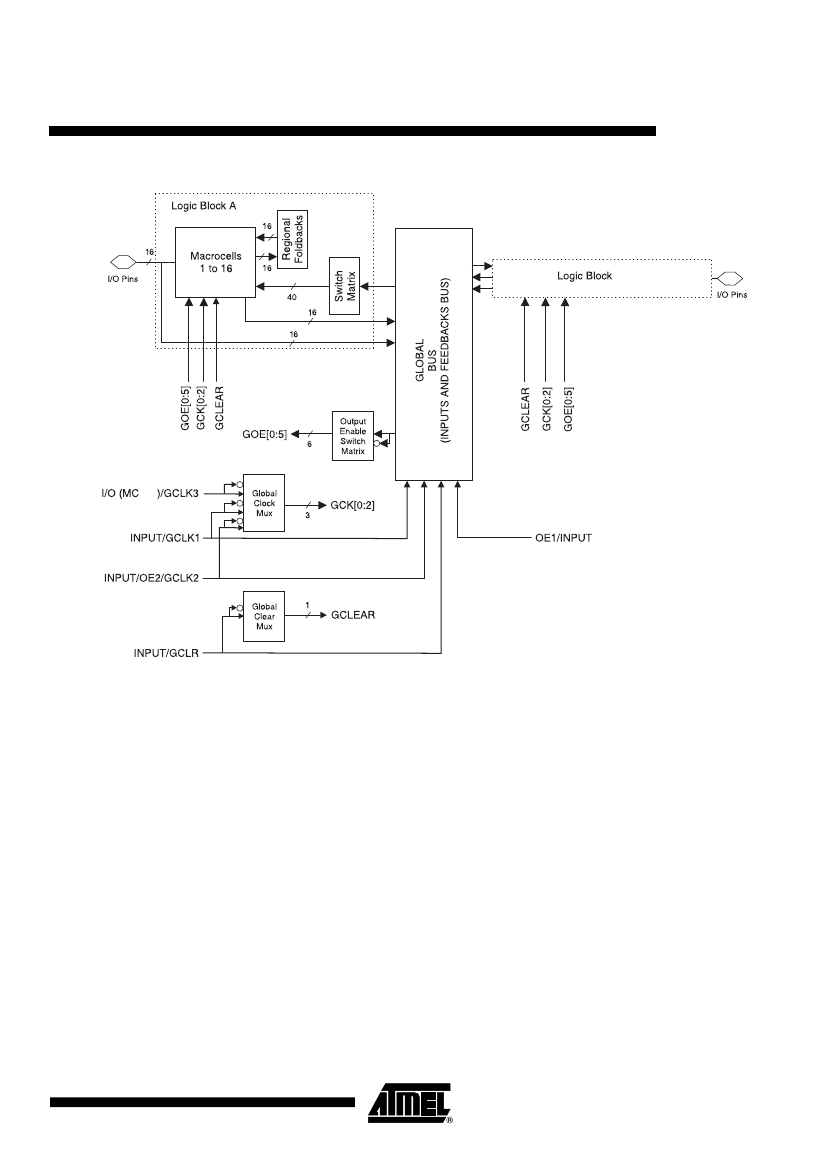

Figure 1-2.
Block Diagram
B
32
Each of the 32 macrocells generates a buried feedback signal that goes to the global bus (see
Figure 1-2).
Each input and I/O pin also feeds into the global bus. The switch matrix in each logic
block then selects 40 individual signals from the global bus. Each macrocell also generates a
foldback logic term that goes to a regional bus. Cascade logic between macrocells in the
ATF1502BE allows fast, efficient generation of complex logic functions. The ATF1502BE con-
tains four such logic chains, each capable of creating sum term logic with a fan-in of up to 40
product terms.
The ATF1502BE macrocell, shown in
Figure 1-3,
is flexible enough to support highly complex
logic functions operating at high speed. The macrocell consists of five sections: product terms
and product term select multiplexer, OR/XOR/CASCADE logic, a flip-flop, output select and
enable, and logic array inputs.
A security fuse, when programmed, protects the contents of the ATF1502BE. Two bytes
(16 bits) of User Signature are accessible to the user for purposes such as storing project name,
part number, revision or date. The User Signature is accessible regardless of the state of the
security fuse.
The ATF1502BE device is an In-System Programming (ISP) device. It uses the industry-stan-
dard 4-pin JTAG interface (IEEE Std. 1149.1), and is fully compliant with JTAG’s Boundary-scan
Description Language (BSDL). ISP allows the device to be programmed without removing it from
the printed circuit board. In addition to simplifying the manufacturing flow, ISP also allows design
modifications to be made in the field via software.
3
3492A–PLD–12/05

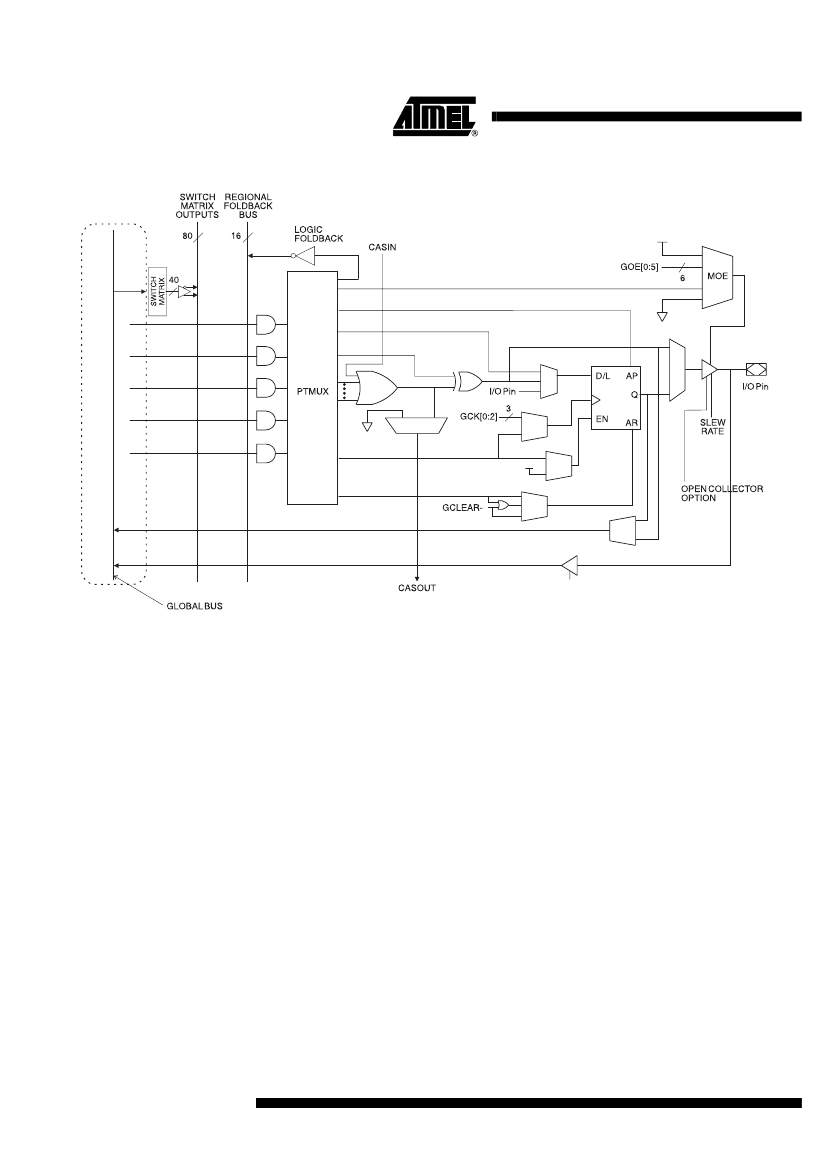

Figure 1-3.
ATF1502BE Macrocell
BURIED FEEDBACK
SCHMITT
TRIGGER
1.1
Product Terms and Select Mux
Each ATF1502BE macrocell has five product terms. Each product term receives as its inputs all
signals from both the global bus and regional bus.
The product term select multiplexer (PTMUX) allocates the five product terms as needed to the
macrocell logic gates and control signals. The PTMUX programming is determined by the design
compiler, which selects the optimum macrocell configuration.
1.2
OR/XOR/CASCADE Logic
The ATF1502BE’s logic structure is designed to efficiently support all types of logic. Within a sin-
gle macrocell, all the product terms can be routed to the OR gate, creating a 5-input AND/OR
sum term. With the addition of the CASIN from neighboring macrocells, this can be expanded to
as many as 40 product terms with minimal additional delay.
The macrocell’s XOR gate allows efficient implementation of compare and arithmetic functions.
One input to the XOR comes from the OR sum term. The other XOR input can be a product term
or a fixed high or low level. For combinatorial outputs, the fixed level input allows polarity selec-
tion. For registered functions, the fixed levels allow DeMorgan minimization of product terms.
The XOR gate is also used to emulate T- and JK-type flip-flops.
4
ATF1502BE
3492A–PLD–12/05
ATF1502BE
1.3
Flip-flop
The ATF1502BE’s flip-flop has very flexible data and control functions. The data input can come
from either the XOR gate, from a separate product term or directly from the I/O pin. Selecting the
separate product term allows creation of a buried registered feedback within a combinatorial out-
put macrocell. (This feature is automatically implemented by the fitter software). In addition to D,
T, JK and SR operation, the flip-flop can also be configured as a flow-through latch. In this
mode, data passes through when the clock is high and is latched when the clock is low.
The clock itself can be any one of the Global CLK signals (GCK[0 : 2]) or an individual product
term. The flip-flop changes state on the clock’s rising edge. When the GCK signal is used as the
clock, one of the macrocell product terms can be selected as a clock enable. When the clock
enable function is active and the enable signal (product term) is low, all clock edges are ignored.
The flip-flop’s asynchronous reset signal (AR) can be either the Global Clear (GCLEAR), a prod-
uct term, or always off. AR can also be a logic OR of GCLEAR with a product term. The
asynchronous preset (AP) can be a product term or always off.
1.4
Extra Feedback
The ATF1502BE macrocell output can be selected as registered or combinatorial. The extra bur-
ied feedback signal can be either combinatorial or a registered signal regardless of whether the
output is combinatorial or registered. (This enhancement function is automatically implemented
by the fitter software.) Feedback of a buried combinatorial output allows the creation of a second
latch within a macrocell.
1.5
I/O Control
The output enable multiplexer (MOE) controls the output enable signal. Each I/O can be individ-
ually configured as an input, output or bi-directional pin. The output enable for each macrocell
can be selected from the true or complement of the two output enable pins, a subset of the I/O
pins, or a subset of the I/O macrocells. This selection is automatically done by the fitter software
when the I/O is configured as an input or bi-directional pin.
1.6
Global Bus/Switch Matrix
The global bus contains all input and I/O pin signals as well as the buried feedback signal from
all 32 macrocells. The switch matrix in each logic block receives as its inputs all signals from the
global bus. Under software control, up to 40 of these signals can be selected as inputs to the
logic block.
1.7
Foldback Bus
Each macrocell also generates a foldback product term. This signal goes to the regional bus and
is available to all 16 macrocells within the logic block. The foldback is an inverse polarity of one
of the macrocell’s product terms. The 16 foldback terms in each logic block allow generation of
high fan-in sum terms or other complex logic functions with little additional delay.
5
3492A–PLD–12/05
PCB Design
