3.4mm RIGHT ANGLE LED INDICATOR
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Part Number: L-1387QMP/1CGKQBDW
Green
Blue
Features
Surface mount type.
Black case enhances contrast ratio.
Wide viewing angle.
High reliability life measured in years.
Package:1000pcs / reel.
Moisture sensitivity level : level 3.
Housing material: PPA.
Housing UL rating : 94V-0.
High temperature resistant housing.
High glass transition temperature epoxy.
RoHS compliant.
Description
The Green source color devices are made with AlGaInP on
GaAs substrate Light Emitting Diode.
The Blue source color devices are made with InGaN Light
Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic
glove when handling the LEDs.
All devices, equipment and machinery must be electrically
grounded.

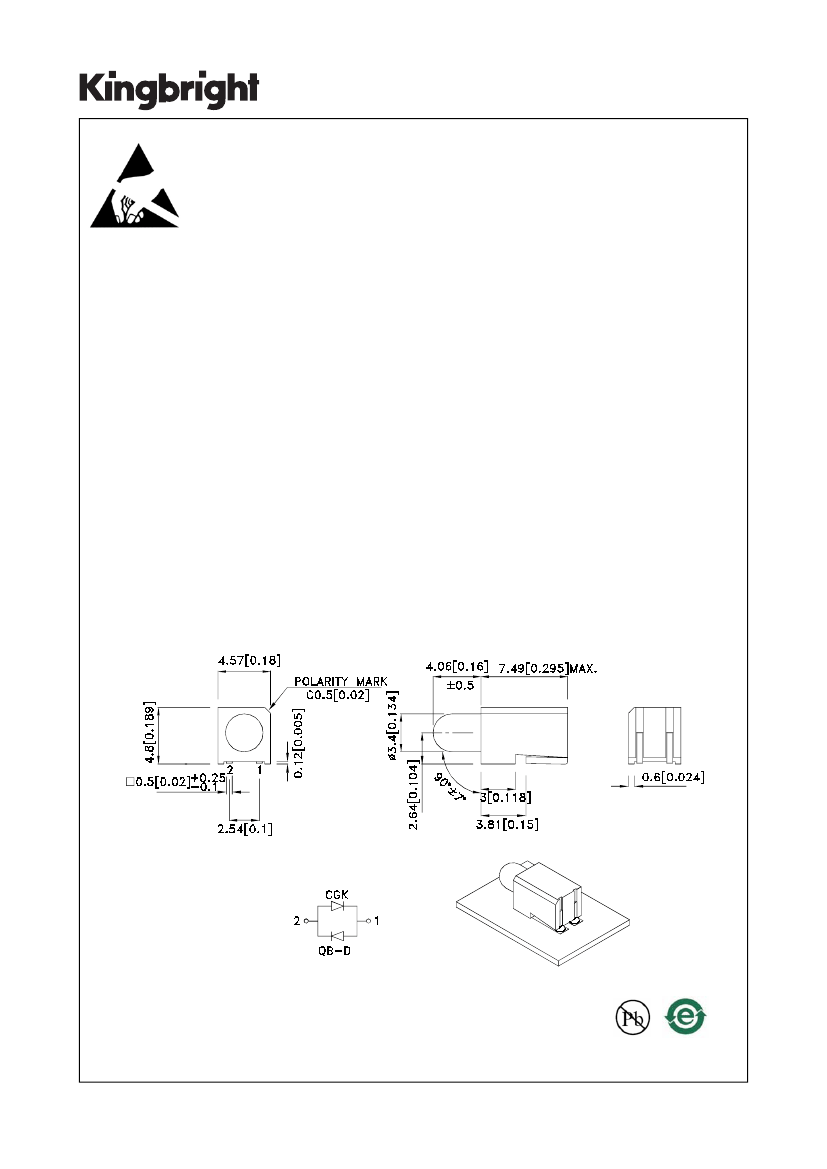

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25(0.01") unless otherwise noted.
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAK0272
APPROVED: WYNEC
REV NO: V.5B
CHECKED: Allen Liu
DATE: APR/06/2013
DRAWN: Y.Liu
PAGE: 1 OF 7
ERP: 1102012112
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd) [2]
@ 20mA
Min.
L-1387QMP/1CGKQBDW
Green (AlGaInP)
Blue (InGaN)
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.
2. Luminous intensity/ luminous Flux: +/-15%.
3. Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Viewing
Angle [1]
2θ1/2
60
°
Typ.
120
130
White Diffused
50
60
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Device
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Green
Blue
Typ.
574
460
570
465
20
25
15
100
2.1
3.3
2.5
4
Max.
Units
nm
nm
nm
pF
V
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3.Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Operating Temperature
Storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Green
75
30
150
Blue
120
30
150
-40°C To +85°C
-40°C To +85°C
Units
mW
mA
mA
SPEC NO: DSAK0272
APPROVED: WYNEC
REV NO: V.5B
CHECKED: Allen Liu
DATE: APR/06/2013
DRAWN: Y.Liu
PAGE: 2 OF 7
ERP: 1102012112
