Ordering number : EN4973A
CMOS LSI
LC72130, 72130M
AM/FM PLL Frequency Synthesizer
Overview
The LC72130 and LC72130M are PLL frequency
synthesizers for use in tuners in radio cassette recorders
and other products.

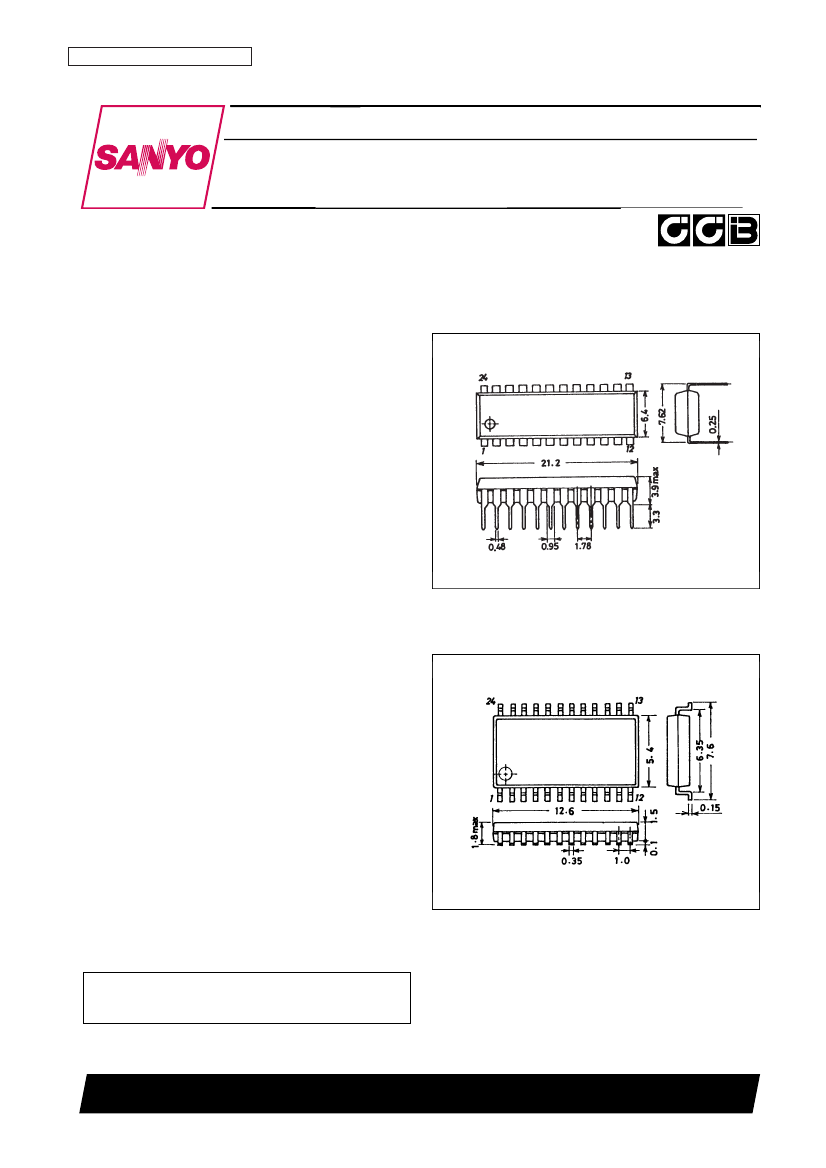

Package Dimensions
unit: mm
3067-DIP24S
[LC72130]
Applications
PLL frequency synthesizer
Functions
• High-speed programmable dividers
— FMIN: 10 to 160 MHz ..........pulse swallower
(built-in divide-by-two prescaler)
— AMIN: 2 to 40 MHz ..............pulse swallower
0.5 to 10 MHz ...........direct division
• IF counter
— IFIN: 0.4 to 12 MHz ...........AM/FM IF counter
• Reference frequencies
— Twelve selectable frequencies
(4.5 or 7.2 MHz crystal)
1, 3, 5, 9, 10, 3.125, 6.25, 12.5, 15, 25, 50 and 100 kHz
• Phase comparator
— Dead zone control
— Unlock detection
— Deadlock clear circuit
• Built-in MOS transistor for implementing an active low-
pass filter (two systems)
• Inputs and outputs
— Dedicated output ports: five pins
— Input or output ports: two pins
— Clock time base output available
• Serial data I/O
— Supports CCB format communication with the
system controller.
• Operating ranges
— Supply voltage........................4.5 to 5.5 V
— Operating temperature............–40 to +85°C
• Packages
— DIP24S, MFP24S
• CCB is a trademark of SANYO ELECTRIC CO., LTD.
• CCB is SANYO’s original bus format and all the bus
addresses are controlled by SANYO.
SANYO: DIP24S
unit: mm
3112-MFP24S
[LC72130M]
SANYO: MFP24S
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
N3096HA (OT)/51795TH (OT) No. 4973-1/22

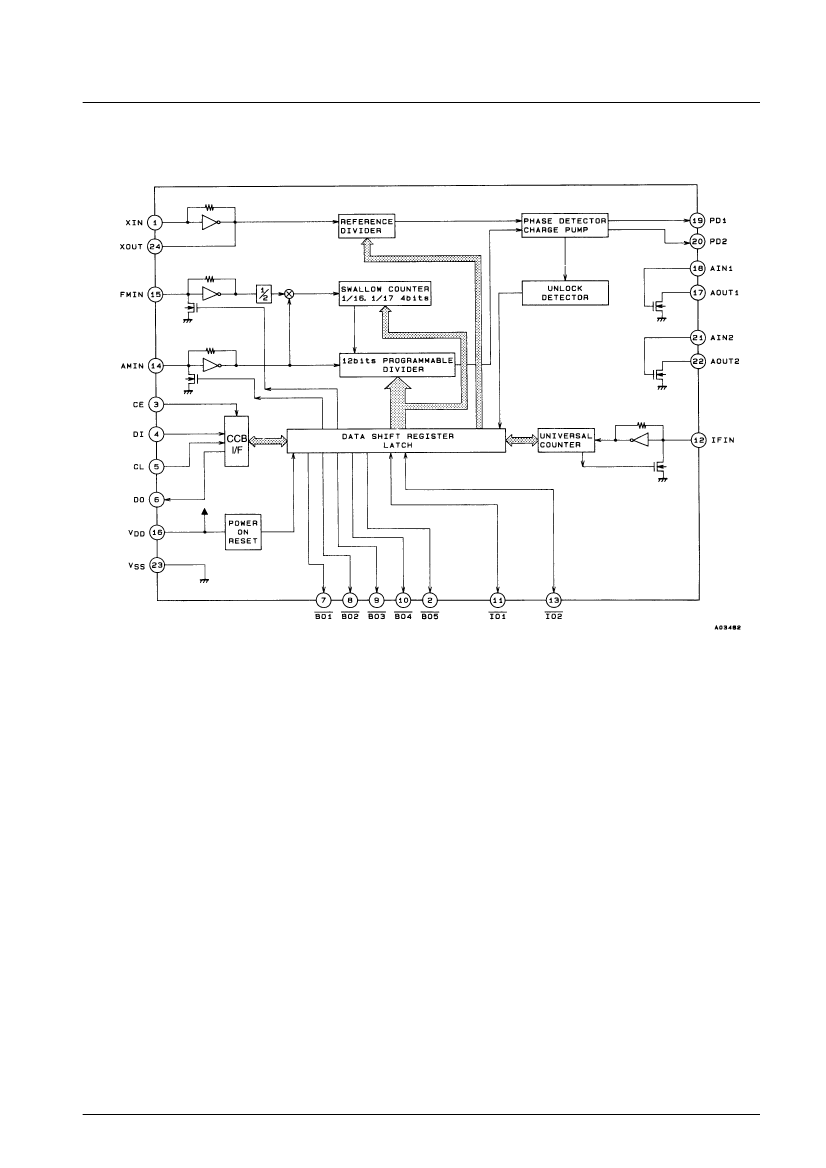

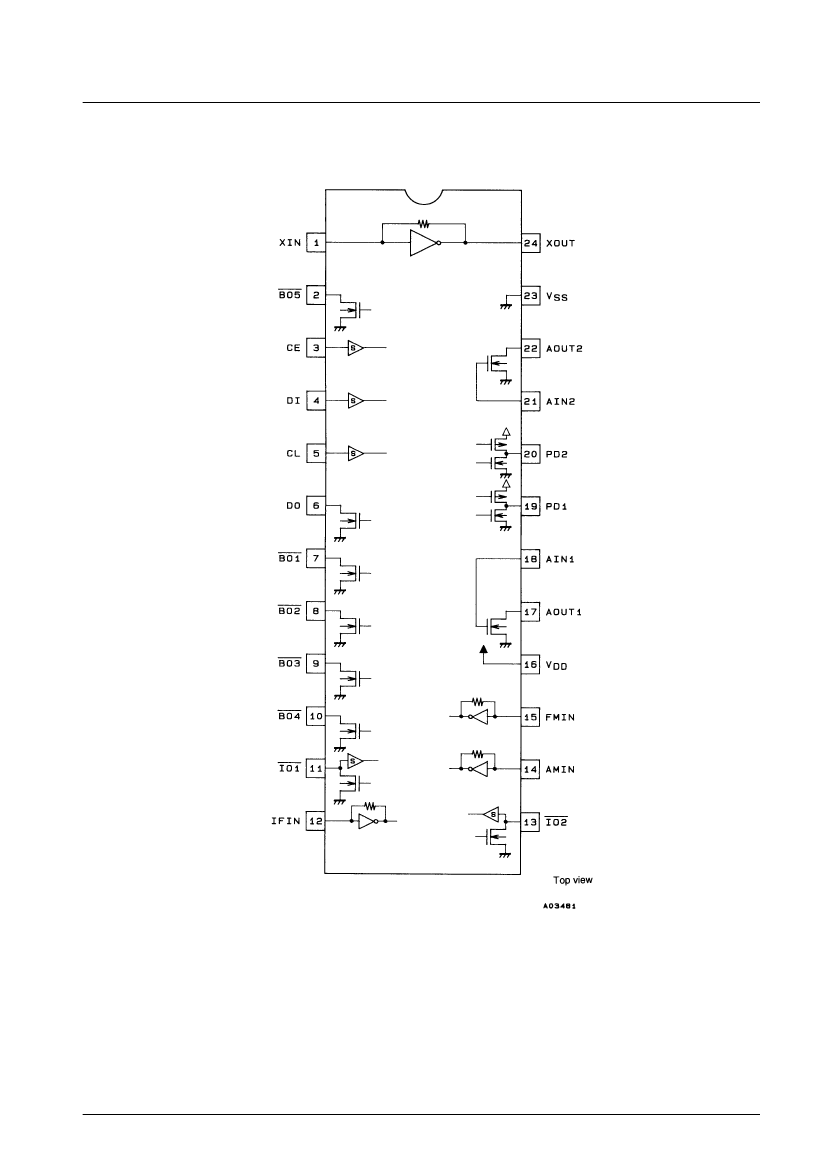

LC72130, 72130M
Specifications
Absolute Maximum Ratings
at Ta = 25°C, V
SS
= 0 V
Parameter
Maximum supply voltage
Symbol
V
DD
max
V
IN
1 max
Maximum input voltage
V
IN
2 max
V
IN
3 max
V
O
1 max
Maximum output voltage
V
O
2 max
V
O
3 max
I
O
1 max
Maximum output current
I
O
2 max
I
O
3 max
Allowable power dissipation
Operating temperature
Storage temperature
Pd max
Topr
Tstg
V
DD
CE, CL, DI, AIN1, AIN2
XIN, FMIN, AMIN, IFIN
IO1, IO2
DO
XOUT, PD1, PD2
BO1 to BO5, IO1, IO2, AOUT1, AOUT2
BO1
DO, AOUT1, AOUT2
BO2 to BO5, IO1, IO2
Ta
≤
85°C
Pins
Ratings
–0.3 to +7.0
–0.3 to +7.0
–0.3 to V
DD
+ 0.3
–0.3 to +15
–0.3 to +7.0
–0.3 to V
DD
+ 0.3
–0.3 to +15
0 to 3.0
0 to 6.0
0 to 10.0
DIP24S: 350
MFP24S: 200
–40 to +85
–55 to +125
Unit
V
V
V
V
V
V
V
mA
mA
mA
mW
°C
°C
Parameter
Supply voltage
Input high level voltage
Input low level voltage
Output voltage
Symbol
V
DD
V
IH
1
V
IH
2
V
IL
V
O
1
V
O
2
f
IN
1
f
IN
2
V
DD
Pins
Conditions
min
4.5
0.7 V
DD
0.7 V
DD
0
0
0
typ
max
5.5
6.5
13
0.3 V
DD
6.5
13
8
160
40
10
12
1500
1500
1500
1500
1500
1500
1500
8.0
Unit
V
V
V
V
V
V
MHz
MHz
MHz
MHz
MHz
mVrms
mVrms
mVrms
mVrms
mVrms
mVrms
mVrms
MHz
CE, CL, DI
IO1, IO2
CE, CL, DI, IO1, IO2
DO
BO1 to BO5, IO1, IO2,
AOUT1, AOUT2
XIN
FMIN
AMIN
AMIN
IFIN
XIN
FMIN
FMIN
AMIN
AMIN
IFIN
IFIN
XIN, XOUT
V
IN
1
V
IN
2
V
IN
3, SNS = 1
V
IN
4, SNS = 0
V
IN
5
f
IN
1
f = 10 to 130 MHz
f = 130 to 160 MHz
f
IN
3 , SNS = 1
f
IN
4 , SNS = 0
f
IN
5, IFS = 1
f
IN
6, IFS = 0
*
1
10
2
0.5
0.4
400
40
70
40
40
40
70
4.0
Input frequency
f
IN
3
f
IN
4
f
IN
5
V
IN
1
V
IN
2-1
V
IN
2-2
Input amplitude
V
IN
3
V
IN
4
V
IN
5
V
IN
6
Oscillation-guaranteed
crystal resonator
Xtal
Allowable Operating Ranges
at Ta = –40 to +85°C, V
SS
= 0 V
Note:
*
Recommended crystal oscillator CI values:
CI
≤
120Ω (For a 4.5 MHz crystal)
CI
≤
70Ω (For a 7.2 MHz crystal)
However, since the oscillator circuit characteristics depend on the printed circuit board and component values actually used, we recommend
requesting a circuit evaluation from the manufacturer of the crystal used.
<Sample Ocsillator Circuit>
Crystal oscillator: HC-49/U (manufactured by Kinseki, Ltd.), CL = 12 pF
C1 = C2 = 15 pF
The circuit constants for the crystal oscillator circuit depend on the crystal used, the printed circuit board pattern, and other items. Therefore we
recommend consulting with the manufacturer of the crystal for evaluation and reliability.
No. 4973-4/22
LC72130, 72130M
Electrical Characteristics
at Ta = –40 to +85°C, V
SS
= 0 V
Parameter
Symbol
Rf1
Built-in feedback resistance
Rf2
Rf3
Rf4
Built-in pull-down resistor
Hysteresis
Output high level voltage
Rpd1
Rpd2
V
HIS
V
OH
1
V
OL
1
V
OL
2
V
OL
3
XIN
FMIN
AMIN
IFIN
FMIN
AMIN
CE, CL, DI, IO1, IO2
PD1, PD2
PD1, PD2
BO1
IO = –1 mA
IO = 1 mA
IO = 0.5 mA
IO = 1 mA
IO = 1 mA
Output low level voltage
DO
IO = 5 mA
IO = 1 mA
V
OL
4
V
OL
5
I
IH
1
I
IH
2
Input high level current
I
IH
3
I
IH
4
I
IH
5
I
IH
6
I
IL
1
I
IL
2
Input low level current
I
IL
3
I
IL
4
I
IL
5
I
IL
6
Output off leakage current
High level three-state
off leakage current
Low level three-state
off leakage current
Input capacitance
I
OFF
1
I
OFF
2
I
OFFH
I
OFFL
C
IN
I
DD
1
BO2 to BO5, IO1, IO2
IO = 5 mA
IO = 8 mA
AOUT1, AOUT2
CE, CL, DI
IO1, IO2
XIN
FMIN, AMIN
IFIN
AIN1, AIN2
CE, CL, DI
IO1, IO2
XIN
FMIN, AMIN
IFIN
AIN1, AIN2
BO1 to BO5, AOUT1,
AOUT2, IO1, IO2
DO
PD1, PD2,
PD1, PD2
FMIN
V
DD
Xtal = 7.2 MHz,
f
IN
2 = 130 MHz,
V
IN
2-1= 40 mVrms
PLL block stopped
(PLL INHIBIT),
Xtal oscillator operating
(Xtal = 7.2 MHz)
PLL block stopped
Xtal oscillator stopped
IO = 1 mA, AIN = 1.3 V
V
I
= 6.5 V
V
I
= 13 V
V
I
= V
DD
V
I
= V
DD
V
I
= V
DD
V
I
= 6.5 V
V
I
= 0 V
V
I
= 0 V
V
I
= 0 V
V
I
= 0 V
V
I
= 0 V
V
I
= 0 V
V
O
= 13 V
V
O
= 6.5 V
V
O
= V
DD
V
O
= 0 V
0.01
0.01
6
5
10
2.0
4.0
8.0
2.0
4.0
8.0
V
DD
– 1.0
1.0
0.5
1.0
0.2
1.0
0.2
1.0
1.6
0.5
5.0
5.0
11
22
44
200
5.0
5.0
11
22
44
200
5.0
5.0
200
200
Pins
Conditions
min
typ
1.0
500
500
250
200
200
0.1 V
DD
max
Unit
MΩ
kΩ
kΩ
kΩ
kΩ
kΩ
V
V
V
V
V
V
V
V
V
V
V
V
µA
µA
µA
µA
nA
µA
µA
µA
µA
µA
nA
µA
µA
nA
nA
pF
mA
Current drain
I
DD
2
V
DD
0.5
mA
I
DD
3
V
DD
10
µA
No. 4973-5/22
