TAK CHEONG
®
SEM IC O N DU C TO R
1.3 Watt DO-41 Hermetically
Sealed Glass Zener Voltage
Regulators
AXIAL LEAD
DO41
Absolute Maximum Ratings
Parameter
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
T
A
= 25°C unless otherwise noted
Value
1.3
-65 to +200
+200
Units
W
°C
°C
DEVICE MARKING DIAGRAM
L
85C
xxx
L
: Logo
Device Code : TCBZX85C3V3
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Zener Voltage Range 3.3 to 56 Volts
Through-Hole Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All External Surfaces Are Corrosion Resistant And Leads Are Readily Solderable
Solder Hot Dip Tin (Sn) Terminal Finish
Cathode Indicated By Polarity Band
ELECTRICAL SYMBOL
Cathode
Anode
Ordering Information
Device
TCBZX85C3V3 through TCBZX85C56
TCBZX85C3V3HF through TCBZX85C56HF
Description
RoHS Compliant
RoHS Compliant
Halogen Free
Electrical Characteristic
Both are compliant with below electrical
characteristics
Electrical Characteristics
Device Type
TCBZX85C 3V3
TCBZX85C 3V6
TCBZX85C 3V9
TCBZX85C 4V3
TCBZX85C 4V7
TCBZX85C 5V1
TCBZX85C 5V6
TCBZX85C 6V2
TCBZX85C 6V8
TCBZX85C 7V5
TCBZX85C 8V2
V
Z
@ I
ZT
(Volts)
V
Z
Min
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
V
Z
Max
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
80
60
60
50
45
45
45
35
35
35
25
Z
ZT
@ I
ZT
(Ω)
Max
20
20
15
13
13
10
7
4
3.5
3
5
I
ZK
(mA)
1
1
1
1
1
1
1
1
1
0.5
0.5
Z
ZK
@ I
ZK
(Ω)
Max
400
500
500
500
500
500
400
300
300
200
200
I
R
@ V
R
(µA)
Max
40
20
20
3
3
1
1
1
1
1
1
V
R
(Volts)
1
1
1
1
1
1.5
2
3
4
4.5
6.2
Number: DB-030
Oct. 2011 / F
Page 1
TCBZX85C3V3 through TCBZX85C56
TAK CHEONG
Electrical Characteristics
Device Type
TCBZX85C 9V1
TCBZX85C 10
TCBZX85C 11
TCBZX85C 12
TCBZX85C 13
TCBZX85C 15
TCBZX85C 16
TCBZX85C 18
TCBZX85C 20
TCBZX85C 22
TCBZX85C 24
TCBZX85C 27
TCBZX85C 30
TCBZX85C 33
TCBZX85C 36
TCBZX85C 39
TCBZX85C 43
TCBZX85C 47
TCBZX85C 51
TCBZX85C 56
V
Z
@ I
ZT
(Volts)
V
Z
V
Z
Min
Max
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
25.1
28
31
34
37
40
44
48
52
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
28.9
32
35
38
41
46
50
54
60
®
SEM IC O N DU C TO R
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
25
25
20
20
20
15
15
15
10
10
10
8
8
8
8
6
6
4
4
4
Z
ZT
@ I
ZT
(Ω)
Max
5
7
8
9
10
15
15
20
24
25
25
30
30
35
40
45
50
90
115
120
I
ZK
(mA)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Z
ZK
@ I
ZK
(Ω)
Max
200
200
300
350
400
500
500
500
600
600
600
750
1000
1000
1000
1000
1000
1500
1500
2000
I
R
@ V
R
(µA)
Max
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
V
R
(Volts)
6.9
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
25
27
30
33
36
39
V
F
Forward Voltage = 1.2 V Maximum @
I
F
= 200 mA for all types
Notes:
1. TOLERANCE AND TYPE NUMBER DESIGNATION (V
Z
)
The type numbers listed have zener voltage min/max limits as shown.
2. SPECIALS AVAILABLE INCLUDE
Nominal zener voltages between the voltages shown and tighter voltage, for detailed information on price, availability and delivery,
contact you nearest Tak Cheong representative.
3. ZENER VOLTAGE (V
Z
) MEASUREMENT
The zener voltage (V
Z
) is tested under pulse conditions such that T
J
is no more than 2℃ above T
A
.
4. ZENER IMPEDANCE (Z
Z
) DERIVATION
The zener impedance is derived from the 60 cycle AC voltage, which results when an AC current having an RMS value equal to 10%
of the DC zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK.
Number: DB-030
Oct. 2011 / F
Page 2
TAK CHEONG

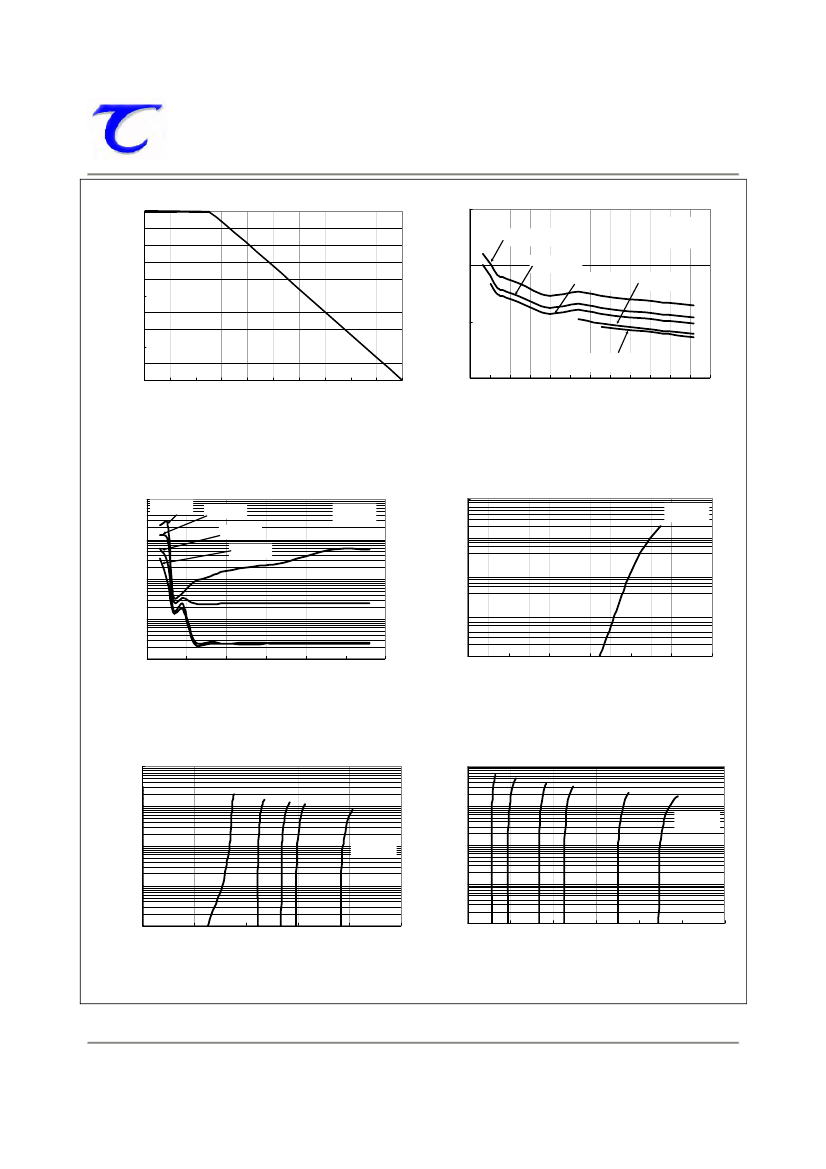

Typical Characteristics
1.0
®
SEM IC O N DU C TO R
1000
PD-Power Passipation [W]
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0
20
40
60
80
100
120
140
160
180
200
Total Capacitance [pF]
VR = 0V
VR = 2V
VR = 5V
f = 1MHz
Ta = 25
℃
100
VR = 20V
10
VR = 30V
1
0
5
10 15 20 25
30 35 40 45
50 55 60
Temperature [℃]
Figure 1. Power Dissipation vs Ambient Temperature
Valid provided leads at a distance of 0.8mm from case are kept at
ambient temperature
VZ - Reverse Voltage [V]
Figure 2. Total Capacitance
Differential Zener Impedance [Ω]
1000
Iz=1mA
1000
Iz=2mA
Iz=5mA
Iz=10mA
Ta = 25
℃
Forward Current [mA]
100
Ta = 25
℃
100
10
10
1
1
0.1
0
10
20
30
40
VZ - Reverse Voltage [V]
50
60
0.1
0
0.2
0.4
0.6
0.8
VF - Forw ard Voltage [V]
1
1.2
Figure 3. Differential Impedance vs. Zener Voltage
Figure 4. Forward Current vs. Forward Voltage
1000
100
Reverse Current [mA]
100
Reverse Current [mA]
10
Ta = 25
℃
1
10
Ta = 25
℃
1
0.1
0.1
0
3
6
9
VZ - Reverse Voltage [V]
12
15
0.01
10
20
30
40
50
VZ - Reverse Voltage [V]
60
70
Figure 5. Reverse Current vs. Reverse Voltage
Figure 6. Reverse Current vs. Reverse Voltage
Number: DB-030
Oct. 2011 / F
Page 3
TAK CHEONG
Package Outline
Package
®
SEM IC O N DU C TO R
Case Outline
D0-41
DO-41
DIM
Min
Millimeters
Max
Min
Inches
Max
A
B
C
D
0.68
0.81
0.027
0.032
3.70
4.25
0.146
0.167
25.40
---
1.000
---
2.10
2.60
0.083
0.102
Notes:
1.
DO41 polarity denoted by cathode band.
Number: DB-030
Oct. 2011 / F
Page 4
