3FF30 datasheet, PDF - EEWORLD Datasheet

3FF30: Description1 A, 300 V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size125KB，4 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

3FF30 Overview

1 A, 300 V, SILICON, SIGNAL DIODE

Parameter Name	Attribute value
Maker	SEMTECH
package instruction	HERMETIC SEALED, G63, 2 PIN
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JESD-30 code	E-XALF-W2
Maximum non-repetitive peak forward current	70 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	1 A
Package body material	UNSPECIFIED
Package shape	ELLIPTICAL
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

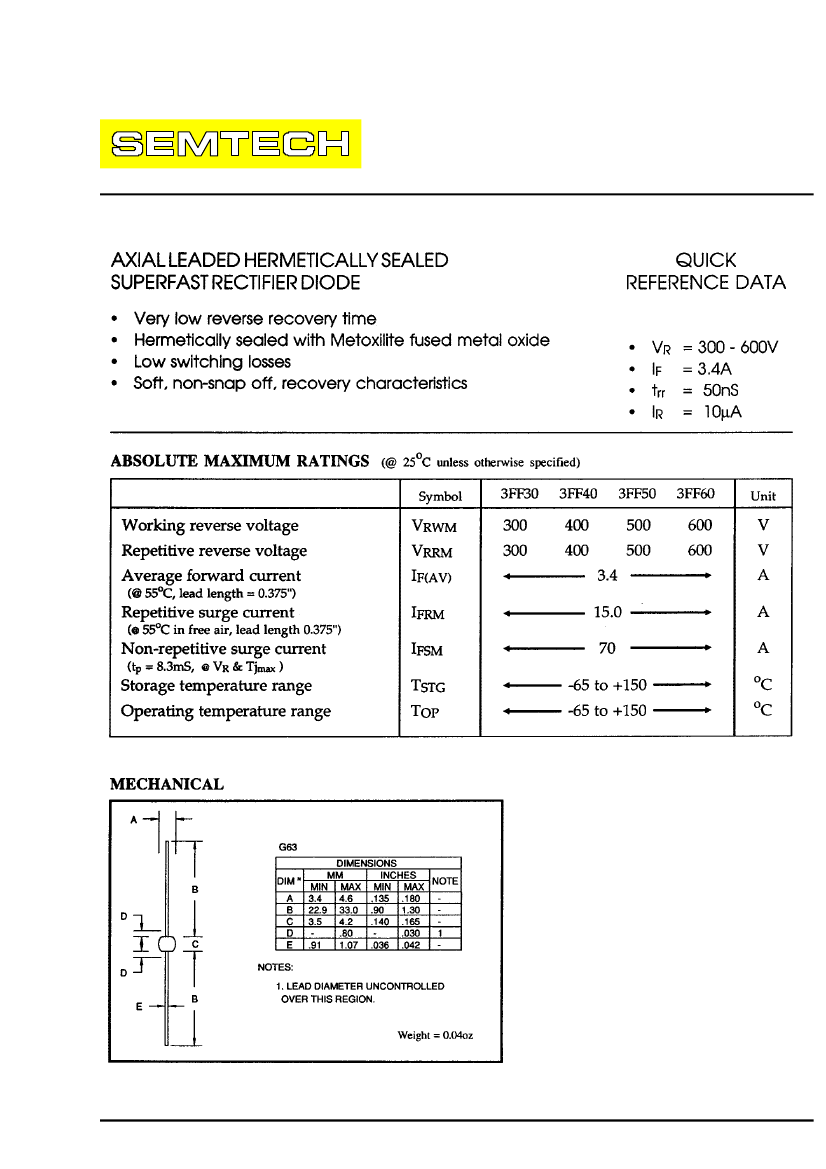

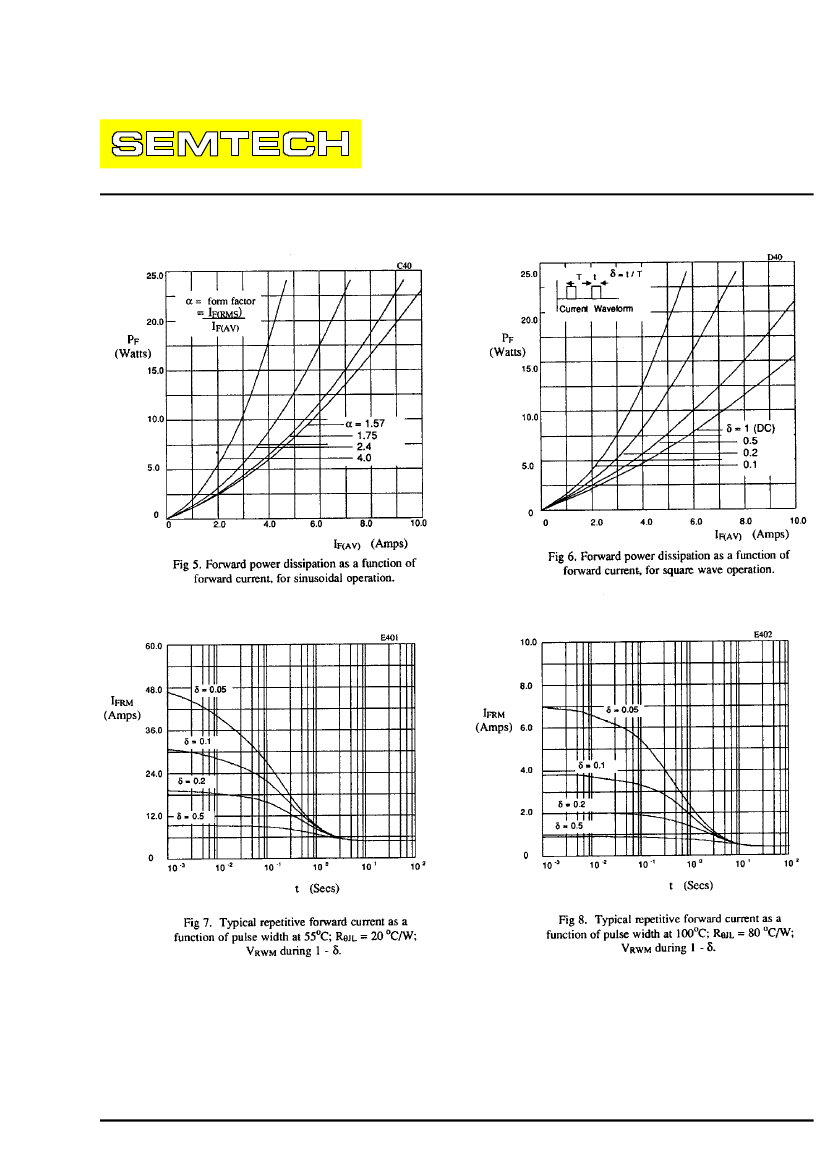

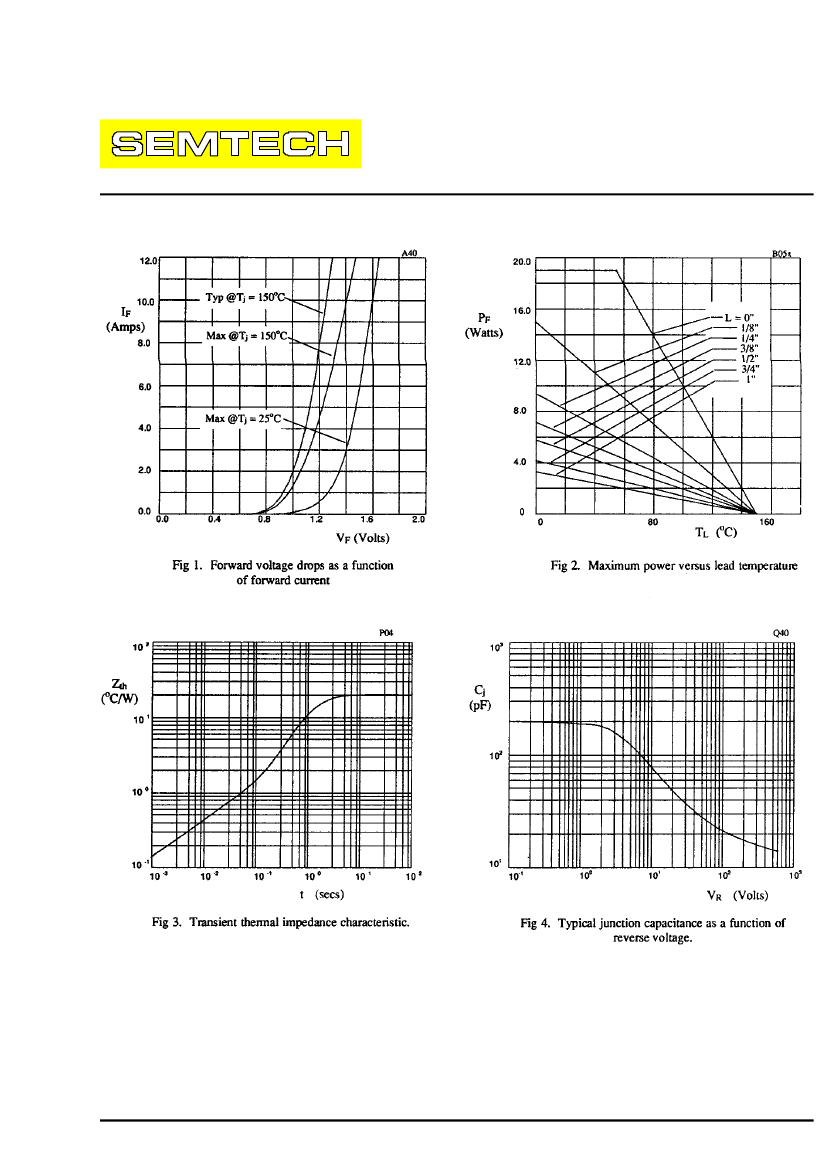

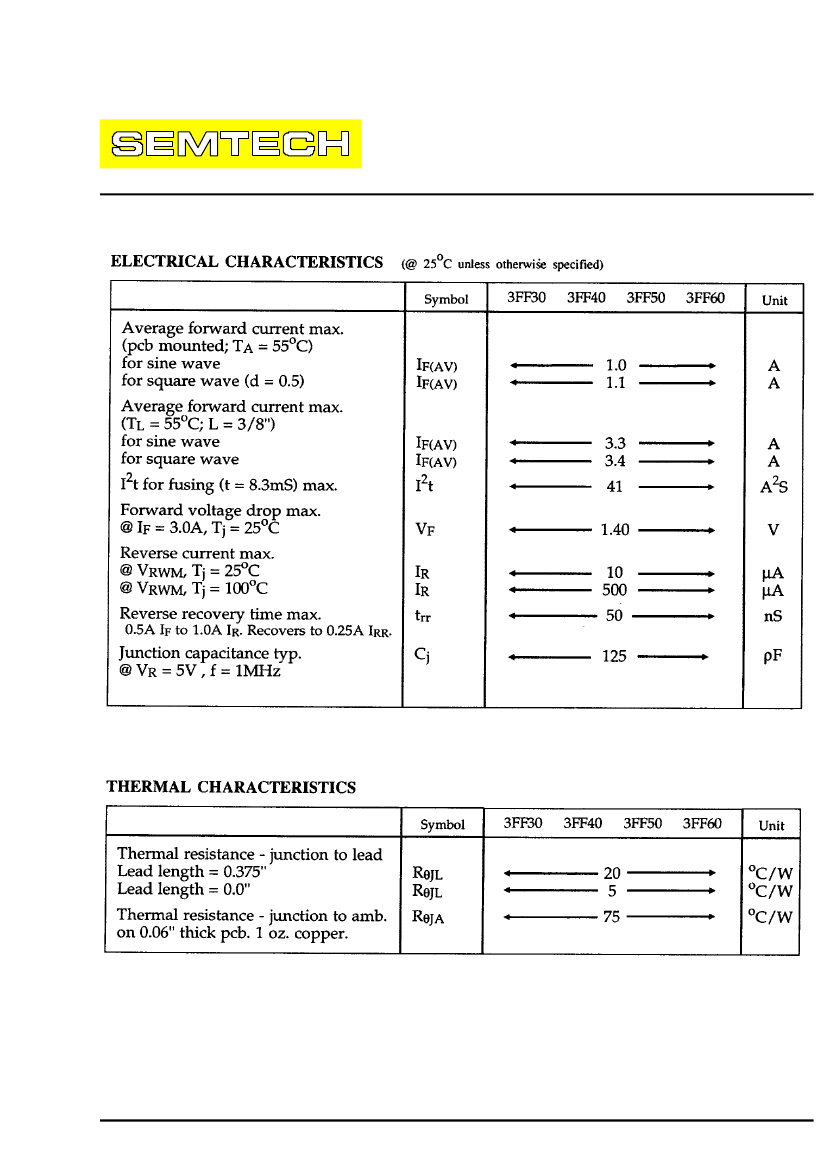

RECTIFIER, up to 600V, 3.4A, 50ns

3FF30

3FF50

3FF40

3FF60

January 7, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

	3FF30	3FF40	3FF50	3FF60
Description	1 A, 300 V, SILICON, SIGNAL DIODE	1 A, 400 V, SILICON, SIGNAL DIODE	1 A, 300 V, SILICON, SIGNAL DIODE	1 A, 600 V, SILICON, SIGNAL DIODE
Maker	SEMTECH	SEMTECH	SEMTECH	SEMTECH
package instruction	HERMETIC SEALED, G63, 2 PIN	E-XALF-W2	HERMETIC SEALED, G63, 2 PIN	HERMETIC SEALED, G63, 2 PIN
Contacts	2	2	2	2
Reach Compliance Code	unknown	unknown	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V	1.4 V	1.4 V
JESD-30 code	E-XALF-W2	E-XALF-W2	E-XALF-W2	E-XALF-W2
Maximum non-repetitive peak forward current	70 A	70 A	70 A	70 A
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	1 A	1 A	1 A	1 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	400 V	500 V	600 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1
