Part Number

Search

3PFT2

Description
1.8 A, 200 V, SILICON, RECTIFIER DIODE
CategoryDiscrete semiconductor    diode
File Size125KB,4 Pages
ManufacturerSEMTECH
Websitehttp://www.semtech.com
Download Datasheet Parametric Compare View All

3PFT2 Overview

1.8 A, 200 V, SILICON, RECTIFIER DIODE

3PFT2 Parametric

Parameter NameAttribute value
package instructionO-XALF-W2
Contacts2
Reach Compliance Codeunknow
ECCN codeEAR99
applicationSUPER FAST SOFT RECOVERY
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.05 V
JESD-30 codeO-XALF-W2
Maximum non-repetitive peak forward current90 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Maximum output current1.8 A
Package body materialUNSPECIFIED
Package shapeROUND
Package formLONG FORM
Certification statusNot Qualified
Maximum repetitive peak reverse voltage200 V
Maximum reverse current1 µA
Maximum reverse recovery time0.03 µs
surface mountNO
Terminal formWIRE
Terminal locationAXIAL
Base Number Matches1

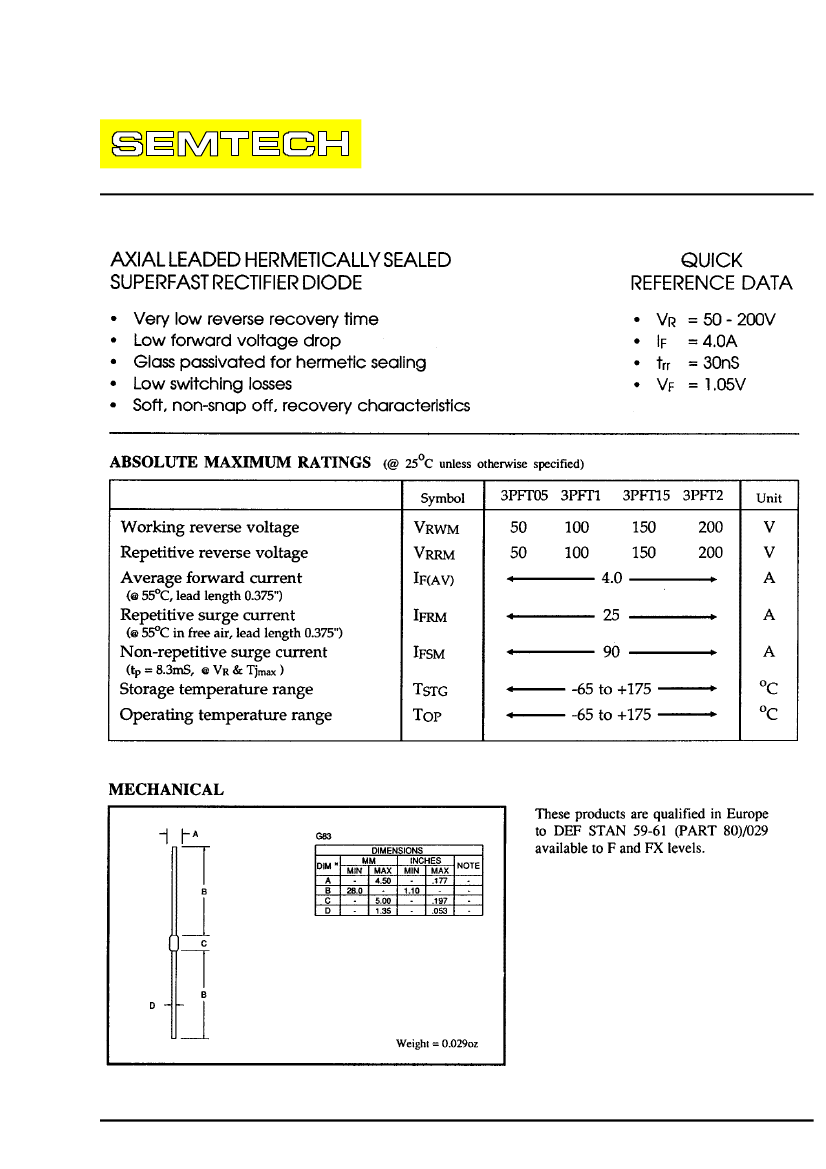

RECTIFIER, up to 200V, 4A, 30ns
3PFT05
3PFT15
3PFT1
3PFT2
January 7, 1998
TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com
© 1997 SEMTECH CORP.
652 MITCHELL ROAD NEWBURY PARK CA 91320

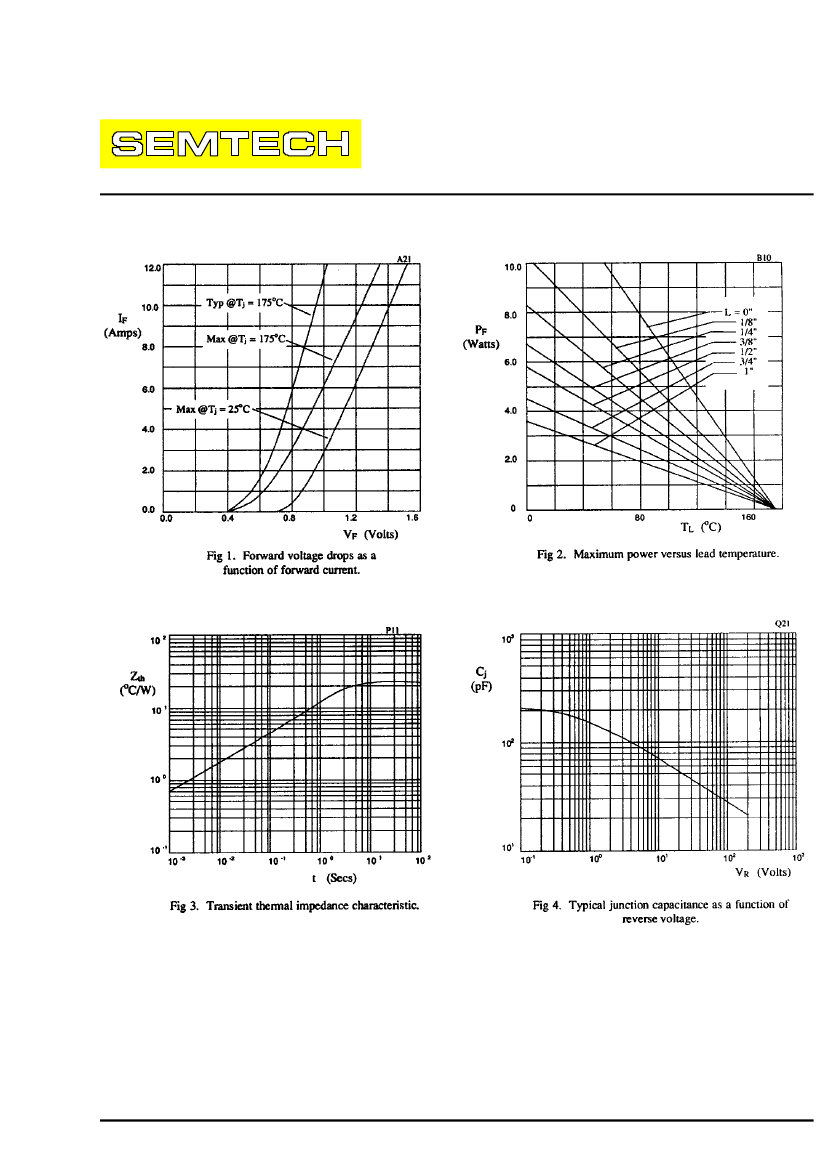

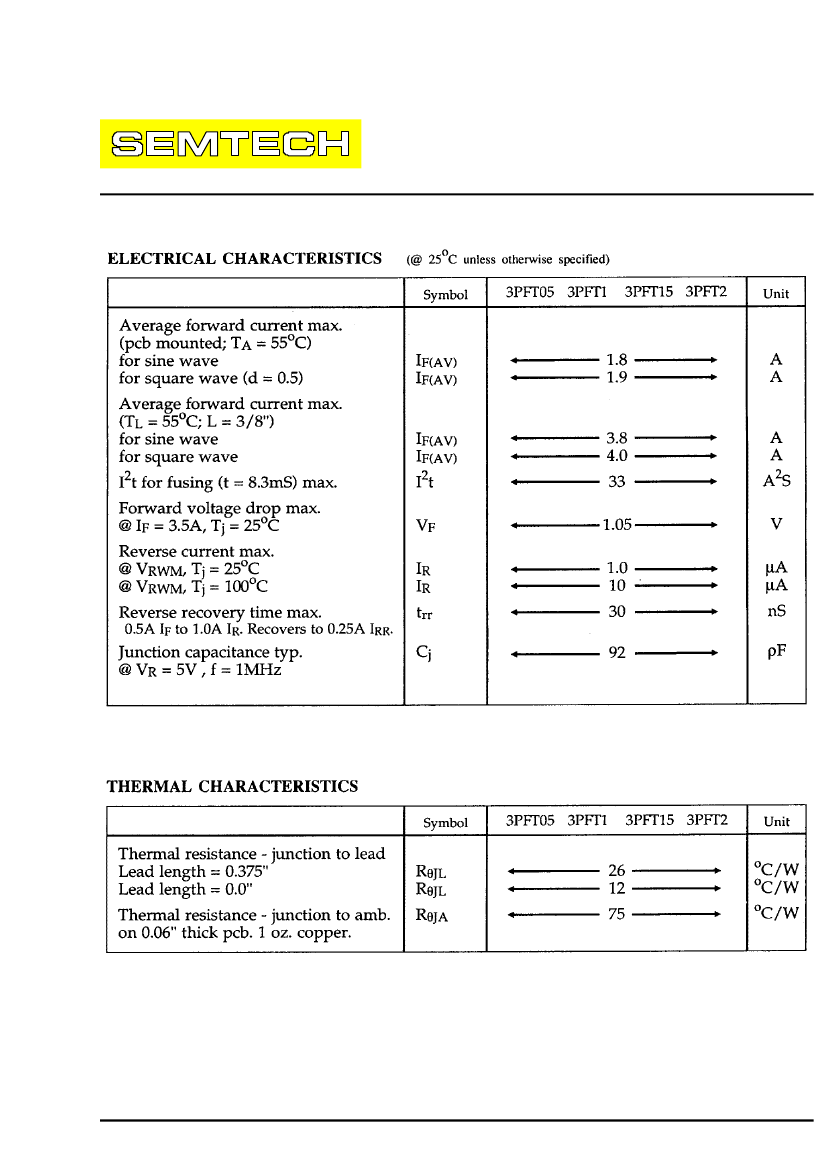

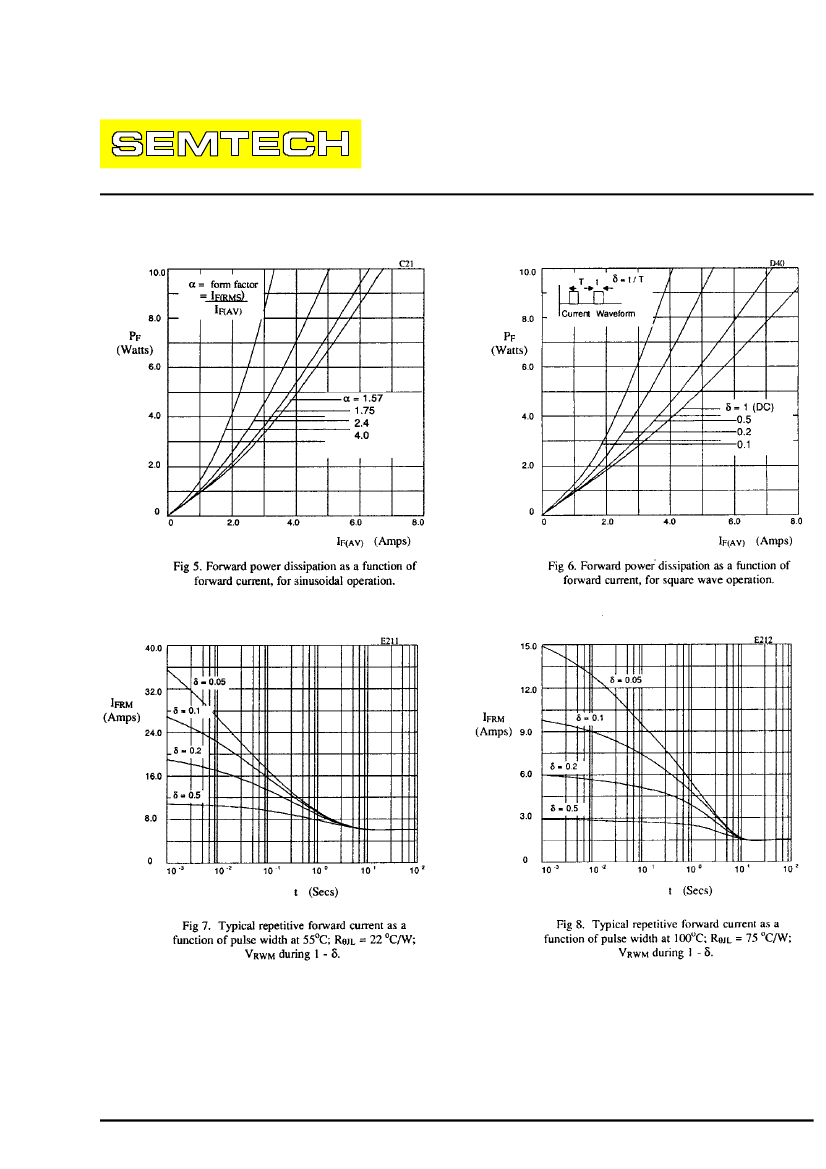

3PFT2 Related Products

3PFT2 3PFT05 3PFT1 3PFT15
Description 1.8 A, 200 V, SILICON, RECTIFIER DIODE 1.8 A, 50 V, SILICON, RECTIFIER DIODE 1.8 A, 100 V, SILICON, RECTIFIER DIODE 1.8 A, 150 V, SILICON, RECTIFIER DIODE
package instruction O-XALF-W2 HERMETIC SEALED, G83, 2 PIN O-XALF-W2 HERMETIC SEALED, G83, 2 PIN
Contacts 2 2 2 2
Reach Compliance Code unknow unknow unknow unknow
ECCN code EAR99 EAR99 EAR99 EAR99
application SUPER FAST SOFT RECOVERY SUPER FAST SOFT RECOVERY SUPER FAST SOFT RECOVERY SUPER FAST SOFT RECOVERY
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED
Configuration SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.05 V 1.05 V 1.05 V 1.05 V
JESD-30 code O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2
Maximum non-repetitive peak forward current 90 A 90 A 90 A 90 A
Number of components 1 1 1 1
Phase 1 1 1 1
Number of terminals 2 2 2 2
Maximum operating temperature 175 °C 175 °C 175 °C 175 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C
Maximum output current 1.8 A 1.8 A 1.8 A 1.8 A
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape ROUND ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM LONG FORM
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 200 V 50 V 100 V 150 V
Maximum reverse current 1 µA 1 µA 1 µA 1 µA
Maximum reverse recovery time 0.03 µs 0.03 µs 0.03 µs 0.03 µs
surface mount NO NO NO NO
Terminal form WIRE WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL AXIAL
Base Number Matches 1 1 1 1
